Pristatymo terminas kiekvienai prekei nurodomas prie kainos bloko.
Pristatymas visoje Lietuvoje: nemokamas.
Trumpai apie prekę
Prekė: Suvirinimo aparatas WELDMAN MICRO MIG 200 MMA. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Weldman
- Modelis: MICRO MIG 200
- Ilgis: 680 mm
- Plotis: 320 mm
- Aukštis: 480 mm
Semi-automatic welding machine MICRO MIG 200 MMA WELDMAN
WELDMAN

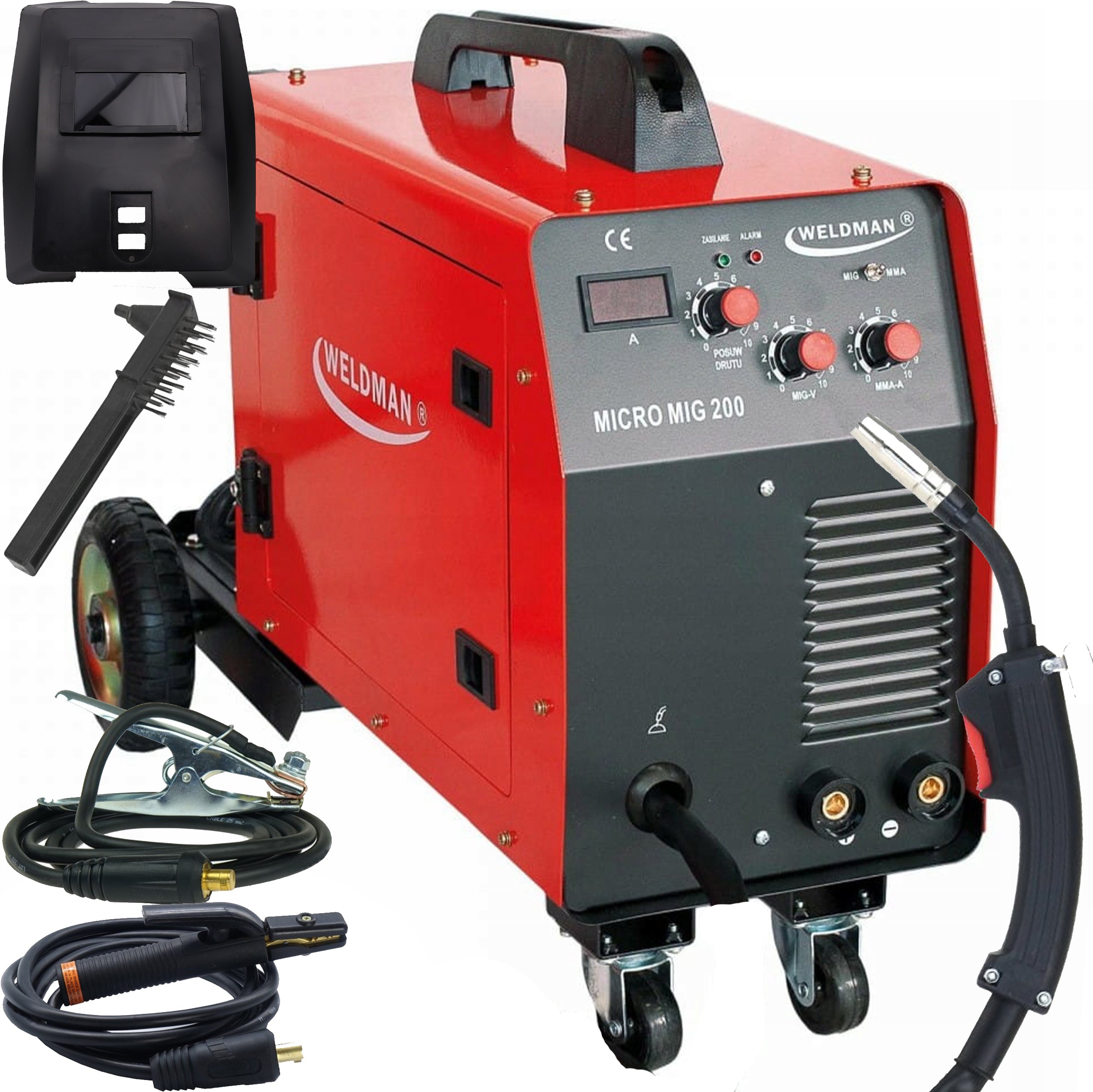

Micro Mig 200 welder is one of the most efficient and solidly made products. These devices of the MICRO MIG 200 series are made on the basis of IGBT inverter technology. As a result, the Micro Mig 200 semi-automatic welding machine has the best features of various transistors. The device uses general protections such as protection against excessive voltage, excessive current, overheating of the device, etc.

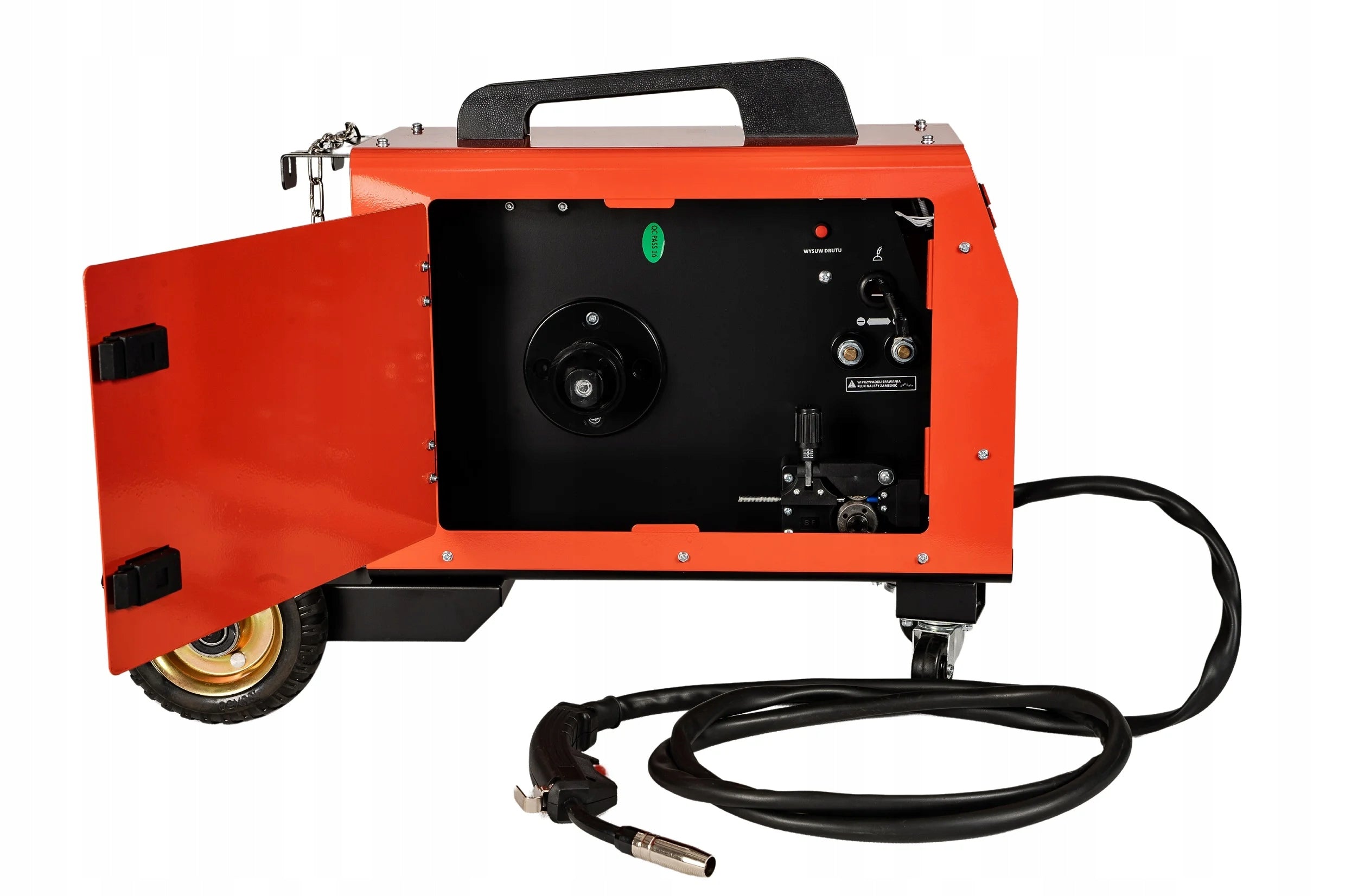

Micro Mig 200 welding machine is designed for MIG/MAG, FLUX, MMA welding of carbon steels, stainless steels, alloy steels, cast iron and aluminum. In addition, it has a wire feeder placed inside, which allows you to attach a spool up to 5kg.
Next to the wire feeder there are sockets for changing the polarity of the handles, which must be replaced in the case of welding without a gas shield (FLUX).
- Welding torch fixed MB 14 3m
- Mass cable 2 m with mass clamp 300A (DX25)
- Cable 2,5 m with electrode holder 200A (DX25)
- Power cord 2 m with plug
- Transport wheels
- Welding mask
- Welding brush
Technical data
- Code: 103 105
- Device type: MICRO MIG 200
- Power supply voltage [V]: 230
- Idle current voltage [V]: 56
- Welding current adjustment range [A]: 20-200
- Efficiency max at 40°C: EN 60974-1, 170A60%, 130A100%,
- Diameter of electrode [mm]: 1,6-4
- Protection class [IP]: 21
- Dimensions [cm]: 68x32x48
- Weight [kg]: 19
- EAN code: 5902701751036
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Weldman |
| Parametry | Power consumption | 8.7 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,6-0,8 |
| Parametry | Device weight | 19 kg |
| Parametry | Welding range | 20–200 A |
| Parametry | Height | 480 mm |
| Parametry | Length | 680 mm |
| Parametry | Width | 320 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 22 kg |
| Parametry | Manufacturer code | 103105 |
| Parametry | EAN (GTIN) | 5902701751036 |
| Parametry | Packaging status | original |
| Parametry | Model | MICRO MIG 200 |
| Parametry | Welding methods | MIG/MAG,MMA |
| Parametry | Additional features | transport wheels,welding mask included,infinitely adjustable welding current,LCD display |
