Trumpai apie prekę
Prekė: Suvirinimo aparatas WELDER POWER MIG 210 LCD SYNERGY 4x41. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Weldman
- Modelis: POWER MIG 210 LCD
- Ilgis: 540 mm
- Plotis: 250 mm
- Aukštis: 440 mm

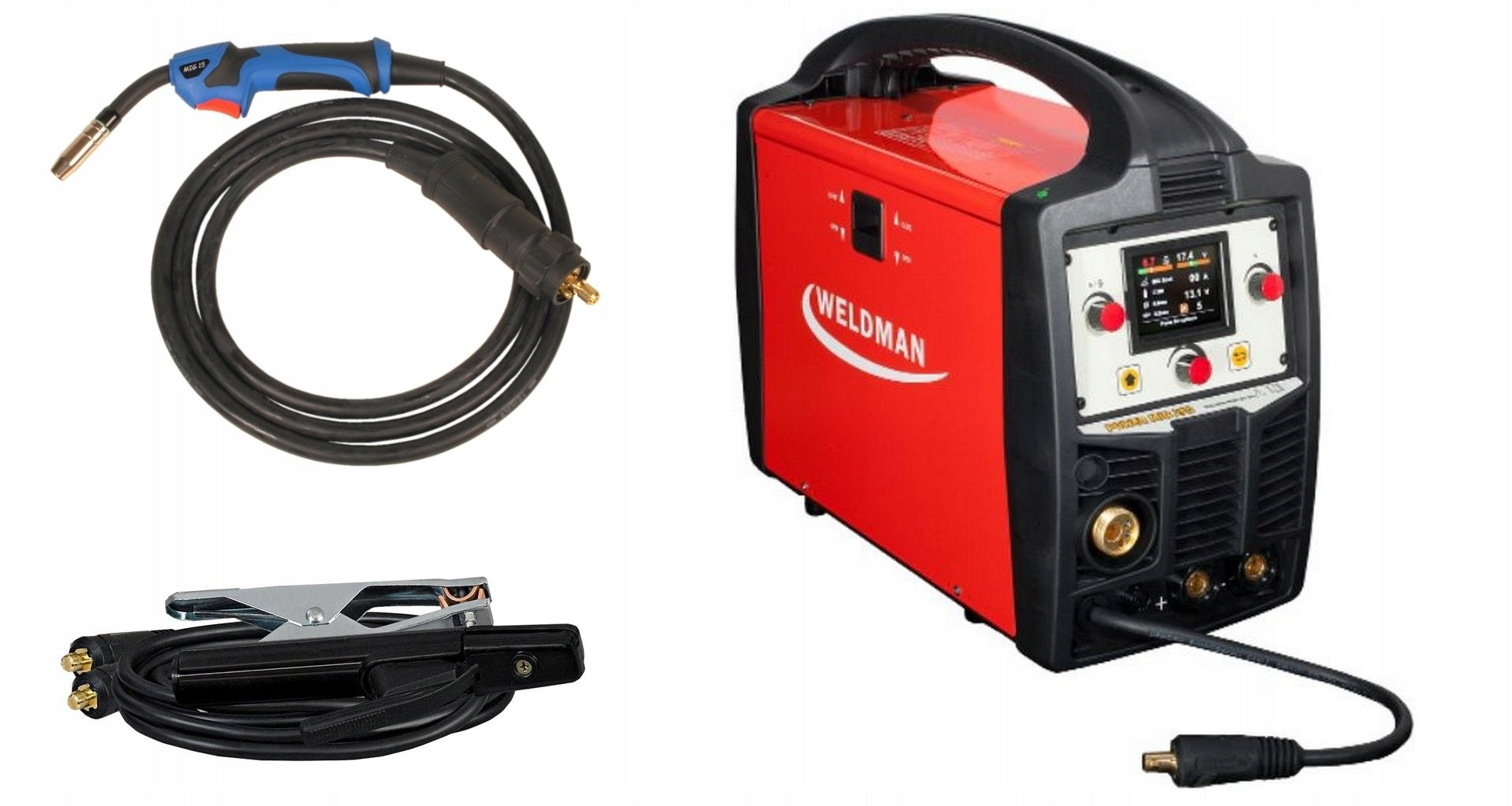

WELDER Migomat POWER MIG 210 LCD SYNERGY 4x4
WELDMAN
Semi-automatic welding machine powered by single-phase POWER MIG 210 LCD microprocessor controlled, made in IGBT inverter technology for MIG/MAG welding (without gas shield) or FLUX welding (without gas shield), for welding with DC electrodes and TIG Lift method with direct current (DC) with contact arc ignition and soldering.
Designed for welding with welding wires with a diameter of 0,6-1,0 mm, self-shielding wires of 0,9 mm and wrapped and tungsten electrodes with a diameter of up to 4 mm of low-carbon steel, low-alloy steel (MAG), alloy steel (MIG), aluminum and cast iron.
Max spool 5 kg D200.
- Electronically controlled smooth regulation of welding current and wire feed speed.

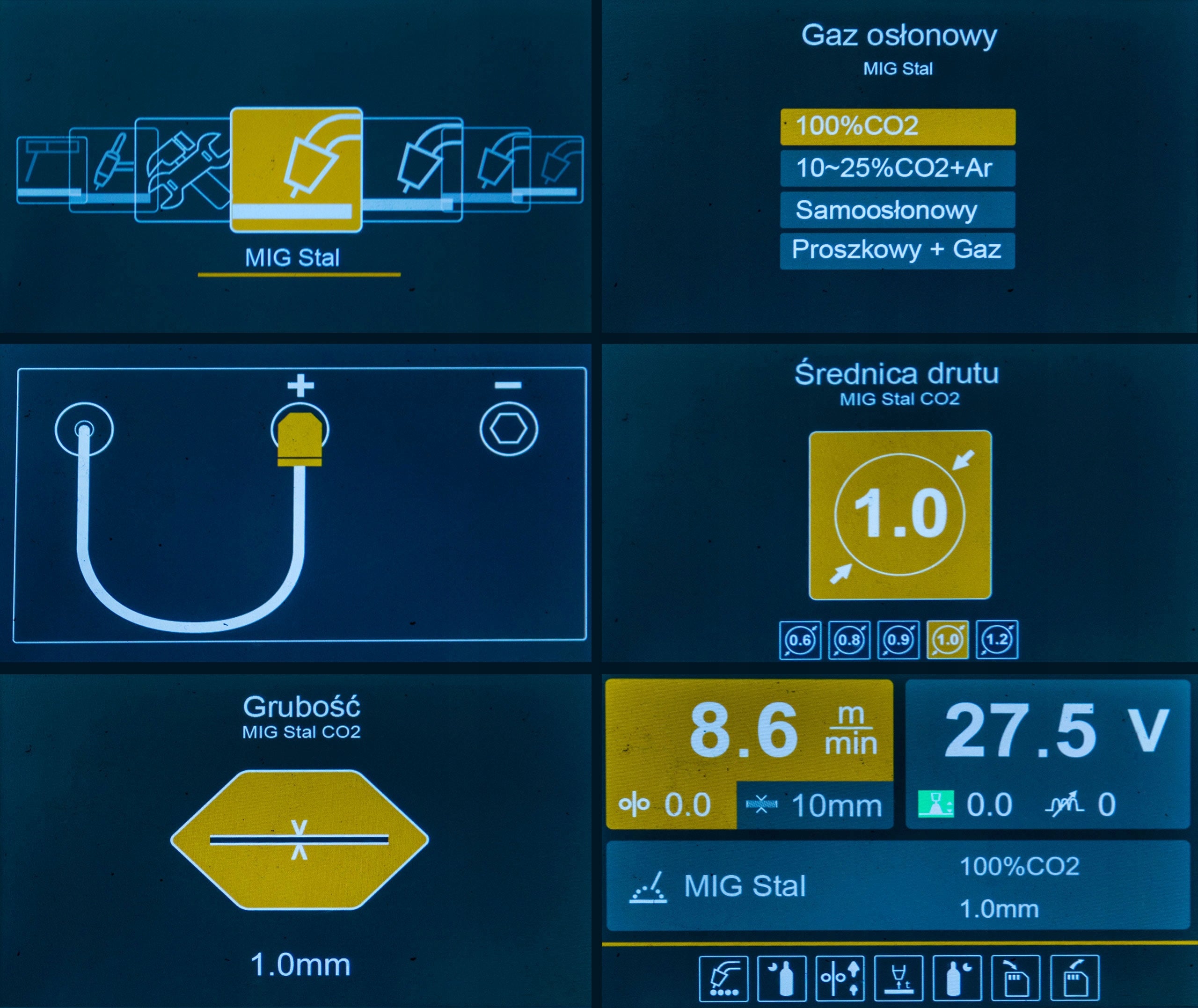

- Synergistic welding: 9 programs m.in. soldering program.-Selective selection of welded material.-Intuitive graphic menu on color LCD display.

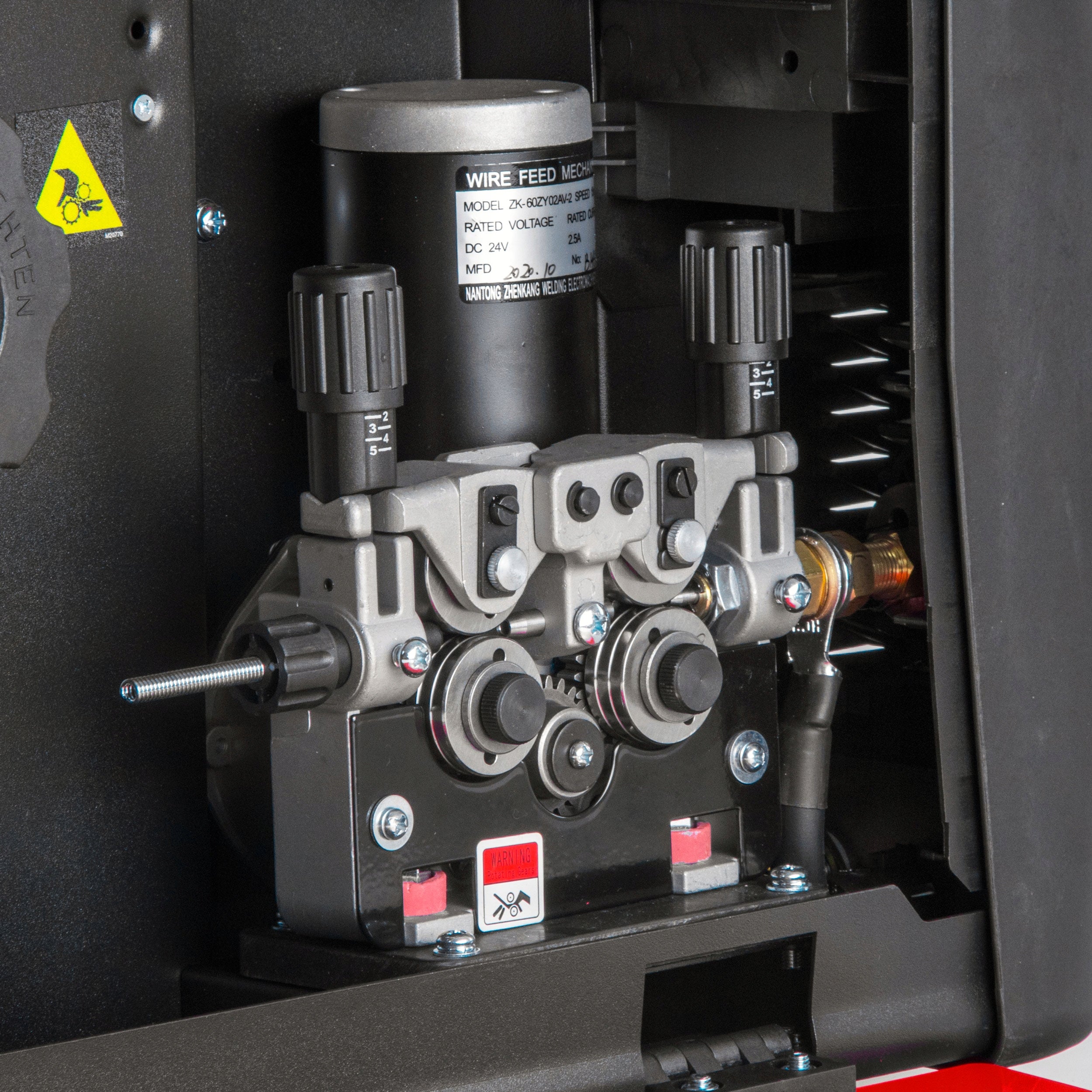

- 4-roll wire feeder, spool gun welding torch can be welded
- Operation function in 2-bar / 4-bar / spot welding mode.
- It has features to facilitate MMA welding:
- HOT START: increases welding current when arcing to facilitate electrode ignition
- ARC FORCE (arch dynamics): shortens the arc length when increasing the welding current by optimizing the transfer of a drop of molten electrode to the welded material, preventing the arc from being extinguished when the electrode contacts the welded material
- ANTI STICK: reduces welding current by preventing the electrode from sticking to the welded material
- VRD (reduction of idle voltage on the wrapped electrode to a safe level) providing additional safety to the operator, especially when working in environments with high humidity,
Equipped with eurodisconnector and detachable mass cable.
Thermal protection.
The combination of multiple welding processes in one device and compact size make it possible to use wherever compactness and easy transport are required (renovations or minor repairs in the field) and in conditions where there is a greater likelihood of electric shock.
TECHNICAL DATA :
- Supply voltage [V] 230
- Idle current voltage [V] 69
- Welding current adjustment range [A]
- MIG 15-200
- TIG DC 10-180
- MMA 20-180
- Max efficiency at 40°C EN 60974-1
- 200A@20%
- 89A@100%
- Wire diameter [mm]0,6-1,0
- Protection class [IP]21S
- Dimensions [cm] 54x25x44
- Weight [kg]21
- Price of the device with a set of MIG and MMA accessories:
- Mig welding torch
- MMA electrode cable
- mass cable
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Weldman |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 20% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,6-1,0 |
| Parametry | Device weight | 21.5 kg |
| Parametry | Welding range | 40–200 A |
| Parametry | Height | 440 mm |
| Parametry | Length | 540 mm |
| Parametry | Width | 250 mm |
| Parametry | Length of ground cable | 300 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 25 kg |
| Parametry | Manufacturer code | WELDMAN POWER MIG 210 LCD IGBT |
| Parametry | EAN (GTIN) | 5902701750756 |
| Parametry | Model | POWER MIG 210 LCD |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
