Trumpai apie prekę

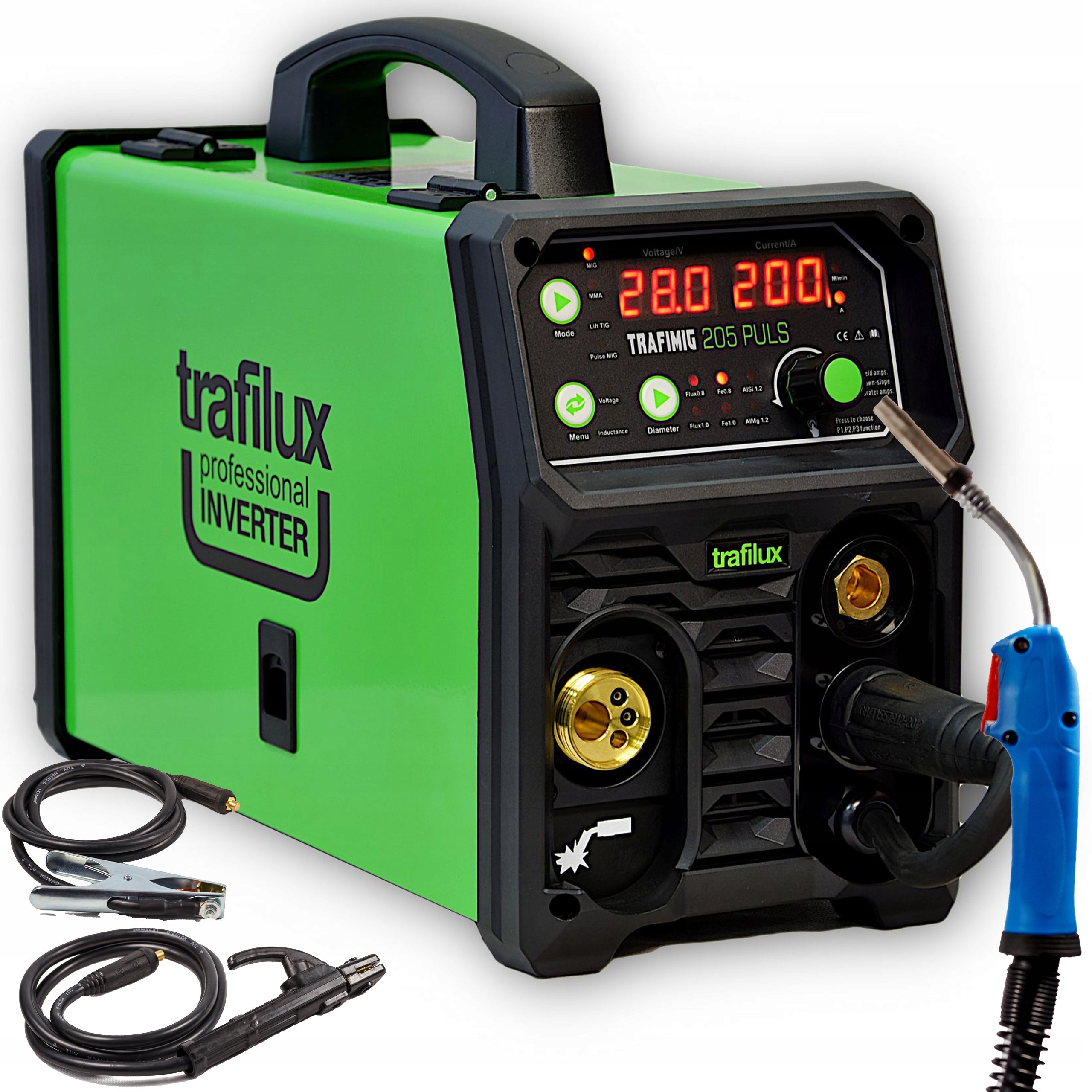

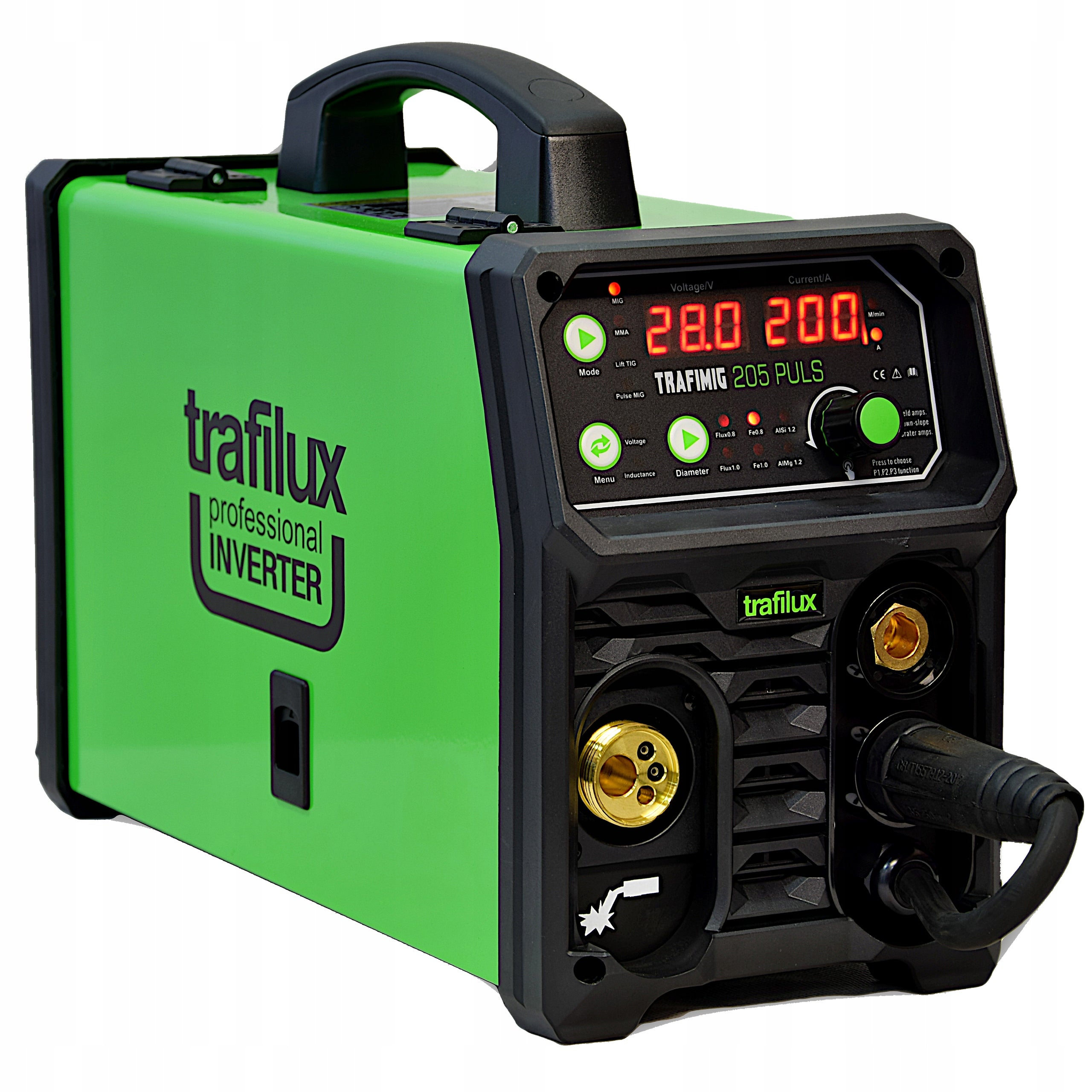

Prekė: Suvirinimo aparatas Trafilux TRAFIMIG 205 PULS 200a. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Trafilux
- Modelis: TRAFIMIG 205 PULS
- Ilgis: 410 mm
- Plotis: 165 mm
- Aukštis: 300 mm
- TRAFMIG 205 PULS,
- MIG/MAG MB24 3m holder,
- Electrode holder,
- Bulk holder,
- Rolls of feeder for steel 0,8-1,0
- Aluminium feeder rollers 1,0-1,2
- Guide steel and Teflon,
- Power plug 230V,
- Heater socket 36V,
- Operating instructions.

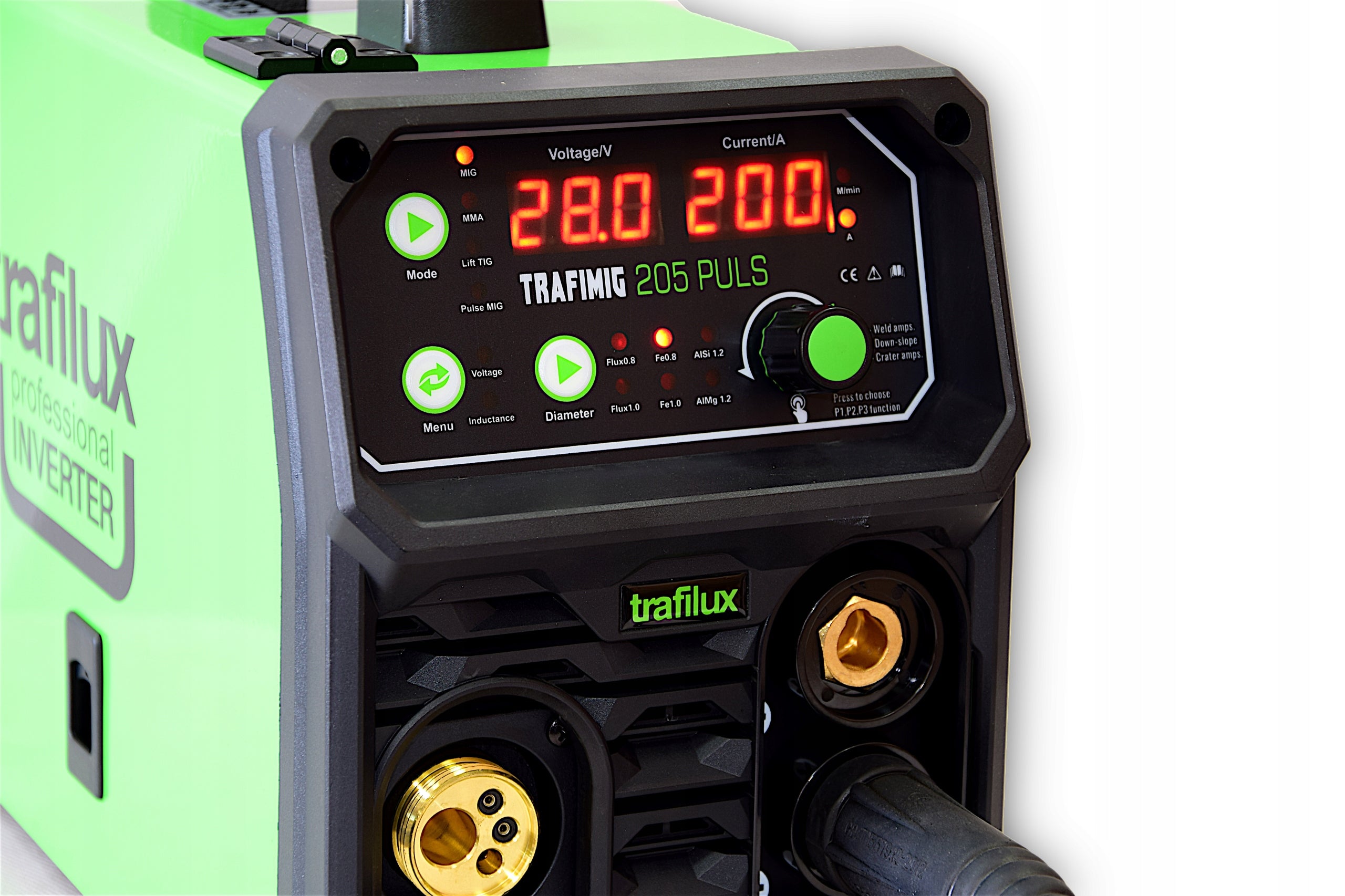

Professional inverter semi-automatic welding machine designed to work in workshop conditions giving the possibility of welding light structures. The device is characterized by compact size and low weight of 8kg. Extensive functionality of the device allows you to work in MIG/MAG, MMA, TIG lift modes. Synergistic semi-automatic machine with the possibility of pulsation in the MIG/MAG method, thanks to which it is possible to weld aluminum alloys, Synergistic values for the selected mode of operation can be corrected by the user at his own discretion. Two readable displays indicate voltage values, operating current, and wire feed rate. Variable polarity placed on the front panel, allows welding without gas, powder wires. The device has large welding sockets and a 24/3m welding torch from the PRO series with a maximum current capacity of up to 280A. The device can also work in the MMA method – giving the ability to adjust the value of current, ARC FORCE arc dynamics, and in TIG LIFT mode. The design advantage of the device are transistors made in IGBT technology. A characteristic feature of this type of transistors is lower power consumption, less electromagnetic interference, with greater efficiency and a stronger and more stable welding arc.
- PULS - Synergy
- Variable polarity
- Wire spools 1-5KG
- Possibility of correction of synergistic values
- Regulation of inductance
- Large sockets
Synergy programmes for:
- Regulation of start current, crater filling current, current drop time
- Flux 0.8 Flux 1.0
- Black steel 0,8 - 1,0
- Aluminium AlMg 1,0/1,2 AlSi 1,0/1,2
- Power supply / frequency: 230/±15%/50Hz
- Working cycle@ 40°c: 60% @ 200 Amps MIG
- MIG operating current: 25A - 200A
- MMA working current: 30A - 200A
- TIG operating current: 20A - 200A
- Feeder type: 2-Roller
- Wire diameters: 0.8/1.0/1.2mm
- Performance: 85%
- Security class: IP 21
- Dimensions (LxWxH): 460x220x375mm
- Weight: 8,0kg
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Trafilux |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,2 |
| Parametry | Device weight | 10 kg |
| Parametry | Welding range | 30–200 A |
| Parametry | Height | 300 mm |
| Parametry | Length | 410 mm |
| Parametry | Width | 165 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 10 kg |
| Parametry | Manufacturer code | TRAFIMIG 205 PULS |
| Parametry | EAN (GTIN) | 5904044980388 |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle |
