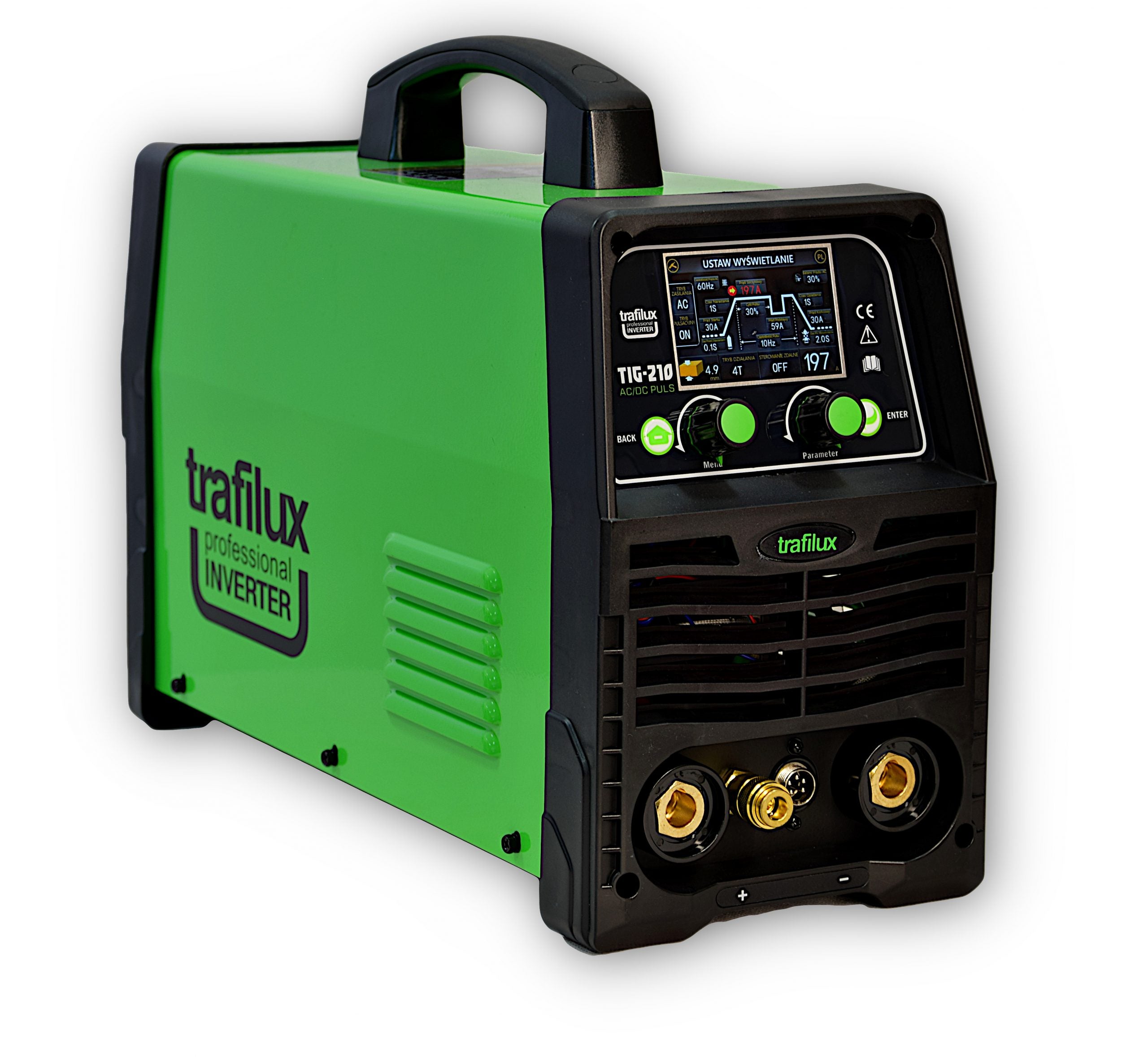

Suvirinimo aparatas TRAFILUX TIG 210 AC/DC PULSE LCD

Trumpai apie prekę

Prekė: Suvirinimo aparatas TRAFILUX TIG 210 AC/DC PULSE LCD. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Trafilux
• Modelis: T0529

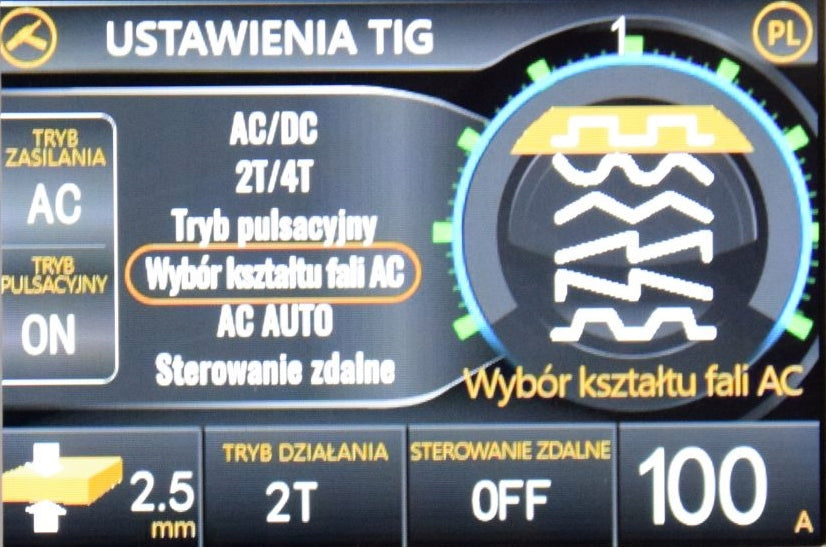

TIG-210 AC/DC PULS is an industrial microprocessor device equipped with a color LCD display, based on IGBT technology, adapted for welding carbon steels, stainless steels, acid-resistant steels, copper, brass, magnesium, titanium, all aluminum alloys. The device is designed to carry out professional welding work. Thanks to the “LCD” control panel, setting the operating parameters is easy and intuitive, even for less advanced users, In addition, we have 4 languages to choose from, including Polish. The advantage of the device is high quality of workmanship, which translates directly into the result of welding work. The device has a full synergy mode, thanks to which the parameters are set automatically to the selected type of material and its thickness. In professional mode, we also have the "AC AUTO" function, thanks to which the machine itself corrects values such as AC current frequency and AC current balance. The user also has a choice of 6 waveforms, and built-in memory that allows you to save 18 any work programs. The design advantage of the device are transistors made in IGBT technology. A characteristic feature of this type of transistors is lower power consumption, less electromagnetic interference, with greater efficiency and a stronger and more stable welding arc. The device has the ability to weld two current values alternately - BI-LEVEL function, and spot welding, SPOT function.

Advantages:

• AC DC PULSE
• Full Synergy
• Professional mode
• Menu in 4 languages including PL,
• Changing the waveform – 6 different waves,
• Microprocessor with 18-channel memory allows the user to save any work programs,
• Synergy – Automatic selection of operating parameters,
• Changing the waveform,
• 30% less power consumption from the mains,
• Changing the waveform in AC,
• AC Auto mode - for less advanced users choosing the balance of AC current and AC frequency,
• Possibility of deactivating the HF system.
• LCD display
• Synergy programs for Black steel, AlMG, AlSi, INOX, CuSi3
• Possibility of remote control via Potentiometer holder or pedal
• 2T/4T SPOT - spot welding,
• BI-LEVEL

Features:

• ARC FORCE: short-circuit current adjustment - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.
• HOT START: hot start adjustment - facilitates the ignition of the electrode by providing more welding current with each arc.
• ANTI STICK: short-circuit - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents the accidental formation of a welding arc.
• SYNERGISTIC MODE - In auto mode, the device synergistically selects parameters based on user input such as material thickness, wire type, etc.

Equipment :

• TIG 26/4 handle
• Mass cable
• Electrode cable
• TIG electrode gold, green
• Power plug 230V
• TIG Handle Parts
• Instruction in Polish.

• Manufacturer: TRAFILUX
• Power supply voltage: 230V (50-60Hz)
• Working cycle: 60% 200A / 100% 130A
• Welding current adjustment (A): 5-200
• Time of descent/increase of current (S): 0-10
• Delay/overtaking of gas outflow (S): 0-2/0-10
• Pulse frequency (HZ): 0.5-999
• Pulse width (%): 0.5-999
• Frequency in AC (HZ): 50~250
• Idle voltage (V): 70
• Housing protection: Ip23
• Cooling: Energy-saving fan
• Net weight (Kg): 9,2
• Dimensions (mm): 420X180X300
• Factory number: TIG210AC/DCPULSLCD
