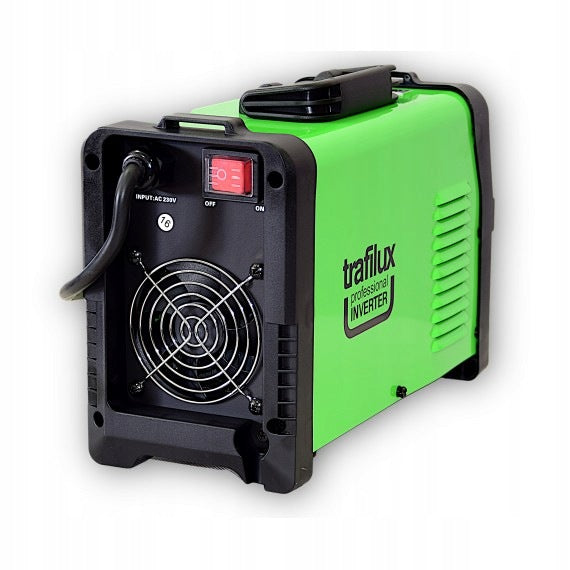

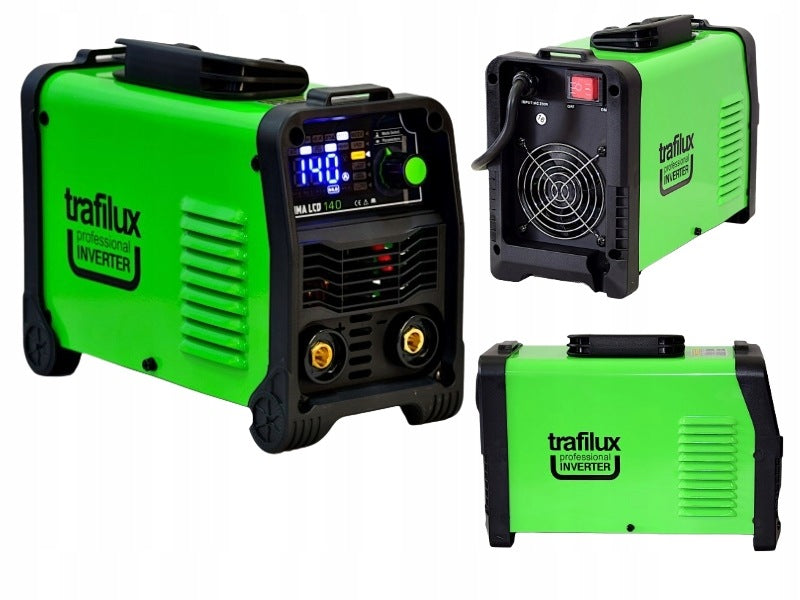

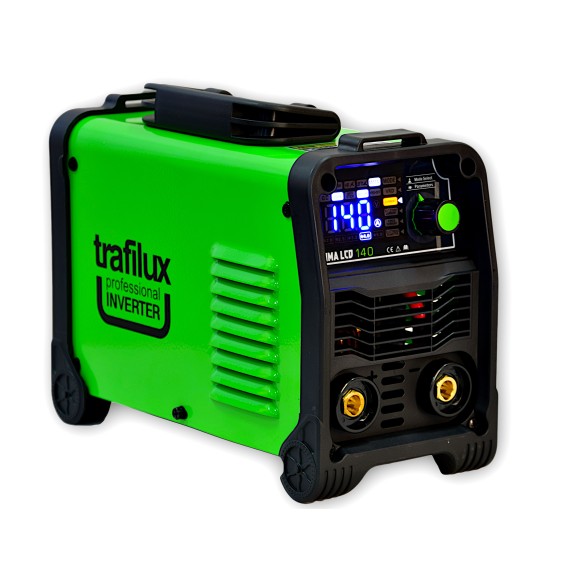

Suvirinimo aparatas TRAFILUX MMA LCD 140, 140A, IGBT

Trumpai apie prekę

Prekė: Suvirinimo aparatas TRAFILUX MMA LCD 140, 140A, IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Trafilux
• Modelis: TRAFILUX 140 MMA

TRAFILUX MMA LCD 140 is a modern inverter welding machine designed for users who expect reliability, high-quality welds and work comfort. Thanks to the use of modern IGBT technology, the device offers a stable welding arc, high efficiency and lower electricity consumption.

Its small size, weight of only 2.9 kg and practical shoulder strap make the device perfect for assembly, service, renovation work and wherever mobility is important.

Advanced welding support functions, such as synergistic parameter selection , HOT START , ARC FORCE , VRD and the possibility of TIG Lift welding, make this model an excellent choice for both more experienced welders and those starting to work with the MMA method.

• IGBT inverter technology for stable arc and high efficiency

• Synergistic selection of parameters for the electrode diameter

• HOT START regulation in the range of 0–100 A

• ARC FORCE adjustment in the range of 0–100 A

• VRD module for increased work safety

• Possibility to deactivate the VRD function

• TIG LIFT function

• Colorful and readable LCD display

• Light weight – only 2.9 kg

• Compact design for easy transport

• Shoulder strap included

• Possibility of welding with basic electrodes

• High efficiency and energy savings

The use of IGBT transistors translates into high operating culture of the device. This technology provides:

• more stable welding arc,

• greater device efficiency,

• lower energy consumption,

• reducing electromagnetic interference,

• high durability of components.

This makes welding more precise, comfortable and effective even during longer periods of work.

The welding machine is equipped with a synergy function that automatically selects the optimal operating parameters for the selected electrode diameter.

Supported electrode diameters:

• 2.0 mm

• 2.5 mm

• 3.2 mm

• 4.0 mm

This solution makes it much easier to get started and allows you to achieve high-quality welds without time-consuming parameter setting.

TRAFILUX MMA LCD 140 model is equipped with a VRD (Voltage Reduction Device) module, which reduces the device's open circuit voltage to a safe level.

This solution increases safety during work:

• in places with increased humidity,

• during sewage works,

• in excavations,

• combined heat and power plants,

• and wherever there is an increased risk of electric shock.

Adjustable HOT START makes it easier to ignite the arc by momentarily increasing the welding current at the beginning of work.

Adjustable ARC FORCE stabilizes the arc during welding and reduces the risk of electrode sticking, ensuring greater comfort and better quality welds.

The welding machine is perfect for welding:

• structural steel,

• stainless steel,

• heat-resistant steel,

• cast iron elements.

Perfect for:

• car workshops,

• farms,

• renovation works,

• technical services,

• assembly work,

• home and semi-professional use.

Model: TRAFILUX MMA LCD 140

Supply voltage: 230 V ±15%

Frequency: 50/60 Hz

Current consumption: 26.7 A

Welding current: 30–140 A

Duty cycle: 60%

Open circuit voltage: 73 V

VRD voltage: 13 V

HOT START regulation: 0–100 A

ARC FORCE adjustment: 0–100 A

TIG mode: TIG Lift

Technology: IGBT

Degree of protection: IP21

Dimensions: 25 × 13 × 21 cm

Weight: 2.9 kg

• TRAFILUX MMA LCD 140 welding machine

• Ground wire

• Electrode wire

• Shoulder strap

• 230V power plug

• Welding filter shield

TRAFILUX MMA LCD 140 is a modern inverter welding machine that combines compact dimensions with high performance and advanced work support functions. Thanks to IGBT technology, synergy function, VRD module and TIG welding option, Lift is an excellent choice for both professionals and demanding DIY enthusiasts. Its robust design, intuitive operation and extensive equipment ensure that the device can withstand the daily challenges of the workshop, construction site and assembly work.

TRAFILUX MMA LCD 140 inverter welder with IGBT, VRD, TIG Lift technology, HOT START and ARC FORCE control and color LCD display. Lightweight, efficient and ideal for workshop and assembly work.
