Suvirinimo aparatas Trafilux MMA 235 PRO, IGBT, TIG Lift, VRD, elektrodams iki 5 mm

Trumpai apie prekę

Prekė: Suvirinimo aparatas Trafilux MMA 235 PRO, IGBT, TIG Lift, VRD, elektrodams iki 5 mm. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Trafilux
• Modelis: TRAFILUX 235 PRO
• Ilgis: 420 mm
• Plotis: 170 mm
• Aukštis: 265 mm

Looking for a professional, durable welding machine for your farm, workshop, and field work? Trafilux MMA 235 PRO is a powerful, inverter device IGBT offering welding current in the range of 20 – 200 A in a high duty cycle 60%! The mask supports a wide range of wrapped electrodes (including alkaline electrodes) with diameters ranging from 1,6 to 5,0 mm. Equipped with smooth adjustment of HOT START, ARC FORCE arc dynamics, VRD module for increased safety in humid environments, TIG Lift mode and reinforced welding sockets 35-50 mm.

Welding in a variety of conditions – from a backyard workshop, through assembly work, to damp excavations and ducts – requires equipment that is uncompromising in terms of power and safety.

Trafilux MMA 235 PRO will meet each of these challenges. Made with reliable IGBT transistor technology, it provides a stable welding arc, high efficiency coefficient and lower power consumption. Smooth adjustment of HOT START (facilitation of ignition) and ARC FORCE (arch stabilization) prevents sticking of the electrode and allows smooth welds on carbon steel, stainless steel, heat-resistant steel and cast iron. The VRD module increases operator safety when working in places with an increased risk of electric shock.

• Support for electrodes in the range of 1.6 – 5.0 mm – easily welds rutile and alkaline electrodes.
• High duty cycle (60% at 200 A) – efficient and efficient work under heavy loads.
• HOT START and ARC FORCE adjustment – full control over arch behavior and comfort of start.
• VRD safety module – protection against shock in high humidity environments.
• Reinforced welding sockets 35-50 mm – guarantee stable current flow without overheating the contacts.
• Anti-Stick module – makes it easier to detach the electrode if it is attached.
• Practical shoulder strap – high mobility and comfort when working at heights.

• MMA mode and TIG Lift – the possibility of traditional electrode and TIG welding after connecting the appropriate handle.
• Digital control panel – a clear display and clear buttons for selecting parameters.
• IP 23 housing – high resistance to weather conditions and dust.

Trafilux MMA 235 PRO combines robustness and industrial performance with ease of use. A large range of electrode diameters (up to 5,0 mm) and current protection make it a universal equipment for years.

• Welding in households, repair and locksmith workshops.
• Construction, assembly and repair work in the field.
• Works in excavations, sewerage and combined heat and power plants (thanks to the VRD module).
• Combining elements of structural steel, stainless steel, heat-resistant steel and cast iron.

• Brand: Trafilux
• Model: MMA 235 PRO
• Power supply: AC 230 V (±15%) / 50/60 Hz
• Technology: IGBT inverter
• Welding current: 20 – 200 A
• Work cycle: 60%
• Idle voltage: 80 V
• Power consumption: 26,2 A
• Supported electrode diameters: 1,6 – 5,0 mm
• Welding sockets: ŁW/ŁP 35-50 mm
• Housing protection rating: IP 23
• Dimensions: 42 x 17 x 27 cm
• Weight: 7,9 kg

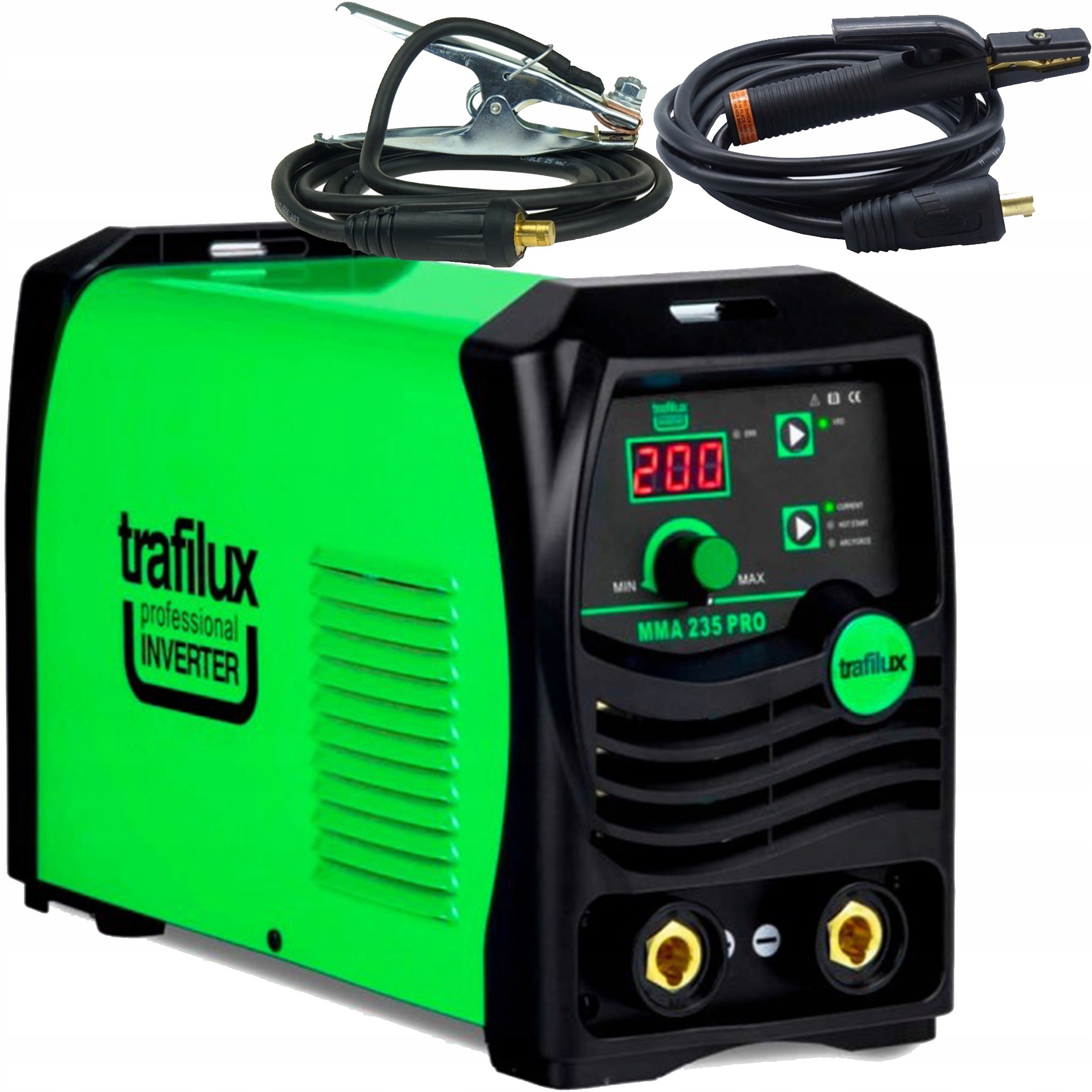

• Trafilux MMA 235 PRO inverter welder.
• Cable with electrode holder.
• Mass cable with clamp.
• Shoulder strap.
• Power plug 230V.
• User manual in Polish.

🎁 With the device you gain

• Versatility – the ability to weld thicker materials with electrodes up to 5,0 mm.
• Peace and safety – VRD protection when working in difficult, humid conditions.
• Solid connections – 35-50 mm sockets ensure long and trouble-free operation at high current.

Q: What are the HOT START and ARC FORCE features of the MMA 235 PRO?

A: HOT START facilitates arcing by short-term raising of current at startup. ARC FORCE regulates arc dynamics, preventing it from fading and sticking to the electrode when approaching the material.

Q: What are the advantages of VRD?

A: The VRD module reduces idling voltage to a safe level, which significantly reduces the risk of electric shock when operating in humid or conductive areas such as ducts, tanks or excavations.

Q: Can the device be TIG welded?

A: Yes, the welding machine has TIG Lift mode. To weld with this method, you need to buy an optional TIG handle with a valve in the handle.
