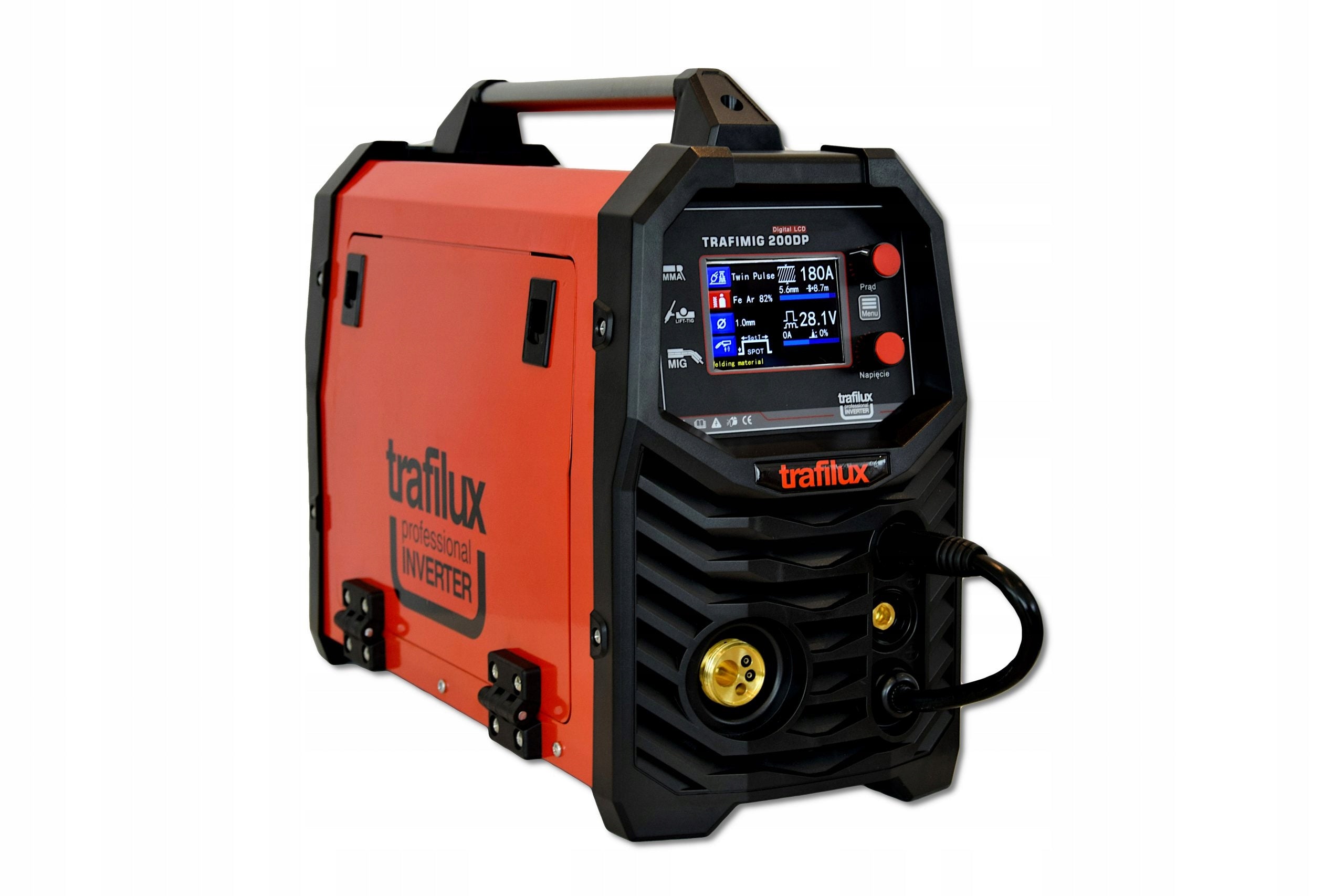

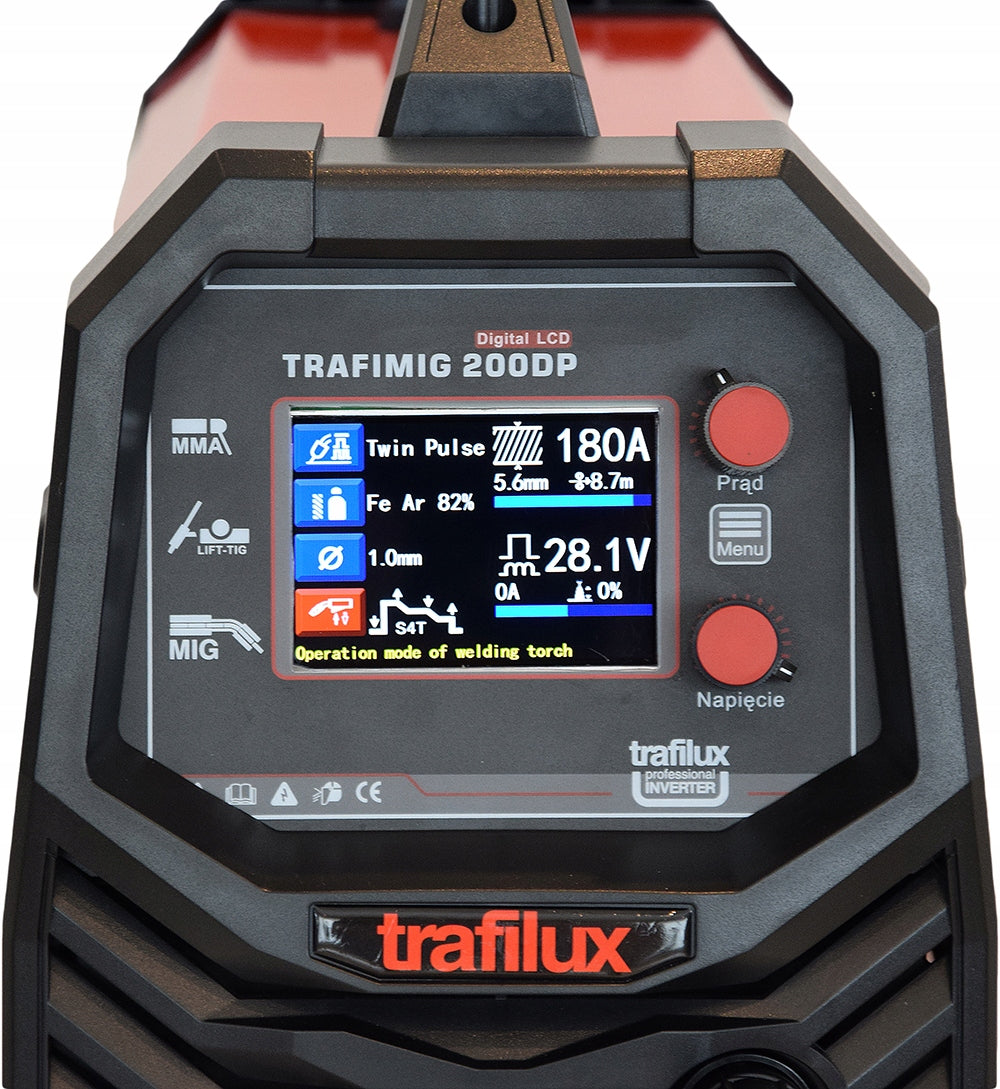

Suvirinimo aparatas TRAFILUX 200A Dual Pulse 200 ALU

Trumpai apie prekę

Prekė: Suvirinimo aparatas TRAFILUX 200A Dual Pulse 200 ALU. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Trafilux
• Modelis: SPAWARKA TRAFIMIG 200 DUAL PULS LCD

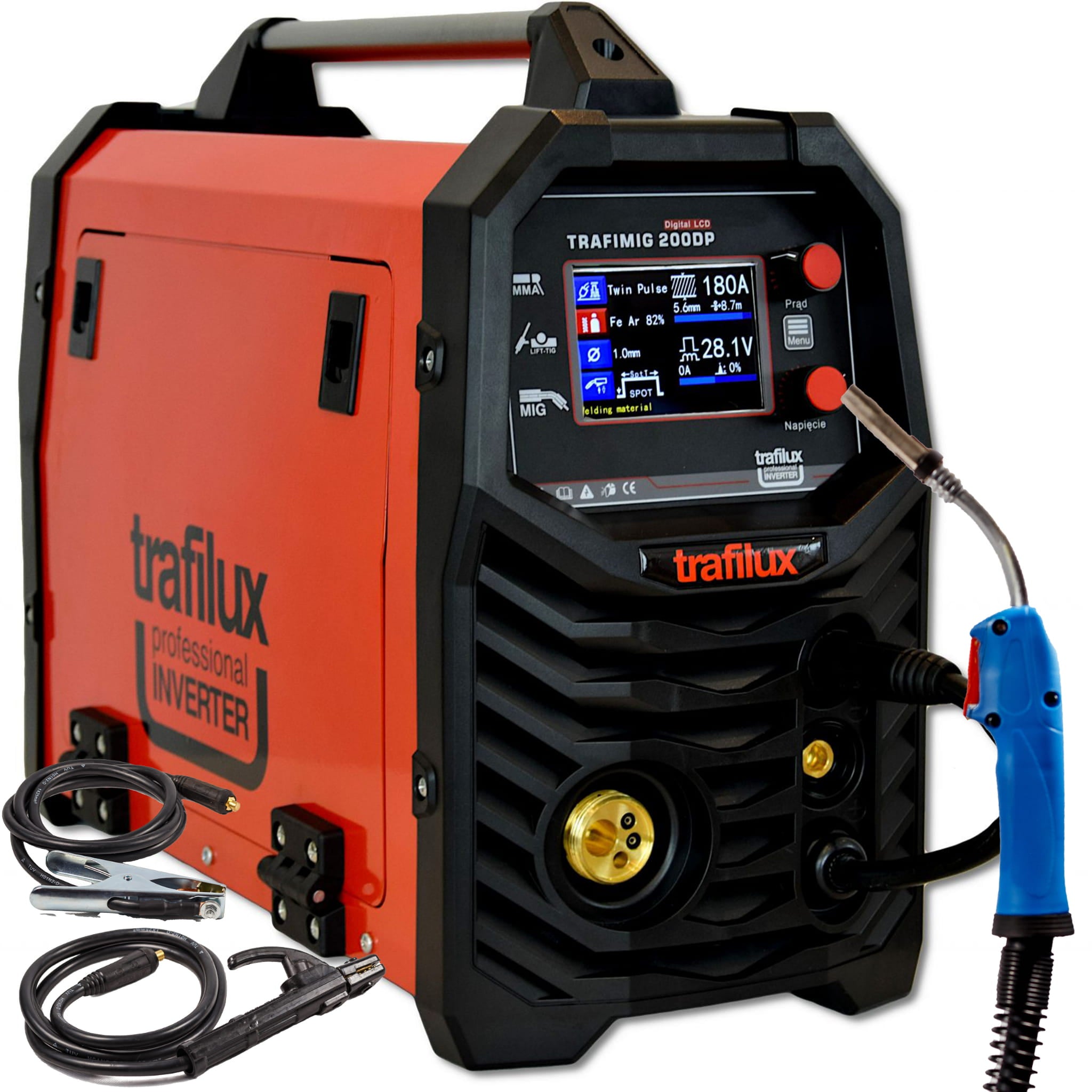

✅MIG/MAG/MMA DUAL 200 dual pulse LCD

✅Handle MIG MB 24 length 3m

✅Handle for welding machine

✅The mass

✅Roll to Aluminium + guide to Aluminium

✅Roll for steel + guide steel.

✅Operating instructions

TRAFILUX HITMIG 200 DUAL PULSE -is a technologically advanced synergistic inverter source designed for welding low-carbon steels,low alloy steels, low and high alloy steels, aluminium and its alloys,copper of its alloys and lutowelding CuSi3,The device is based on IGBT transistors ensuring minimum electromagnetic interference,small power losses in systems ensuring minimum basic,enabling increased efficiency and reliability of the power source. The device has an energy-efficient fan, reducing energy consumption and reducing noise levels.

✅Welding current (A): 20～200A

✅Material selection: AlSi5 Ar, AlMg5 Ar, AlMg4.5, Fe Co2, Fe Ar82, E308 Ar98

✅Wire diameter (mm):1.0,1.2, 0.8,1.0

✅Working Modes: 2T，4T，S2T，S4T，Spot，Cpot

✅Inductance (Forc): -90%～50%

✅Wire burning (Burn): -90%～90%

✅Spot welding time (S): 0.1～9.9s

✅Pulse frequency (Hz): 0.5～5.0Hz

✅Balance in Pulse: 20%～80%

✅Pulse peak current (Ip-p): 5%～50%

✅ Base Current Arch Length (PU): -50%～50%

✅ Peak Current Arc Length (BU): -50%～50%

✅Slow start feeder (StFd): 1～13m

✅Point welding – break time (Stop): 0.1～25.5s

✅Gas advance (Freg): 0～10s

✅Gas Delay (Post): 0.1～50s

✅MIG/MAG - Synergy

✅MIG/MAG — Single pulse

✅MIG/MAG — Double pulse

✅TIG LIFT - Puls

✅TIG LIFT without pulse

✅SPOT — point welding — continuous spot welding

✅FCAW — self-shielded wire welding

✅MMA

Specifications
