Suvirinimo aparatas Torros MIG200 Synergy 3in1 M2003, 1 vnt.

Trumpai apie prekę

Prekė: Suvirinimo aparatas Torros MIG200 Synergy 3in1 M2003, 1 vnt.. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Torros
• Modelis: M2003
• Ilgis: 450 mm
• Plotis: 175 mm
• Aukštis: 275 mm

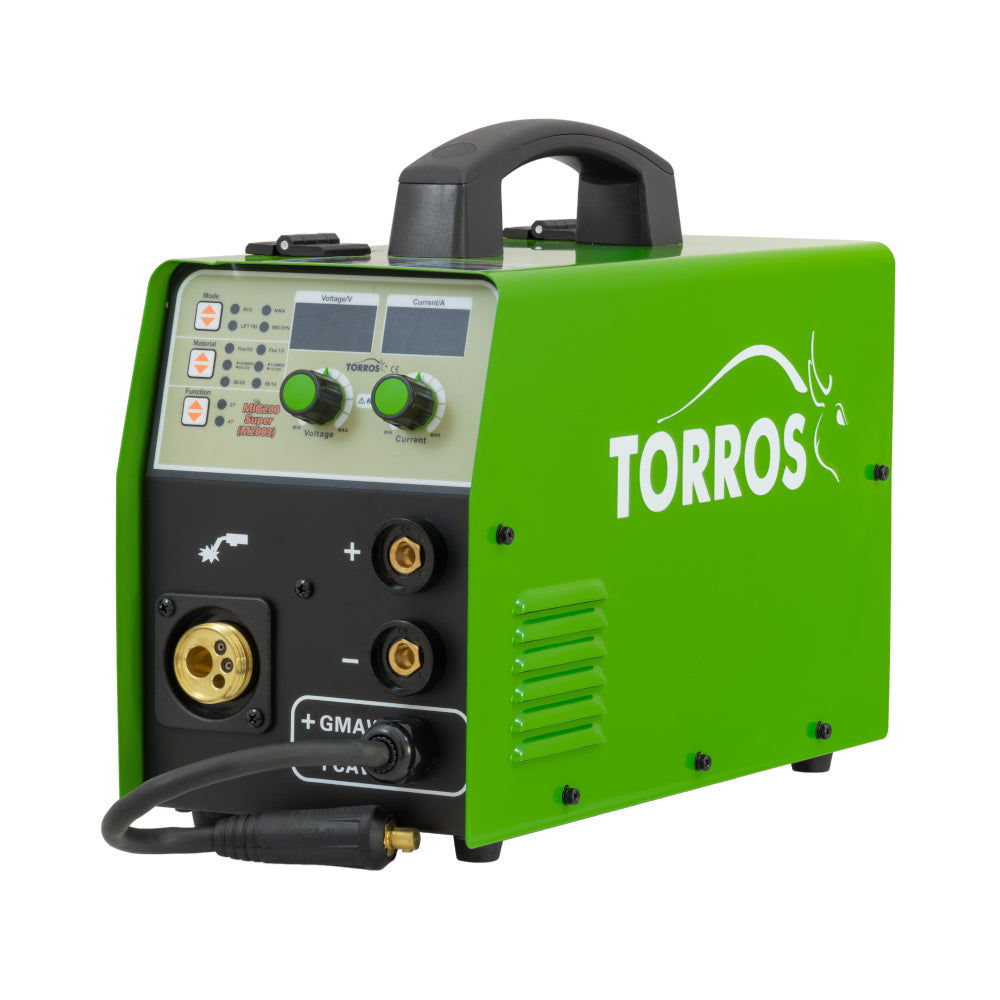

Welding machine MIGOMAT TORROS MIG 200 Synergy 3 in 1 M2003

Professional, modern and easy to use MIG/MAG, MMA and TIG Lift inverter welding machine.

Ideal for both workshops and home users – for steel, stainless steel, aluminum and self-shielding wire (without gas).

⚙ Key features

• ✅ IGBT inverter technology – stable arc, low power consumption
• ✅ 3-in-1 modes: MIG/MAG, MMA, TIG Lift
• ✅ Synergy – automatic selection of parameters, ideal for beginners
• ✅ Adjustable wire feed voltage and speed
• ✅ Supporting Features: Hot Start, Anti Stick, Arc Force
• ✅ 230 V power supply (1 phase) – working from a household outlet
• ✅ Fan cooling and thermal protection
• ✅ Compact and lightweight (approx. 8 kg)

Technical data:

• Manufacturer: Torros
• Modes: MIG/MAG (GAS/NO GAS), MMA, TIG LIFT
• Functions: synergy / precise control
• Current: 40-200 A
• Power supply: 230 V ± 15% / 50/60 Hz
• Maximum power consumption: 37.4 A
• Maximum power consumption: 8,2 kW
• MIG welding current adjustment range: 40 A / 16 V – 200 A / 24 V
• MMA welding current adjustment range: 30 A /21.2 V – 160 A / 26.4 V
• TIG welding current adjustment range: 20 A / 10.4 V – 160 A / 16.4 V
• Type of feeder: metal, 2R
• Diameter of MMA electrode: 1,6-4 mm
• Efficiency, Imax duty cycle: 60%
• Housing protection degree: IP21S
• Isolation class: F
• Weight: 7,4 kg
• Dimensions: 450 mm x 175 mm x 275 mm

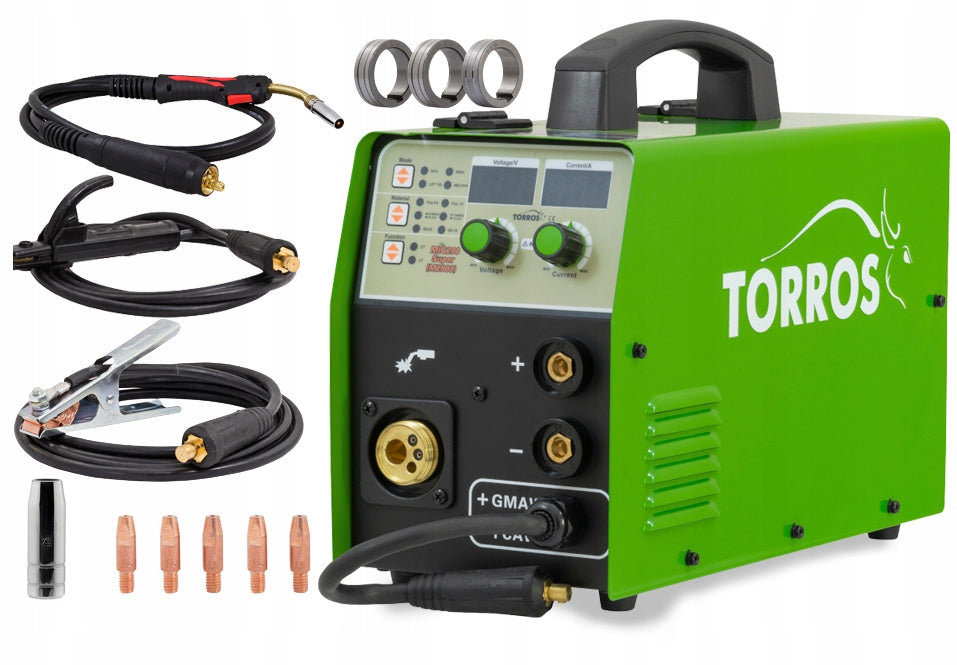

Included:

• Welding machine Torros Super MIG 200 M2003
• MIG/MAG 3m handle
• MMA handle with copper cable 2m
• Mass clamp with copper wire 2m
• Replacement wire feeder rollers (self-assembly, steel, alu) 3 pcs
• Replacement Current Tips 5pcs
• Gas nozzle
• User manual

➡ Programs available in MIG mode:

1. Self-shielding wire with a diameter of 1,0 mm for welding without gas
2. Self-shielding wire with a diameter of 1,2 mm for welding without gas
3. 0,8mm diameter steel wire for gas welding
4. 1,0mm diameter steel wire for gas welding

Synergistic control allows you to choose a program, other welding parameters are selected by the machine itself.

The advantage of the Torros Super MIG 200 M2003 is the ability to adjust Amps and Volts in synergy mode. This gives you the opportunity to use steel wire of different diameters or weld thicker or thin metal.

The ability to adjust Volts in the range from -30 to +30 percent from the meaning recommended by the migomat allows you to shape the weld or set the migomat to work with a specific gas or mixture. Both this allows you to adjust the parameters for welding with aluminum wire and stainless steel wire.

Control is very simple. Migomat provides good results even for people who just start their primacy with welding and allows very precise setting of parameters experienced users.

➡ Universal handle for holding spools – advantages:

➔ Allows you to set standard 5 kg (D200) and small 1 kg (D100) wire spools.

➔ Perfect solution for welding with self-shielding wire without gas and stainless steel or aluminum wire.

➡ Control panel – advantages:

➔ All settings are made with two buttons and one controller.

➔ Buttons and regulator are precise.

➔ Control is very simple and convenient.

➔ Two displays of current parameters: welding current (Ampery) and arc voltage (Volts).

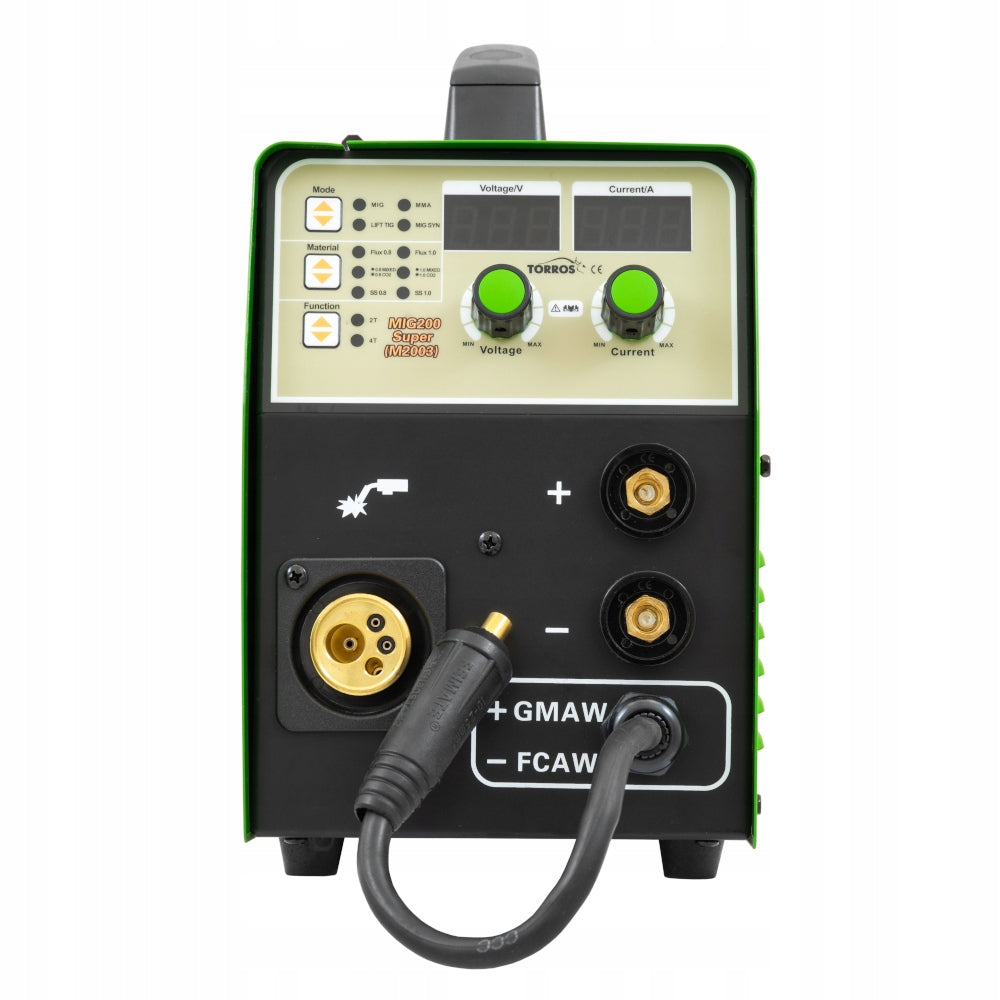

➡ Front – construction

In addition to the control panel on the front panel, there are:

• Two sockets for connecting the mass clamp and MMA handle
• Polarity change cable (1. When welding in semi-automatic mode using gas, the plug should be connected to the plus / 2 socket. When welding with self-shielding wire without the use of gas, the plug should be connected to the minus socket)
• Euro socket

➡ Back – construction

• Housing grounding
• Connector for connecting a gas hose
• Two cooling system fans
• Socket for connecting a gas heater
• Network cable
• On/off switch

Specifications
