Suvirinimo aparatas TIG MMA SPOT Pulse ARC 230V Sherman

Trumpai apie prekę

Prekė: Suvirinimo aparatas TIG MMA SPOT Pulse ARC 230V Sherman. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: spawarka inwertorowa 7812802
• Ilgis: 430 mm
• Plotis: 170 mm
• Aukštis: 310 mm

| Manufacturer: Sherman | Welding methods: TIG, MMA, Cold TIG | Weld cleaning |Welding current: 200 A | Power supply: 230 V | IGBT | Set |

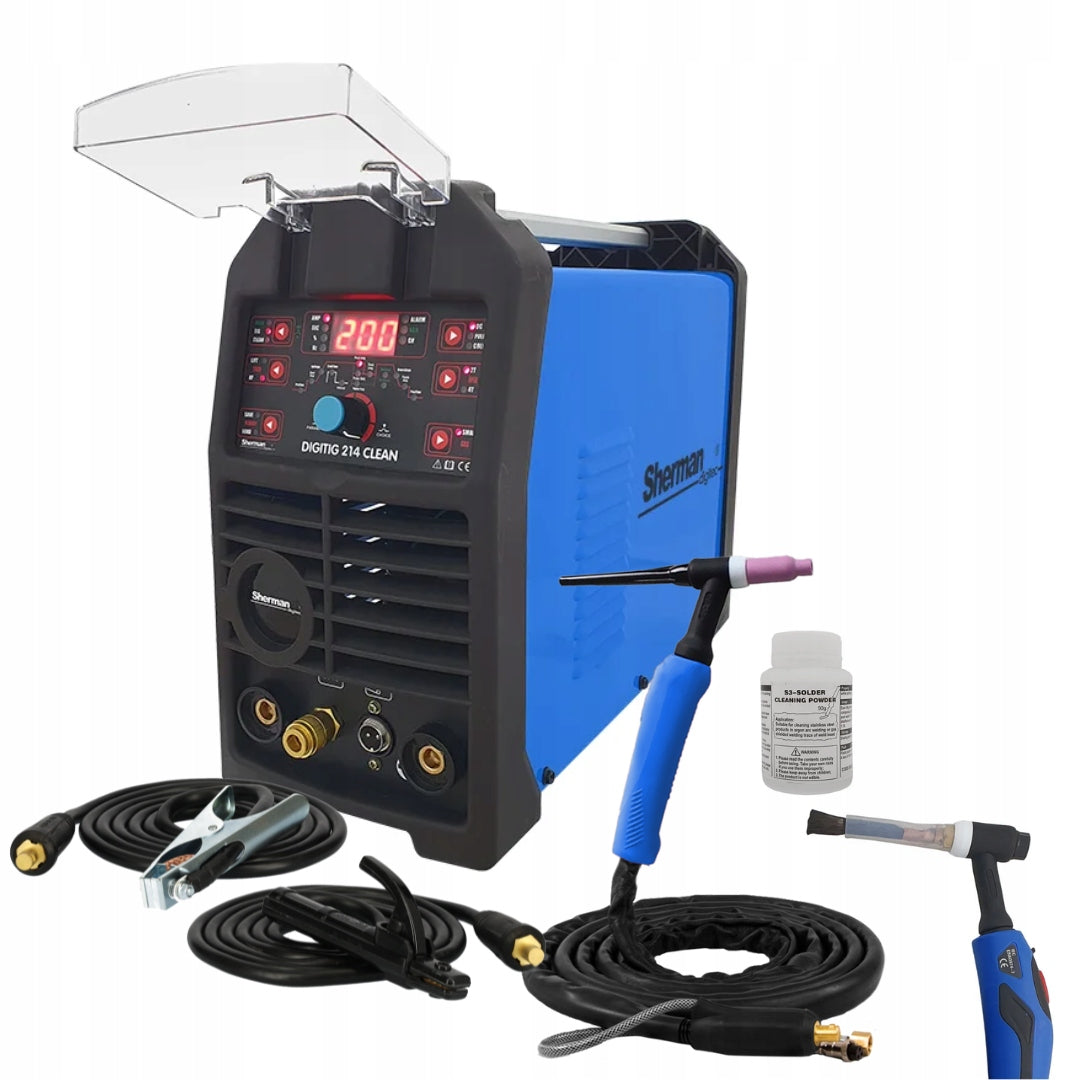

❇ Standard equipment:

• Sherman DIGITIG 214 Clean welding machine with cleaning function
• welding handle TIG-17 / 4 m
• handle for cleaning welds / 3 m
• cleaning agent SN081040-A / 90 g
• electrode cable with MMA / OS 25 mm2 handle / plug 10-25 / 2 m
• mass cable with forceps clamp / OS 25 mm2 / plug 10-25 / 2 m
• instruction manual in Polish

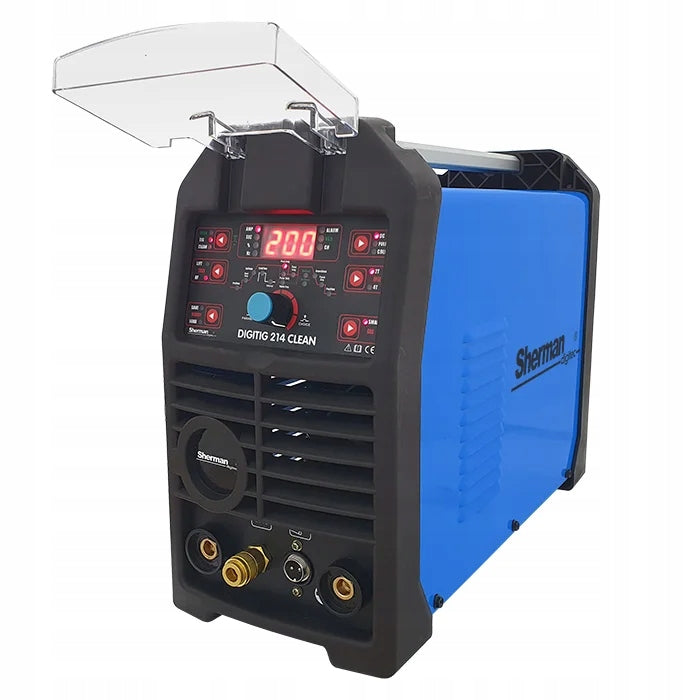

✅ Sherman DIGITIG 214 Clean is a handy, small-sized device powered by a single phase.

✅ The welding machine has the possibility of welding with PULSE along with full adjustment of its parameters, equipped with the function of cold welding enabling welding of very thin elements thanks to very low heat emission in the joining zone.

✅ Welding methods available in this model:

• TIG HF DC
• TIG Pulse
• TIG Lift (by rubbing) DC
• Cold TIG (point welding)
• MMA DC
• cleaning of welds

✅ The device has a function of electrochemical cleaning of stainless steel welds by removing oxidized layers of welds and discoloration. In this way, eliminates the need for etching and polishing of welds.

• TIG pulse - possibility of influencing the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding thin materials.
• setting memory function - the welding machine allows you to remember 10 sets of welding parameter settings.
• 2T/4T function
• Arc Force - allows you to adjust the dynamics of the welding arc. Shortening the arc length is accompanied by an increase in welding current, which stabilizes the arc.
• Hot Start - popularly called hot start. It works at the moment of arcing, causing a temporary increase in the welding current above the value set by the welder.
• VRD - lowers the voltage in the unloaded state. The correct voltage value is restored only just before the arc is ignited. This minimizes the risk of electric shock.
• increase in electricity
• power drop
• TIG gas flow
• gas outflow
• digital control
• Cold TIG (point welding) - cold TIG welding is a welding method that allows the bonding of thin elements, thanks to very low heat emission in the joining zone. It consists in cyclic short-term ignition and extinction of the arch.

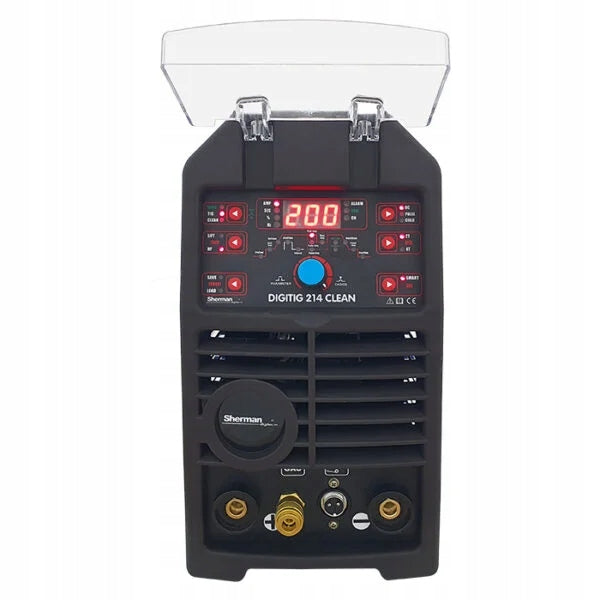

• A. Operating mode selection button: MMA, TIG, CLEAN
• B. Button to select how the arc is lit.
• C. Button to save/load settings.
• D. Diagram of parameters and functions.
• E. Multifunction knob.
• F. Smart Gas button.
• G. Device control mode selection button.
• H. TIG welding mode selection button.
• I. Parameter display and signal diodes.

• Power supply voltage [V]: AC 230
• Execution technology: IGBT
• Max. MMA welding current [A]: 180
• Max. TIG DC welding current [A]: 200
• Min. MMA welding current [A]: 20
• Min. TIG DC welding current [A]: 10
• MMA work cycle [%]: 60
• TIG duty cycle [%]: 60
• Voltage without load [V]: 65
• Power build-up time [s]: 0 – 15
• Initial current [A]: 10 - 100%
• Base current [A]: 10 - 100% welding current
• Power drop time [s]: 0 - 15
• Crater current [A]: 10 - 100% welding current
• Gas flow [s]: 0,1 – 15
• TIG gas flow [s]: 0,5 – 15
• Pulse frequency TIG [Hz]: 0,2 – 500
• Pulse width TIG [%]: 10-90, 1 – 99
• Welding time Cold Welding [s]: 0,01 – 1
• Cold Welding break time [s]: 0 - 10
• Max. MMA power consumption [kVA]: 7,2
• Max. TIG power consumption [kVA]: 5,3
• Max. MMA power consumption [A]: 38
• Max. TIG current consumption [A]: 31
• Network security [A]: 25
• Protection rating: IP 23S
• Weight [kg]: 7,3
• Dimensions (D x SZ x W) [cm]: 43 x 17 x 31

✴ Multifunctionality: The welding machine enables manual welding of structural steels with wrapped electrodes (MMA) and quality steels, copper and its alloys with a non-melting electrode in an inert gas shield (TIG), making it a versatile tool for a variety of applications.

✴ TIG pulse: TIG pulse with full parameter adjustment allows for precise control of the welding process, ensuring excellent weld quality.

✴ Cold TIG (cold welding): The welding machine allows spot welding of even very thin elements.

✴ Weld cleaning: The function of electrochemical cleaning of stainless steel welds, eliminates the need for etching and polishing of welds, which reduces time and improves work efficiency.

✴ Ease of use: The intuitive control panel provides quick access to all functions and parameters, making it easy for the user to choose the right settings.

✴ Numerous additional functions: Settings memory function, 2T/4T, Arc Force, Hot Start, VRD and regulation of current rise and fall time.

✴ High efficiency: Thanks to IGBT technology and stable voltage in the unloaded state, the welding machine offers high efficiency and reliability in all operating conditions.

✴ Compact and mobile: Thanks to its compact dimensions and low weight, the welding machine is easy to carry and transport, making it an ideal tool for both workshop and field work.

✴ High quality: Sherman DIGITIG 214 Clean is a product made of high quality materials, guaranteeing reliability and durability in long service life.

✔ The Sherman DIGITIG 214 Clean welding machine is an excellent choice due to its versatility, precise functions, ease of use, high efficiency and safety of use, which makes it an indispensable tool for professional welders and hobbyists, providing excellent results and satisfaction with the tasks performed.
