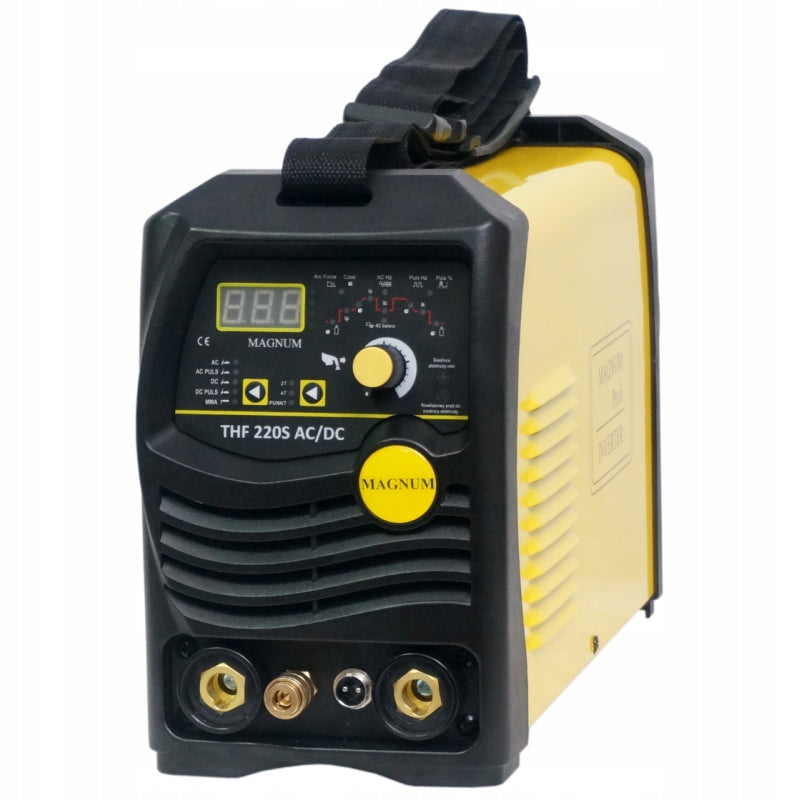

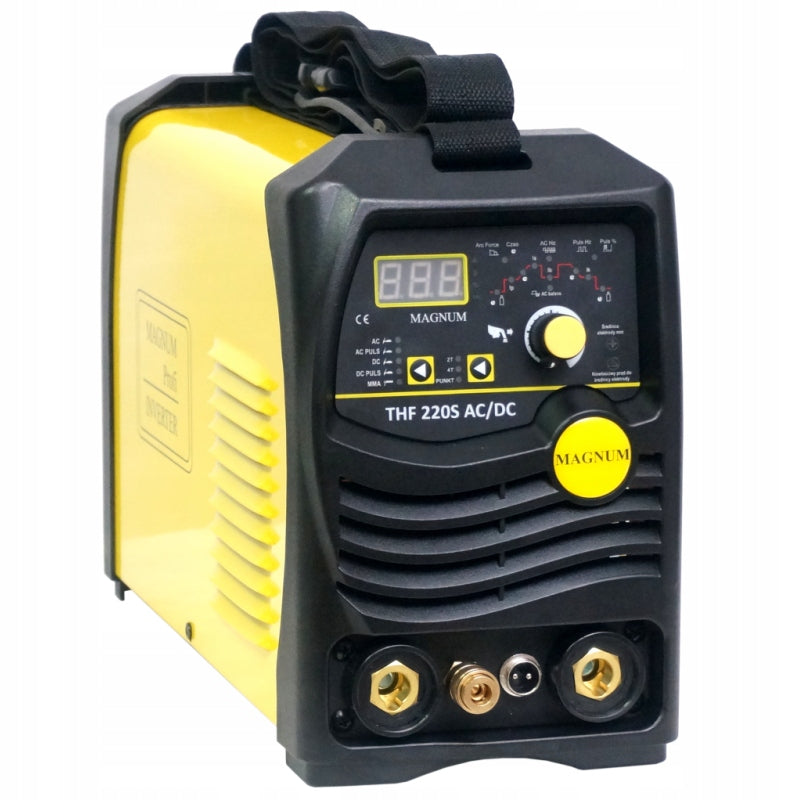

Suvirinimo aparatas TIG AC/DC MMA THF 220S MAGNUM, 1 vnt.

Trumpai apie prekę

Prekė: Suvirinimo aparatas TIG AC/DC MMA THF 220S MAGNUM, 1 vnt.. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MAGNUM THF 220S
• Aukštis: 820 mm

TIG | MMA | 200A | 60% | PULSE | AC/DC

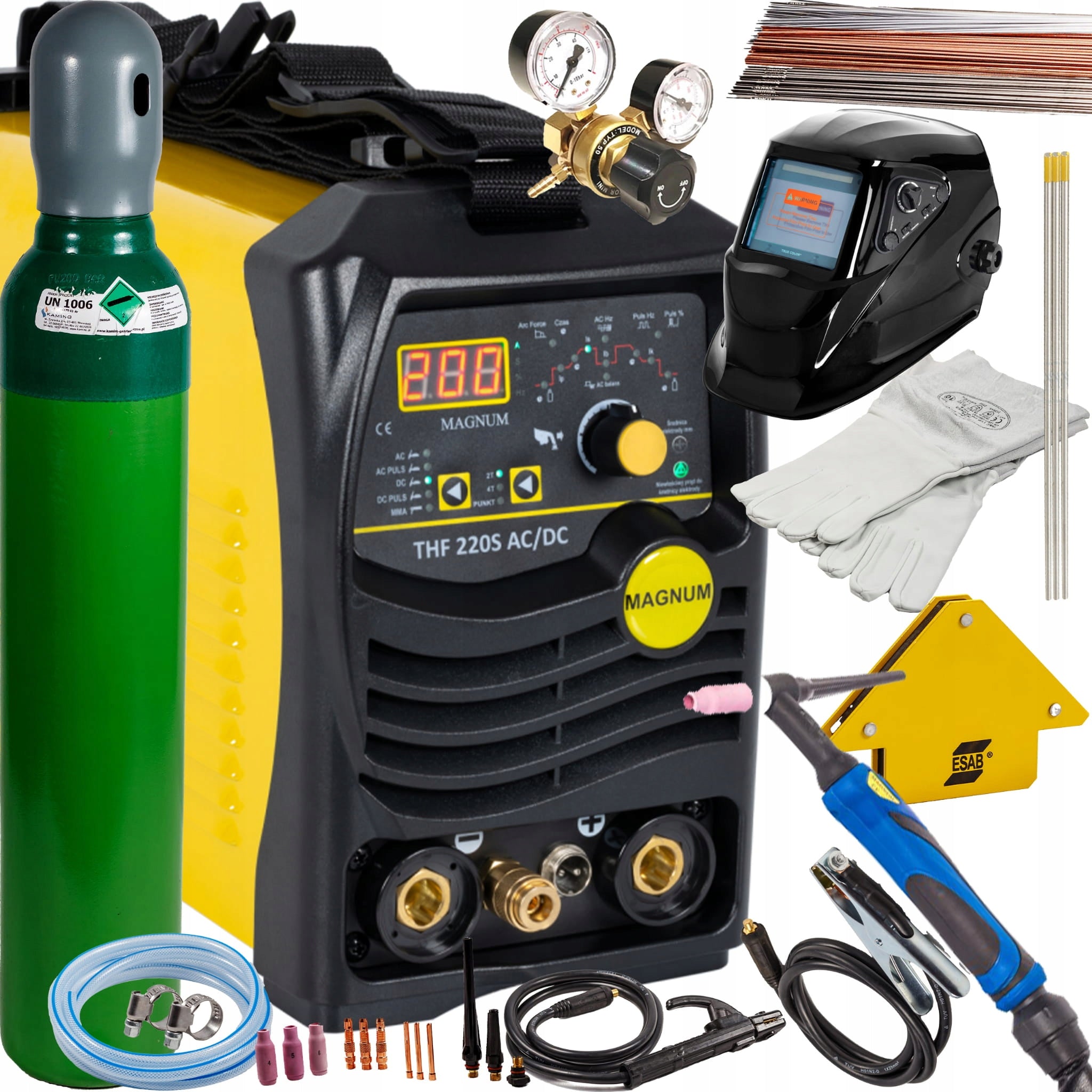

✅ TIG MMA AC/DC MAGNUM THF 220 S

✅TIG SR 26/4m

✅ 3m long MMA electrode cable

✅mass cable with a length of 3m

✅Botla ARGON brand new with legalization for 10 years with a capacity of 8l . The cylinder has a cap for its transport

✅PROCOLOR automatic visor with 4 sensors ideal for TIG for welding using the MIG MAG TIG MMA method with charging during welding and an additional battery supporting the battery.

✅Reducer 2-clock

✅TIG gold electrode :1,6/2,0/2,4

✅Distributor sleeve:1,6/2,0/2,4

✅Gas distributor:1,6/2,0/2,4

✅Short, medium and long cork - 1 pc each

✅Ceramic nozzle: 4,5,6

✅TIG ALMG- 0,2 kg

✅ TIG wire STEEL- 0,2 kg

✅TIG wire 308 LSI- 0,2 kg

✅Gloves welding TIG long

✅Angle welding

✅Cable for cylinder with gas 3m

✅2 cable ties

✅ TIG welding current: 5 - 200 A,

✅ MMA welding current: 10 - 160 A,

✅Efficiency: 60%,

✅Power supply: 230V / 50Hz,

✅Power protection: 25 A,

✅Housing protection: IP21,

✅Cooling: Air - fan,

✅Idle voltage: 67 V,

✅Net weight: 9 kg.

✅outflow time gas before welding (adjustable in the range of 0,1 - 10 seconds),

✅Ip - initial welding current (adjustable in the range of 5 - 160 amps),

✅ build-up time current welding from Ip to Is (adjustable in the range of 0 - 10 seconds),

✅Is - welding current value for TIG and MMA method or maximum welding current value for TIG method with PULS function,

✅Ib - regulation of the lower welding current value for TIG method with PULS function. The scope of regulation is forced and limited by the set value of Is,

✅fall time current welding to Ik value (adjustable in the range of 0 - 15 seconds),

✅Ik - final value of welding current (crater filling current - adjustment in the range of 5 - 200 amps),

✅gas outflow time after welding (adjustable in the range of 0,5 - 15 seconds),

✅Arc Force - arc adjustment for MMA (adjustable in the range of 0 - 40 amps),

✅time - adjustment of welding time at the point (adjustment range 0,5 - 10 seconds),

✅AC Hz - polarity change frequency adjustment for TIG AC method (adjustment range 20-250 hertz),

✅HZ pulse - regulation of welding current pulsation frequency for TIG method with PULS function (regulation in the range of 0,2-20Hz and 21-200Hz),

✅Pulse % - regulation of welding current pulsation balance for TIG method with PULS function (regulation takes place in two ranges depending on the set frequency: 0,2Hz-10Hz - 1 - 99%, 11Hz-200Hz - 10-90%,

✅AC balance - regulation of polarity change balance for TIG AC method (the adjustment range is limited and forced by other parameters - welding current and AC frequency. The extreme range is 15-85%.

The THF series from Magnum comprises professional inverter welding machines designed for manual, electric TIG welding. These machines can also perform MMA welding using consumable coated electrodes. They are suitable for all types of welding work:

✅In locksmith workshops,

✅Repair shops, industrial settings, factories, etc.

The devices feature a user-friendly, clear control panel that allows you to set all the necessary welding functions (start/crater fill/welding/base current, current rise and fall times, pre- and post-gas flow, pulse frequency, balance, etc.).

The power source is built on IGBT transistors, ensuring minimal electromagnetic interference and low power loss in the core circuits. This allows for increased efficiency and reliability of the power source. Very high efficiency, directly translating to lower energy consumption, and a high switching frequency ensure rapid current adjustment to parameter changes during welding.

✅gas type: argon, CO2, mixture of Ar and CO2

✅maximum inlet pressure: 200 bar

✅maximum outlet pressure: 4 bar

✅ rated throughput: 12l/min

✅maximum throughput: 20 l/min

✅thread at inlet: W21,8x1/14"

✅thread at outlet: W1/8"

✅Hose tip: 6,3 mm

Reducer Magnum series 50 - 2 pressure gauges

The AR/CO2 cylinder reducer from MAGNUM is an ideal reducer for use in welding with MIG/MAG and TIG methods.

It allows you to reduce the pressure of gas taken from the gas cylinder, allowing it to smoothly and precisely regulate the flow at the output of the reducer.

Specifications
