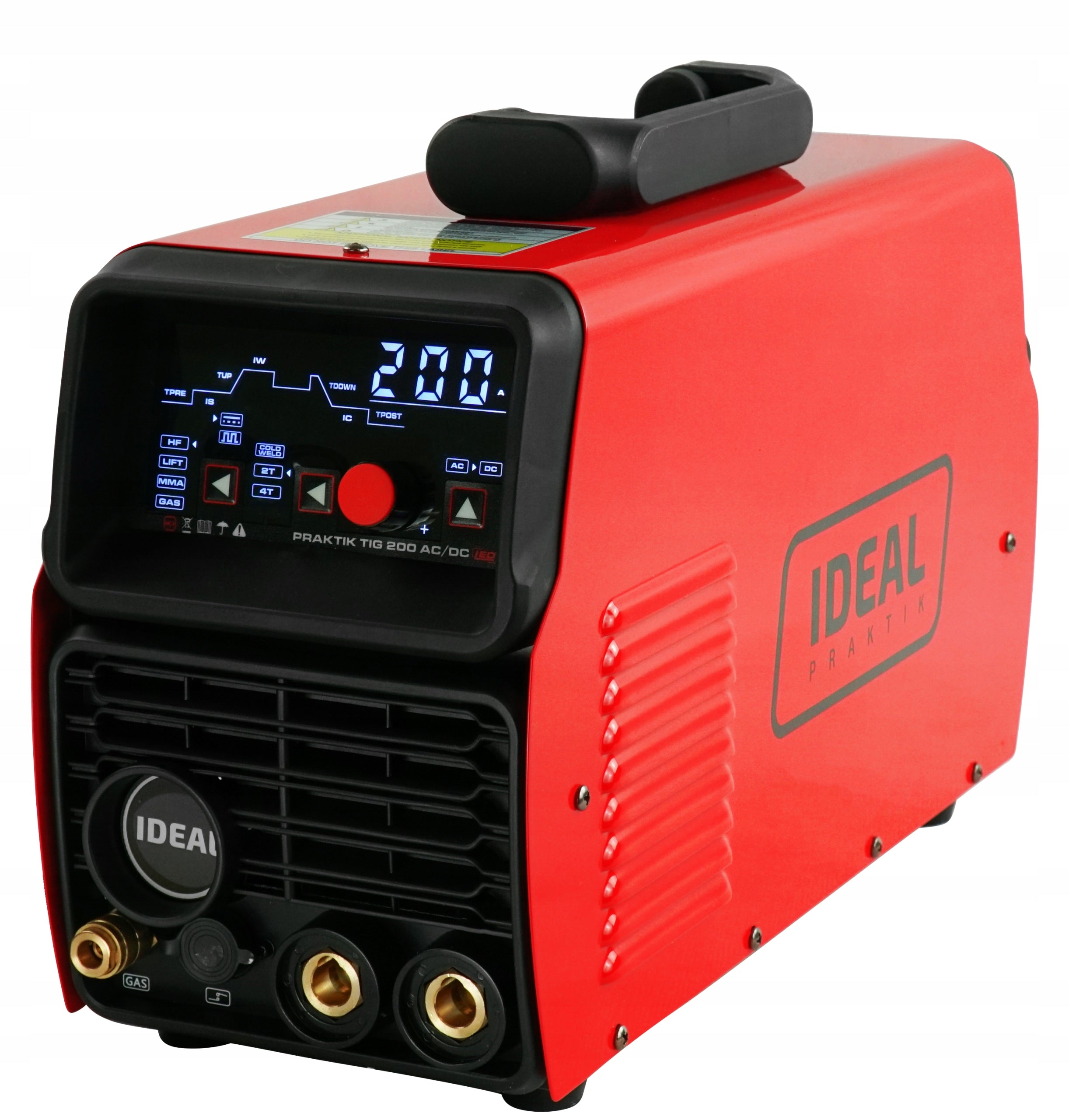

Suvirinimo aparatas TIG AC/DC MMA Ideal Praktik TIG 200 LED PULS HF 2T 4T Cold TIG

Trumpai apie prekę

Prekė: Suvirinimo aparatas TIG AC/DC MMA Ideal Praktik TIG 200 LED PULS HF 2T 4T Cold TIG. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: PRAKTIK MIG 200 AC DC LED

⏭IDEAL PRAKTIK MIG 200 AC DC LED - SENSATIONAL DEVICE WITH COLD WELD FUNCTION ❗❗

✅TIG:10 – 200 A, MMA:10-180 A

✅modern electronics inside - great welding parameters,

✅Contactless arc initiation HF

✅2T 4T

✅TIG PULSE

✅VRD

✅ MMA WELDING

✅HOT START – increased intensity at arc initiation [0÷10]

✅ARC FORCE – arc stabilization and chipping reduction [0÷10]

✅COLD WELD function – spot welding mode

✅friendly user interface,

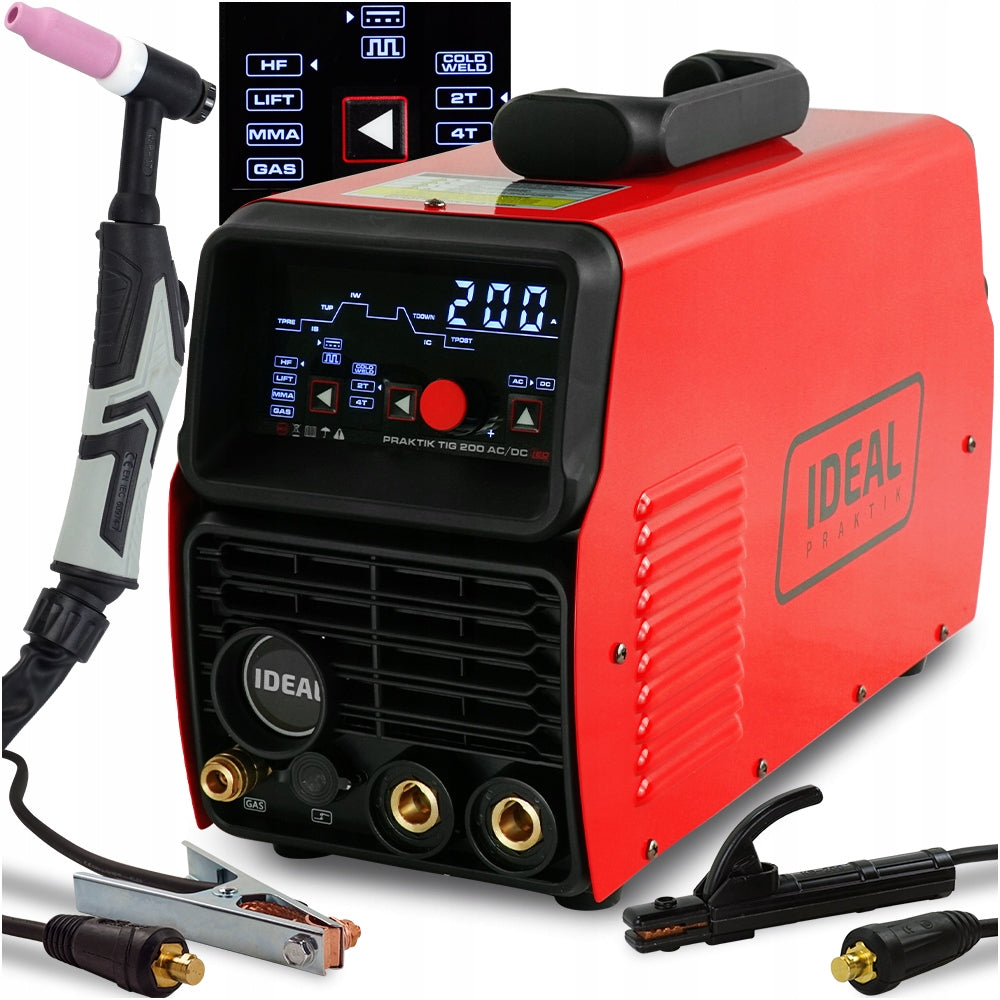

⏭WHAT WILL YOU FIND IN THE PACKAGE?

✔ Semi-automatic welding machine IDEAL PRAKTIK MIG 200 AC DC LED

✔ Welding torch TIG T-17 - 4m

✔ Bulk holder

✔ Electrode holder

✔ Operating instructions and warranty card

By using variable polarity, we obtain full control of the welding arc and significantly reduce the amount of heat introduced into the material. It is a process that allows for welding thin sheets, ensuring excellent weld quality and high welding speeds.

✅The minimum amount of heat input is material

✅Excellent weld quality

✅Control of the amount of heat input

greater control of heat entering the welding lake. The user has a real impact on the thermal deformation of the welded detail. TIG welding with pulse is recommended, among others, for welding stainless and acid-resistant steels. Pulse welding is available in AC and DC mode. The device has the ability to adjust pulsating current parameters.

⏩POWER SUPPLY PARAMETERS

• Power supply: 230V
• Frequency: 50Hz
• Maximum power consumption: 7,4 kVA
• Network security: C25A

⏩Welding parameters:

• Rated voltage in unloaded condition: 78V
• Rated welding current: 200A
• Working cycle: 60%
• Before gas outflow: 0,1 – 1,0s
• After gas outflow: 0,1 – 10s
• Current build-up: 0 - 5s
• Current drop: 0 – 5s
• Welding current: TIG: 10-200 A, MMA: 10-180 A
• Pulse Frequency: 0,5 - 200Hz
• Length of PULSE: 5 – 100%
• AC Frequency: 20-250Hz
• AC Balance: 20% to 50%

⏩Additional Features:

• PULSE function: YES
• HF Function: YES
• 2T/4T function: YES
• PRE GAS: YES
• POST GAS: YES
• Rising Electricity: Yes
• Power Drop: YES

⏩Physical parameters:

• Degree of protection: IP21S
• Weight: 14kg
• Dimensions: 445 x 170 x 295 mm

⏩AC/DC - AC and DC welding. It is possible to weld virtually all weldable materials in the TIG method.

⏩MMA - this is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded. The MMA method does not require shielding gases. Welding is carried out using an electrode in a special sheath, which under the influence of the heat of the welding arc melts to form a weld. Melting sheath provides protection for the welding lake.

⏩2T - Two-bar mode. In this mode, pressing the switch in the handle of the handle will turn on the ionizer and light up the arc. Welding is carried out with the switch pressed. Release of the switch will complete welding

⏩4T - In four-bar mode. In this mode, pressing the switch in the handle will turn on the ionizer and light the arc then release the switch and conduct welding with the switch released. Pressing the switch again will complete the welding

⏭COLD WELD – spot welding mode (DC only, without pulse)

⏩IGBT - welding machine is made in modern inverter technology using IGBT transistors. Thanks to this, it has stable welding parameters, enjoys high efficiency and, above all, ensures good welding quality.

Choose a brand whose history dates back to the beginning of the twenty-first century. Ideal is the leading brand of welding equipment in Poland.

A wide range of Ideal devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Ideal brand most often due to its high quality, affordable price and reliability.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	7.4 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	14 kg
Parametry	Welding range	10–200 A
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	14 kg
Parametry	Manufacturer code	PRAKTIK TIG 200 AC DC LED
Parametry	EAN (GTIN)	5903991109064
Parametry	Model	PRAKTIK MIG 200 AC DC LED
Parametry	Welding methods	MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,LCD display
