Suvirinimo aparatas TIG 200A Magnum THF 238 Pulse AC/DC PRO-X su aliuminiu vežimėliu

Trumpai apie prekę

Prekė: Suvirinimo aparatas TIG 200A Magnum THF 238 Pulse AC/DC PRO-X su aliuminiu vežimėliu. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: THF 238 PROX HRS1

• full free post-purchase support
• You can call us at any time and we will help you set the parameters and operate the device

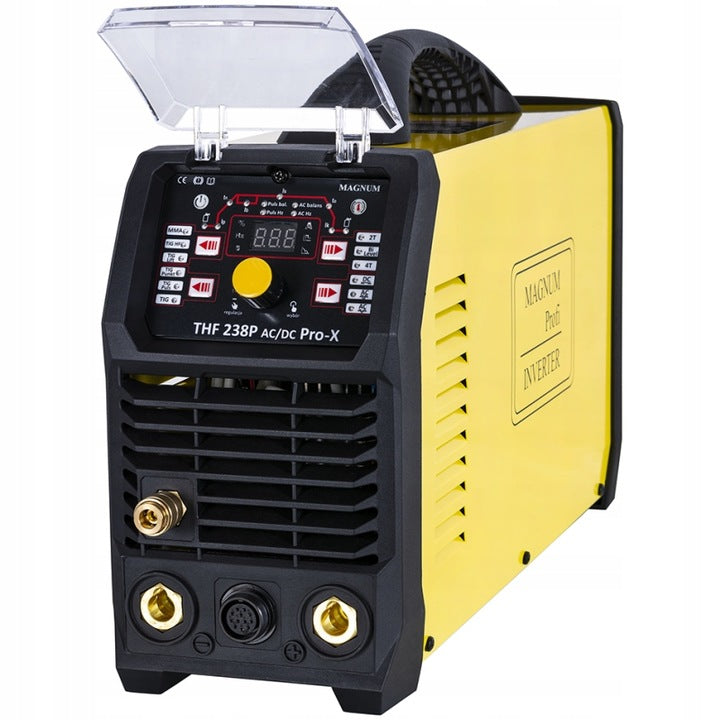

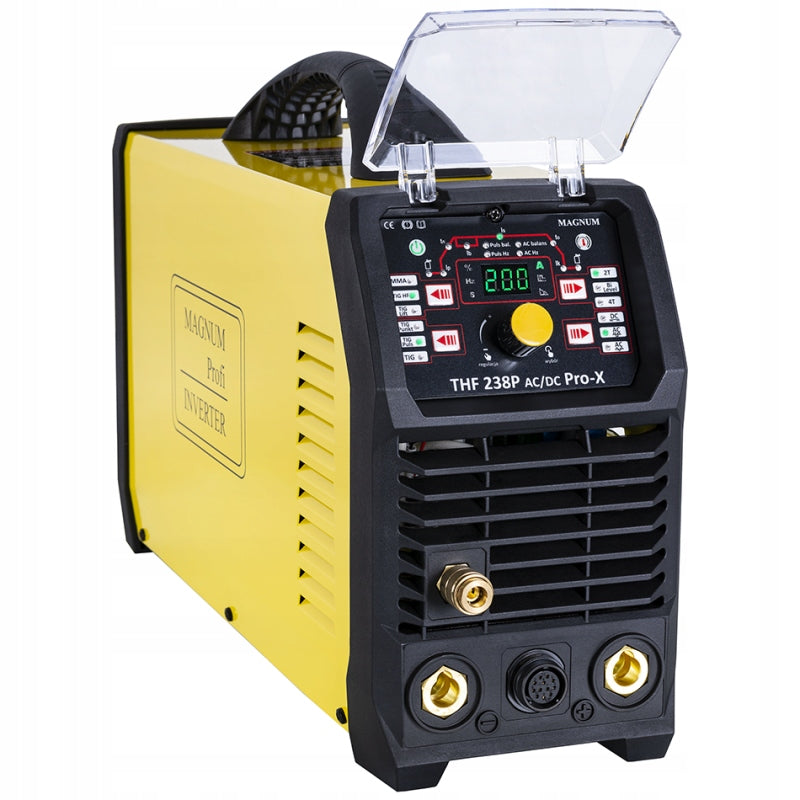

Magnum TIG 238 PRO-X TIG AC/DC welding machine

The THF238 PRO-X AC/DC by MAGNUM is a professional, lightweight inverter welding machine designed for TIG HF welding (with contactless arc welding) with AC and DC alternating current. THF 238 provides excellent performance in welding aluminum and its alloys, non-alloy steel, low alloy steel, high alloy steel, titanium and other weldable metals and alloys. The device can also be welded using MMA method using hot melt coated electrodes.

The THF 238 PRO welder is powered from a single-phase 230V network, has a high 60% duty cycle at 200 A, which allows it to be used in various industrial segments. The device has an intuitive, easy-to-use control panel that allows for quick and precise selection of individual welding parameters. The control panel is equipped with a multifunctional display illustrating the values of individual parameters, the adjustment of which is carried out with a single knob.

The welding machine is characterized by a wide range of applications, it is dedicated to all kinds of welding work in factories, industrial plants, locksmith workshops, repair workshops, etc.

The digital function panel enables precise control of all the most important welding parameters for TIG AC/DC methods:

• - Graph of TIG process,
• - Selection of waveform when welding TIG AC - sine wave, rectangular,
• - AC Balance,
• - AC current frequency,
• - Bi-LEVEL - the ability to switch between two welding current values
• - Gas flow before welding,
• - Starting current,
• - Time of electricity build-up,
• - Welding current,
• - Time of falling current,
• - Final current (extinguishing),
• - Gas flow after welding
• - TIG PULS: peak current, base current, pulse frequency, pulse width
• - 2T/4T operating mode
• - TIG Lift contact arc ignition
• - TIG HF,
• - TIG Point - spot welding

and the most important parameters for MMA AC/DC methods:

• - Welding current intensity,
• - Hot Start – easier lighting of the electrode,
• - Arc Force - stabilizes the welding arc and eliminates the formation of short circuits, facilitated welding in forced positions.

The power source is based on IGBT (Insulated Gate Bipolar Transistor) transistors, which provide a minimum of electromagnetic interference, small power losses in basic systems, enabling increased efficiency and reliability of the power source. Very high efficiency, which translates directly into lower energy consumption, and high switching frequency, ensure rapid adjustment of the current to changes in parameters during welding.

TECHNICAL DATA:

- Power supply: AC 230 [V], 50/ [Hz],

- Security required: 25 [A] / C

- Power consumption: 7 [kW]

- Efficiency: 60 [%]

- Idle voltage Uo: 70 [V]

- TIG AC welding current: 10 - 200 [A]

- TIG DC welding current: 10 - 200 [A]

- MMA welding current: 10 - 200 [A]

- Adjustment - current rise/fall time: 0 - 10 [s]

- Adjustment - gas outflow time after welding 0 - 10 [s]

- Housing protection class: IP23

- Weight: 10 [kg]

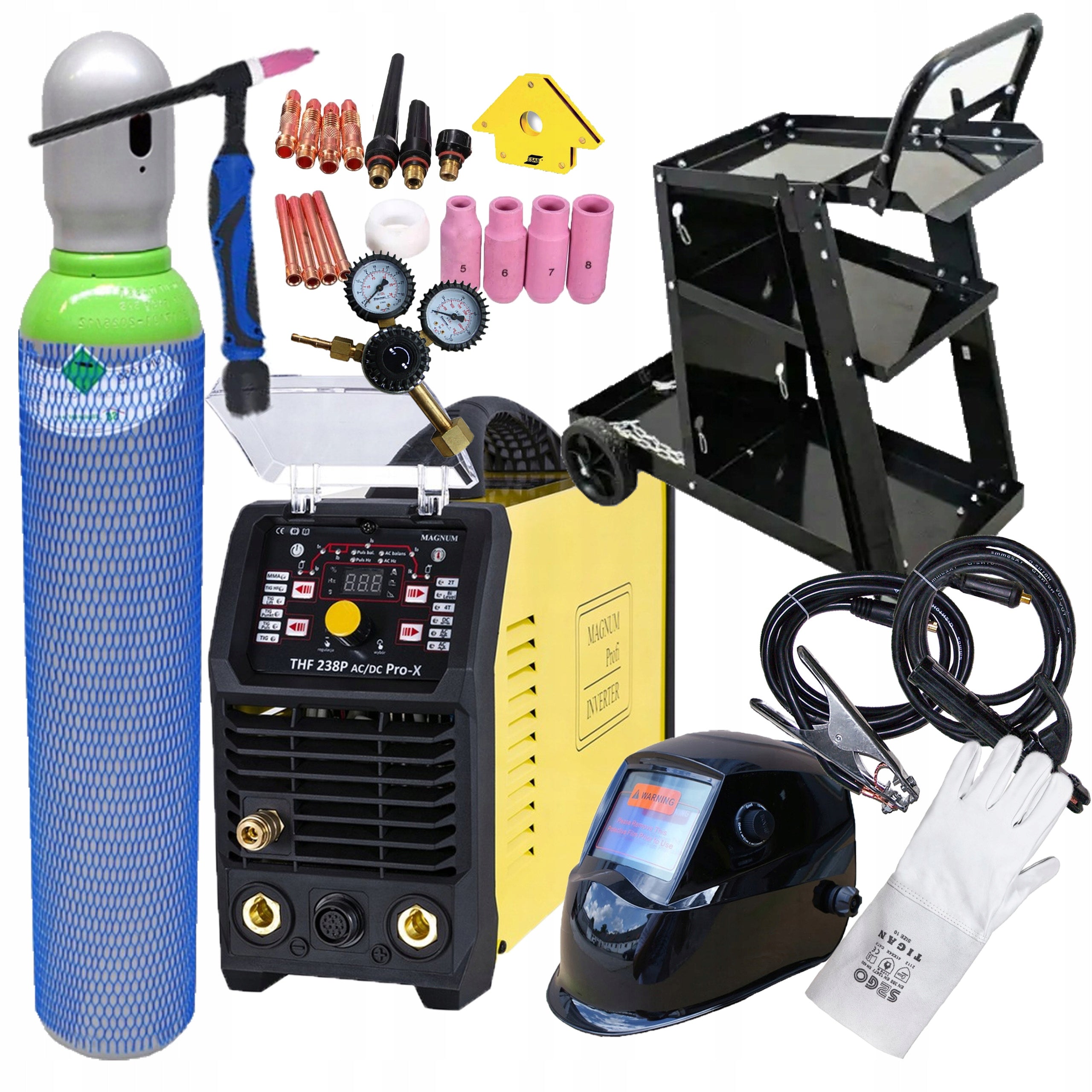

• Magnum TIG THF 238Pro X AC/DC welder
• TIG SR-26/4m welding torch
• Bulk cable
• User manual

+ Ar 8l WELDING KIT

• Ar 8l cylinder (argon) - certified, has all the approvals required by the filling points of the cylinder,
• Ar/CO2 gas reducer with two clocks,
• Automatic visor 9-13 DIN
• Magnetic angle
• Welding trolley
• Welding gloves
• gas line,
• welding gloves.

+ STARTER SET OF BURNER PARTS - TIG AC/DC
