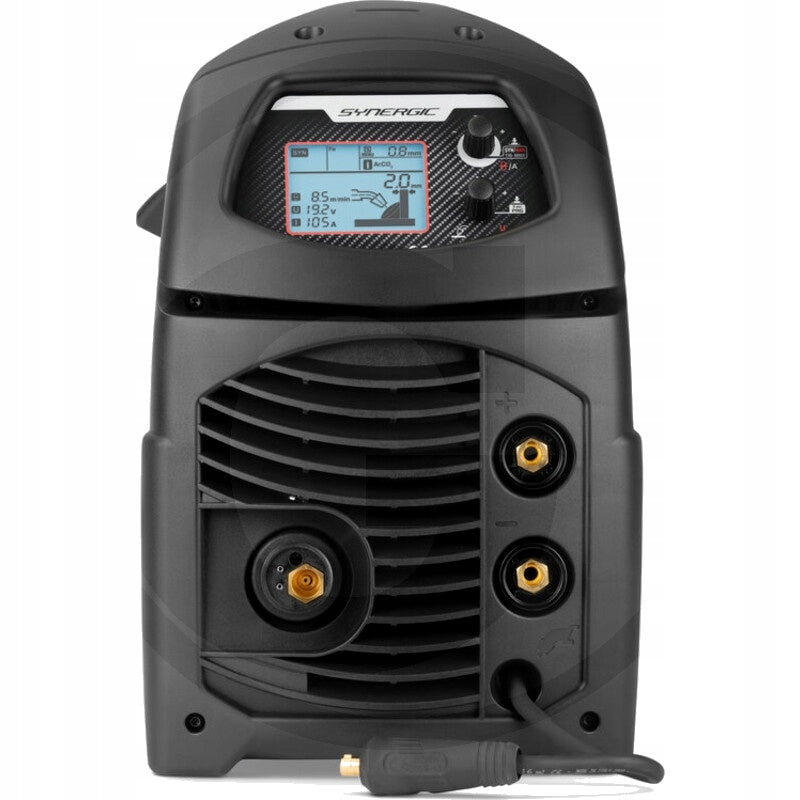

Suvirinimo aparatas Telwin MIG-MAG 210 Dual Synergic, 230V, inverterinis

Trumpai apie prekę

Prekė: Suvirinimo aparatas Telwin MIG-MAG 210 Dual Synergic, 230V, inverterinis. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Telwin
• Modelis: TECHNOMIG 210 Dual Synergic
• Ilgis: 46 mm
• Plotis: 24 mm

Telwin MIG-MAG 210 Dual Synergic Inverter Welder - 230V

✔️Technical Specifications:

Item Number: 500816052

Reference Number: 816231

Price per: Piece

Voltage (V/Hz): 230

Power Supply Voltage: 230 - 1 Phase

Adjustment Range (A): 20-200

Current (A): 180 (20%) - 100 (60%)

Open Circuit Voltage (V): 52 (DC)

Current Consumption (A): 5 - 30 A (60%)

Max. Power Consumption (kW): 2.2 - 5

Power Factor (cosphi): 0.6

Wire Thickness (mm): Steel: 0.6 - 1.0 / Stainless Steel: 0.8 / Aluminum: 0.8 - 1.0 / Flux-Cored Wire (mm): 0.8 - 1.2 / Brazing: 0.8

Protection Rating: IP23

Dimensions (mm): 460 x 240 x 360

Weight (kg): 13

Dimensions L x W x H (mm): 520 x 250 x 395

Description: Portable, microprocessor-controlled MIG-MAG/FLUX/BRAZING wire welding machine with inverter technology. Its flexible applications and the variety of weldable materials (steel, stainless steel, aluminum) or brazing materials (galvanized sheets) make the Technomig Dual Synergic an ideal solution for a wide range of applications, from maintenance and installation to bodywork. The quick, SYNERGIC adjustment of the welding parameters makes the product extremely user-friendly. The intelligent and automatic arc control maintains excellent welding performance at all times under all operating conditions with various materials and gases. In addition, the arc length can be adjusted manually to adapt the shape of the weld to the welder's working style. All welding parameters are clearly visible on the ONE TOUCH LCD graphic display. The low weight and extremely small dimensions also ensure that the unit is easy to transport to all indoor and outdoor workplaces.

• Polarity reversal for GAS MIG-MAG/BRAZING welding

• 17 preset synergic curves

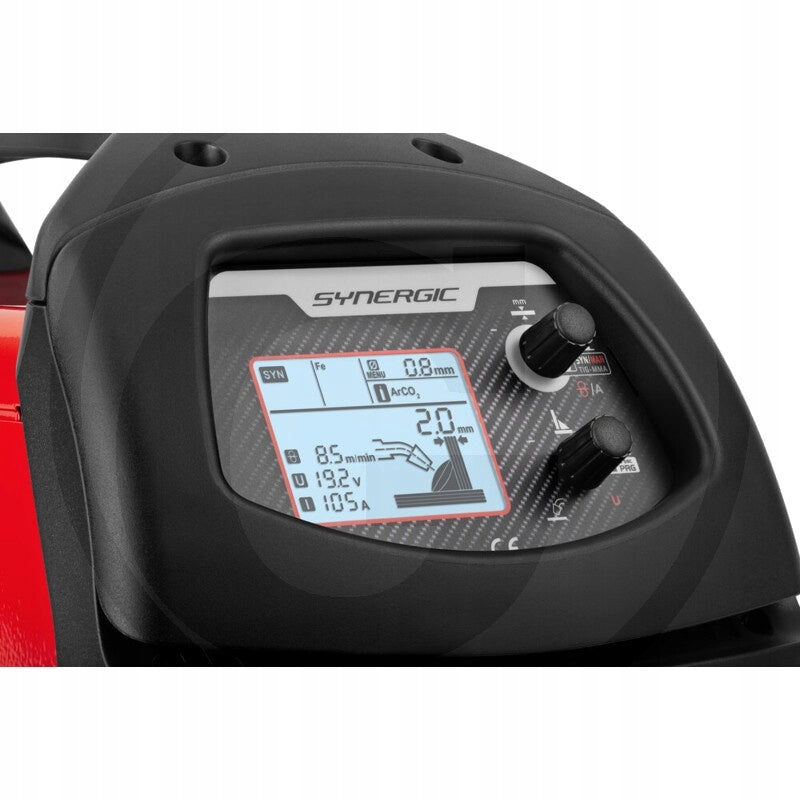

• The LCD display shows voltage, welding current and wire speed

• Wire speed ramp-up characteristic, electronic reactance, wire burn-back time, post-gas time.

• 2/4 stroke operation selection, spot welding

• Thermostat protection function, overvoltage, undervoltage, overload, generator protection (+/- 15%). Ready for NO GAS/Flux welding, can be converted to MIG-MAG with the optional kit.

Weight: 13.90 kg

EAN Code: 8004897916583

Catalog: Industry and Workshop (page 346)

Category: Industry and Workshop / Welding Technology / Welders / MIG-MAG Welding / TECHNOMIG 210 Dual Synergic

Voltage (V/Hz): 230

Power Supply Voltage: 230 - 1 Phase

Adjustment Range (A): 20- 200

Current (A): 180 (20%) - 100 (60%)

Open Circuit Voltage (V): 52 (DC)

Current Consumption (A): 5 - 30 A (60%)

Max. Power Consumption (kW): 2.2 - 5

Power Factor (cosphi): 0.6

Wire Thickness (mm): Steel: 0.6 - 1.0 / Stainless Steel: 0.8 / Aluminum: 0.8 - 1.0 / Flux-Cored Wire (mm): 0.8 - 1.2 / Brazing: 0.8

Protection Rating: IP23

Dimensions (mm): 460 x 240 x 360

Weight (kg): 13

Dimensions L x W x H (mm): 520 x 250 x 395

Technical Specifications:

• Portable, microprocessor-controlled MIG-MAG/FLUX/BRAZING wire welding machine with inverter technology. Its flexible applications and the variety of weldable materials (steel, stainless steel, aluminum) or brazing materials (galvanized sheets) make the Technomig Dual Synergic an ideal solution for a wide range of applications, from maintenance and installation to bodywork. The quick, SYNERGIC adjustment of the welding parameters makes the product extremely user-friendly. The intelligent and automatic arc control maintains excellent welding performance at all times under all operating conditions with various materials and gases. In addition, the arc length can be adjusted manually to adapt the shape of the weld to the welder's working style. All welding parameters are clearly visible on the ONE TOUCH LCD graphic display. The low weight and extremely small dimensions also ensure that the unit is easy to transport to all indoor and outdoor workplaces.

• Polarity reversal for GAS MIG-MAG/BRAZING welding

• 17 preset synergic curves

• The LCD display shows voltage, welding current and wire speed

• Wire speed ramp-up characteristic, electronic reactance, wire burn-back time, post-gas time.

• 2/4 stroke operation selection, spot welding

• Thermostat protection function, overvoltage, undervoltage, overload, generator protection (+/- 15%). - Ready for NO GAS/Flux welding, can be converted to MIG-MAG with the optional kit.

Weight: 11.50 kg

EAN Code: 8004897916583

Item Number: 500816052

Reference Number: 816231

Portable microprocessor controlled MIG-MAG/FLUX/BRAZING wire welding machine, with inverter technology. Various welding materials that can be machined (steel, stainless steel, aluminum) or soldering materials (galvanized sheet) make Technomig Dual Synergic an ideal solution for a wide range of applications, from maintenance to installation, construction to flashing work. The device is extremely user-friendly thanks to the fast, SYNERGISTIC setting of welding parameters. Intelligent and automatic arc control maintains excellent welding performance at all times under all operating conditions with different materials and gases. Additionally, the arc length can be adjusted manually to customize the weld shape to suit the welder's working style. All welding parameters are more clearly visible on the ONE TOUCH graphic LCD display. Light weight and very small dimensions ensure easy transport of the device to all internal and external workplaces.

• Change of polarity during GAS MIG-MAG/BRAZING welding

• 17 synergistic curve settings

• LCD display shows voltage, welding current and wire speed

• characteristics of the increase in wire speed, electronic reactance, wire firing time (burning), secondary gas time.

• 2-bar/ 4-bar, point cycle selection

• thermostat protection function, overload protection, overvoltage protection, against too low voltage, generator (+/- 15%).

• GAS/Flux-FREE welding readiness, can be converted into MIG-MAG with an additional set with burner and ground cable (3-meter hose package)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Telwin
Parametry	Welding methods	MIG/MAG
Parametry	Power consumption	6.25 kVA
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	1.2 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	13 kg
Parametry	Length	46 mm
Parametry	Width	24 mm
Parametry	Length of ground cable	300 cm
Parametry	Additional features	LCD display
Parametry	Product weight with unit packaging	13.9 kg
Parametry	Manufacturer code	8004897916583
Parametry	EAN (GTIN)	8004897916583
Parametry	Model	TECHNOMIG 210 Dual Synergic
