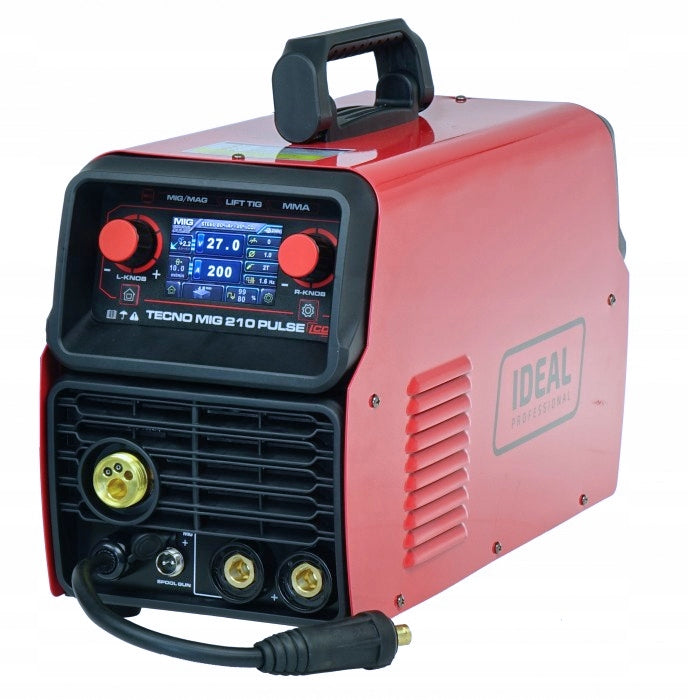

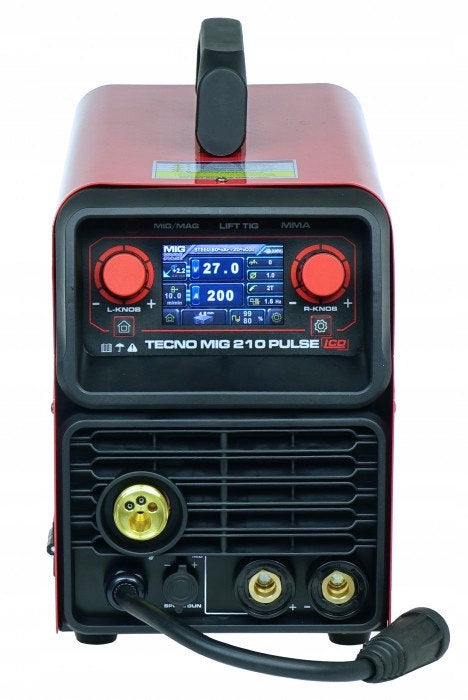

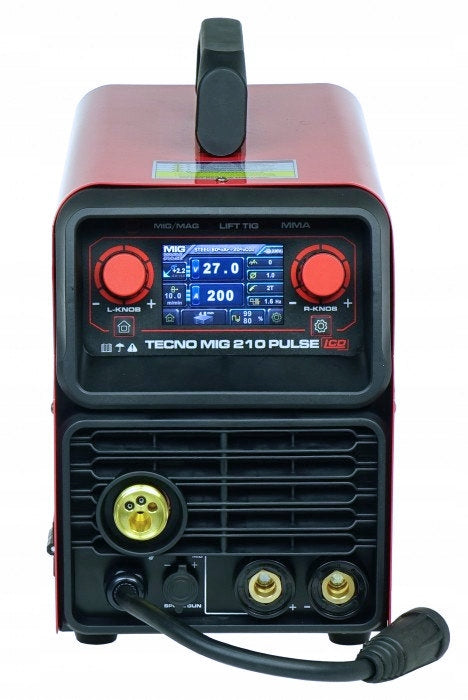

Suvirinimo aparatas TECNO MIG 210 PULSE IDEAL

Trumpai apie prekę

Prekė: Suvirinimo aparatas TECNO MIG 210 PULSE IDEAL. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG210PLCD
• Ilgis: 490 mm
• Plotis: 210 mm
• Aukštis: 290 mm

Inverter semi-automatic welding machine

TECHNICAL PARAMETERS

• Power: 6,7 kW
• Idle Voltage: 64 V
• Current at 100% operation: 155 A
• Current at 60% operation: 200 A
• Aluminium wire diameter: 0,8 - 1,2 mm
• Wire diameter for soldering CuSi3 0,8
• Self-shielding wire diameter: 0,8 - 1,0 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Stainless steel wire diameter: 0,6 - 1,0 mm
• Welding electrode diameter: 1,6 - 4,0 mm
• Welding current adjustment range: 30 - 200 A (MIG) / 10 - 200A / 10 - 200 A (TIG/MMA)

  PHYSICAL PARAMETERS

• Wire spool size: D200 (2kg and 5kg)
• Degree of protection: IP 21S
• Weight: 14kg
• Dimensions [H. lat. length ]: 490x210x290 mm

POWER SUPPLY PARAMETERS

• Power supply network protection: C25A
• Rated supply voltage: 230 V; 50Hz (1ph)

TECNOMIG 210 PULSE LCD is an inverter synergic semi-automatic welding machine designed for arc welding using MIG/MAG, MMA, TIG Lift, and soldering galvanized sheets. The device is designed for use in professional use.

The device has three synergistic MIG/MAG welding modes: MIG, MIG PULS, MIG DOUBLE PULS.

TECNOMIG 210 PULSE LCD is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas shield, active or mixture, and with reverse polarity without gas.

Thanks to the use of pulsation MIG, the amount of heat introduced into the welded element is increased. It is possible to obtain a better weld, regardless of the welding position and reduce the amount of spatter.

Both with the MIG method and MIG PULS we have the ability to choose the button function in the handle between working in the 2-bar and 4-bar mode (button lock for long welds),

Readable panel with 2 potentiometers allows accurate adjustment of welding parameters:

regulation of inductance

regulation of pulse width in double pulse

regulation of pulsation frequency in double pulse

regulation of gas outflow time after welding

regulation of wire access speed

PRODUCT CHARACTERISTICS

• PULSE function- enables pulsed welding for a more durable and robust weld. It is perfect for welding materials such as aluminum, inox, copper and nickel.
• FLUX function - the possibility of welding without gas using self-shielding wire.
• TIG Lift function - with a dedicated handle, the device can be used for TIG short-circuit welding
• Eurozconnector - allowing the interchangeable use of various types of handles.
• Intuitive control - migomat has been designed in such a way that its operation does not cause problems even for people starting their adventure with welding
• Single-phase power supply 230 V - allows you to work with the device practically anywhere with access to the electrical network
• IGBT transistorsThe device uses modern IGBT transistors, which provide a minimum of electromagnetic interference and low power losses in basic systems. The use of IGBT transistors provides an increase in the efficiency and reliability of the power source, reducing the total weight of the welding machine.
• Smooth regulation of welding current - provides the possibility of accurate selection of welding parameters depending on the type and thickness of the material
• Lightweight and very compact, it can be easily transported both inside and outside buildings. Thanks to the modular base for the cylinder, we gain a fully mobile set.
• The device is equipped with overload protection, which increases its reliability
• Maximum spool with wire: D200 2/5 kg.
• The device has a fan cooling system which significantly increases its efficiency
• For MIG-MAG welding, the wire feed speed can be adjusted
• Protection against overload.

The welding machine also has functions facilitating the MMA welding process with a wrapped electrode:

HOT START: hot start adjustment (manual) - facilitates the ignition of the electrode by providing more welding current with each arc.

ANTI STICK: anti-short-circuit - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents the accidental formation of a welding arc

VRD (Voltage Reduction Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments.

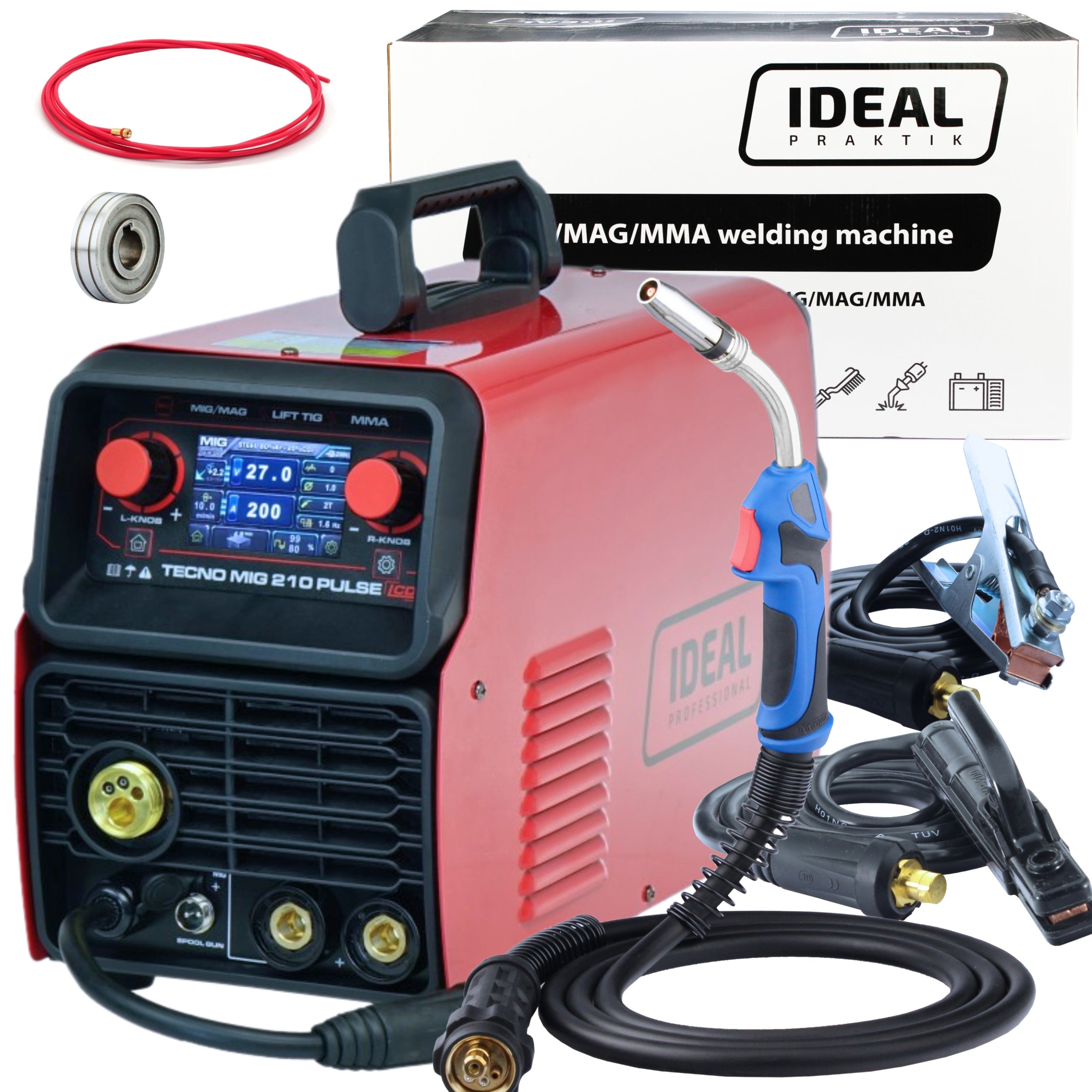

DELIVERY INCLUDES

Semi-automatic welding machine

MIG 24/3m welding torch with EURO plug

Mass cable 2m

Electrode cable 2m

Feeder roller AL 1,0/1,2

Feeder roller V 0,8/1,0 (on device)

Teflon cartridge 3m

Operating instructions

Warranty card
