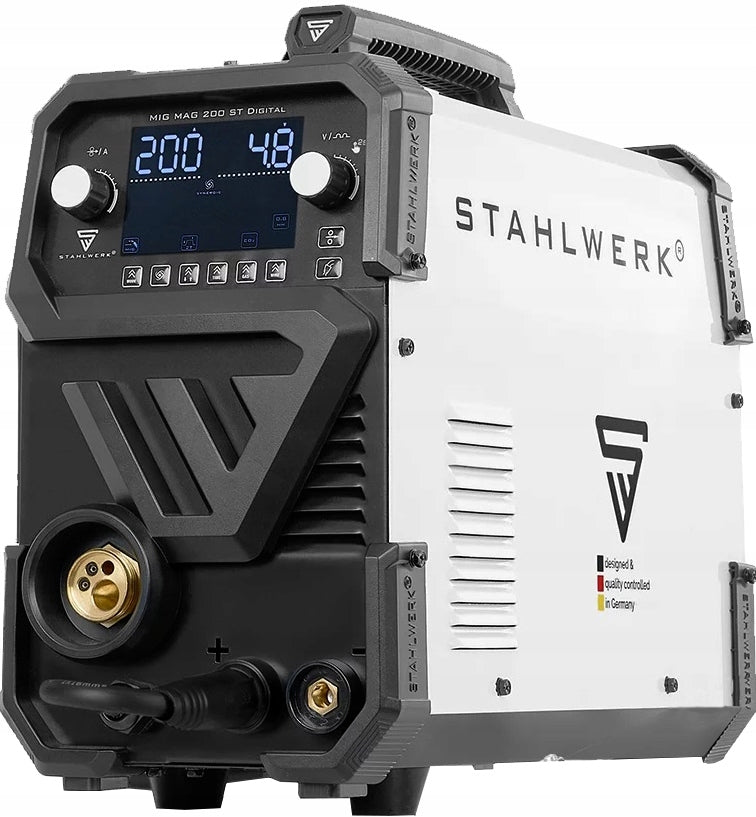

Suvirinimo aparatas STAHLWERK MIG MAG 200 ST SYNERGY

Trumpai apie prekę

Prekė: Suvirinimo aparatas STAHLWERK MIG MAG 200 ST SYNERGY. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: STAHLWERK
• Modelis: STAHLWERK MIG MAG 200 ST

STAHLWERK MIG MAG 200 ST is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• MIG SYN - MIG/MAG welding with synergistic settings,
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. There is a thin layer of powder on the wire, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

The STAHLWERK MIG MAG 200 ST welding machine is used for welding:

✔ low alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ low carbon steel (MMA, MIG/MAG, TIG Lift DC),

✔ alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ cast iron (MMA, MIG/MAG, TIG Lift DC),

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

STAHLWERK MIG MAG 200 ST has a readable and easy to use function panel, on which there is m.in.:

• Large digital screen,
• Welding method selection button: MIG, TIG, MMA, CUT
• Gas shield selection button,
• The button for selecting the diameter of the wire used,
• Selection of welding mode: 2T/4T
• 2 Adjustment knobs and buttons in one.

• ✔ REPAIR WORKSHOPS,
• ✔ AUTOMOTIVE INDUSTRY,
• ✔ LOCKSMITH WORKSHOPS,
• ✔ OF ALL BODYWORK REPAIRS,
• ✔ FARMS,
• ✔ HOMEWORK,

AND WHEREVER RELIABILITY MATTERS!

✔ SYNERGY - is a very helpful feature available in professional welding equipment of PREMIUM class. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

✔ SPOT WELDING - consists in making on a small area of joining materials of small thickness. Most often, spot welding of sheet metal is carried out. This procedure is also referred to as one-sided welding.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off the welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

✔ PRECISION SETTINGS - inverter welding machines are equipped with very sensitive potentiometers, which allows even more precise adjustment of operating parameters and provide high versatility in the use of equipment for professionals and amateurs.

✔ OVERLOAD PROTECTION - ensures the reliability of the device.

✔ LED LAMP - The special highlight of the welding machine is the integrated LED light illuminating the wire guide, which allows you to quickly change the wire spool even in low visibility conditions. It turns on automatically when you open the protective flap.

✔ LIGHTWEIGHT AND COMPACT DESIGN - innovative IGBT transistors save space and weight compared to the old MOSFET technology. No more heavy carry!

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a professional wire feeder, which guarantees stability and continuity of operation of the device.

The 2-roll feeder allows precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Power supply voltage: 230 V AC (+-15%) / 1 ~ (single phase)

⏩ MIG PARAMETERS:

• Welding current: 20-200 A
• Maximum rated current: 32 A
• Maximum effective mains current: 12,4 A
• Feeder type: built-in 2-roller
• Wire diameter: 0,6/0,8/1,0 mm

⏩ TIG PARAMETERS:

• Welding current: 20 - 200 A
• Maximum rated current: 25 A
• Maximum effective mains current: 9,7 A

⏩ PARAMETERS MMA:

• Welding current: 20 - 180 A
• Maximum rated current: 35 A
• Maximum effective mains current: 13,6 A

⏩ OTHER:

• Mass: 10,9 kg
• Dimensions: 490 x 210 x 390 mm
• Degree of protection: IP21S
• Standards: IEC 60974-1; EN 60974-10 (Class A)

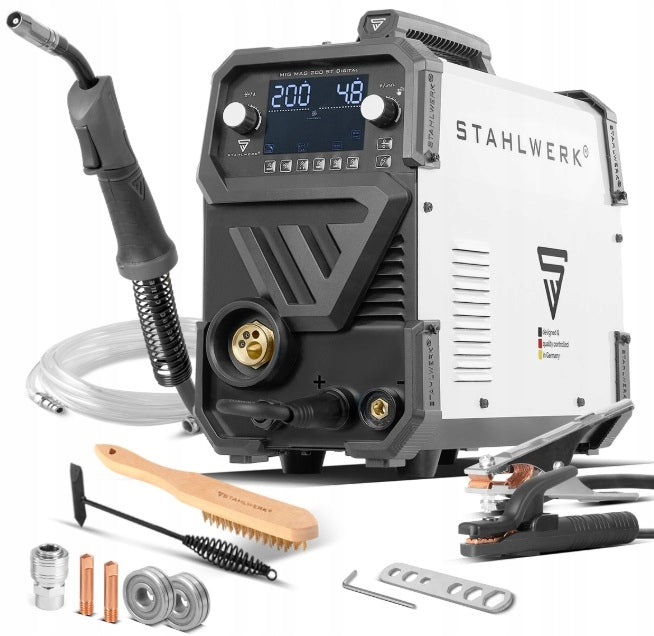

WHEN YOU BUY FROM US, YOU WILL RECEIVE:

• MIG MAG 200 ST Digital - 1 pc.
• Welding torch - AK 15 - 3m - 1 pc.
• Current terminal 0,8 mm (pre-assembled) - 1 pc.
• Current terminal 0,8 mm - 1 pc.
• Current terminal 1,0 mm - 1 pc.
• (1,0/0,8 type V) wire guide roller (pre-assembled) - 1 pc.
• (0,8/0,6 type V) cable guide roller - 1 pc.
• (1,0/0,8 type E) wire guide roller - 1 pc.
• Mounting key - 1 pc.
• Allen wrench 2,5 mm - 1 pc.
• Electrode holder - 3m - 1 pc.
• Ground clamp - 3m - 1 pc.
• Gas connection hose - 5m - 1 pc.
• Quick coupler W. for gas pressure reducer - 1 pc.
• Wire brush - 1 pc.
• Speedway hammer - 1 pc.
• Protective cover - 1 pc.

SET 1 LARGE MIG WITHOUT MB15 INDUCTION.

M.
