Suvirinimo aparatas SPARTUS TIG DC Pulse MMA 230V 200A IGBT

Trumpai apie prekę

Prekė: Suvirinimo aparatas SPARTUS TIG DC Pulse MMA 230V 200A IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: EasyTIG 203P DC pakiet
• Ilgis: 420 mm
• Plotis: 135 mm
• Aukštis: 240 mm

Manufacturer: SPARTUS ║ Welding methods: TIG DC, PULS, MMA ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

EASY TO USE TIG DC WITH PULSED CURRENT WELDING FUNCTION

CHECK OUT ALL THE ADVANTAGES OF THE SPARTUS EASYTIG 203P DC WELDER:

• Latest generation IGBT transistors
• Smooth welding current adjustment
• Welding with PULSE possible - joining thin elements!
• HF non-contact ignition
• LIFT touch ignition
• 60% duty cycle at 200A
• Excellent for welding stainless steel and acid-resistant steel.
• TIG DC and MMA welding methods

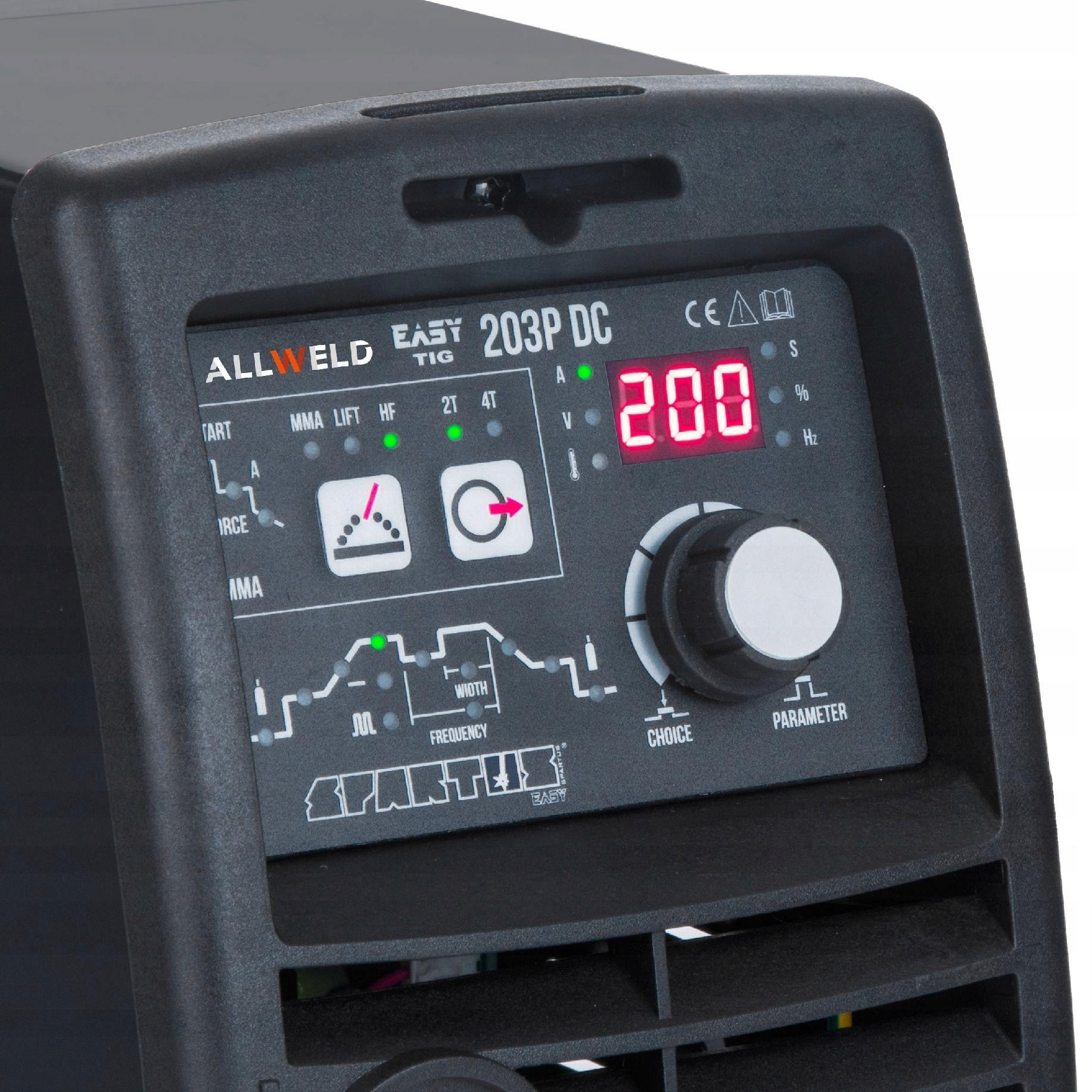

• Digital control panel
• 2T/4T operating mode
• HOT START function
• ARC FORCE function
• Suitable for production work
• Instant change of entered settings
• PREGAS POSTGAS adjustment
• Current rise and fall adjustment
• Parameter backlight
• Ideal for professionals and amateurs
• Friendly and easy to use
• Adapted for field work
• Optimal weight - easy transport
• Ideal equipment for working in hard-to-reach places

DISCOVER THE OTHER FEATURES OF THE EASY TIG 203 PULS

The SPARTUS 203P DC welding machine is a modern welding machine built on the basis of the latest IGBT technologies. The use of this technology allowed to reduce the size of the device and increase its efficiency and efficiency. High power source reaching 200A allows you to obtain 5mm melt and weld materials up to 10mm thickness. SPARTUS 203P DC is suitable for any work using black steel, stainless steel, acid-resistant steel. The device uses a modern control panel, with illuminated parameters for easy operation. The selection of parameters is made using a multifunctional knob, smoothly adjusting each value of the TIG "ladder". This application allows you to precisely and accurately set the desired parameter. The device gives us TIG welding options with PULSEM, thanks to which the welder has more control over the welding process, and the weld itself is narrower and prettier. PULS also allows for welding very thin elements, reducing the linear energy of the arc, and thus reducing overheating or burnout of welded materials.

PULSE FUNCTION, REMOTE CONTROL AND OTHER POSSIBILITIES

PULS - full current modulation, allows welding of thin elements and increases the stability of arc glow.

2T/4T - when the start button is pressed, the welding process is stopped after releasing the button - when the button is pressed and released for the first time, the welding process stops at the second press. This is a more convenient solution for longer welds.

REMOTE CONTROL - an additional advantage is the possibility of using a remote control pedal. Remote foot control will work well for work where frequent change of current is needed. The remote control pedal is not included in the equipment, but is available at our other auctions.

HOT START function "hot start" - consists in temporarily increasing the welding current above the set value at the moment of arcing. This prevents the phenomenon of “sticking the electrode” in the initial phase of welding, making it easier to start the whole process.

ARC FORCE “arch dynamics” – shortening the arc length is accompanied by an increase in welding current, which stabilizes the arc, regardless of its length.

POWER SUPPLY PARAMETERS:

• Power supply voltage: 230V
• Number of phases: 1ph
• Power supply frequency: 50/60Hz

TECHNICAL PARAMETERS:

• TIG welding current adjustment range: 10 - 200A
• Scope of MMA welding current regulation: 10 - 170A
• Pre-gas: 0 – 2s
• Power build-up time: 0 – 10s
• Power drop time: 0 – 10s
• Post-gas: 0 – 10s
• Pulse current: 5 - 200A
• Base current: 5 - 200A
• Pulse width: 5 – 95%
• Pulse frequency: 5 – 200Hz
• Hot Start adjustment range: 0 – 10%
• Arc Force regulation range: 0 – 10%
• Idle voltage: 69V
• TIG duty cycle: 60%
• MMA work cycle: 40%
• Efficiency η: 85%
• Power factor: 0,60cosφ

ADDITIONAL FUNCTIONS

• PULSE function: YES
• HF function: YES
• HOT START function: YES
• ARC FORCE function: YES
• 2T/4T function: YES

PHYSICAL PARAMETERS:

• Degree of protection: IP21S
• Cooling: fan
• Dimensions: 420x135x240mm
• Mass: 7,9kg

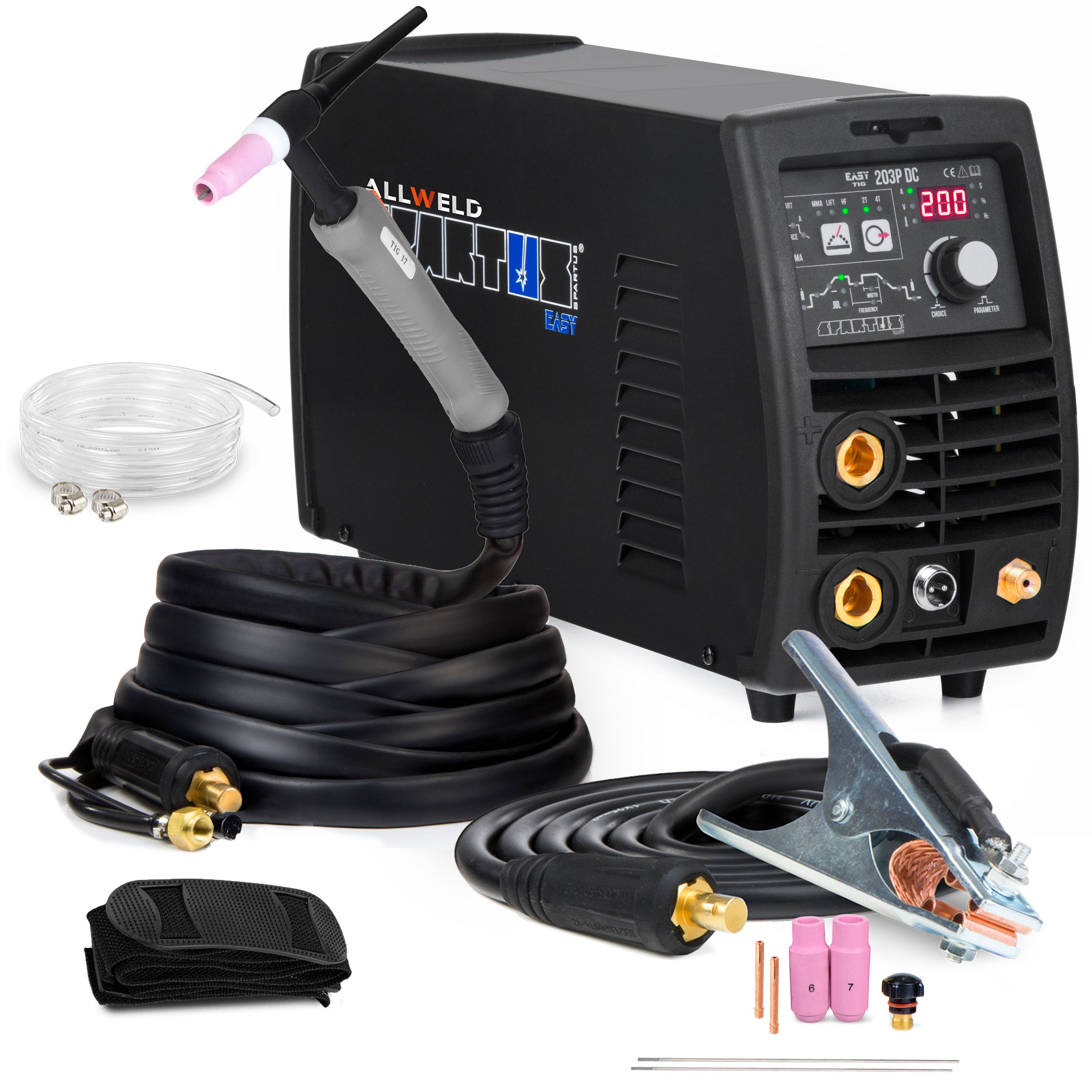

BY BUYING FROM US YOU GET

• Welding machine SPARTUS EASYTIG 203P DC
• Welding torch TIG type SR17 - 4m
• Bulk holder - 3m
• Gas hose - 1pcs
• Clamp bands - 2pcs
• Carrying strap - 1pcs
• TIG toolbox with handle consumable parts (cork, bushing, ceramic nozzle)
• User manual in Polish

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Spartus
Parametry	Power consumption	7.6 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	7.9 kg
Parametry	Welding range	10–200 A
Parametry	Height	240 mm
Parametry	Length	420 mm
Parametry	Width	135 mm
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	400 cm
Parametry	Product weight with unit packaging	8.5 kg
Parametry	Manufacturer code	Easy TIG 203P DC
Parametry	EAN (GTIN)	5900391242292
Parametry	Packaging status	original
Parametry	Model	EasyTIG 203P DC pakiet
Parametry	Welding methods	MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,LCD display
