Suvirinimo aparatas Spartus EasyMIG 315 300A 400V LCD inverteris

Trumpai apie prekę

Prekė: Suvirinimo aparatas Spartus EasyMIG 315 300A 400V LCD inverteris. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: EasyMIG 315
• Ilgis: 570 mm
• Plotis: 265 mm
• Aukštis: 460 mm

⭐ Advanced semi-automatic welding machine for special tasks

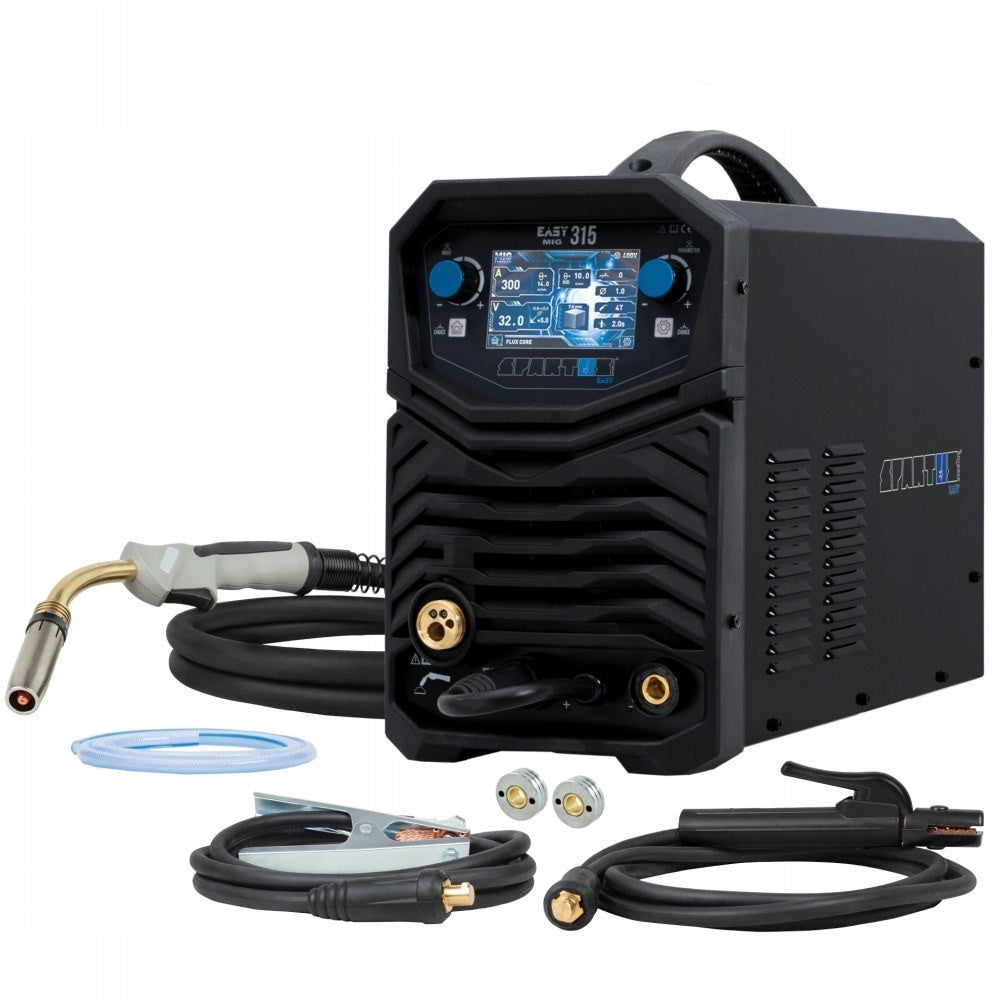

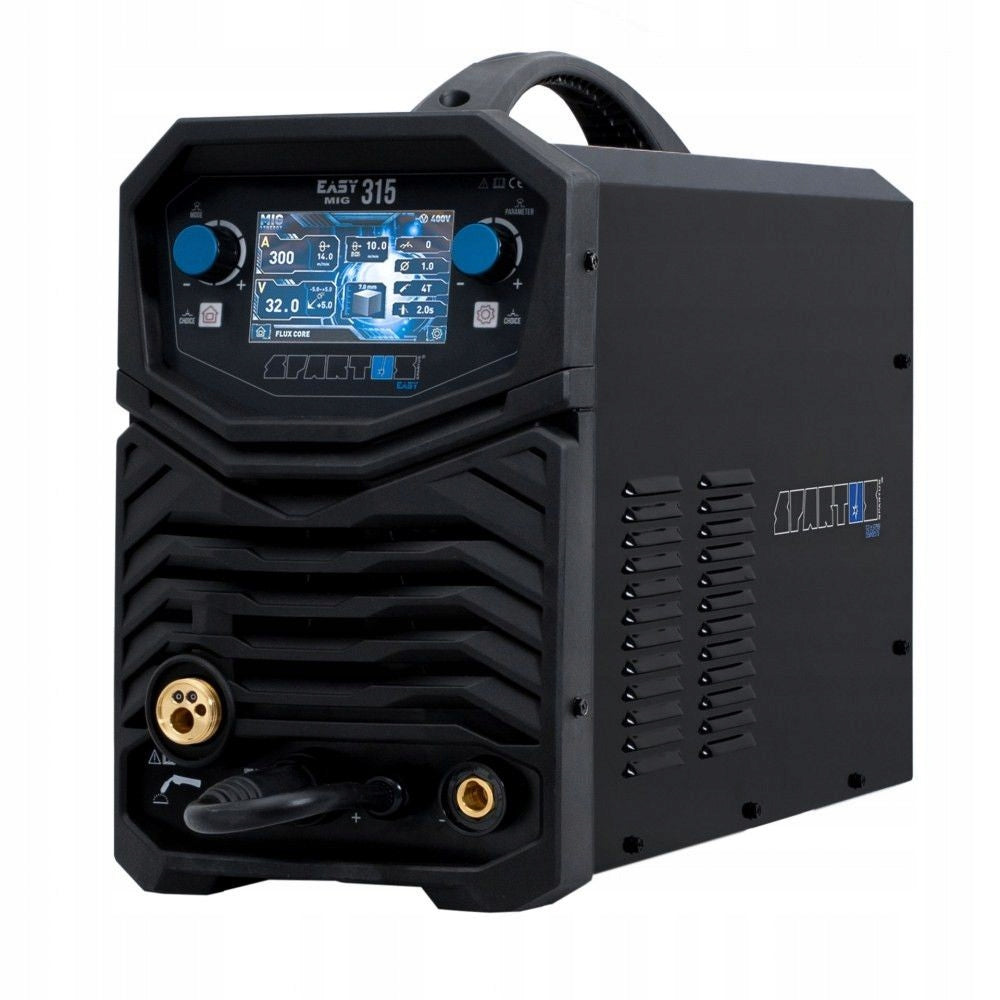

Semi-automatic welding machine Spartus EasyMIG 315 is a modern inverter device based on IGBT transistors, designed for efficient workshop and industrial work. The semi-automatic machine offers versatile welding methods MIG/MAG, MMA and TIG Lift with arc ignition by rubbing, as well as welding with self-shielding wire without gas thanks to the possibility of changing polarity.

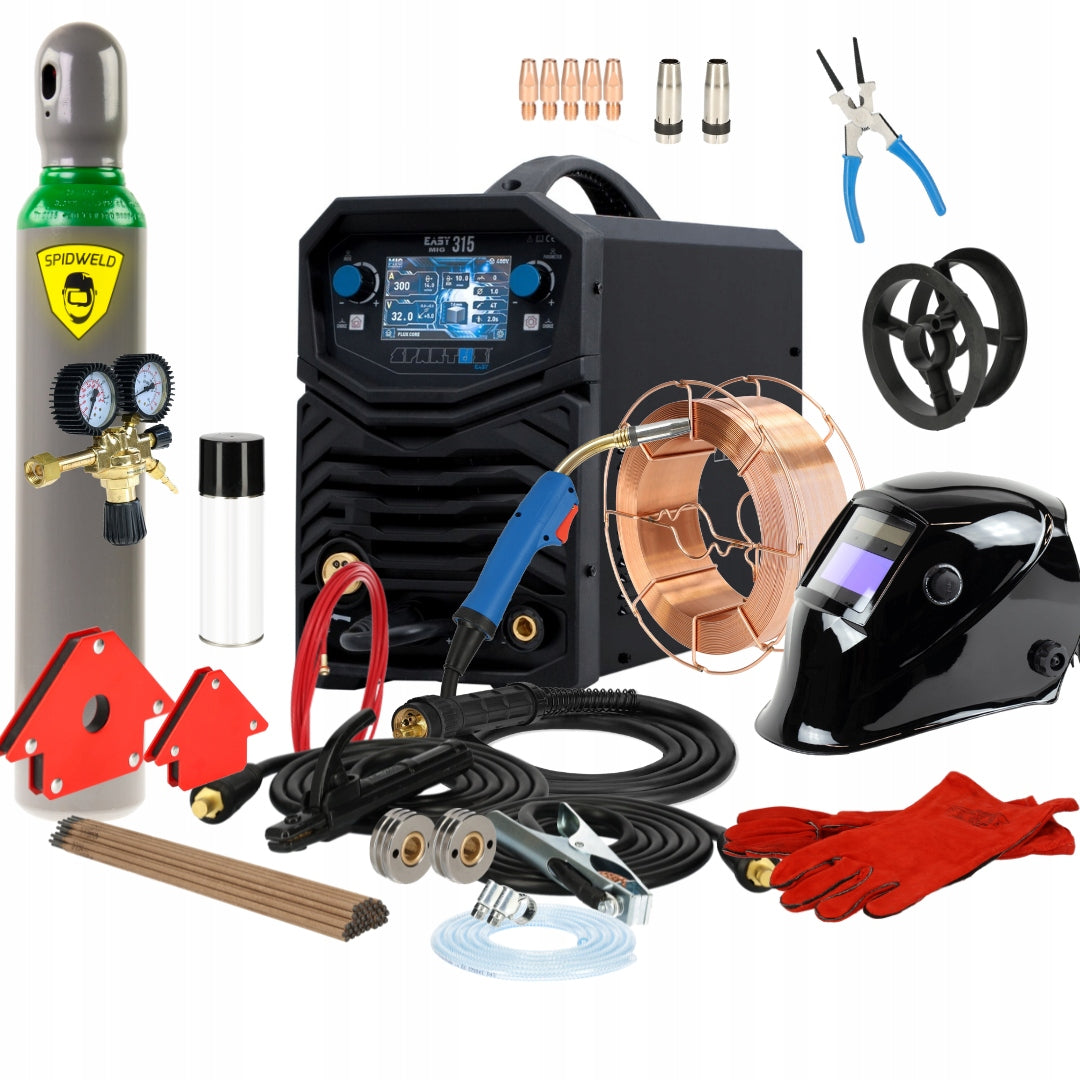

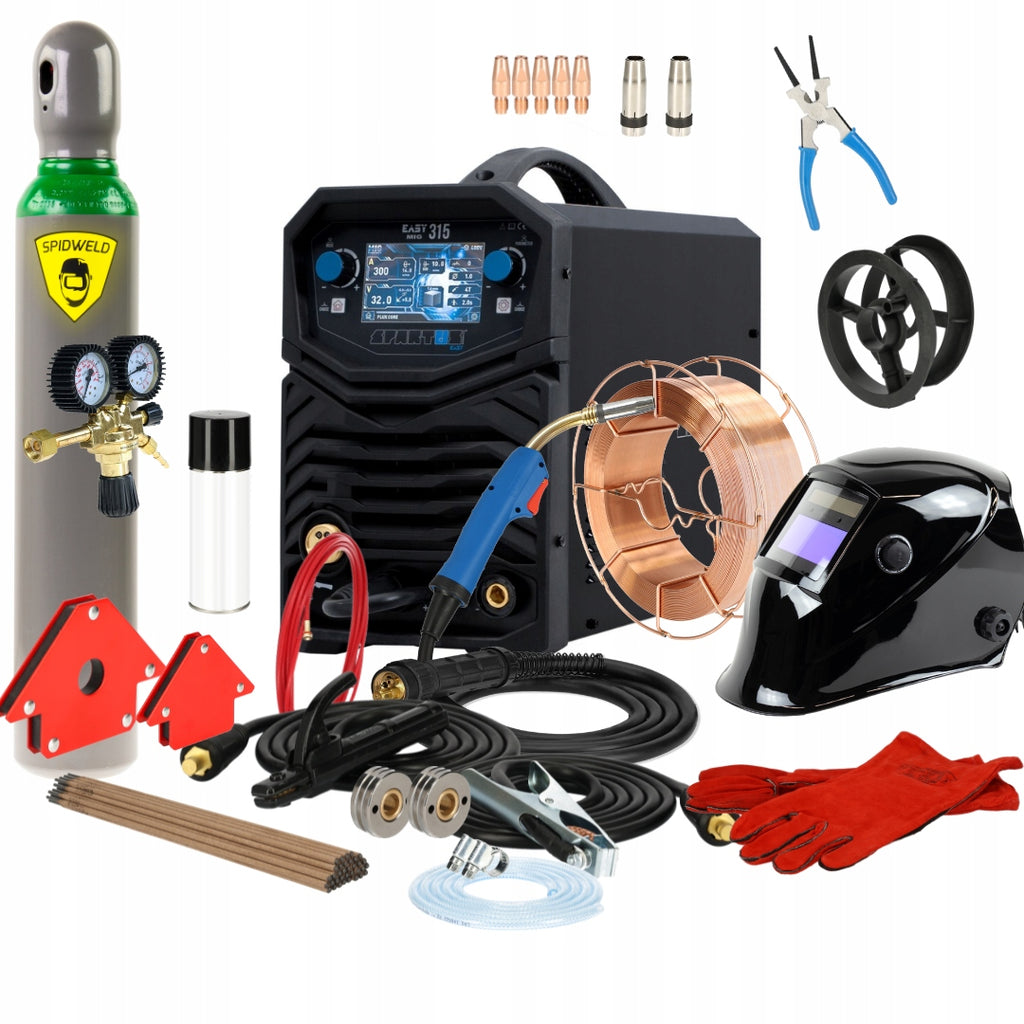

📦 Included

• Welding device
• Welding torch SPARTUS® Easy 360 (MB-36) / 3 m
• Bulk cable with terminal / plug 35-50 / OS 35 mm2 / 2,5 m
• Electrode cable with holder / plug 35-50 / OS 35 mm2 / 3 m
• Feeder rollers type 4RN fi 0,8/1,0 mm V-shaped for steel
• Feeder rollers type 4RN fi 1,0/1,2 mm V-shaped for steel
• Yellow coated spiral cartridge (mounted in the holder)
• User manual in Polish
• Self-tinting visor 510G
• Gas cylinder ARG/CO2 8 liters (new, full, 10-year legalization, valve cap)
• Large reducer ARG/CO2 with two pressure gauges
• SG2 1,0 mm / 15,0 kg welding wire
• Red steel spiral cartridge / 3 m
• Wire spool adapter
• Anti-chipping preparation 400 ml
• Welding gloves 1 pair
• MIG/MAG welding pliers
• Magnetic angle 11,0 kg
• Magnetic angle 22,0 kg
• Gas nozzle / 2 pcs.
• Current tip 1,0 mm / 5 pcs.
• Rutile welding electrodes / 1,0 kg
• Hose for gas connection + clamps

⚡ High power 300 A and three-phase power supply 400 V

The semi-automatic Spartus EasyMIG 315 is powered from the 400 V three-phase network, which ensures high arc stability and resistance to voltage drops. The maximum welding current of 300 A for MIG/MAG and TIG methods and 250 A for MMA allows for melting thicker structural steel, stainless steel and aluminum elements.

High efficiency and a duty cycle of 60% allow continuous and intensive work in the workshop without the risk of overheating the equipment.

🎛 Clear control panel and synergistic programs

The Spartus EasyMIG 315 welder is equipped with a clear LCD display and an intuitive control panel. Built-in synergistic programs automatically select parameters for steel wires with diameters of 0,8 / 1,0 / 1,2 mm, leaving the option of manual parameter correction.

Control panel elements:

• L1. LCD display – clear indications of operating parameters
• L2. Welding method selector knob / MIG voltage regulation – fast mode switching
• L3. Return button to menu – easy navigation in settings
• L4. Parameter adjustment knob – precise setting of current and voltage
• L5. Welding parameter selection button – wire speed, diameter, inductance, 2T/4T mode, Hot Start, Arc Force

💡 4-roll feeder and welding assist functions

The robust four-roll wire feeder used in the Spartus EasyMIG 315 welding machine enables smooth and even feeding of the binder without slipping, which is crucial when working with a longer welding torch handle.

Advanced features to support the welding process:

• 2T/4T – choice of two-bar or four-bar mode for easier longer stitch
• Inductance regulation – limitation of the number of chippings and control of face width and melting
• Burn Back – wire burning time adjustment eliminating the risk of sticking to the current tip
• Slow Feed – gentle start of the feeder recommended for high current work
• Hot Start and Arc Force – easier electrode glow and more stable arc in MMA method
• VRD – idle voltage reduction system for increased safety
• Spool Gun – support for lightweight handle with its own feeder and spool in the handle

🔧 Full technical specification

• power supply: 400 V
• MIG welding current: 50 – 300 A
• MIG duty cycle: 60%
• MIG output voltage: 16,5 – 29 V
• feeder type: 4 - roller
• wire diameter: steel 0,8 / 1,0 / 1,2; alu 1,0 / 1,2
• wire spool: 200 / 300 mm
• regulation of inductance
• wire feeding test
• 2T/4T switch
• synergy
• change in welding polarity
• TIG welding current: 10 – 300 A
• TIG duty cycle: 60%
• MMA welding current: 10 – 250 A
• Hot Start: 0 – 10
• Arc Force: 0 – 10
• VRD
• MMA duty cycle: 60%
• Power consumption: MIG 17 / TIG 14 / MMA 13
• Efficiency: 85%
• power factor: 0,93
• degree of protection: IP21S
• dimensions: 570 × 265 × 460 mm
• Weight: 22 kg

🎯 Purpose and application

The Spartus EasyMIG 315 semi-automatic welding machine has been designed for professional use in locksmith workshops, repair plants, crafts and industry. It is used in connecting steel structures, tanks, fences and stainless steel elements and aluminum alloys. The versatility of welding methods combined with synergistic control makes this device a reliable working tool.

Specifications
