Suvirinimo aparatas SPARTUS EasyMIG 265, MIG/TIG/MMA, 3in1, 400V, 250A, SYNERGY

Trumpai apie prekę

Prekė: Suvirinimo aparatas SPARTUS EasyMIG 265, MIG/TIG/MMA, 3in1, 400V, 250A, SYNERGY. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: EasyMIG 265

Welding methods: MIG/MAG, MMA, FLUX, TIG Lift | Power supply: 400V | Maximum current: 250A | Working cycle: 60% | SYNERGY |

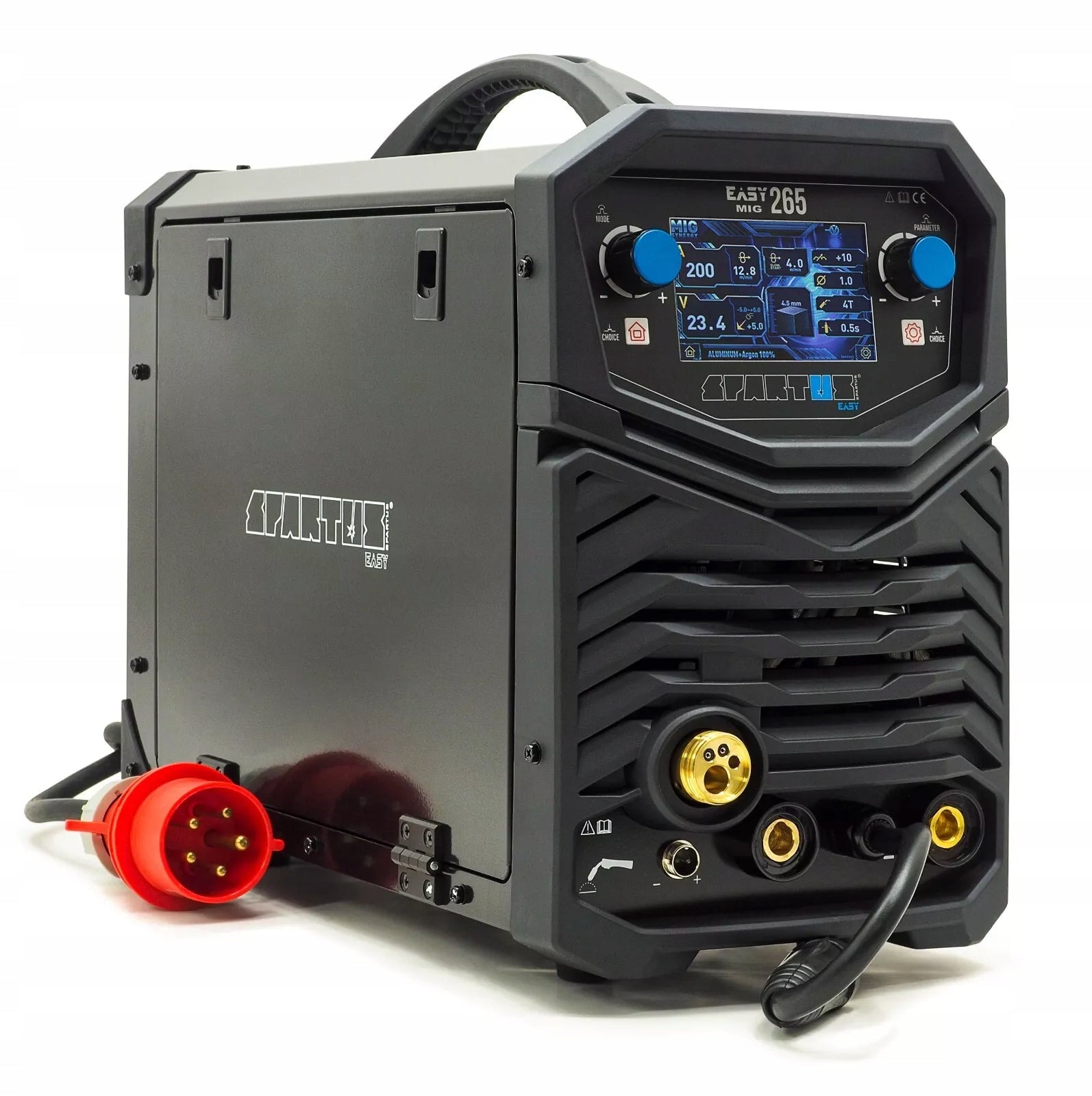

SPARTUS® EasyMIG 265 is a modern, inverter semi-automatic welding machine, based on IGBT transistors. It enables welding with a hot melt electrode in an inert and active gas shield (MIG/MAG), welding with a wrapped electrode (MMA) and TIG Lift welding with arc ignition by rubbing. In addition, the device, thanks to the ability to change the polarity of welding, allows welding with self-shielding wire without gas.

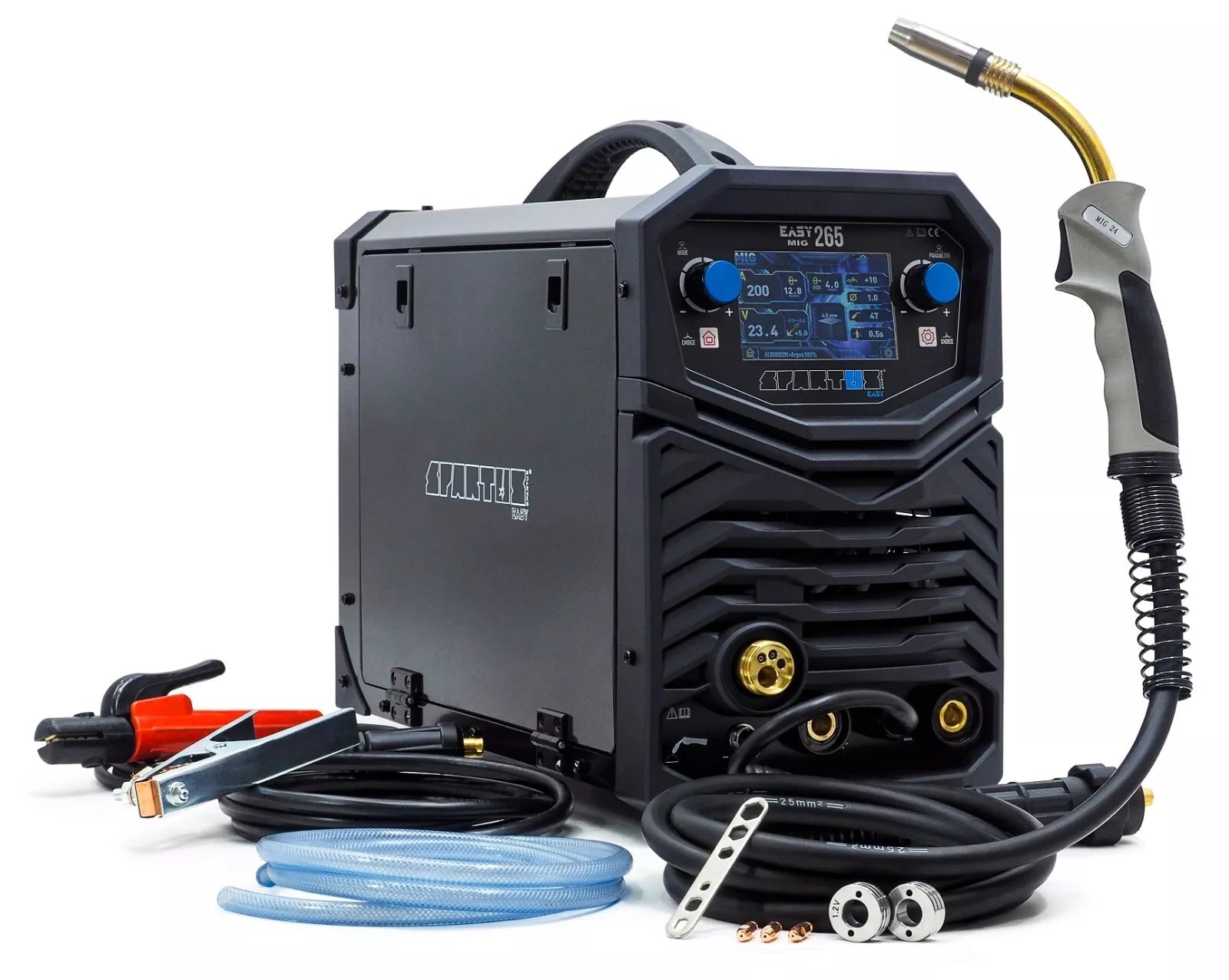

The set includes:

• Device SPARTUS® EasyMIG 265
• Welding torch SPARTUS® MIG SPE 240/ 3 m
• Electrode cable
• Bulk cable
• Gas hose
• Wire feeder roller - 2pcs
• User manual

The SPARTUS EASYMIG 265 welding machine is a 3in1 welding machine that can be used for welding using the MIG/MAG, MMA (wrapped electrode) and TIG DC (with LIFT touch). The device allows for welding with a maximum current of 250A, ensuring excellent quality weld. An additional advantage of the welding machine is the possibility of using spools with wire up to 15kg !

The maximum welding current for MIG/MAG/TIG methods is 250A and for MMA method: 230A. The device is powered from a three-phase 400V network.

The device is equipped with synergistic programs for MIG/MAG welding with steel wires in the diameter range of 0.8 / 1.0 / 1.2mm. In addition, the welding machine has the ability to manually correct the set parameters.

Modern technological solutions gave the opportunity to equip the device with a number of functions supporting the welding process:

• 2T/4T – the ability to choose one of two operating modes (MIG/MAG)
• Possibility of manual setting of the welding machine
• Synergy - automatic selection of parameters - with the possibility of manual correction,
• Programs synergistic to welding steel, aluminum and welding without gas
• Inductance – control of face width and melting depth (MIG/MAG), limitation of welding chips,
• Slow Feed – so-called. soft start of the wire feeder, recommended especially when welding with large currents at high wire feed speeds,
• Hot Start – easier electrode ignition (MMA),
• Arc Force – easier welding in forced positions (MMA),
• Spool Gun – lightweight and durable welding torch, with built-in wire feeder and spool in the handle, for MIG/MAG welding,
• Lutowelding - adjustable inductance
• VRD – reduced idle voltage (MMA),
• Possibility of welding with self-shielding wire - FLUX
• Welding current 250A at 60% efficiency
• Feeder 4R
• Support 5 and 15kg spools!

The welding machine has SLOW FEED mode - soft start of the feeder helpful for welding with large currents!

High-end four-roll wire feeder, ensures stable feeding of steel, stainless steel and aluminum welding wire. Stable output parameters guarantee the right quality of the weld.

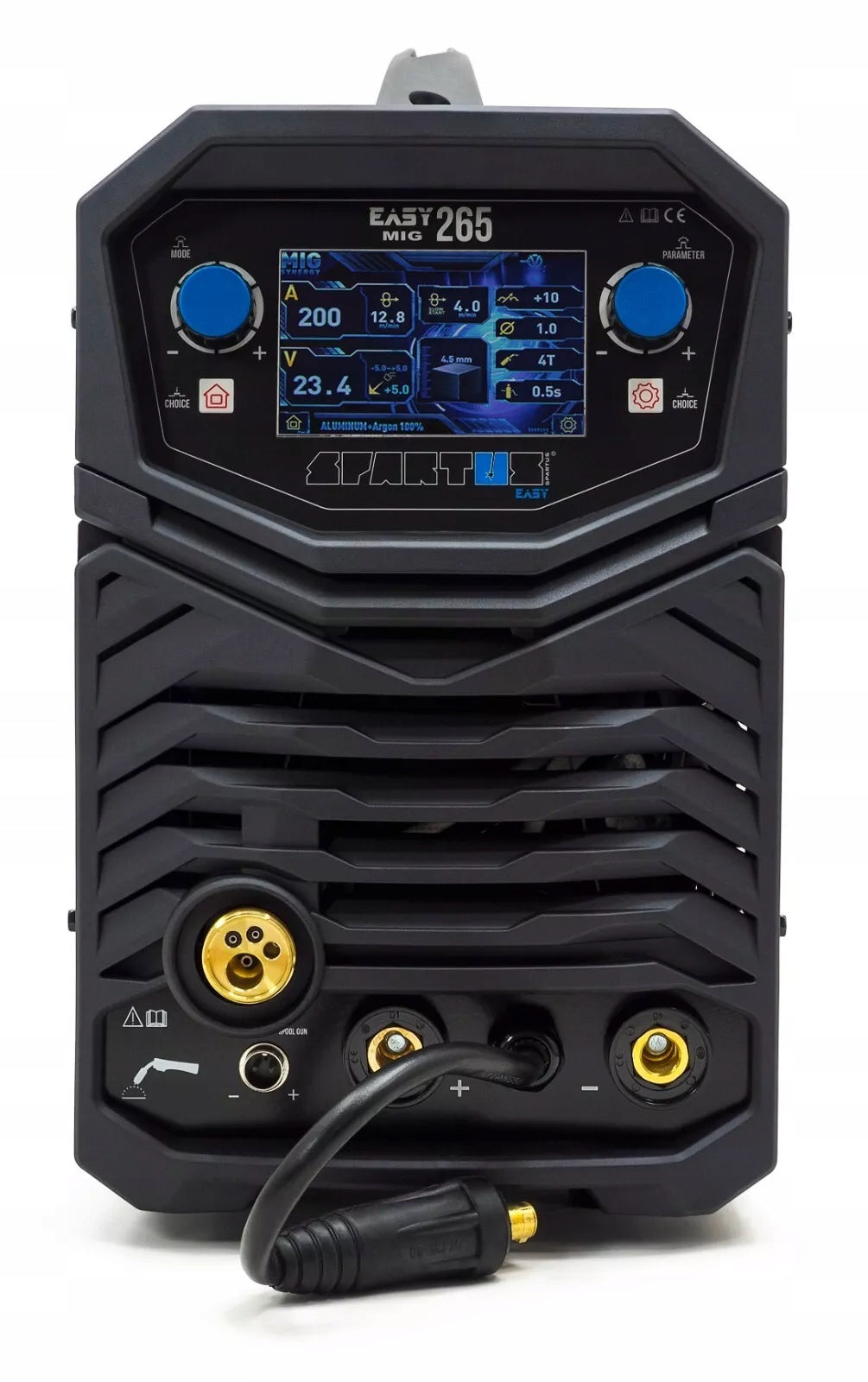

LCD DISPLAY - HINTS DURING THE CORRECTION!

The latest generation color LCD display helps us to set up the welding machine more easily. We can quickly and easily set the current voltage and quickly manage the functions of the device. In addition, the display at the time of correction suggests the shape of the spoiny and graphically recommends choice thickness of the material for a given current.

LIST OF SYNERGISTIC PROGRAMMES

• MIG STEEL - program for welding black steel in CO2 shield.
• MIG STEEL - program for welding black steel in Ar/CO2 shield.
• ALUMINIUM - program for welding aluminum in Ar sheath
• FLUX CORE - program for welding with self-shielding wires
• SPOOL GUN - welding with handle with built-in feeder
• TIG DC - welding with tungsten electrode
• MMA - welding with an electrode wrapped without the use of gas

After selecting a given type of welding, the display proceeds to further presentation of parameters along with graphic presentation of the thickness of the material.

• Power supply: ~3× 400V ± 10% 50 / 60 Hz
• MIG welding current: 50 - 250A
• MIG duty cycle: 60%
• Output voltage MIG: 16.5 - 26.5V
• Feeder type: built-in, 4-roller
• Wire spools used: ≤ 15kg / ∅200/300mm
• Wire diameter: Steel 0.8 / 1.0 / 1.2mm, Alu 1.0 / 1.2mm
• Synergy: Yes
• 2T/4T operating mode: Yes
• Additional MIG functions: Burn Back, inductance, synergistic programs, manual parameter correction, spool gun, Slow Feed, polarity change
• TIG Lift: Yes
• TIG welding current: 10 – 250A
• MMA welding current: 10 – 230A
• Arc Force: Yes
• Hot Start: Yes
• VRD: Yes
• Power consumption: MIG 17 / TIG 13 / MMA 9A
• Power factor (cosφ): 0.93
• Efficiency η: 85%
• Isolation class: H
• Degree of protection: IP21S
• Weight: 22 kg
• Dimensions: 57 x 26,5 x 46 cm
• Weight with packaging: 28 kg
• Package size: 64 x 36,5 x 51,5 cm
