Suvirinimo aparatas SPARTUS EASYMIG 210 PULSE 230V 200A SYNERGY TIG LIFT 2-ROLL

Trumpai apie prekę

Prekė: Suvirinimo aparatas SPARTUS EASYMIG 210 PULSE 230V 200A SYNERGY TIG LIFT 2-ROLL. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: EasyMIG 210 PULSE
• Ilgis: 445 mm
• Plotis: 175 mm
• Aukštis: 290 mm

• Welding methods: MIG/MAG, MMA, SYNERGY, TIG LIFT
• Power supply: 230V
• Operating cycle 60% at maximum welding current 200A
• SYNERGY - automatic selection of parameters with the possibility of manual correction
• Smooth adjustment of welding parameters, inductance
• Professional, 2-roll wire feeder
• Modes and functions: 2T/4T, HOT START, ARC FORCE, VRD, SLOW FEED, BURN BACK, PRE-GAS/POST-GAS, wire test
• Clean, aesthetic welds
• Made in IGBT technology

✔ FEATURES AND ADVANTAGES:

• INDUCTION ADJUSTMENT - the introduction of less heat prevents sheet deformation and damage to the zinc layer,

• PULS - welding of very thin elements, reducing the linear energy of the arc and the risk of overheating / burning materials; welds are better quality,

• 2 TAKT - welding begins after pressing and ends after releasing the button,

• 4 TAKT - welding begins after the first press and release of the button, and ends after pressing again, which is more convenient for longer welds,

• TIG LIFT - arc glow by rubbing the electrode against the material; used in places where there is a risk of interference of electronics by high frequency current; welds are of high quality,

• HOT START - a temporary increase in welding current during arcing; prevents "sticking of the electrode", facilitates the start of welding,

• ARC FORCE - adjustment of welding arc dynamics, allowing to adjust the depth of melting,

• VRD - reduces the voltage on the electrode to a safe level after welding,

• BURN BACK - does not allow the electrode wire to be melted to the current tip,

• PRE-GAS/POST-GAS - protects the welding lake from the harmful effects of atmospheric air,

• IGBT - bipolar transistors increase the efficiency and reliability of the device and ensure lower power consumption.

⚙ TECHNICAL SPECIFICATION:

• Power supply: 230V 50/60Hz (1ph)
• Welding current: MIG: 30 - 200A | TIG: 10 - 200A | MMA: 10 - 160A
• Output voltage: 15.5 - 24V
• Power consumption: MIG: 39A | TIG: 29A | MMA: 34A
• Power factor: 0.73cosφ
• Efficiency η: 83%
• Wire diameter: 0.6 / 0.8 / 1.0 mm
• Wire feed speed: 1.5 - 12.5 m/min
• Spool with wire: 200 mm; up to 5kg
• Protection rating: IP21S H
• Dimensions: 44.5 x 17.5 x 29 cm
• Weight: 10kg

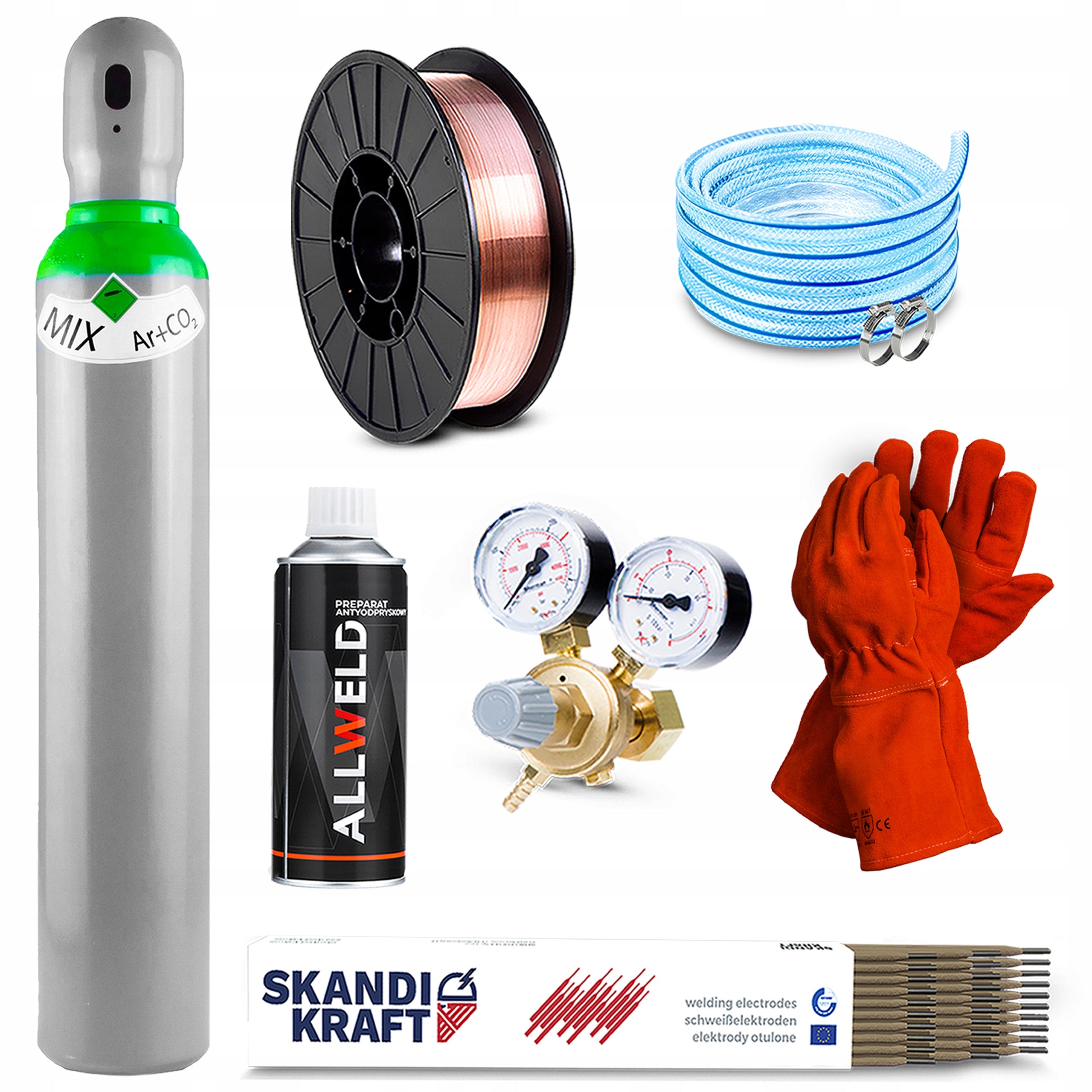

INCLUDED IN THE SET:

• Factory new reusable cylinder with a mixture of Ar (82%) / CO2 (18%) with a capacity of 8l; 10-year legalization, the possibility of filling at any point with technical gases,
• Gas hose with clamps - for connecting the reducer - 1pcs. ,
• Reducer with two pressure gauges - precise reducer with adjustment; for controlling the pressure in the cylinder and the amount of gas flowing out,
• Anti-chipping preparation - protects the nozzle and metal against welding chipping,
• Welding wire SG2 5kg - 1pcs ,
• Gloves welding - 1 pair,
• Electrodes SkandiKraft 1kg - 1pack.

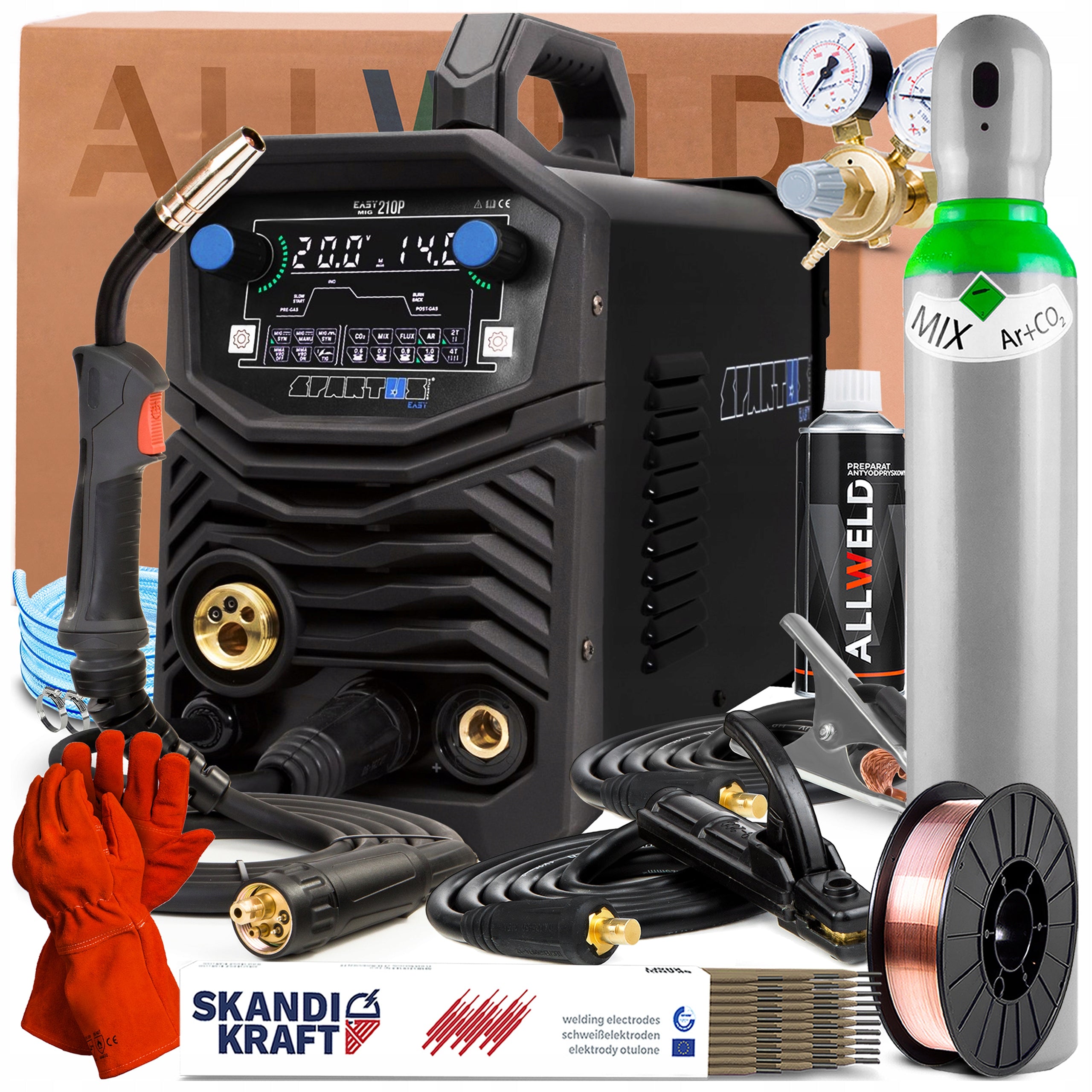

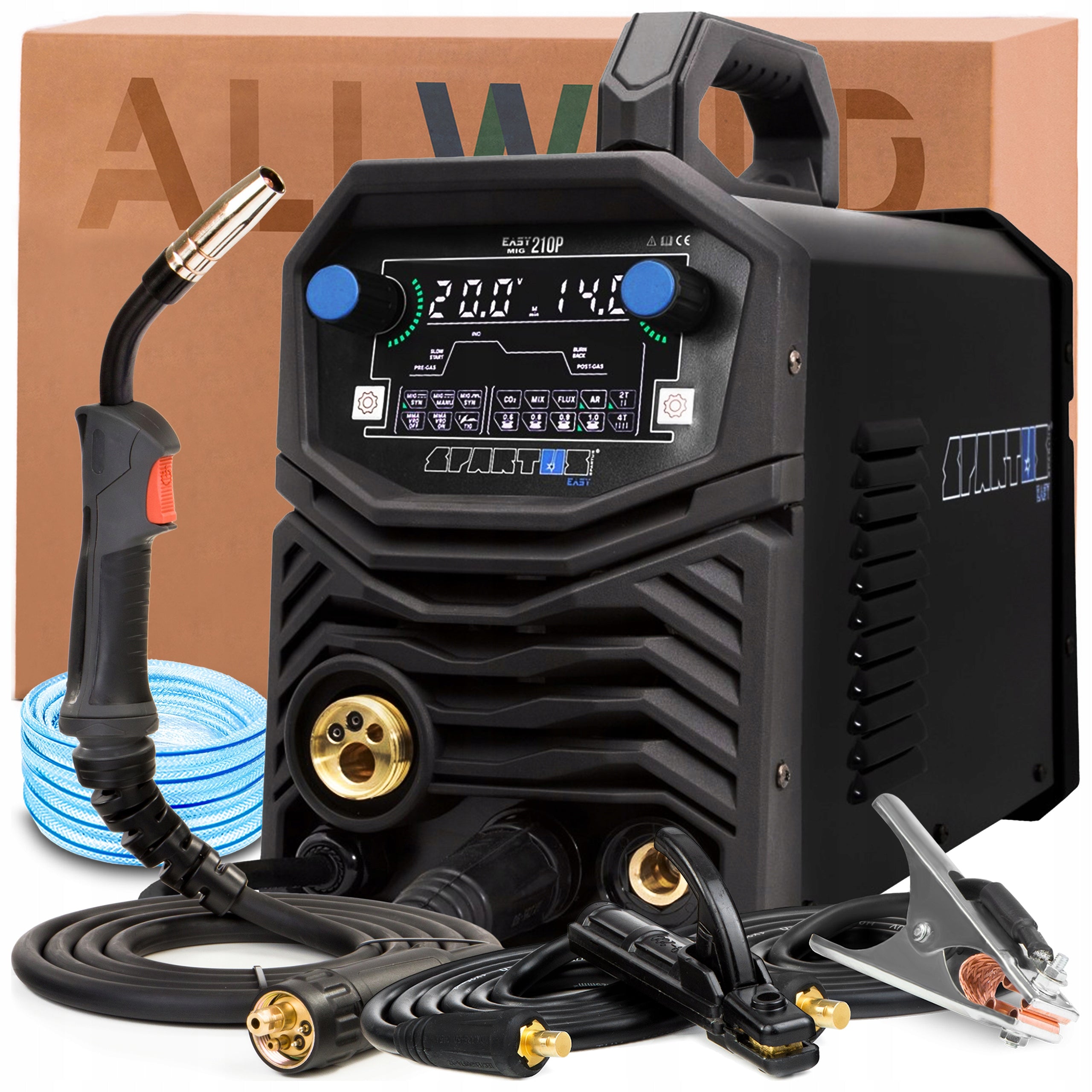

THE SET INCLUDES:

• SPARTUS EASYMIG 210 PULSE welding machine,
• Welding torch MIG SPE 150 - 3m,
• mass handle,
• electrode handle,
• Roll wire feeder 0.8 - 1.0V fi30 - 1pcs ,
• User manual and warranty card.

ADDITIONAL ACCESSORIES:

• Cylinder with gas mixture Argon/CO2
• Cylinder reducer Ar/CO2 MINI with two pressure gauges
• Welding wire SG2 - 5 kg
• Anti-chipping preparation ALLWELD
• Gas connection hose - 1 pcs
• Clippers - 2 pcs
• Electrodes SKANDI KRAFT 1 kg - 1 pc
• Gloves welding - 1 pair
