Suvirinimo aparatas Spartus EasyMIG 200 3w1 200A SYNERGY

Trumpai apie prekę

Prekė: Suvirinimo aparatas Spartus EasyMIG 200 3w1 200A SYNERGY. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: EASYMIG200-PAK-15-3

SPARTUS EASYMIG 200

| Brand: SPARTUS | Welding methods: MIG, MMA, TIG LIFT | Power supply: 230V | Welding current: 200A | Efficiency: 60% |

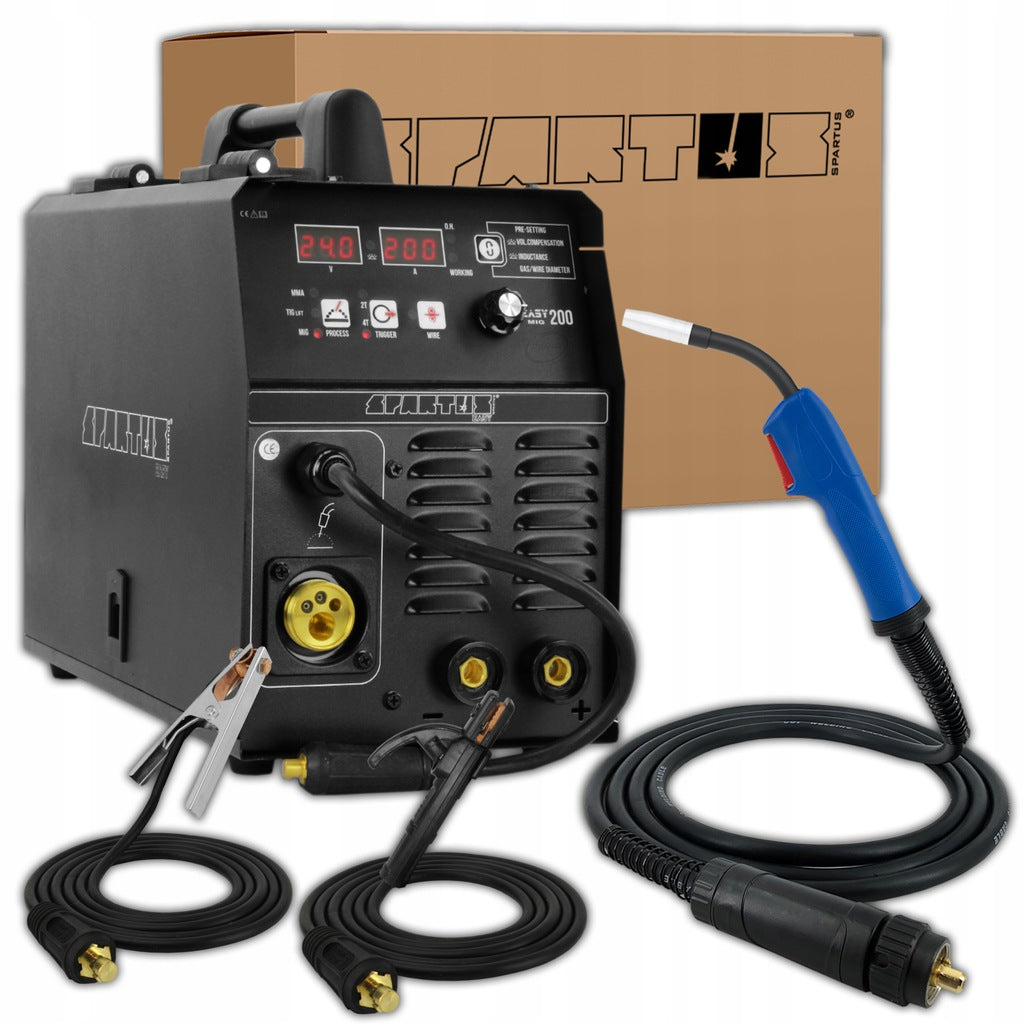

STANDARD EQUIPMENT

• Welder Spartus EasyMIG 200
• Welding torch MIG SPE 150 3m
• Electrode holder
• Mass cable
• Gas hose
• Operating instructions

Other accessories needed for full operation of the welding machine such as

• gas cylinder,
• reducer
• welding wires
• visor, gloves
• Welding torch spare parts

You can find us at other auctions or a welding machine in a set with the given accessories.

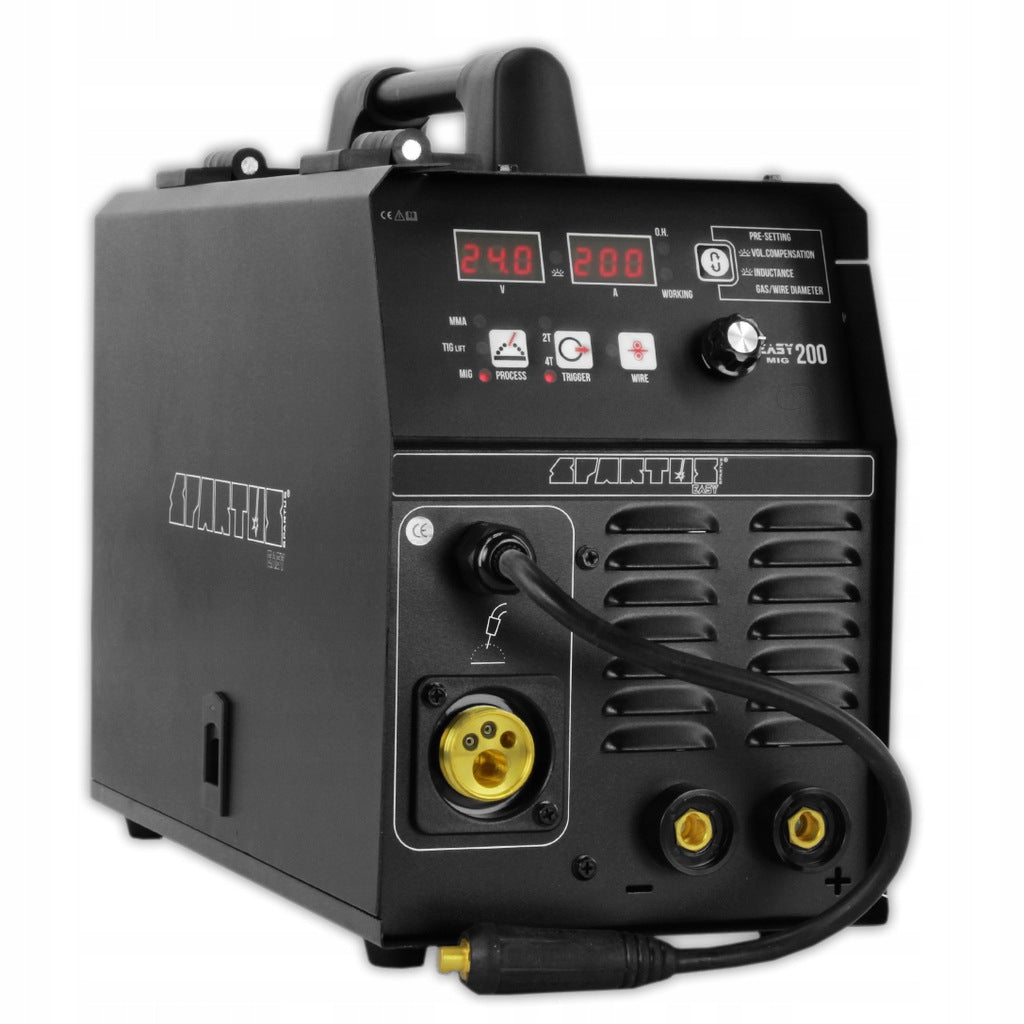

SPARTUS® EasyMIG 200 is a semi-automatic welding machine made in inverter technology.

It enables welding in an inert and active gas shield (MIG/MAG), wrapped electrode (MMA) and TIG Lift with arc ignition by rubbing. Easy polarity change allows welding with self-shielding wire without gas.

The maximum welding current for the MIG method is 200A, while MMA and TIG Lift –160A. The device is powered from a single-phase 230V network.

The easy-to-use control panel allows for instant adjustment of parameters. The device is equipped with a simple synergy, in which we determine the diameters of the wire used for the selected gas. In addition, EasyMIG 200 has functions supporting the welding process such as:

• Working mode 2T/4T
• Burn Back
• Regulation of inductance
• Voltage compensation

Lightweight EasyMIG 200 is equipped with a two-roll feeder that ensures smooth and even feeding of welding wire.

Example applications: workshop work, field renovation work, automotive.

TECHNICAL DATA:

• Power supply voltage: ~1× 230V ± 10% 50 / 60 Hz
• MIG welding current: 40 - 200A
• MIG duty cycle: 60%
• Output voltage: 16 - 24V
• Type of feeder: built-in, 2 - roller
• Wire feed speed: 3 - 18m/min
• Wire spool: ≤ 5kg / ∅200mm
• Wire diameter: 0.6, 0.8, 1.0mm
• Synergy: yes
• Working mode 2T/4T: yes
• Additional MIG functions: Burn Back, Pre-gas, Post-gas, inductance adjustment
• TIG Lift: yes
• TIG welding current: 20 - 160A
• Power drop time: 60%
• MMA welding current: 20 - 160A
• Power consumption: MIG 26.4A / TIG 14.4A / MMA 23.2A
• Power factor (cosφ): 0.93
• Efficiency η: 85%
• Isolation class: F
• Degree of protection: IP21S
• Weight: 10kg
• Dimensions: 400 x 195 x 270mm

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and the speed of switching bipolar transistors. The use of IGBT technology has an impact on significantly extending the reliable operation of welding equipment.

DEGREE OF PROTECTION

IP determines the extent to which the device is resistant to solid and water contaminants entering. IP21S means that the device is adapted to work in closed rooms and is not suitable for use in rain and snow.

PROTECTION AGAINST OVERHEATING

The IGBT module is protected from overheating by a protective installation that turns off the welding circuit of the device. After a few minutes, the welding machine is cooled to a temperature allowing it to be switched on again.

WORK CYCLE

The work cycle is based on a 10-minute period. The 60% duty cycle means that a 4-minute break is required after 6 minutes of operation of the device. The 100% duty cycle means that the device can work continuously, without interruptions.

POLARITY CHANGE - WELDING WITHOUT GAS

Thanks to the variable polarity, it is possible to weld using the FLUX method with powder wire without shielding gas. The wire is filled with flux producing protective gases during welding.

2 ROLLER WIRE FEEDER

Professional feeder made of die-cast aluminum, has a powerful motor that allows for stable wire feeding without jamming. It is equipped with 2 drive rollers.

MMA

A method in which a wrapped electrode is used, consisting of a metal core covered with a sheath. The device allows welding with all types of electrodes, e.g. alkaline, cellulose, rutile or acidic.

SYNERGY

MIG/MAG welding using synergistic settings. The device selects welding parameters depending on the selected type and thickness of the material. These parameters can be changed by the user to adjust the settings to suit their needs.

REGULATION OF INDUCTANCE

Inductance adjustment allows you to optimize the arc characteristics depending on the thickness of the welded element and the welding method and conditions. The function is useful during MIG/MAG welding of thin elements, preventing them from burning out and during soldering of galvanized elements.

Change in inductance also reduces the amount of welding chips during CO2 shielded welding. The higher the inductance value (+) the number of chippings decreases when the value is negative (-), the number of chippings increases. The optimal setting of the inductance value depends on several factors and may differ from the standard recommendations, so it should be selected experimentally during welding tests.

BURN BACK

Function to prevent the electrode wire from melting to the current tip, by temporarily extending the wire after the welding process is completed.

2T/4T

2T - Pressing the welding torch button will cause the gas to pre-flow, then ignite the arc and start welding. When the button is released, the arc will be extinguished and the gas will flow out.

4T - Pressing and releasing the welding torch button will cause the gas to pre-flow, then the arc to glow and start welding. After pressing and releasing the button again, the arc will be extinguished and the gas will flow out.

PRE GAS

Regulation of shielding gas outflow time before welding.

POST GAS

Regulation of shielding gas outflow time after welding.

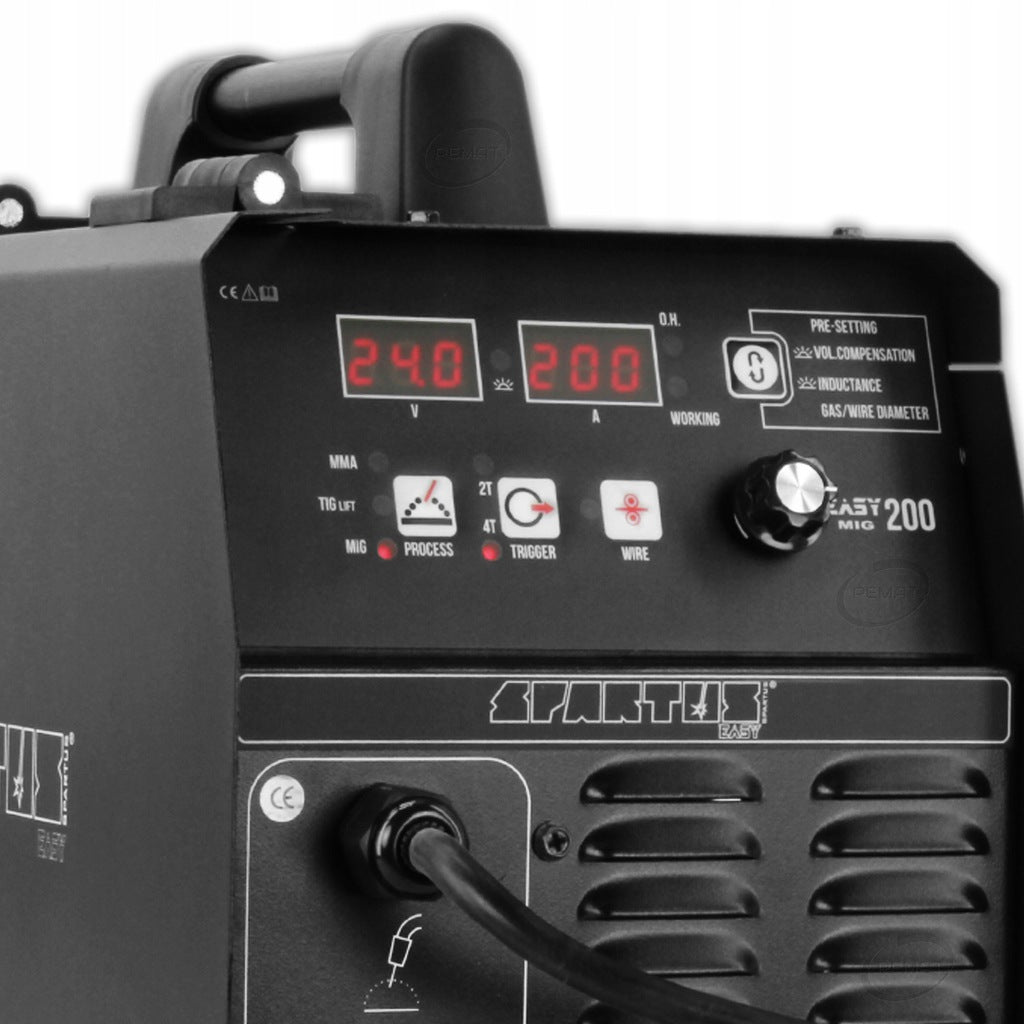

EASY-TO-USE, EASY-TO-READ CONTROL PANEL

Easy to use control panel allows precise and smooth adjustment of parameters. Digital display indicates the actual current during welding.

TIG DC LIFT

Welding with tungsten electrode in an inert gas shield using a handle with a gas valve in the handle. The arc is ignited by rubbing, similarly to the MMA method.

SMOOTH ADJUSTMENT OF WIRE FEED

Smooth speed control of wire feed is supported by an additional potentiometer allowing you to set the speed for different wire diameters.

STRONG AND ROBUST CONSTRUCTION

The housing of the device is made of light and durable composites, resistant to all kinds of mechanical damage.

EASY TRANSPORT

Equipping the welding machine with a transport handle for convenience when changing jobs.

EURODISCONNECTION

Standard welding torch connection that allows you to connect various types of torches (e.g. prepared for welding Aluminum by replacing the Teflon cartridge and current tip).

COOLING

The device has a fan cooling system which significantly increases its efficiency.
