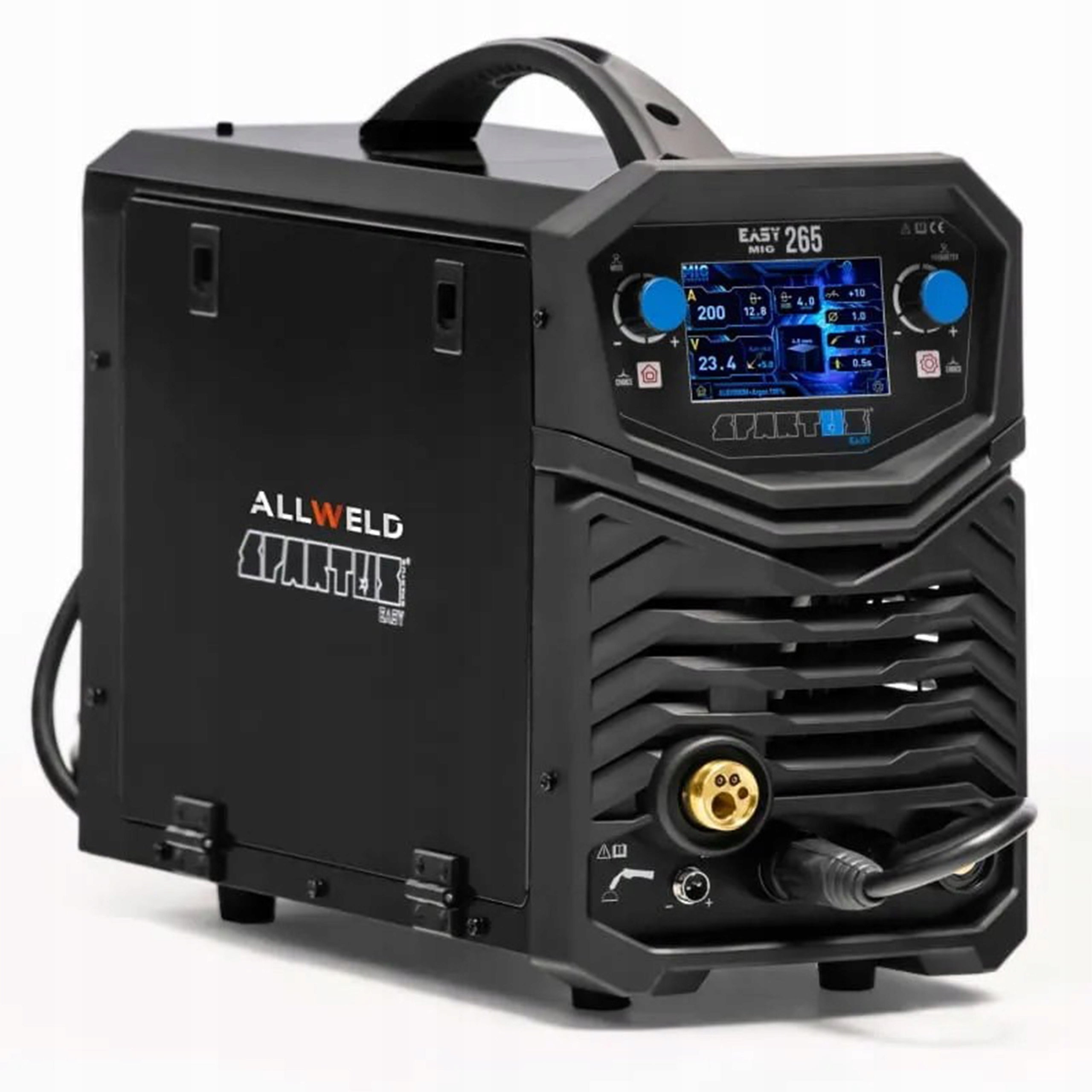

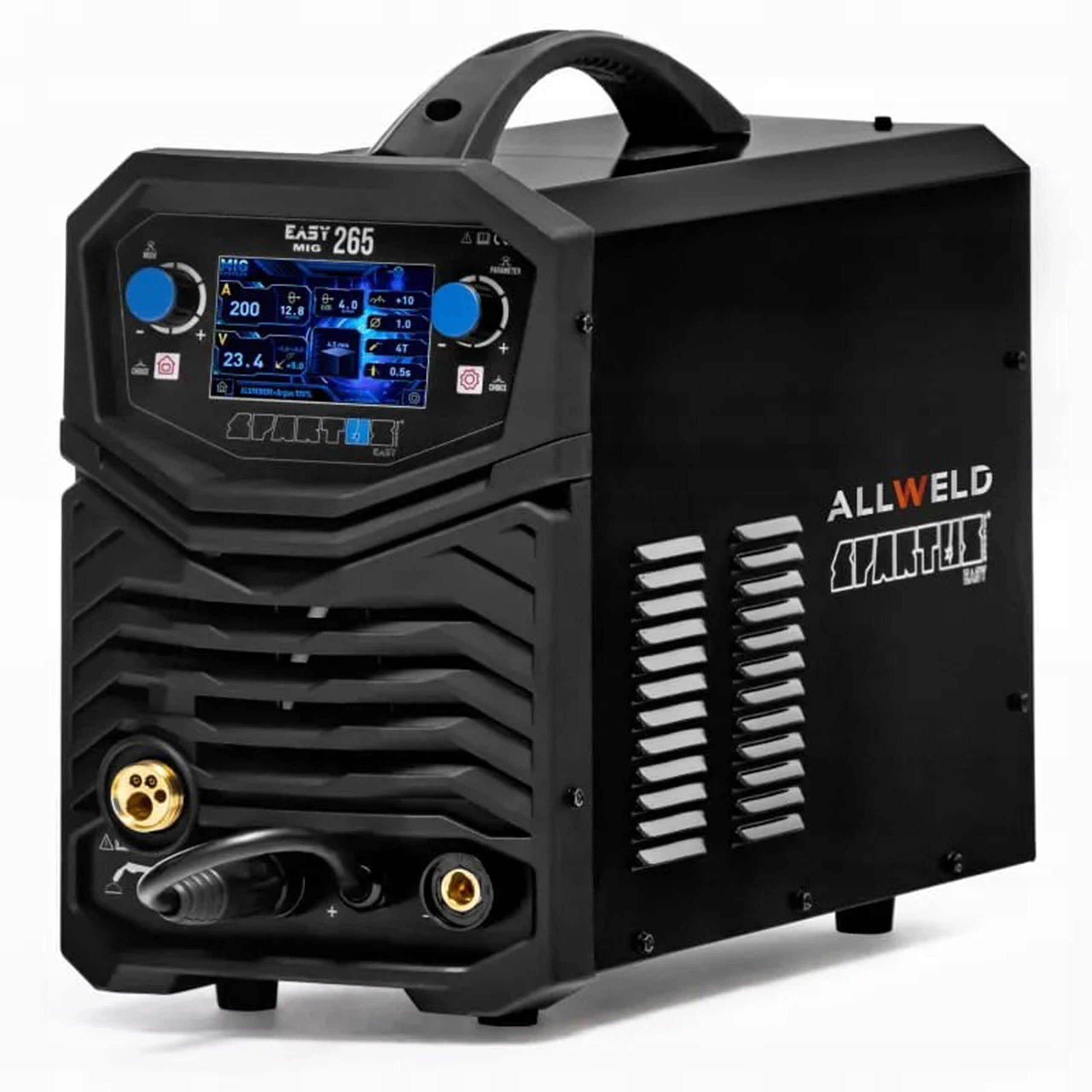

Suvirinimo aparatas SPARTUS EASY MIG 265 400V 250A 4-ROLL TIG LIFT MMA 2T/4T VRD

Trumpai apie prekę

Prekė: Suvirinimo aparatas SPARTUS EASY MIG 265 400V 250A 4-ROLL TIG LIFT MMA 2T/4T VRD. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: EasyMIG 265
• Ilgis: 570 mm
• Plotis: 265 mm
• Aukštis: 460 mm

• Welding methods: MIG/MAG, MMA, TIG DC (LIFT)
• Power supply: 400V
• Operating cycle 60% at maximum welding current 250A
• SYNERGY in MIG/MAG method - automatic selection of parameters with the possibility of manual correction
• Tactile arc glow - LIFT
• Smooth adjustment of welding parameters, inductance
• Professional, 4-roll wire feeder
• Possibility to connect the SPOOL GUN holder
• Modes and functions: 2T/4T mode, HOT START, ARC FORCE, VRD, SLOW FEED, BURN BACK, wire test
• Clean, aesthetic welds
• Made in IGBT technology

✔ FEATURES AND ADVANTAGES:

• INDUCTION ADJUSTMENT - the introduction of less heat prevents sheet deformation and damage to the zinc layer,

• 2 TAKT - welding begins after pressing and ends after releasing the button,

• 4 TAKT - welding begins after the first press and release of the button, and ends after pressing again; more convenient with longer welds,

• TIG LIFT - arc glow by rubbing the electrode against the material; used in places where there is a risk of interference of electronics by high frequency current; welds are of high quality,

• SPOOL GUN - welding torch with built-in wire feeder, ideal for welding thin sheets; wire spool is in the handle,

• BURN BACK - does not allow the electrode wire to be melted to the current tip,

• HOT START - a temporary increase in welding current during arcing; prevents "sticking of the electrode", facilitates the start of welding,

• ARC FORCE - adjustment of welding arc dynamics, allowing to adjust the depth of melting,

• VRD - reduces the voltage on the electrode to a safe level after welding,

• SLOW FEED - regulation of the access speed of the wire; stable glow reduces the risk of welding defects,

• IGBT - bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.

⚙ TECHNICAL SPECIFICATION:

• Power Supply: 400V 50/60Hz (3ph)
• Output voltage: 16.5 - 26.5V
• Welding current: MIG: 50 - 250A | TIG: 10 - 250A | MMA: 10 - 230A
• Power consumption: MIG: 17A | TIG: 13A | MMA: 9A
• Power factor: 0.93cosφ
• Efficiency η: 85%
• Wire diameter: 0.8 / 1.0 / 1.2 mm
• Spool with wire: up to 300 mm; up to 15kg
• Protection rating: IP21 H
• Dimensions: 57 x 26.5 x 46 cm
• Weight: 22kg

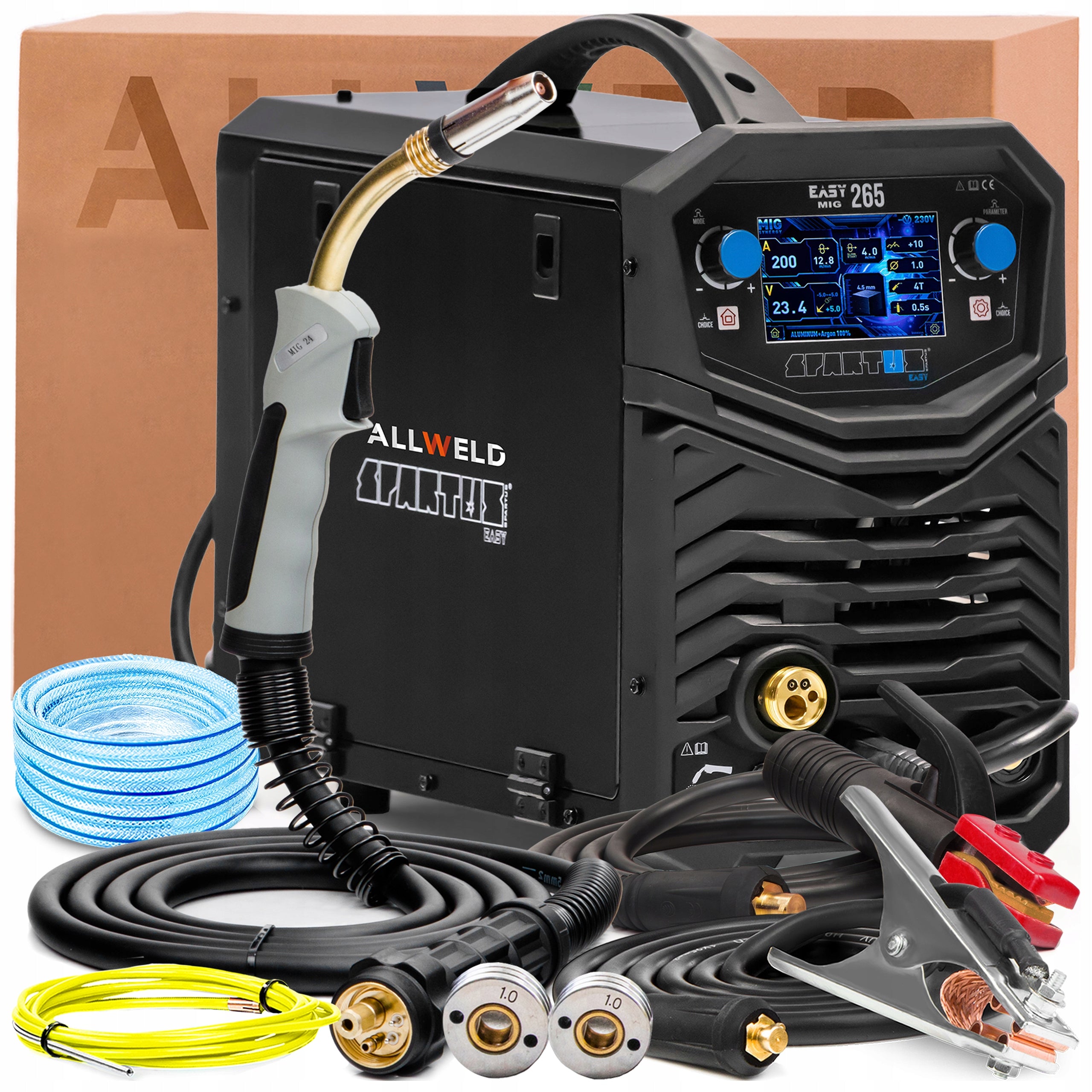

THE SET INCLUDES:

• Welding machine SPARTUS EASY MIG 265,
• Welding torch SPARTUS Easy 240 - 3m,
• 2 x guide roller 0.8 - 1.0V fi30 + 2 x guide roller 1.0-1.2V fi30,
• mass handle,
• electrode handle,
• Hose for connecting gas cylinders,
• User manual in Polish.
