Suvirinimo aparatas SPARTUS EASY MIG 217DP 230V 200A SYNERGY MMA TIG LIFT DUAL PULSE

Trumpai apie prekę

Prekė: Suvirinimo aparatas SPARTUS EASY MIG 217DP 230V 200A SYNERGY MMA TIG LIFT DUAL PULSE. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: EasyMIG 217DP
• Ilgis: 490 mm
• Plotis: 220 mm
• Aukštis: 340 mm

• Welding methods: MIG/MAG, MMA, TIG LIFT, SYNERGY, SOLDERING, PULSE/DUAL PULSE, FLUX
• Power supply: 230V
• Operating cycle 60% at maximum welding current 200A
• For welding: low-alloy steels, non-alloy steels and magnesium, aluminium, copper and their alloys
• SYNERGY in MIG/MAG method - automatic selection of parameters with the possibility of manual correction
• Smooth adjustment of welding parameters, inductance
• Possibility to connect the SPOOL GUN holder
• Professional, metal, 2-roll wire feeder
• Modes and functions: 2T/4T mode, HOT START, ARC FORCE, VRD, SLOW FEED, POST-GAS
• Cooling with fan
• Overload switch
• Clean, aesthetic welds
• Made in IGBT technology

✔ FEATURES AND ADVANTAGES:

• INDUCTION ADJUSTMENT - the introduction of less heat prevents sheet deformation and damage to the zinc layer,

• LUTOSPELING - a method that uses less energy; for joining thin galvanized sheets, stainless steels, and various types of joints,

• TIG LIFT - arc glow by rubbing the electrode against the material; used in places where there is a risk of interference of electronics by high frequency current; welds are of high quality,

• 2 TAKT - welding begins after pressing and ends after releasing the button,

• 4 TAKT - welding begins after the first press and release of the button, and ends after pressing again; more convenient with longer welds,

• PULS - welding of very thin elements, reducing arc linear energy and the risk of overheating/burning of materials; welds are better quality,

• FLUX - arc welding with powder wire without the use of a gas cylinder; self-shielding wire is filled with flux or a chemical substance generating protective gases,

• HOT START - a temporary increase in welding current during arcing; prevents "sticking of the electrode", facilitates the start of welding,

• ARC FORCE - adjustment of welding arc dynamics, allowing to adjust the depth of melting,

• VRD - reduces the voltage on the electrode to a safe level after welding,

• POST-GAS - protects the welding lake from the harmful effects of atmospheric air,

• SLOW FEED - regulation of the access speed of the wire; stable glow reduces the risk of welding defects,

• OVERLOAD SWITCH - protects against overvoltage, cutting off power to protect the network and device from damage,

• IGBT- bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.

⚙ TECHNICAL SPECIFICATION:

• Power supply: 230V 50/60Hz (1ph)
• Welding current: MIG: 30 - 200A | TIG, MMA: 10 - 200A
• Max. power consumption: MIG: 37A | TIG: 28A | MMA: 43A
• Voltage output MIG operation: 15.5 - 24.0V
• Wire diameter: 0.8 / 1.0 / 1.2 mm
• Protection rating: IP21S “H”
• Dimensions: 49 x 22.5 x 34 cm
• Weight: 12kg

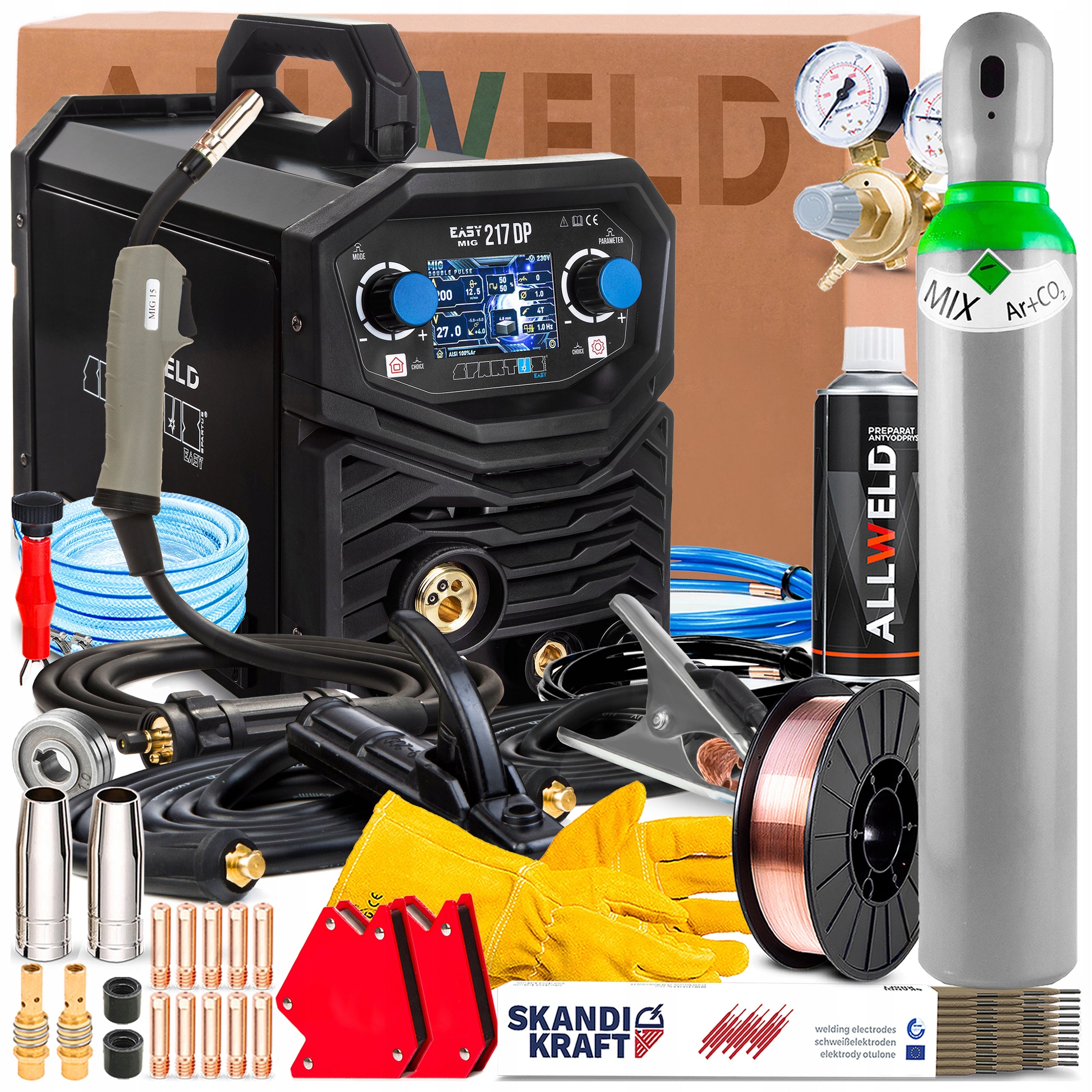

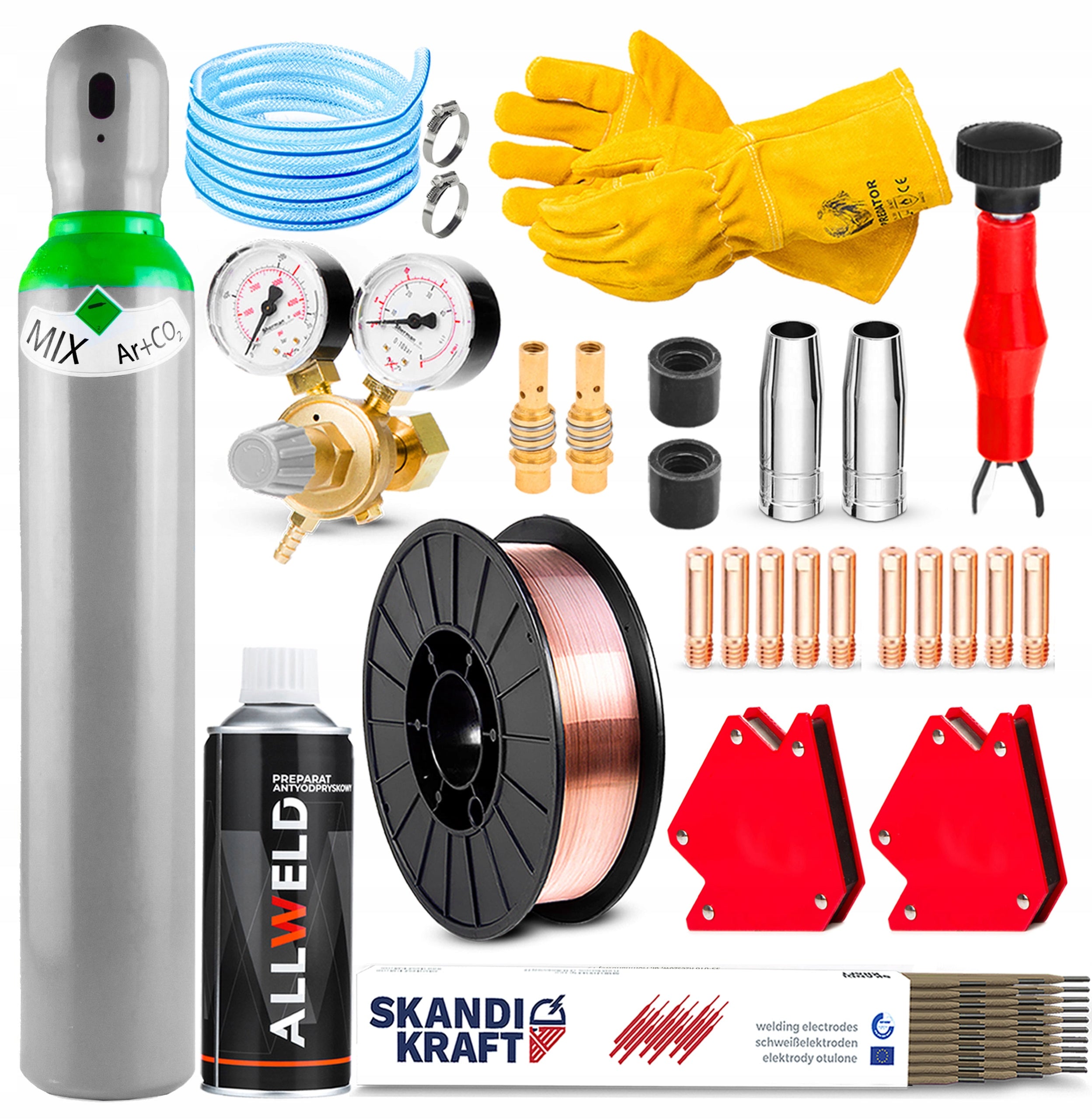

INCLUDED IN THE SET:

• Factory new reusable cylinder with a mixture of Ar (82%) / CO2 (18%) with a capacity of 8l; 10-year legalization, the possibility of filling at any point with technical gases,
• Gas hose with clamps - for connecting the reducer - 1pcs. ,
• Reducer with two pressure gauges - precise reducer with adjustment; for controlling the pressure in the cylinder and the amount of gas flowing out,
• Anti-chipping preparation - protects the nozzle and metal against welding chipping,
• Welding wire SG2 5kg - 1pcs ,
• Gloves welding - 1 pair,
• Scraper for gas nozzles,
• Exploitation parts of MIG/MAG handle (nozzles, connectors, tips, insulators),
• Angles magnetic 11kg - 2 pcs. ,
• Electrodes SkandiKraft 1kg - 1pack.

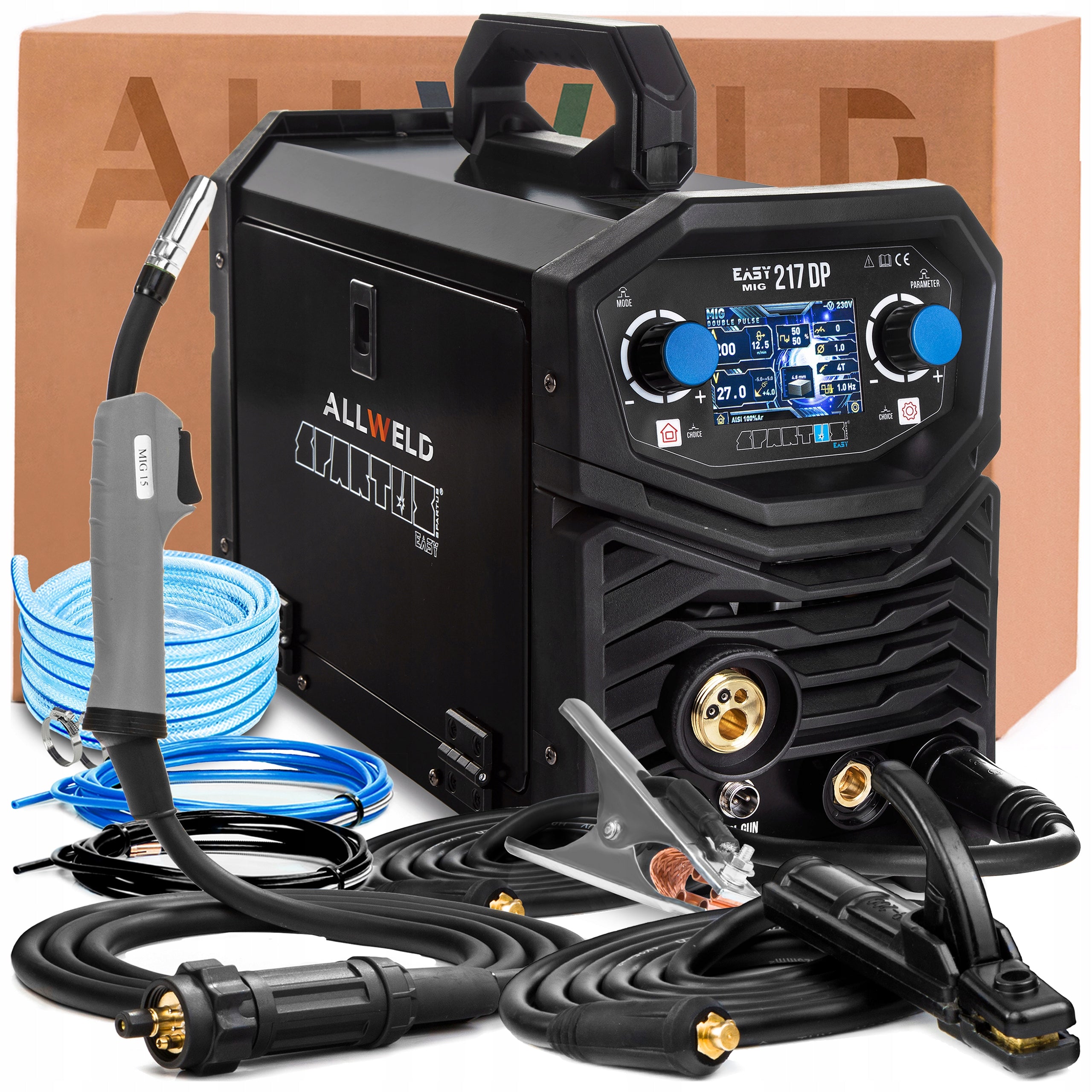

THE SET INCLUDES:

• SPARTUS EASYMIG 217 DUAL PULSE welder,
• Welding torch MIG/MAG type MB 15 - 3m,
• mass handle,
• electrode handle,
• Refill for steel wire - 1pcs ,
• Refill for aluminium wire - 1pcs ,
• User manual in Polish.

ADDITIONAL ACCESSORIES:

• Bottle with gas mixture Argon/CO2,
• Reducer cylinder Ar/CO2 MINI with two pressure gauges,
• Welding wire SG2 0,8mm - 5kg,
• Preparation anti-chipping ALLWELD,
• Angle magnetic 11kg - 2 pcs.,
• Electrodes SkandiKraft - 1kg,
• Flame-retardant gloves for welding,
• Hose for connecting gas with clamps - 2m,
• Scraper for gas nozzles.

+ HANDLE CONSUMABLE PARTS:

• Gas nozzle - 2 pcs.
• Current connector - 2 pcs.
• End current - 10 pcs.
• Gas distributor - 2 pcs.
