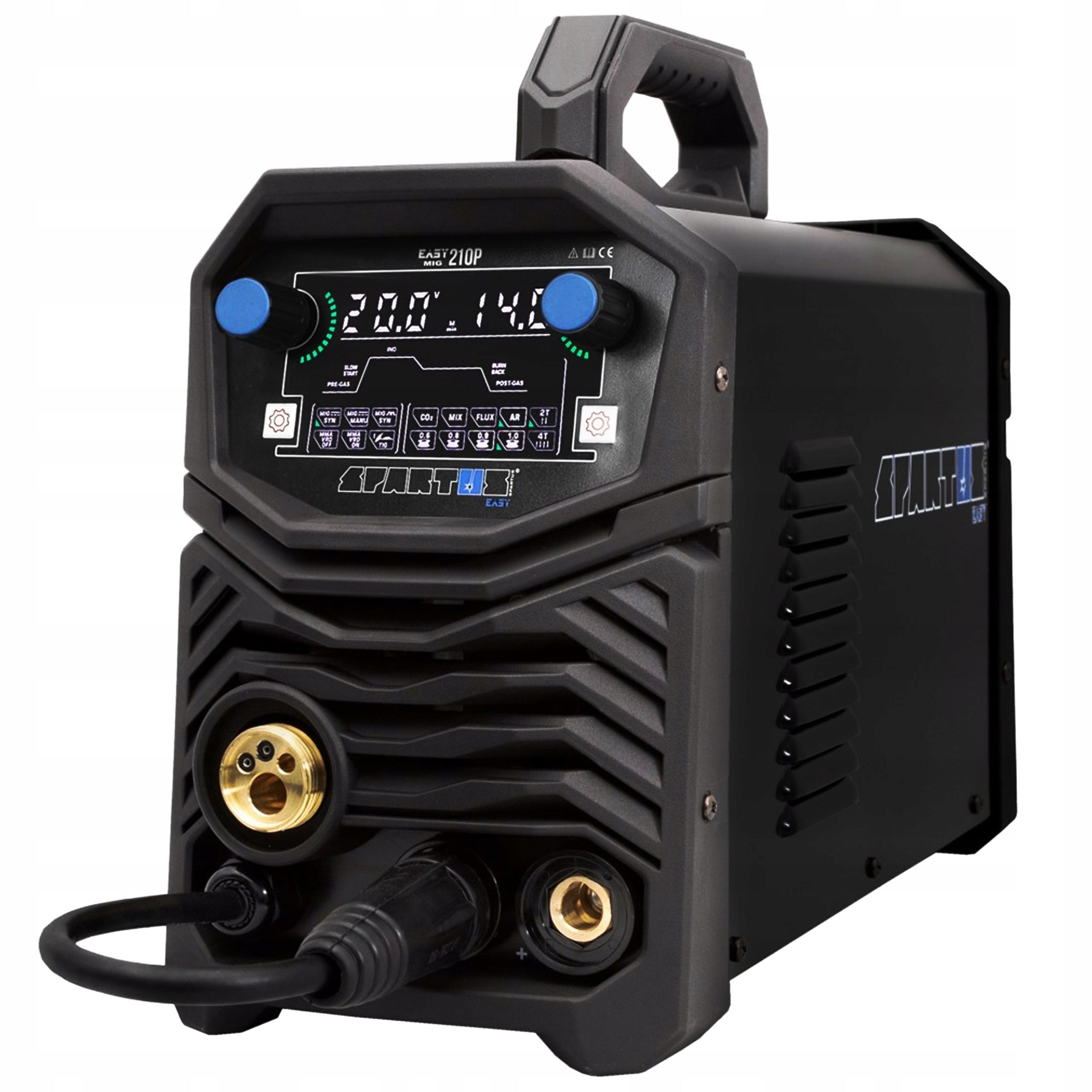

Suvirinimo aparatas SPARTUS EASY MIG 210 PULSE 230V 200A SYNERGY MMA TIG LIFT

Trumpai apie prekę

Prekė: Suvirinimo aparatas SPARTUS EASY MIG 210 PULSE 230V 200A SYNERGY MMA TIG LIFT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: EasyMIG 210 PULSE
• Ilgis: 445 mm
• Plotis: 175 mm
• Aukštis: 290 mm

• Welding methods: MIG/MAG, MMA, SYNERGY, TIG LIFT
• Power supply: 230V
• Operating cycle 60% at maximum welding current 200A
• SYNERGY - automatic selection of parameters with the possibility of manual correction
• Smooth adjustment of welding parameters, inductance

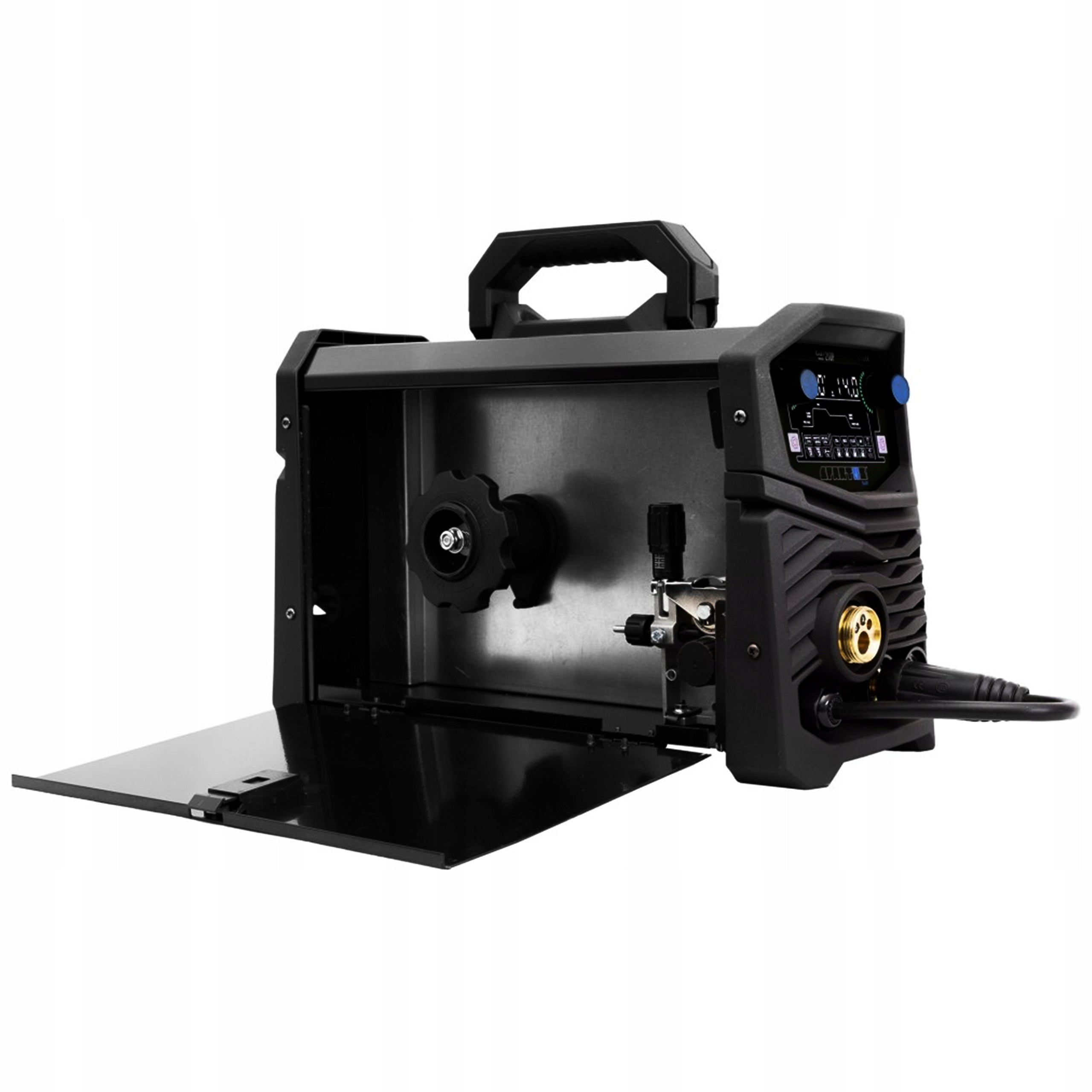

• Professional, 2-roll wire feeder
• Modes and functions: 2T/4T, HOT START, ARC FORCE, VRD, SLOW FEED, BURN BACK, PRE-GAS/POST-GAS, wire test
• Clean, aesthetic welds
• Made in IGBT technology

✔ FEATURES AND ADVANTAGES:

• INDUCTION ADJUSTMENT - the introduction of less heat prevents sheet deformation and damage to the zinc layer,

• PULS - welding of very thin elements, reducing the linear energy of the arc and the risk of overheating / burning materials; welds are better quality,

• 2 TAKT - welding begins after pressing and ends after releasing the button,

• 4 TAKT - welding begins after the first press and release of the button, and ends after pressing again, which is more convenient for longer welds,

• TIG LIFT - arc glow by rubbing the electrode against the material; used in places where there is a risk of interference of electronics by high frequency current; welds are of high quality,

• HOT START - a temporary increase in welding current during arcing; prevents "sticking of the electrode", facilitates the start of welding,

• ARC FORCE - adjustment of welding arc dynamics, allowing to adjust the depth of melting,

• VRD - reduces the voltage on the electrode to a safe level after welding,

• BURN BACK - does not allow the electrode wire to be melted to the current tip,

• PRE-GAS/POST-GAS - protects the welding lake from the harmful effects of atmospheric air,

• IGBT - bipolar transistors increase the efficiency and reliability of the device and ensure lower power consumption.

⚙ TECHNICAL SPECIFICATION:

• Power supply: 230V 50/60Hz (1ph)
• Welding current: MIG: 30 - 200A | TIG: 10 - 200A | MMA: 10 - 160A
• Output voltage: 15.5 - 24V
• Power consumption: MIG: 39A | TIG: 29A | MMA: 34A
• Power factor: 0.73cosφ
• Efficiency η: 83%
• Wire diameter: 0.6 / 0.8 / 1.0 mm
• Wire feed speed: 1.5 - 12.5 m/min
• Spool with wire: 200 mm; up to 5kg
• Protection rating: IP21S H
• Dimensions: 44.5 x 17.5 x 29 cm
• Weight: 10kg

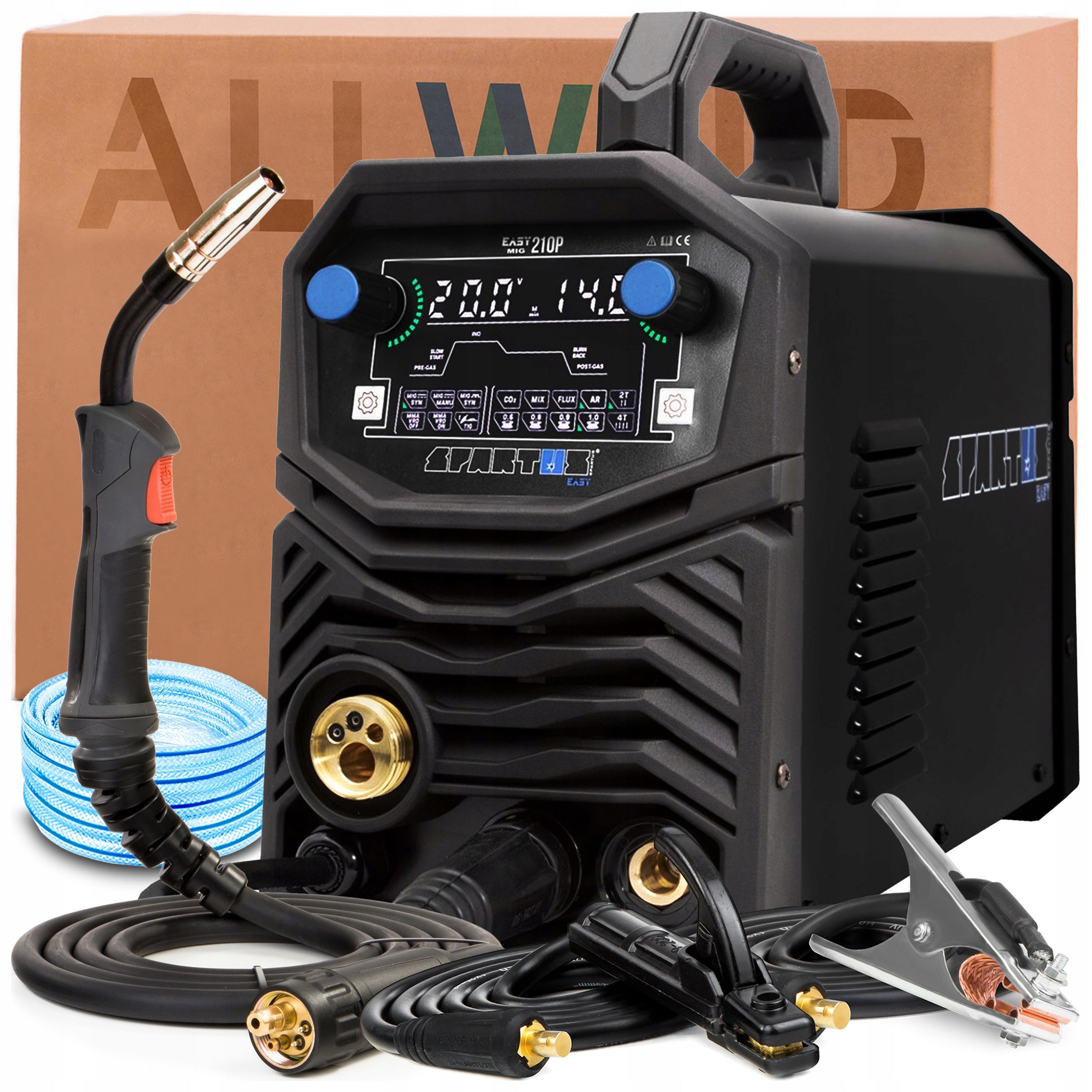

THE SET INCLUDES:

• SPARTUS EASYMIG 210 PULSE welding machine,
• Welding torch MIG SPE 150 - 3m,
• mass handle,
• electrode handle,
• Roll wire feeder 0.8 - 1.0V fi30 - 1pcs ,
• Hose for gas connection,
• User manual and warranty card.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Spartus
Parametry	Power consumption	6 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	10 kg
Parametry	Welding range	10–200 A
Parametry	Height	290 mm
Parametry	Length	445 mm
Parametry	Width	175 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Additional features	infinitely adjustable welding current
Parametry	Product weight with unit packaging	10 kg
Parametry	Manufacturer code	EASYMIG210P-PAK-15-3
Parametry	EAN (GTIN)	5900391257913
Parametry	Packaging status	original
Parametry	Model	EasyMIG 210 PULSE
Parametry	Welding methods	MIG/MAG,MMA,TIG
