Trumpai apie prekę
Prekė: Suvirinimo aparatas SPARTUS EASY ARC 205 MMA TIG DC LIFT 230V 200A IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Spartus
- Modelis: EASYARC205-PAK
- Ilgis: 270 mm
- Plotis: 130 mm
- Aukštis: 200 mm
Manufacturer: SPARTUS║ Welding methods: MMA,TIG DC LIFT ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60% ║ Weight: 4kg
- IGBT inverter technology
- Welding by MMA method
- Welding by TIG DC (Lift)
- Efficiency 60% for current 200A
- Designed for home farm, workshop, semi-professional tasks.
- Lowering voltage at rest - VRD
- Weight welding machines only 4kg
- Ideal welding machine for working in places with difficult access
- Friendly controls
- Robust, metal housing
- Handle for easy transport
- In the package transport case and strap for carrying
VERSATILE WELDING MACHINE

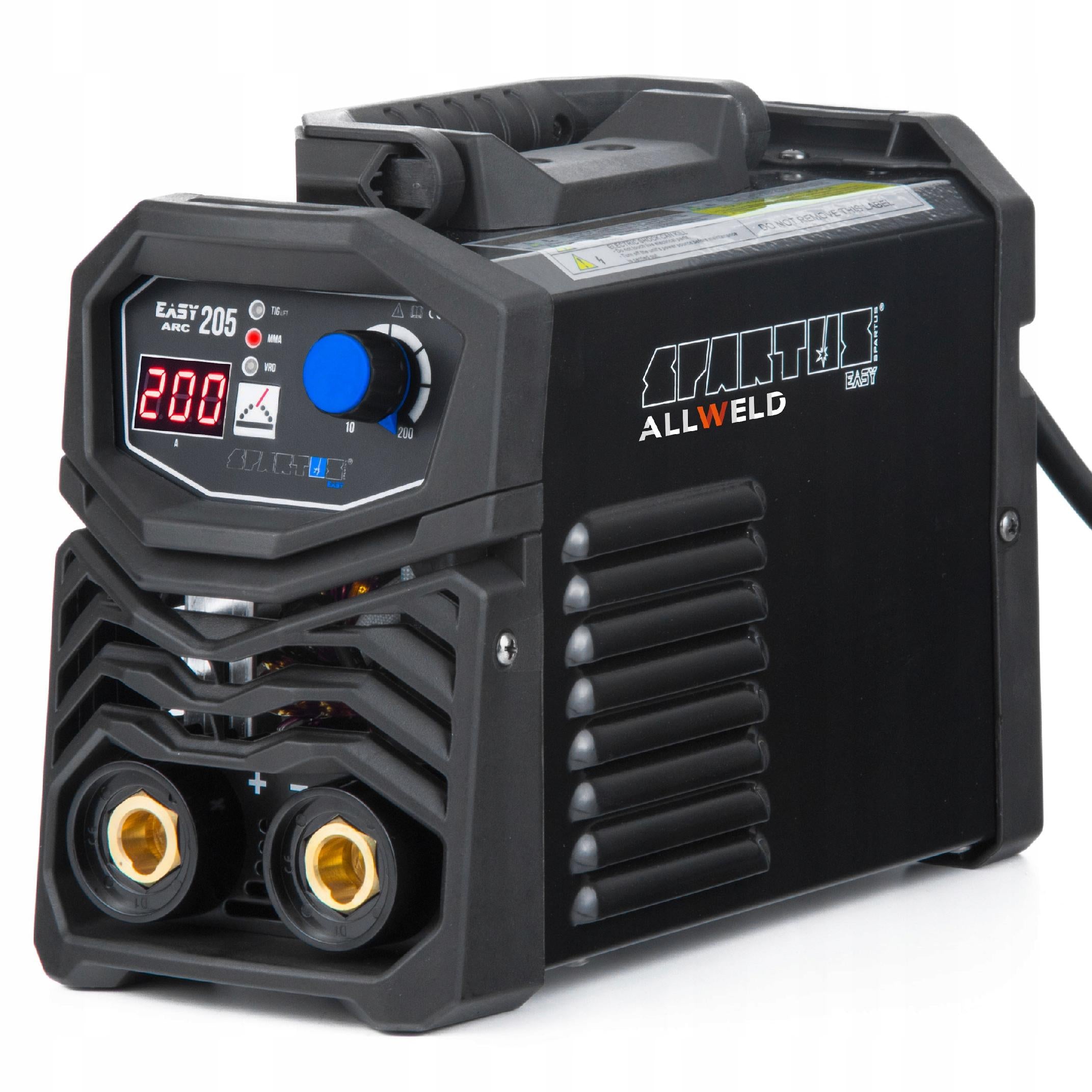

The SPARTUS EASYARC 205 welding machine is a lightweight and portable electrode welding machine. It allows us to weld with electrodes wrapped in various grades of ordinary, stainless, heat-resistant and cast iron steels.
OPTIMAL SIZE AND WEIGHT
The welder is characterized by small dimensions and weight. Thanks to its light weight (about 4kg), we can use it as a portable equipment for work in places with difficult access. An additional advantage of the welding machine is a handle for easy transport and a sturdy and durable metal housing. The package also includes a suitcase and a carrying strap
WELDING MACHINE SUITABLE FOR TIG DC AND MMA WELDING
The welding machine welds an electrode with a diameter of up to 4 mm. In addition, the welding machine can work using the TIG method using a special TIG handle with a valve (TIG LIFT). Arch ignition is done by rubbing. ATTENTION!!! The TIG handle is not included, but is available at our other auctions.
IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, allowing to increase the efficiency and reliability of the power source.
VRD - a voltage reduction system whose task is to turn off the power supply within a few milliseconds after welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level.
TIG LIFT - the welding machine allows TIG welding using an additional TIG handle. Arching occurs by rubbing,similar to the MMA method.
POWER SUPPLY PARAMETERS:
- Power supply voltage: 230V
- Power Current Frequency: 50Hz
TECHNICAL PARAMETERS:
- MMA welding current: 10-200A
- TIG welding current: 10-200A
- Efficiency: 60%
- Diameter of electrodes: 1,6-4mm
- Idle voltage: 82V
- Current adjustment: smooth
ADDITIONAL FUNCTIONS
- TIG DC: YES (Lift)
- VRD: YES

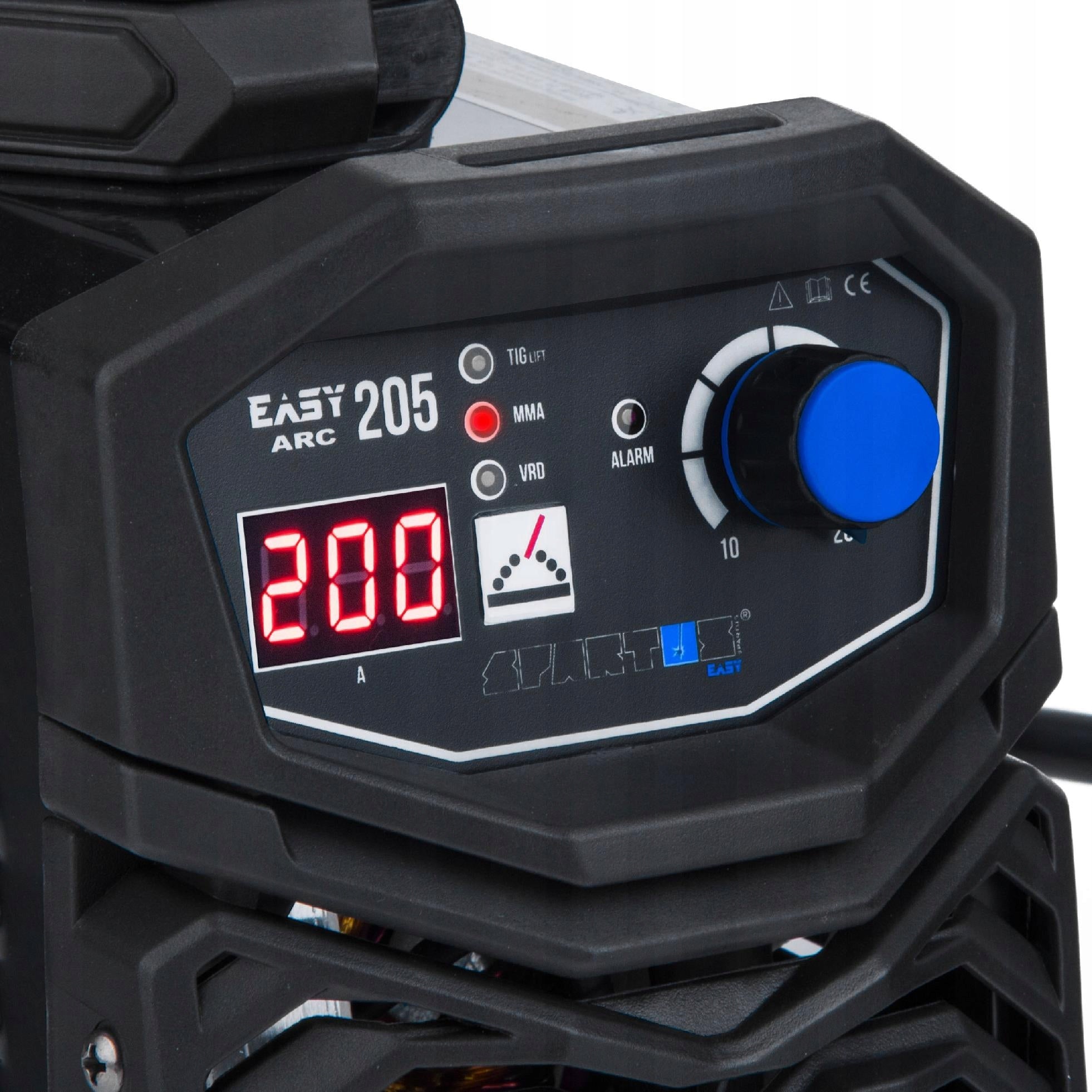

- Display: YES
PHYSICAL PARAMETERS
- Housing protection class: IP21S
- Dimensions: 270x130x200mm
- Weight: 4kg

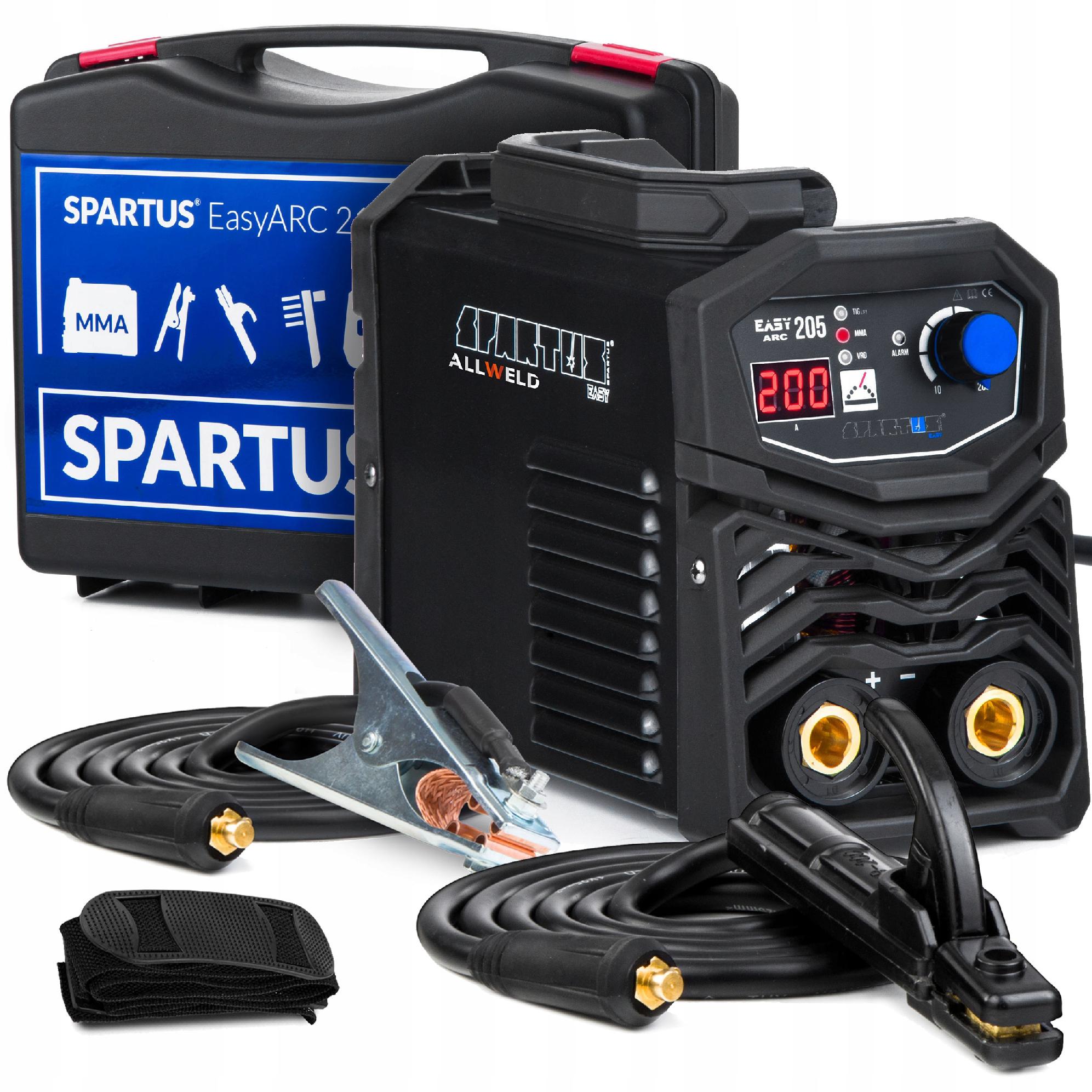

THE SET INCLUDES:
- SPARTUS EASYARC 205 welding machine
- Electrode holder - 2m
- Bulk holder - 2m
- Carrying strap - 1pcs
- Transport case - 1pcs
- User manual
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Spartus |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 4 kg |
| Parametry | Welding range | 10–200 A |
| Parametry | Height | 200 mm |
| Parametry | Length | 270 mm |
| Parametry | Width | 130 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 200 cm |
| Parametry | Product weight with unit packaging | 7 kg |
| Parametry | Manufacturer code | EASYARC205-PAK |
| Parametry | EAN (GTIN) | 5900391242216 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,LCD display |
