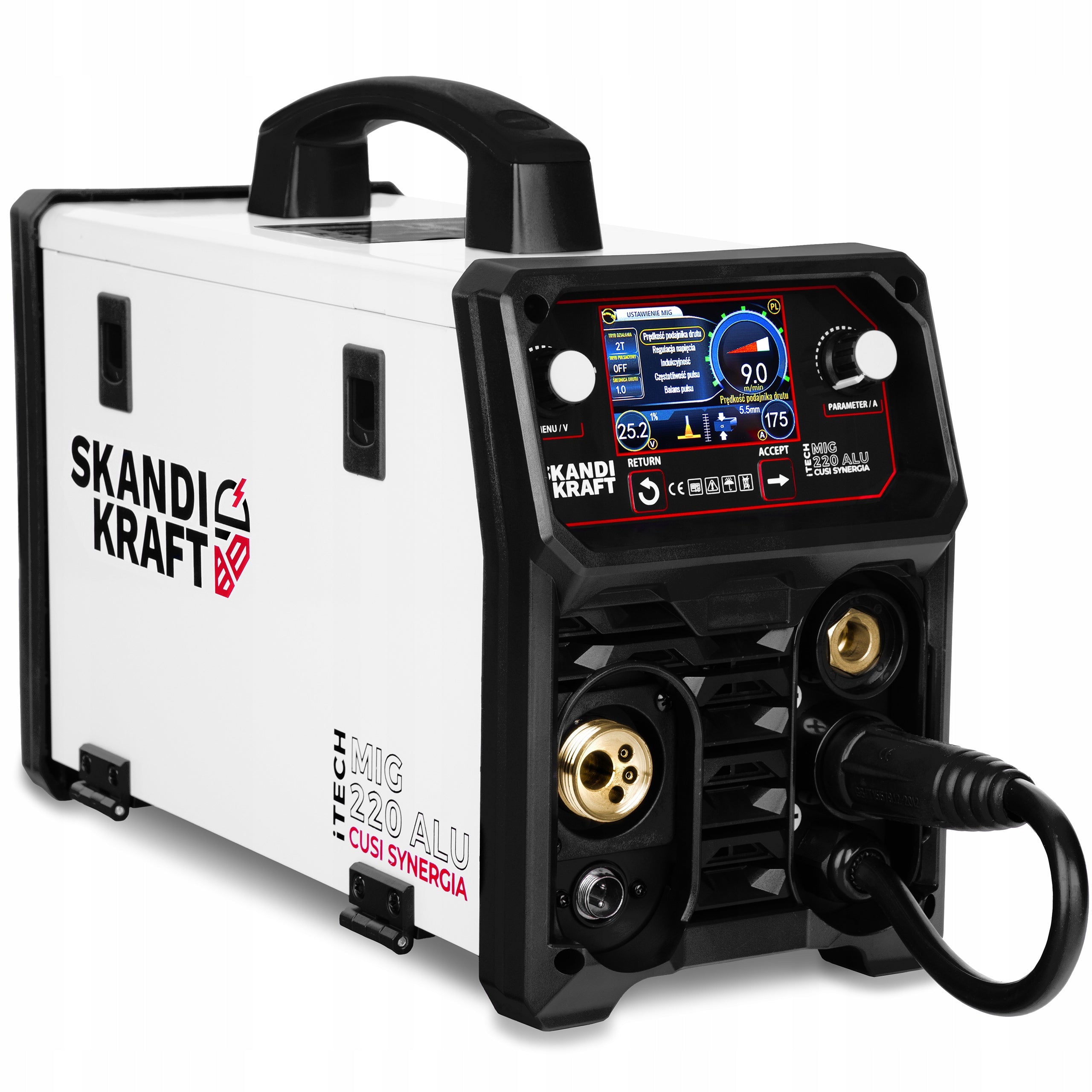

Suvirinimo aparatas SKANDI KRAFT iTech MIG 220 ALU CUSI SYNERGY 200A 230V

Trumpai apie prekę

Prekė: Suvirinimo aparatas SKANDI KRAFT iTech MIG 220 ALU CUSI SYNERGY 200A 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: SKANDI KRAFT
• Modelis: iTech MIG 220 ALU CUSI SYNERGIA
• Ilgis: 375 mm
• Plotis: 270 mm
• Aukštis: 375 mm

| SKANDI KRAFT | MIG/MAG | FLUX | MMA | TIG LIFT | 200A | 230V power supply |

The iTECH MIG 220 Alu CuSi Synergy is a versatile device that combines advanced technology with extraordinary ease of use. The heart of the machine is the innovative MIG/MAG AUTO system – an ideal solution for people taking their first steps in welding.

All you have to do is indicate the type of material, its thickness and wire diameter, and the intelligent software will select the optimal operating parameters. This ensures that your device is ready to go in seconds, eliminating setup errors.

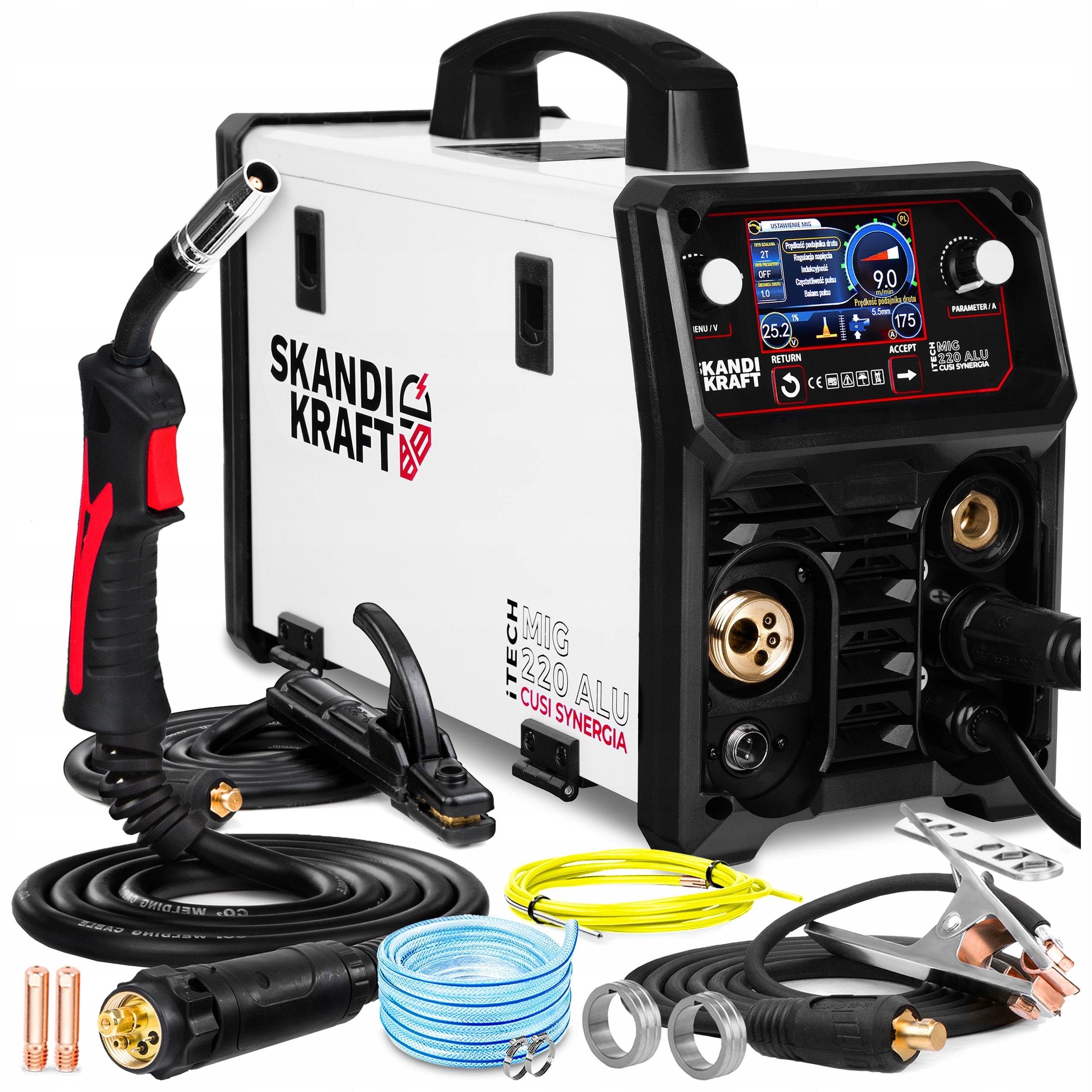

The set includes:

• Welding machine SKANDI KRAFT iTECH MIG 220 Alu CuSi Synergy with integrated power cable with a length of 3 meters and a cross-section of 3×2.5 mm2,
• MIG welding torch, KD15 type MB15 3 meters 16 mm2 with Teflon insert
• Additional steel insert 3 meters for handle KD15, for wire welding with a diameter of 0.6-1.0mm,
• Bulk holder in full copper 3 meters, cross section 25 mm2,
• Copper electrode holder 3 meters, cross section 25 mm2,
• Wire rollers: for steel 1x 0.8-1.0 V, for aluminium 1x 1.0-1.2 U. Wire feeder rollers size: 22/10/30 mm,
• Gas cylinder mounting elements: 2 x gas reducer mounting band, 2-meter gas hose, key,
• Current terminals for KD15, MB15 – 2 pcs. (1x 0.8;1×1.0 AL; 1×1.2 AL)
• Instructions

A modern migomat with an innovative MIG/MAG AUTO system, which, after specifying the type of material, its thickness and wire diameter, selects the optimal welding parameters itself. Thanks to this software, even novice users can get great results at the first weld, and advanced welders will appreciate the precision and speed of preparation for work. The device is distinguished by its exceptional lightness (only 9,2 kg) and clear, 3,5-inch LCD display, which in combination with an ergonomic handle makes it an extremely mobile tool.

This model offers quiet and energy-efficient operation thanks to the FAN STOP function (the fan works only when it is needed) and allows welding using three methods: MIG/MAG, MMA and LIFT-TIG.

Included with the SKANDI KRAFT iTECH MIG 220 Alu CuSi welding machine, you get power and bulk cables made of pure copper. Not cheaper copper-plated aluminum. Thanks to the excellent current conductivity through copper, the welding arc is much more stable, which directly translates into better quality, deeper melting and impeccable aesthetics of your weld.

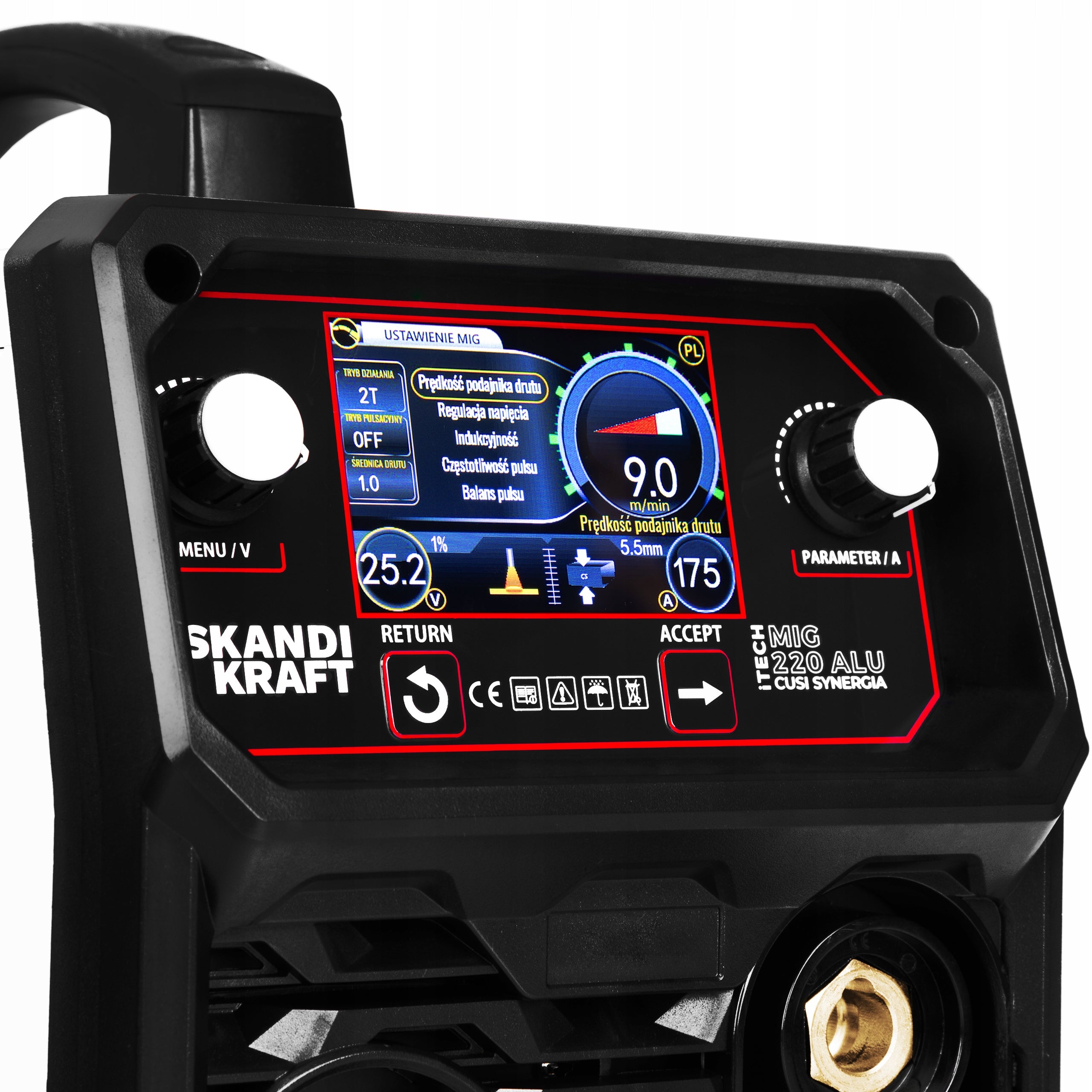

• Intuitive control: The large, 3,5-inch color LCD display with menus in 4 languages makes navigating through settings simple and easy to read.

• 4-in-1 versatility: The device allows welding by four methods:
• MIG/MAG (gas shielded),
• FLUX (self-shielded wire welding without gas),
• MMA (wrapped electrode),
• LIFT-TIG

• Working culture and ecology: The FAN STOP system ensures quiet operation of the device while low energy consumption, which translates into lower electricity bills.
• Mobility without compromise: Thanks to its low weight (only 9,2 kg) and ergonomic handle, the welding machine is perfect for field work and at heights.

This model is distinguished by the high quality of the included accessories. The set includes fully copper wires, which guarantee arc stability and durability:

• 3-meter power cable (3×2,5 mm²).
• 3-meter mass cable (25 mm²).
• 3-meter electrode holder and MIG KD15 handle.

The welder can handle elements with a thickness of from 0,5 mm to 12 mm, making it an ideal tool for:

1. Workshop work: Automotive sheet metal, vehicle renovation and repair.
2. Assembly and construction works: Welding of steel structures (including vaccination of elements) and installation works at heights.

Worth knowing: Despite advanced automation, iTECH MIG 220 allows for individual tuning of parameters, which will be appreciated by professionals looking for precision for specific tasks (e.g. CuSi soldering).

Welding MIG/MAG AUTO system:

• Automatic setting of the welding machine after specifying the type of material and thickness and diameter of the wire, the device will adjust the welding parameters. This system has the ability to fine-tune the manual welding current in order to individually select parameters.
• Choosing 2T/4T, which will allow you to create longer welds more comfortably.
• Selection of welded material (Carbon steel – carbon steel, Stainless steel – stainless steel, Al-Si – soft aluminum, Al-Mg – hard aluminum, Cu-Si – soldering).

MIG/MAG welding:

• Choosing 2T/4T, which allows you to create longer welds more comfortably.
• SPOT spot welding functions and welding support by the welding torch S_2T and S_4T, i.e. welding starting with the gas outflow before the welding process from the lower current to the base current and finally lowering the current value to the crater extinction settings and turning on the gas outflow after the process.
• SPOT:

• Gas before brewing: 0-2 [s]
• Start current: 1.5-15 [m/min]
• Rise time: 0.1-15 [s]
• Drop time: 0.1-25 [s]
• Final current: 1.5-5.4 [s]
• Gas after expiration: 0.5-10 [s]

• Selection of welded material (Carbon steel – carbon steel, Stainless steel – stainless steel, Al-Si – soft aluminum, Al-Mg – hard aluminum, Cu-Si – soldering).
• Selection of thickness of welded material.
• Determination of wire diameter. In Al-Si and Al-Mg (range 1.0-1.2 [mm]), other materials from (0.8-1.2 [mm]).
• Possibility to set wire feed speed [m/min].
• Setting welding current voltage [V].
• Inductance regulation ± [%].
• Setting the pulse frequency in pulse mode [Hz].
• Possibility to adjust the pulse cycle [%].

• Peak speed of administration [m/min].
• Base speed of wire feeding [m/min].

MMA Welding:

• Hot Start — facilitates the start of welding by temporarily increasing the welding current at the beginning.
• Arc Force — adjustment of the length of the welding arc, this function allows you to reduce or increase the depth of melting and reduce the amount of chipping.
• VRD – allows you to detach the arc when the electrode is detached from the material and ensure work safety during welding.
• Anti Stick — easier detachment of the electrode if it is glued.

Welding LIFT-TIG:

• Possibility of regulating the welding current [A], after its setting the welding machine suggests the thickness of the sheet metal.
• The LIFT-TIG function is equipped with the SOFT START module, eliminating the risk of damage to the electrode when starting the welding process.

Possibility to return to factory settings after holding down the “Return” button.

Basic information about SKANDI KRAFT iTECH MIG 220

• MIG/MAG AUTO system – after specifying the type and thickness of the material and wire diameter, allows for automatic adjustment of welding parameters in the MIG/MAG method.
• Welding machine with easy-to-read 3.5” LCD display, four languages to choose from and 18 memory channels with the ability to save settings.
• For welding with 3 methods: MIG/MAG(MIG/MAG AUTO), LIFT- TIG and MMA.
• The FAN STOP system turns off the fan at idle – so that the welding machine with power on and full functionality does not emit noise, reduces power consumption and does not draw dust. The fan automatically turns on when we start welding.
• Possibility to connect the SPOOL GUN handle (handle with built-in wire feeder), which will improve the transfer of material to the weld.
• After the material thickness is applied, the device adjusts the welding current in the case of the LIFT-TIG method. In the MMA method, the device, together with the adjustment of material thickness and intelligent selection of parameters, gives the suggested diameter of the electrode to be used.
• Convenient knobs and clear panel for easy quick setting of the welding machine, even in welding gloves.
• 2T – double-bar welding. To release the arc, press the button on the welding torch and hold it during welding, releasing the button results in the expiration of the welding arc.
• 4T - four-bar welding. To release the arc, press the button on the welding torch and then release it. The arch maintenance will continue. To extinguish the welding arc, press again and then release the button.

• SPOT functions — designed for spot welding. The device has a set heating time, and the operator deals only welding current. This feature is most commonly used in car workshops
• Functions S_2T /S_4T – this is a combination of two welding techniques. Spot welding, where gas outflow was applied before the welding process and gas outflow after the process. In addition, the 2T and 4T functions were used to create the S_2T/S_4 method, which allows the welding to start and finish correctly.
• It is built with IGBT transistors, which are characterized by high efficiency.
• Gas heater connector (36V) – by using a socket, you can connect the reducer with the heater or the heater itself and heat the gas to a positive temperature.

TECHNICAL DATA:

• Power supply: 230 V
• Frequency: 50/60 Hz
• Idle voltage: 74 V
• Security networki: 20 A
• MIG welding current: 35-200 A
• MIG welding voltage: 10-28 V
• Efficiency (for temp. 40°C):

30%/ 200A /24 V

100%/ 110 A/19.5 V

• TIG welding current: 20-160 A
• TIG welding voltage: 10.8-16.4 V
• TIG efficiency (for temp. 40°C):

30%/160A/16.4 V

100%/88 A/13.5 V

• MMA welding current: 30-160 A
• Welding voltage MMA: 21.2-26.4 V
• MMA efficiency (for temp. 40°C):

30%/160A/26.4 V

100%/88 A/23.5 V

• Feeder: 2 R
• Spool diameters with wire: D200
• Maximum spool size: 5 kg
• Wire diameter for use in welding machine: 0.8/1.0/1.2 mm
• Dimensions: 37 x 27 x 27,5 cm
• Weight: 9.2 kg
• Weight with packaging: 14.5 kg
• Housing protection: IP21S
• Cooling: fan
