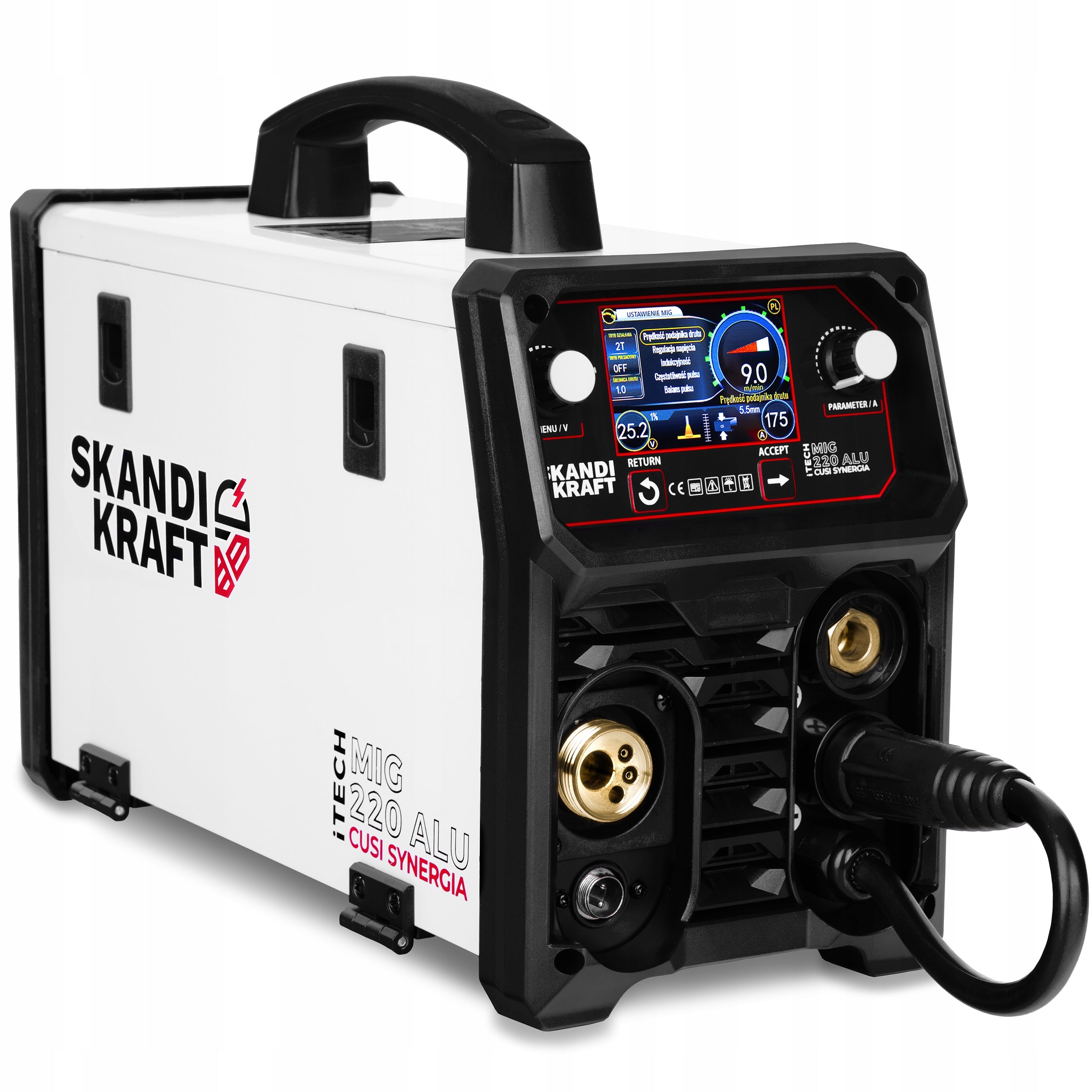

Suvirinimo aparatas SKANDI KRAFT ITECH MIG 220 ALU CUSI, 200A

Trumpai apie prekę

Prekė: Suvirinimo aparatas SKANDI KRAFT ITECH MIG 220 ALU CUSI, 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: SKANDI KRAFT
• Modelis: iTech MIG 220 ALU CUSI SYNERGIA
• Ilgis: 375 mm
• Plotis: 270 mm
• Aukštis: 375 mm

POWER SUPPLY PARAMETERS

• Power supply: 230 V
• Frequency: 50/60 Hz
• Idle Voltage: 68 V
• Network Security: 20 A

TECHNICAL PARAMETERS

• MIG welding current: 40-200 A
• MIG welding voltage: 16-24 V
• Efficiency (for temp. 40°C): 60%/ 200A /24 V 100%/ 155 A/21.8V

• TIG welding current: 10-200 A
• TIG welding voltage: 10.4-18 V
• TIG efficiency (for temp. 40°C): 60%/200A/18 V 100%/155 A/16.2 V

• MMA welding voltage: 21.2-28 V
• MMA efficiency (for temp. 40°C): 60%/200A/28V 100%/155 A/26.2 V

• Feeder: 2 R
• Wire spool diameters: D200
• Maximum spool size: 5 kg
• Wire diameter for use in welding machine: 0.8/1.0/1.2 [mm]

PHYSICAL PARAMETERS

• Length x width x height: 48 × 21 × 38 [cm]
• Weight: welding machine [net] 14.6 [kg], in carton [gross] 21 [kg]
• Housing protection: IP21S
• Cooling: fan

ADDITIONAL FUNCTIONS

• FAN STOP turning off the fan at rest: yes
• Connector for quick connection of gas hose (TYPE 21): yes
• Gas Heater Connector: Yes
• SPOOL GUN possibility of connecting an external handle with a wire feeder: yes
• VRD voltage reduction and safety improvement: yes
• Arc Force welding arc length adjustment: yes
• Hot Start quick arc glow: yes
• Anti Stick prevents electrode sticking: yes
• Memory Channels: 18

TECH MIG 220 Alu CuSi Synergy is an inverter welding machine that combines intuitive operation with wide functionality, ideal for welding materials from 0,5 mm to 12 mm thick.

Synergic system MIG/MAG AUTO: The device is equipped with an innovative AUTO system that simplifies the welding process as much as possible. Just specify the type and thickness of the material and the diameter of the wire, and the system will automatically select the optimal welding parameters, ensuring immediate readiness for work. It is an ideal solution for beginners of the MIG/MAG method.

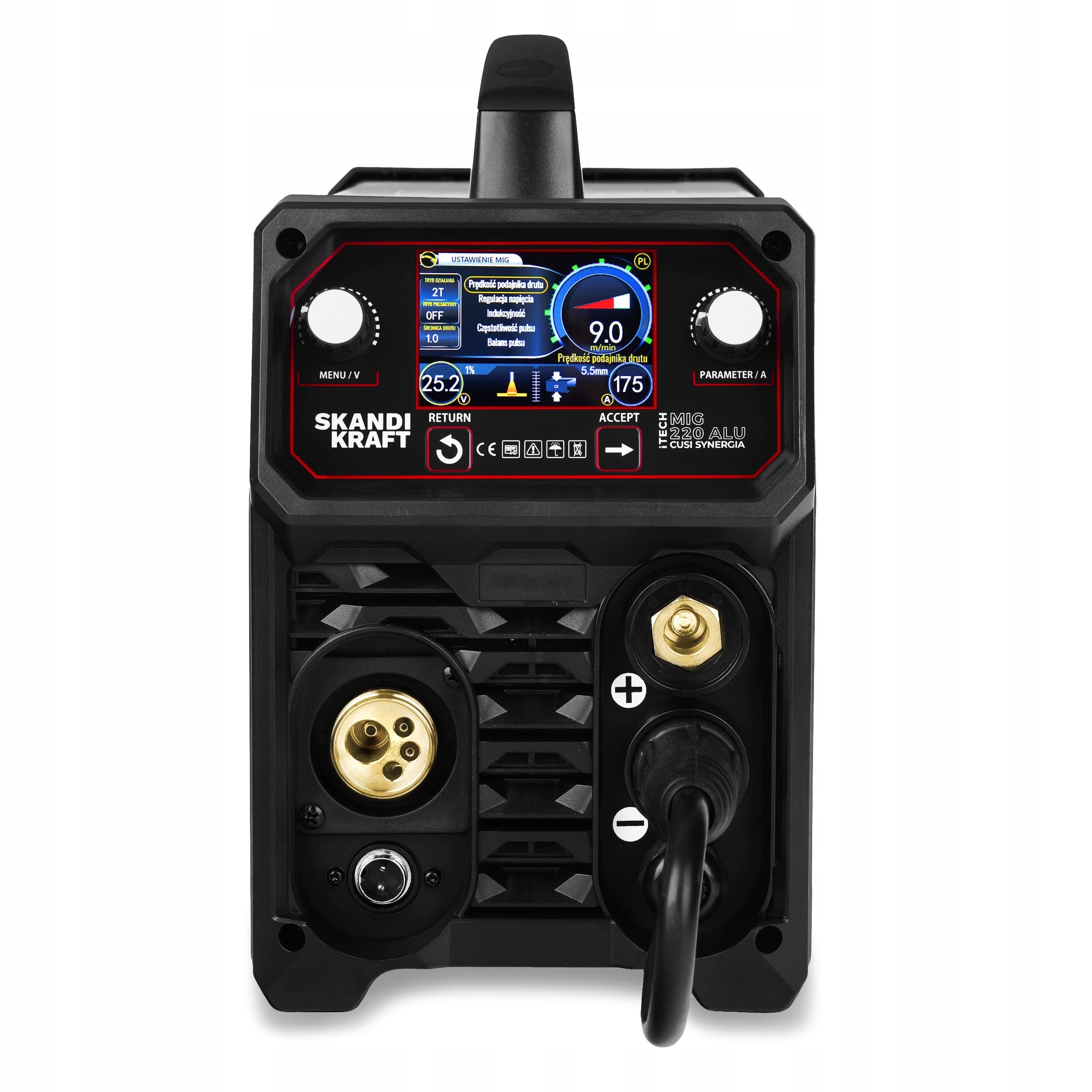

Multilingual Display: Intuitive operation is provided by a 3,5-inch LCD display with menus in 4 (m.in. Polish)

Silent Operation Mode (FAN STOP): The welder offers a comfortable and quiet operating mode that simultaneously reduces power consumption.

iTECH MIG 220 ALU CuSi Synergy is primarily intuitive operation and advanced functionality, which allows, in addition to the AUTO system, to fully manually adjust settings. Adjustable INDUCTANCE (inductance) allows you to control the hardness of the arc, which reduces the amount of chipping and protects thin sheets from burning out. The device has a 3-meter fully copper 3×2.5 [mm2] power cable and a 3-meter fully copper 25 [mm2] mass holder. The set includes a 3-meter electrode holder and a 3-meter KD15 holder.

SUMMARY OF PRODUCT CHARACTERISTICS

• 3in1 equipment: MIG-MAG, MMA, TIG DC
• Self-shielding wire (FLUX) welding - no need for gas
• IGBT inverter technology – high efficiency and lower power consumption
• Advanced synergistic programs - automatic selection of parameters for different materials:
• • CS/SS (CO₂ 100%) - black and stainless steel
• • Al-Si (Ar 100%) - aluminium with silicon (the most commonly used alloy)
• • Al-Mg (Ar 100%) - aluminium with magnesium (rims, harder feet)
• • Cu-Si (Ar 100%) - soldering, welding of galvanized and cast iron
• • CS / SS (Ar 82% + CO₂ 18%) - black and stainless steel in mixed casing
• LCD display with high contrast - readable even in strong light
• Gas heater connector AC 36 V - facilitates operation at low temperatures
• Possibility to connect the spoolgun handle
• EUROCONNECTOR – compatibility with a wide range of handles
• Overload and overheating protection – greater safety of use
• Universal application - from farm repairs to workshop work

• Manual mode for experienced welders who prefer full control over the welding process. Allows independent selection of all parameters
• Ability to adjust the inductance, with which we can control the amount of splatter, the appearance and quality of the weld, as well as the stability of the arc.
• Fan Stop – an adaptive fan that automatically increases the speed at start-up and heating, and turns off or slows down when cooled down, which significantly extends its service life and reduces dust deposition inside the device.
• 18 memory channels store predefined configurations, speeding up work on repetitive processes and eliminating the need to re-set parameters for typical applications.
• EURO socket – a universal connector compliant with the European standard, enabling quick and trouble-free connection of any MIG/MAG holder. Thanks to this, it eliminates the need for adapters and accelerates the replacement of accessories at the workplace.
• VRD (Voltage Reduction Device) – automatically reduces the idle voltage on the electrode to a safe level, protecting the welder from electric shock.
• Connection for quick connection of gas hose (TYPE 21)
• The 36V - gas heater connector enables trouble-free welding in a 100% CO2 carbon dioxide shield.

Professional 2 roller wire feeder

Professional 2 roller feeder ensures smooth wire feeding. It easily copes with long handles and large wire spools.

The welder supports D200 wire spools

FAN STOP FUNCTION

The welder is equipped with an adaptive fan with FAN STOP function, which turns off at rest of the device, ensuring quiet operation. The efficient cooling system protects the welding machine from overheating, allowing for longer operation without interruptions. Thanks to the use of modern IGBT transistors, the device is characterized by high efficiency and reliability.

Welding system MIG/MAG AUTO:

• Automatic setting of the welding machine after specifying the type of material and thickness and diameter of the wire, the device will adjust the welding parameters. This system has the ability to fine-tune the manual welding current in order to individually select parameters.
• Choosing 2T/4T, which will allow you to create longer welds more comfortably.
• Selection of welded material (Carbon steel – carbon steel, Stainless steel – stainless steel, Al-Si – soft aluminum, Al-Mg – hard aluminum, Cu-Si – soldering).

MIG/MAG welding:

• Choosing 2T/4T, which allows you to create longer welds more comfortably.
• SPOT spot welding functions and welding support by the welding torch S_2T and S_4T, i.e. welding starting with the gas outflow before the welding process from the lower current to the base current and the final reduction of the current value to the crater extinction settings and the inclusion of the gas outflow after the process.
• SPOT:
• Gas before ignition: 0-2 [s]

• ON spot welding: 0.1-20 [s]
• Spot welding OFF: 0.1-20 [s]
• Gas after expiration: 0.5-10 [s]
• S_2T/S_4T:

• Gas before ignition: 0-2 [s]
• Starting current: 1.5-15 [m/min]
• Rising time: 0.1-15 [s]
• Falling time: 0.1-25 [s]
• Final current: 1.5-5.4 [s]
• Gas after expiration: 0.5-10 [s]

• Selection of welded material (Carbon steel – carbon steel, Stainless steel – stainless steel, Al-Si – soft aluminum, Al-Mg – hard aluminum, Cu-Si – soldering).
• Selection of thickness of welded material.
• Determination of wire diameter. In Al-Si and Al-Mg (range 1.0-1.2 [mm]), other materials from (0.8-1.2 [mm]).
• Possibility to set wire feed speed [m/min].
• Setting the welding current voltage [V].
• Regulation of inductance ± [%].
• Setting the pulse frequency in pulse mode [Hz].

MMA FUNCTIONS FOR EASY MMA WELDING PROCESS

Arc Force - adjustment of the welding arc, this function allows you to reduce or increase the depth of the melt

VRD - voltage reduction, turning off the power supply after welding as soon as possible, helps to maintain safety.

Anti Stick - easier detachment of the electrode if it is glued

TIG LIFT FUNCTIONS

Welder powered by 230V with a thick power cable with a length and cross-section of 3G x 2,5 [mm2]

Maximum welding current 200 A

simple wire change mechanism in the welding machine

• FLUX - welding without gas, shielding wire
• Ability to adjust the welding current, after setting it, the welding machine suggests the thickness of the sheet metal
• Hot Start - facilitates the start of welding, by temporarily increasing the welding current at its beginning

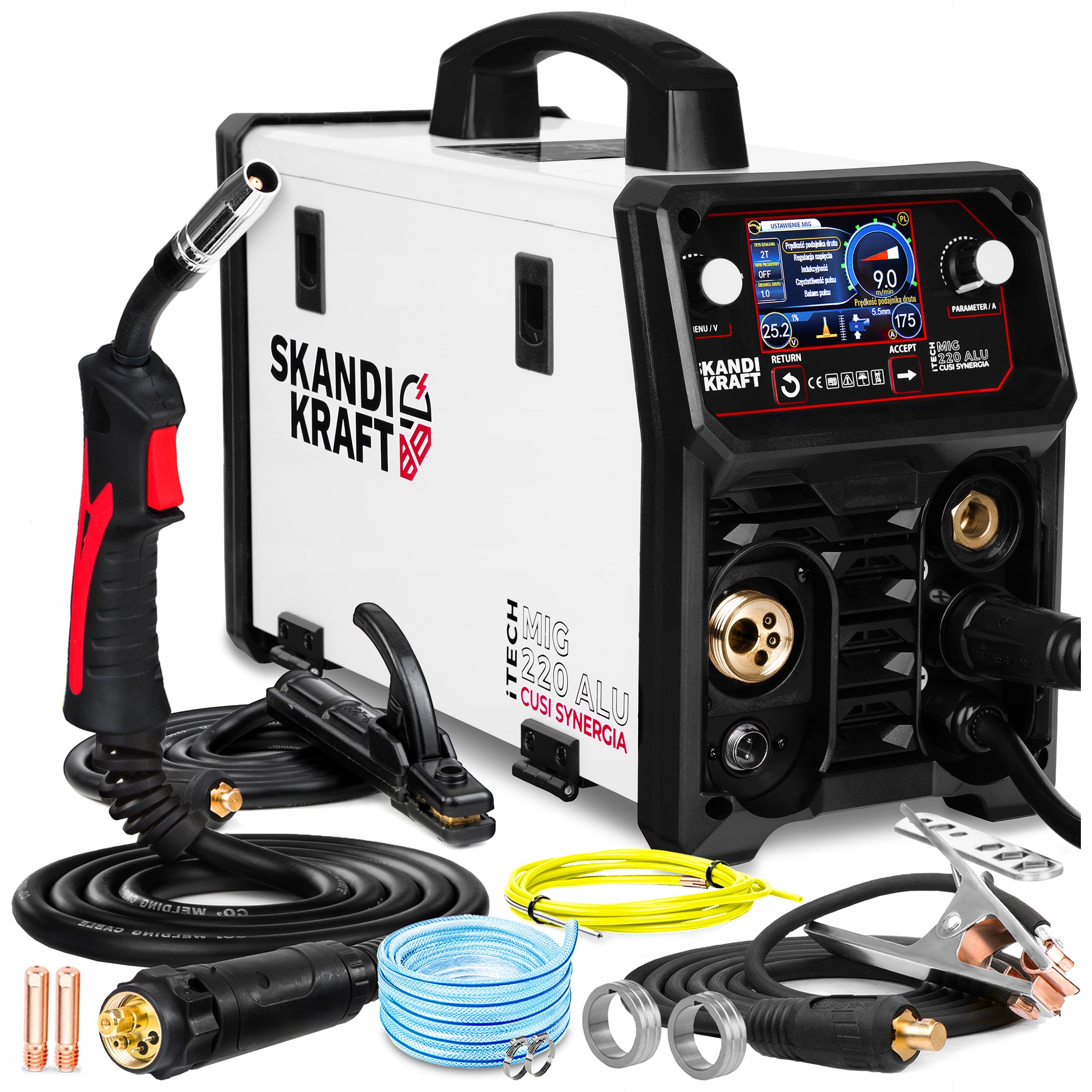

• SKANDI KRAFT iTECH MIG 220 welder with integrated power cable with a length of 3 meters and a cross-section of 3×2.5 [mm2]
• MIG KD24 welding torch type MB24 4 meters with Teflon-graphite insert
• Additional steel insert blue 4 meters for KD24 handle, for wire welding with a diameter of 0.6 -1.0 [mm]
• Mass holder fully copper 3 meters, cross section 25 [mm2]
• Copper electrode holder 3 meters, cross section 25 [mm2]
• Wire rollers: for steel 1x 0.8-1.0 V, for aluminium 1x 1.0-1.2 U.
• Wire feeder roller size 22/10/30 [mm]
• Gas cylinder mounting elements: 2 x gas reducer mounting band, 2-meter gas hose, key
• Current terminals for KD24, MB24 (1x 0.8 ; 1×1.0; 1×1.0 AL ; 1×1.2 AL)
• Instructions.
