Suvirinimo aparatas Sherman MIG/MAG 200A 230V komplektas

Trumpai apie prekę

Prekė: Suvirinimo aparatas Sherman MIG/MAG 200A 230V komplektas. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: spawarka migomat 7812393_pakiet2
• Ilgis: 450 mm
• Plotis: 210 mm
• Aukštis: 330 mm

| Model: Sherman MIG 200HD | Welding methods: MIG/MAG, MMA, TIG Lift | Welding current: 200 A | 230 V | IGBT | Synergy | Kit |

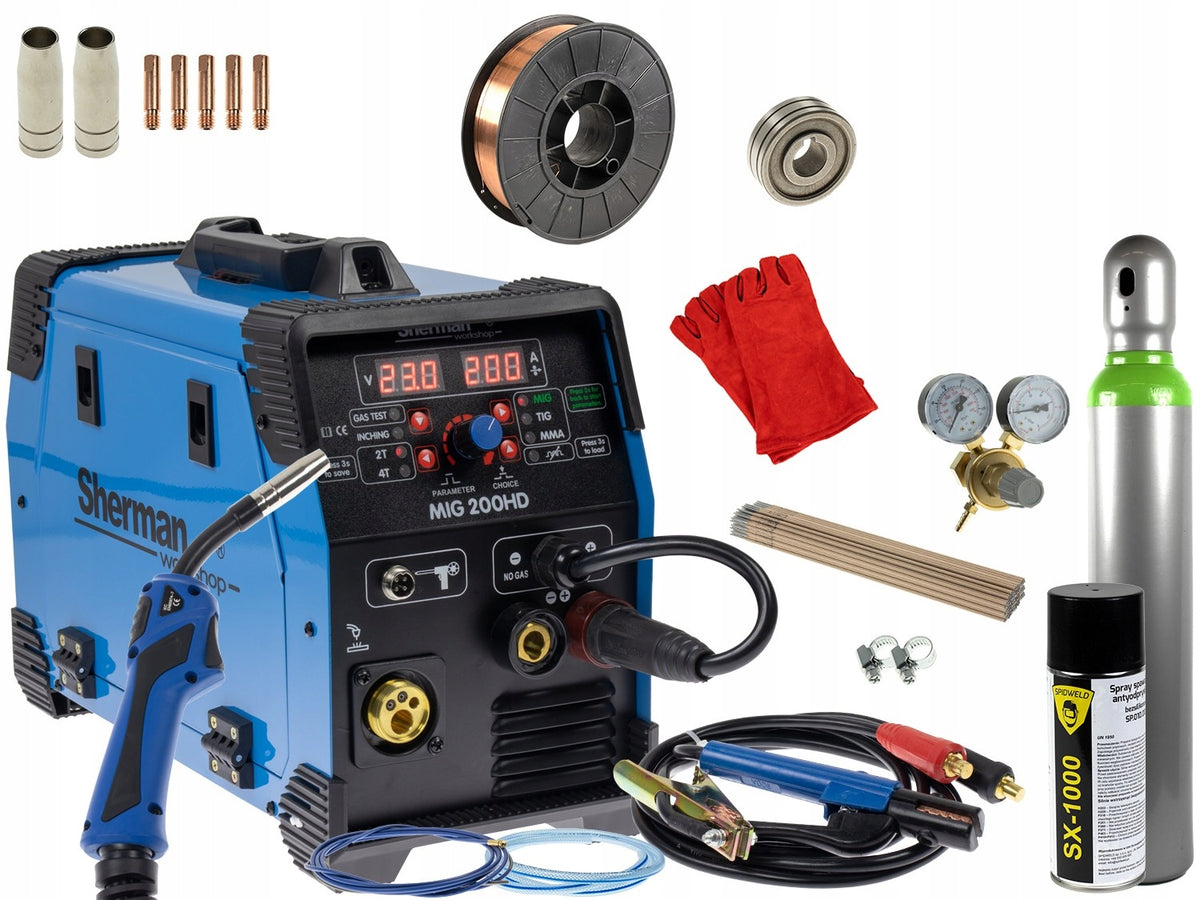

Standard equipment

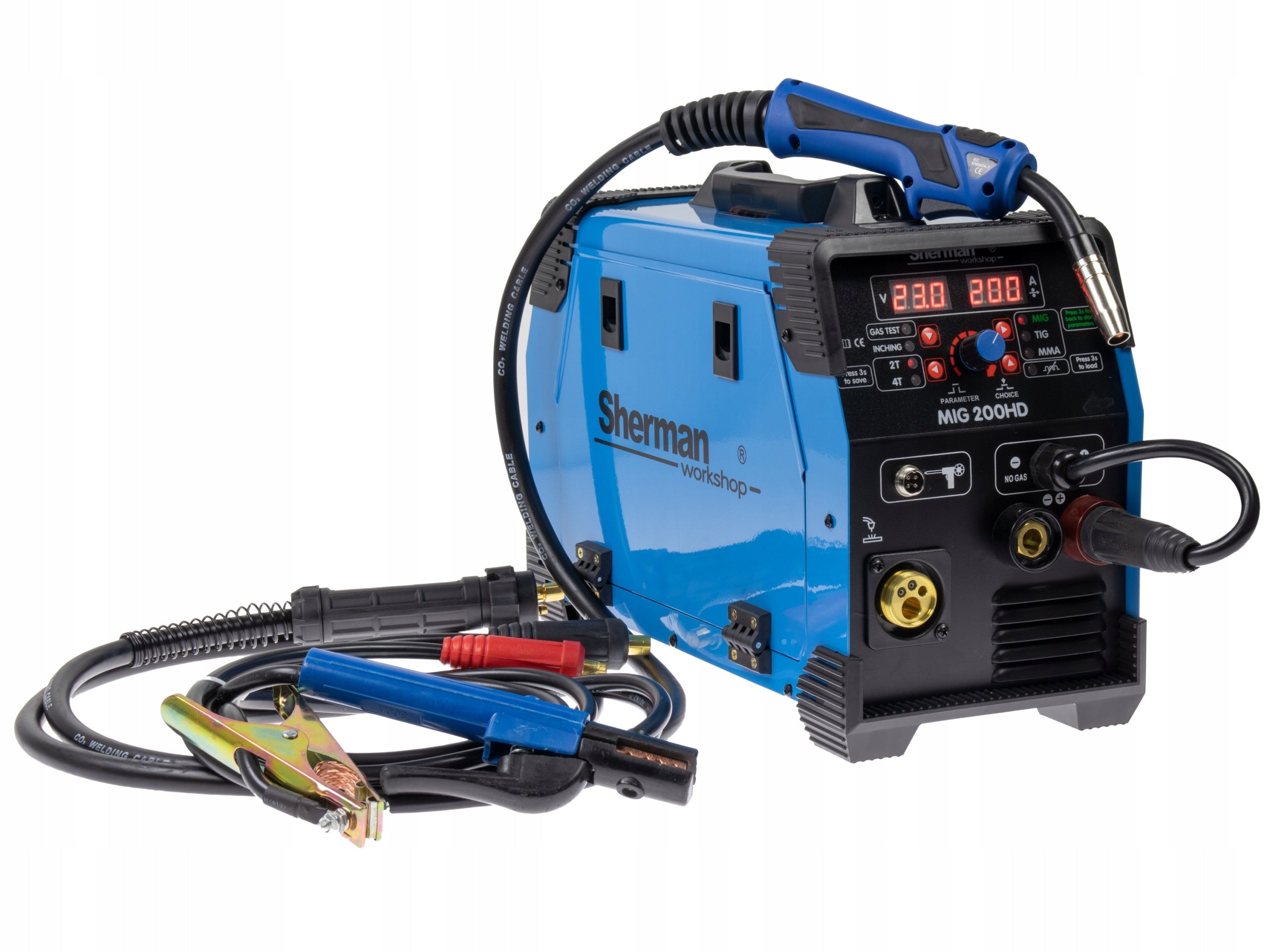

• Sherman MIG 200HD welding machine
• welding torch TW-15 / 3 m
• mass cable / 1,8 m
• electrode cable / 1,8 m
• feeder roll fi 0,8 / 1,0 mm V-shaped (mounted in the feeder)
• steel insert for wire 0,8 /1,0 mm (mounted in the holder)
• instruction manual in Polish

Expert Accessory Pack

• anti-chipping preparation 400 ml
• SG2 0,8 mm / 5,0 kg welding wire
• gas reducer MINI 2 pressure gauges
• bottle with ARG/CO2 mixture 8 liters (new, full, 10-year legalization, valve cap)
• welding gloves 1 pair
• gas nozzle MB-15 2 pcs.
• current tip MB-15 0,8 5 pcs.
• rutile welding electrodes / 1,0 kg
• hose for connecting cylinders with reducer + bands

When buying a set, you will always get a more favorable price.

Synergistic welding machine Sherman MIG 200HD is used for manual welding of steel and non-ferrous metals.

It enables welding using MMA (wrapped electrode), TIG Lift and MIG/MAG methods in synergic and manual mode.

Thanks to the change of polarity, the device allows MIG/MAG welding using both standard wires in the protective gas shield and self-shielded powder wires.

Welding methods:

☑ MIG/ MAG synergistic mode

☑ MIG/ MAG manual mode

☑ TIG Lift

☑ MMA (electrode welding)

☑ self-shielded wire welding

✳ Regulation of inductance allows lutowelding of thin galvanized elements.

✳ The welder can operate in synergistic or manual mode with the option of quickly returning to the initial synergistic settings.

✳ The device has built-in automatic functions Hot Start and Anti Stick, also allows you to remember 20 sets of parameters for the MIG method.

✳ The device allows you to connect a Spool Gun type handle (to be purchased separately) with a mini wire feeder mounted in it and a D100 spool of steel or colored wire.

• digital control,
• function 2T/4T,
• Hot Start,
• TIG Lift,
• welding without gas,
• option Spool Gun,
• memory of settings,
• Anti Stick,
• gas test.

Functions of MMA method (wrapped electrode welding):

• Hot Start (hot start adjustment) - works at the moment of arcing, causing a temporary increase in welding current above the value set by the welder. It is designed to prevent the electrode from sticking to the material and is a great convenience when arcing.
• Anti Stick (short-circuit protection) - is a short-circuit protection, reducing the welding current in the case of sticking the electrode to the welded material. This makes it easier to peel off and protects the device from damage.
• 2T function - in two-bar mode, pressing the switch in the handle of the handle will cause the arc to glow. Welding is carried out with the switch pressed. Release of the switch will complete welding.
• 4T function - in four-bar mode, pressing the switch in the handle will cause the arc to glow then release the switch and conduct welding with the switch released. Pressing the switch again will complete the welding.

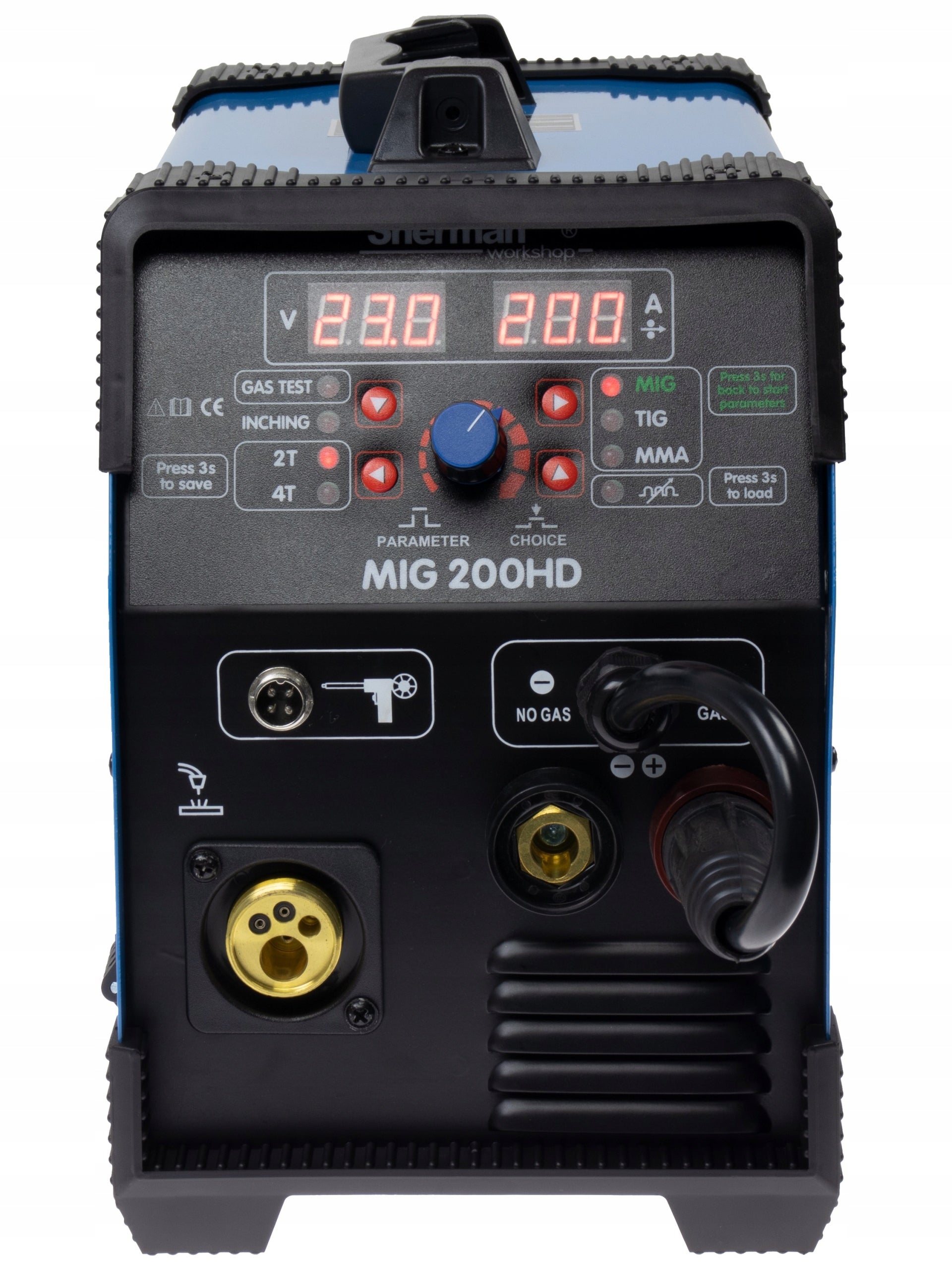

On the inside of the spool chamber cover there is a short guide for the welder facilitating the current operation of the device with a detailed description of access to adjustable operating parameters.

The device is made in the IGBT technology allowing for a significant reduction in the weight and dimensions of the welding machine and increase in efficiency while reduction of energy consumption.

The welding machine is used in closed or covered rooms, not exposed to direct atmospheric influences.

The device is equipped with a MIG welding torch, electrode wire and mass cable with a tick clamp.

Technical parameters

• Processes: MIG / MMA / TIG
• Welding current range [A]: MIG: 30 – 200 A; MMA: 20 – 180 A; TIG: 20 – 200 A
• Current [A] / duty cycle [%]: MIG: 200 A/ 45%, 155 A/ 100%; MMA: 180 A/ 60%, 139 A/ 100%; TIG: 180 A/ 60%, 139 A/ 100%
• Power supply [V]: 230
• Max. welding current [A]: 200
• Cooling: with gas
• Type of wire feeder: internal 2 roller
• Synergic control: Yes
• Soldering function: Yes
• Power consumption: 6,6 [kVa]
• Idle voltage [V]: 65
• Current adjustment: Smooth
• 2T/4T function: Yes
• Additional Features: Digital Control, Hot Start, TIG Lift, Gas Free Welding, Spool Gun Option, Setting Memory, Anti Stick, Gas Test
• Degree of protection: IP21
• Wire spool: 5,00 kg / D200
• Inductance adjustment: Yes
• Length: 450 [mm]
• Height: 330 [mm]
• Width: 210 [mm]
• Weight: 10,5 [kg]

Cylinder filled with high quality mixture Ar/CO2 designed for welding in protective gas shielding and for other industrial applications.

The product has a protective cap protecting the valve, is factory new and much lighter than cylinders recovered from fire extinguishers.

Cylinders and valves are made in accordance with EN 1964:1999 and have the π mark of compliance with ADR/RID requirements.

• Capacity [l]: 8
• Amount of gas [m3]: 1,3
• Mass [kg]: ~15

✴ 3in1 welding machine: MIG/MAG, MMA, TIG Lift

✴ welding with self-shielded wire

✴ soldering

✴ possibility of welding thin sheets

✴ synergic and manual mode

✴ regulation of inductance

✴ function HOT START

✴ ANTI STICK function

✴ function 2T/4T

✴ IGBT technology

✴ holder for EURO connector

✴ setting memory

✴ light and handy migomat

✴ clear and easy to use panel

MIG/MAG welder, or migomat, is an indispensable tool in the home garage, workshop and production plant. Migomatem can quickly and precisely combine metals, ensuring durability and high quality of work. Migomate wire is more economical than welding electrodes, which translates into cheaper welding. In addition, migomates provide higher quality welds, minimizing the risk of errors. MIG/MAG welding machines are most commonly used for steel, but aluminum migomat is a commonly used device. In addition, the migomat with synergy facilitates welding by automatically entering settings. A good migomat must meet specific requirements, so when buying, it is worth following the technical parameters.

MIGOMAT inverter welding machine MIG MAG 230V 200A SYNERGY Sherman MIG Set

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Sherman
Parametry	Power consumption	6.6 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	45%
Parametry	Device weight	14.6 kg
Parametry	Welding range	20–200 A
Parametry	Height	330 mm
Parametry	Length	450 mm
Parametry	Width	210 mm
Parametry	Length of ground cable	180 cm
Parametry	Welding cable length	300 cm
Parametry	Manufacturer code	spawarka migomat 7812393_pakiet2
Parametry	EAN (GTIN)	5905031033919
Parametry	Packaging status	original
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle
