Trumpai apie prekę
Prekė: Suvirinimo aparatas SHERMAN MIG DUALMIG 210 S3 TIG MMA. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Sherman
- Modelis: DUALMIG 210 S3
- Ilgis: 782 mm
- Plotis: 252 mm
- Aukštis: 345 mm
The DUALMIG 210 S3 semi-automatic welding machine is used for manual welding of steel and non-ferrous metals. It enables MIG/MAG, MMA (wrapped electrode) and Lift TIG welding.

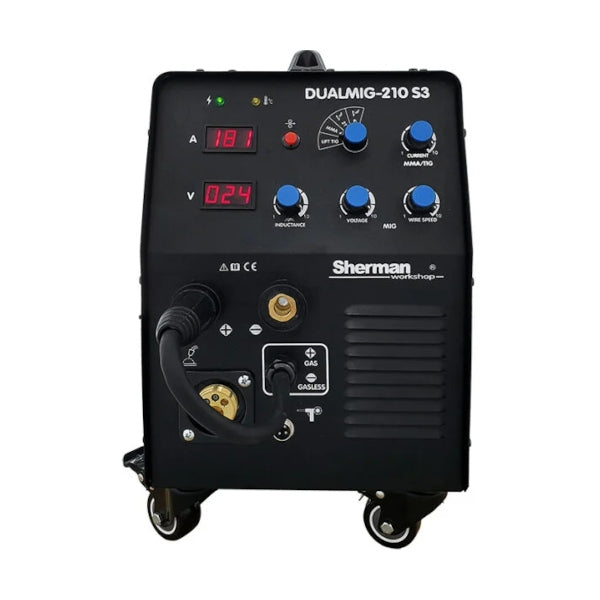

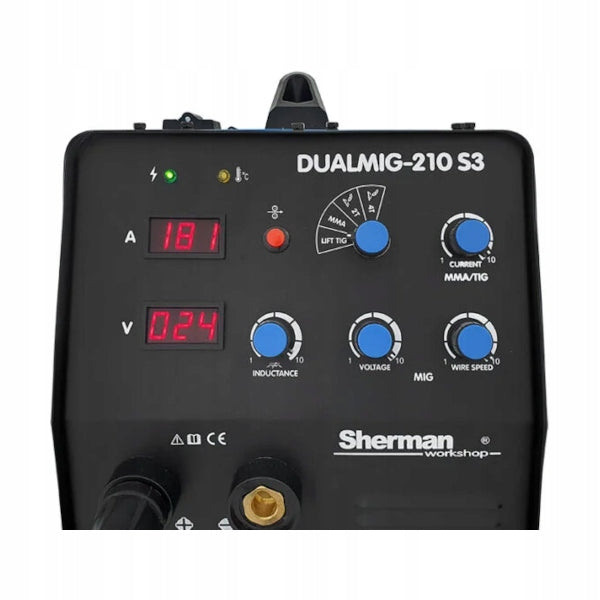

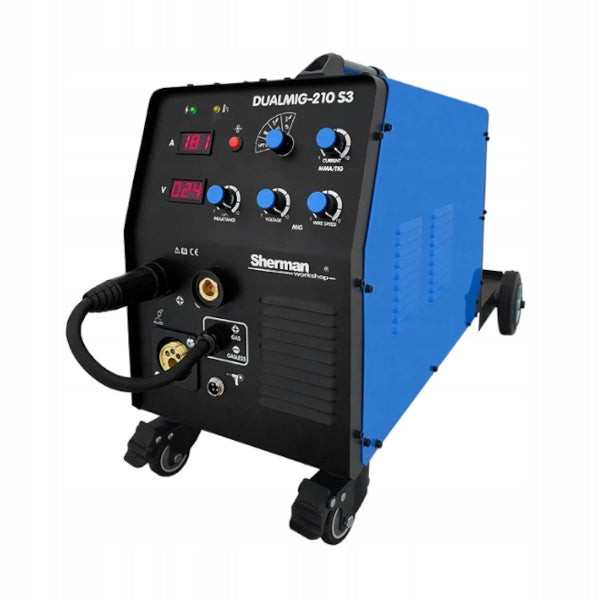

MIGOMAT WELDING MACHINE SHERMAN MIG DUALMIG 210 S3 TIG MMA
The DUALMIG 210 S3 semi-automatic welding machine is used for manual welding of steel and non-ferrous metals. It enables MIG/MAG, MMA (wrapped electrode) and Lift TIG welding. It can also be used for soldering thin (up to 3mm) galvanized sheets. Thanks to the change of polarity, the device allows MIG/MAG welding using both standard wires in the protective gas shield and self-shielding powder wires. The welding machine is used in closed or covered rooms, not exposed to direct weather conditions. DUALMIG 210 S3 works with D200 (5kg) and D300 (15kg) wire spools.
The device has the ability to connect a Spool Gun (SG) type handle that allows welding with two different wires without the need to change the welding machine. The device allows welding in mode 2 or 4 Tact and also has the ability to adjust the inductance used in soldering and adjust the melting during welding.
The device is equipped with a 2-roll wire feeder with smooth feeding speed adjustment, MIG welding torch, electrode wire and mass cable with tick clamp.
PARAMETERS
- Catalog number: 7811698
- Welding/cutting/other methods: lutowelding, MIG/MAG, MMA DC, TIG Lift (by rubbing) DC
- Supply voltage [V]: AC 230
- Technology: IGBT
- Max MMA welding current [A]: 180
- Max welding current TIG DC [A]: 180
- Max MIG/MAG welding current [A]: 200
- MMA work cycle [%]: 60
- TIG duty cycle [%]: 60
- MIG/MAG duty cycle [%]: 60
- Voltage without load [V]: 58
- Wire feed speed [m/min]: 1,5 – 13
- MIG welding voltage [V]: 15 – 23
- Max MMA power consumption [kVA]: 8,5
- Max TIG power consumption [kVA]: 8,5
- Max MIG/MAG power consumption [kVA]: 8,5
- Max MMA current consumption [A]: 25
- Max TIG current consumption [A]: 25
- Max MIG/MAG current consumption [A]: 25
- Wed. spool with wire ø [mm]: 200, 300
- Feeder type: 2RA
- Roll dimensions [mm]: 30x22x10 2RA
- Main method: MIG/MAG
- Features: 2T/4T, AC 36V Power Socket, Spool Gun Option, 2-Roll Feeder, Inductance Adjustment, Gas Free Welding, Analog Control, LED Display
- Network security [A]: 25
- Warranty period for companies [years]: 1
- Weight [kg]: 24,96
- Dimensions (D x SZ x W) [cm]: 78,2 x 25,2 x 34,5
- Producer: Sherman
CONTENTS OF THE SET
- DUALMIG 210 S3 welder
- TW-15/3m welding torch
- Electrode cable
- Bulk cable
- User manual
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Sherman |
| Parametry | Welding methods | MIG/MAG |
| Parametry | Power consumption | 8.5 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,2 |
| Parametry | Device weight | 19.5 kg |
| Parametry | Welding range | 35–200 A |
| Parametry | Height | 345 mm |
| Parametry | Length | 782 mm |
| Parametry | Width | 252 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 200 cm |
| Parametry | Product weight with unit packaging | 21 kg |
| Parametry | Manufacturer code | 7811698 |
| Parametry | EAN (GTIN) | 5903686610967 |
| Parametry | Packaging status | original |
| Parametry | Model | DUALMIG 210 S3 |
| Parametry | Additional features | transport wheels,EURO handle,LCD display |
