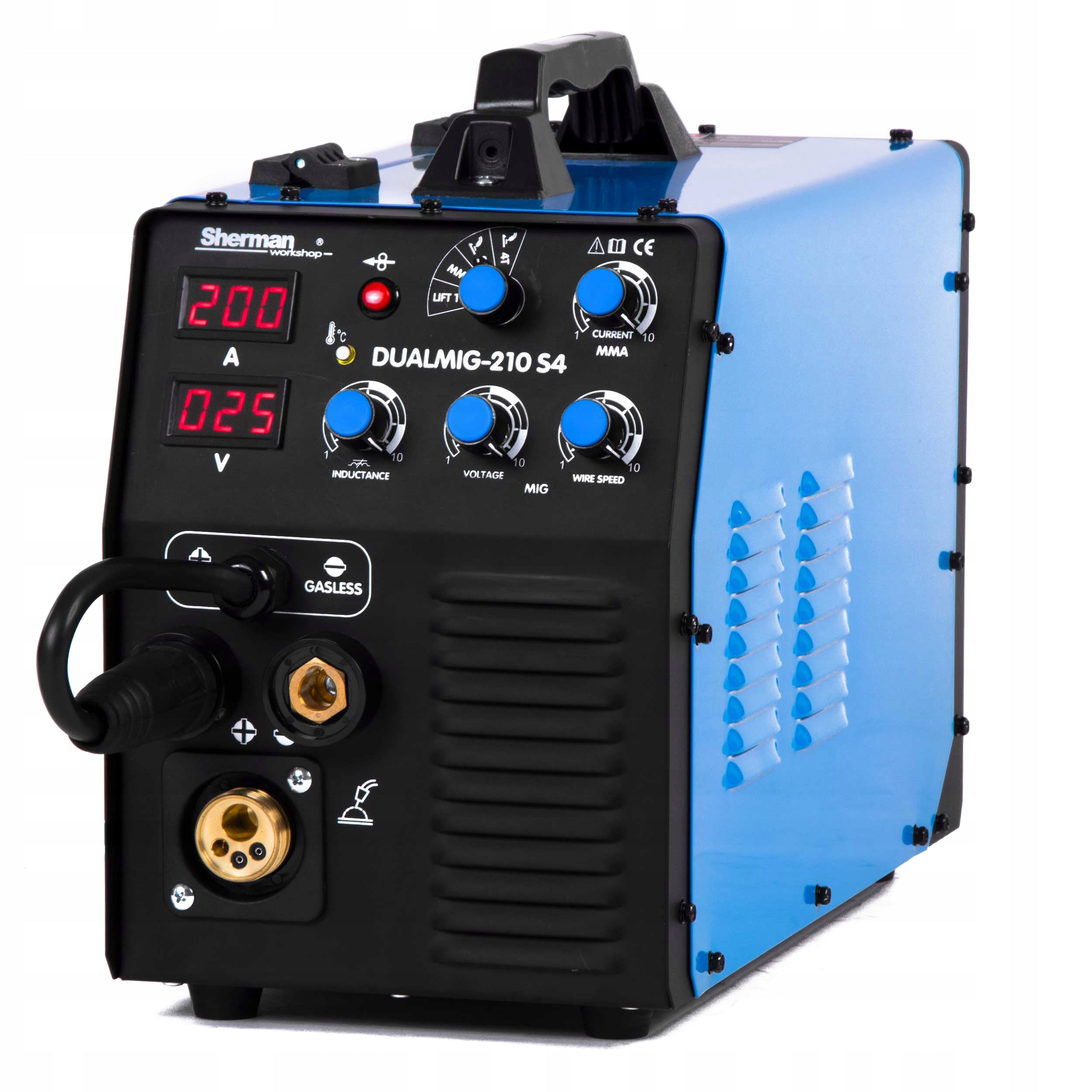

Suvirinimo inverteris SHERMAN DUALMIG 210 S4, 200A, 230V, IGBT

Trumpai apie prekę

Prekė: Suvirinimo inverteris SHERMAN DUALMIG 210 S4, 200A, 230V, IGBT. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: 210 s4

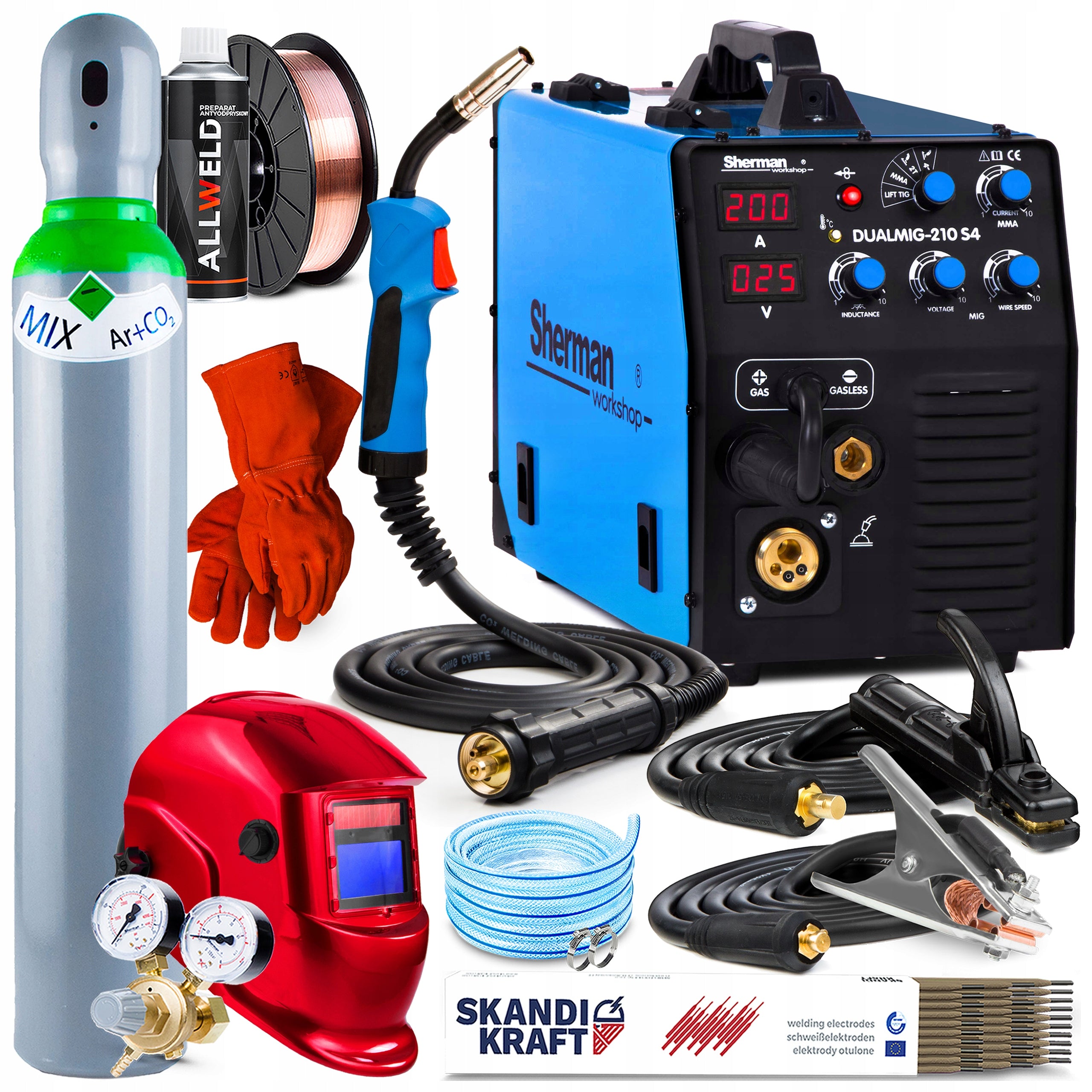

+ SET FOR WELDING MIG/MAG, MMA, WHICH INCLUDES:

✅ AUTOMATIC VISOR IDEAL APS-510G

✅ CYLINDER WITH REDUCER

✅ WELDING WIRES

✅ WELDING ACCESSORIES

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

is a semi-automatic welding inverter designed for arc welding by the following method:

➡ MIG MAG in mode:

• MIG - arc welding with a hot melt electrode in an inert gas shield (argon, helium).
• MAG - arc welding with hot melt electrode in active gas shield (CO2, MIX).
• FLUX / FCAW - self-shielding wire welding.

➡ TIG

• TIG LIFT DC - welding with a non-melting electrode in an inert gas shield.

➡ MMA

• MMA - welding with wrapped electrodes (rutile, alkaline, acidic).

⭐ WITH WELDING CURRENT ADJUSTMENT RANGE 35 - 200A ⭐

The SHERMAN DUALMIG 210 S4 welding machine is used for welding:

✔ low alloy steels,

✔ low carbon steel,

✔ alloy steels,

✔ other weldable metals and alloys,

✔ aluminium and its alloys.

The welding machine is characterized by a wide range of applications, it is dedicated to all kinds of welding work in households, locksmith workshops, repair workshops, etc.

⭐ SOLDERING - is a method that is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with.

⭐ VERY HIGH EFFICIENCY thanks to the IGBT - technology, lower energy consumption and high switching frequency ensure rapid adjustment of the current to changes in parameters during welding.

⭐ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

⭐ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

⭐ ANALOG CONTROL - in welding machines is often preferred for its simplicity and intuitiveness - they are adjusted using knobs, without the need to browse complicated menus. It is more resistant to electromagnetic interference and gives the user a greater "feel" of the welding process. In addition, it is usually less prone to failures, which translates into greater reliability compared to digital systems.

⭐EASE OF USE - The welding machine is equipped with an easy-to-use control panel and LCD display, so it can be used even by amateurs.

⭐ PROFESSIONAL WIRE FEEDER - enables precise extension of the welding wire excluding its slippage, guarantees stability and continuity of operation of the device.

⭐ STRONG METAL HOUSING - reduces the risk of damage to the welding machine.

⭐ EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

⭐ GOOD VALUE FOR MONEY

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

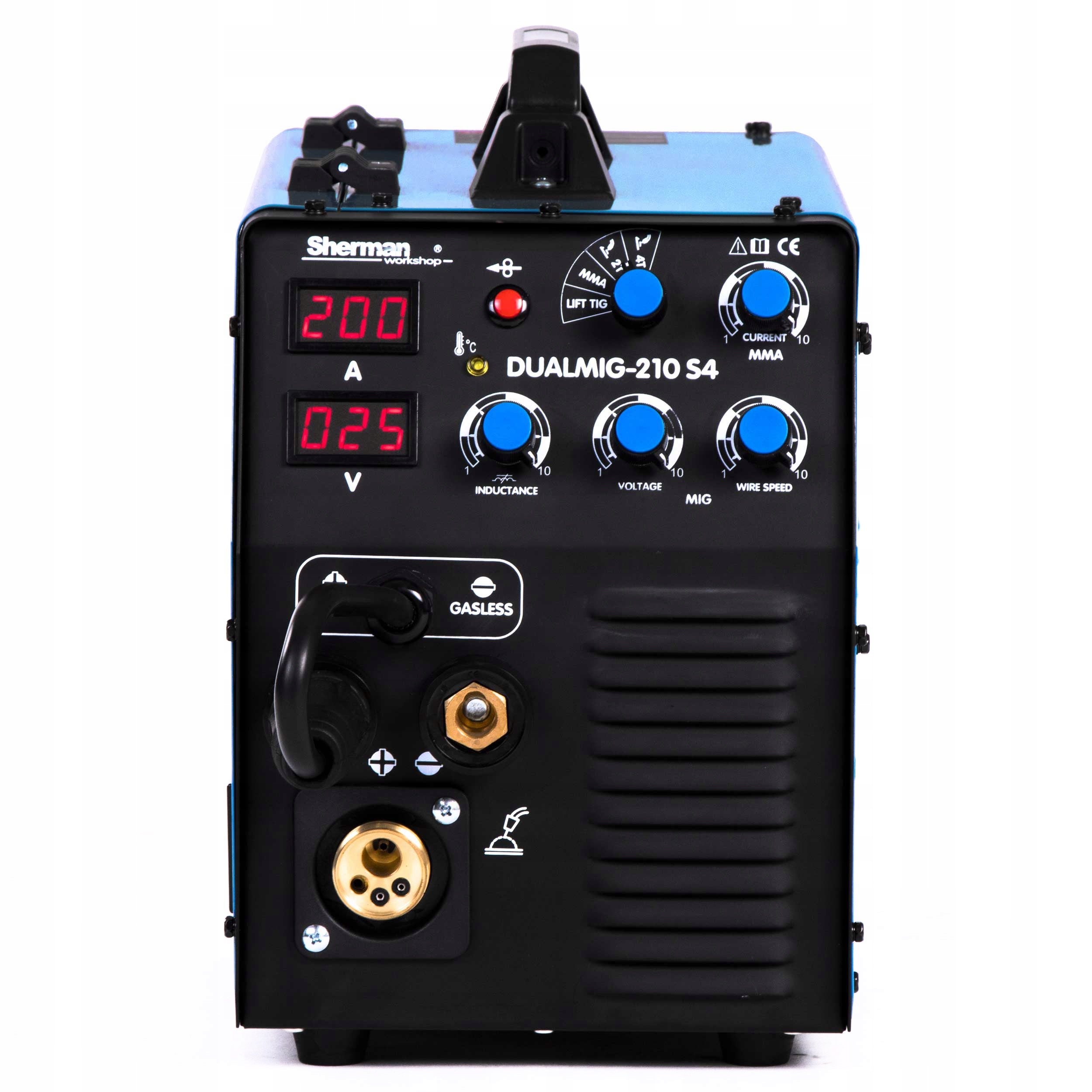

☀️ This Welder Features a Simple and User-Friendly Control Panel.

Settings are adjusted via the panel, which includes two displays and control knobs for features such as:

• Welding current display for MMA, TIG Lift.
• Wire feeder control button.
• Welding method switch.
• Welding current adjustment knob for MMA, TIG Lift.
• Wire feed speed adjustment knob for MIG.
• Welding voltage adjustment knob for MIG.
• Inductance adjustment knob.
• Welding voltage display for MIG.
• Thermal protection LED.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

✔ REPAIR WORKSHOP

✔ LOCKSMITH WORKSHOP

✔ OF ALL BODYWORK REPAIRS

✔ ASSEMBLY SERVICES

✔ FARMS

✔ HOMEWORK

AND WHEREVER RELIABILITY MATTERS!

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a professional wire feeder, which guarantees stability and continuity of operation of the device.

The 2-roll feeder allows precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

The welder supports D100 / D200 wire spools.

The device also includes a Spool Gun handle switch and feeder compartment lighting.

The set includes rollers:

✔ For steel wire 0.8 / 1.0mm mounted in feeder - 1 pc.

HANDLE WITH EURO CONNECTOR

The welder has a EURO socket for MIG welding wire. The socket allows you to quickly change the handle to the same standard.

Inductance adjustment allows optimization of arc characteristics depending on the thickness of the welded element and the welding method and conditions.

The function is useful during MIG/MAG welding of thin elements, preventing them from burning out and soldering galvanized elements.

The thinner the MIG/MAG welded element, the higher the inductance (soft arc - less melting), for thick elements vice versa (hard arch - greater melting).

The standard neutral inductance setting is in the middle of the scale.

Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding.

The optimal setting of the inductance value depends on several factors and may differ from the standard recommendations, it should be selected during welding tests by manipulating the potentiometer knob.

TO MEET CUSTOMERS, BASED ON OUR MANY YEARS OF EXPERIENCE, WE HAVE CREATED FOR YOU PROFESSIONAL SETS, THANKS TO WHICH WE PROVIDE YOU WITH EQUIPMENT WITH ACCESSORIES.

DEPENDING ON YOUR NEEDS, CHOOSE THE MOST SUITABLE SET FOR YOUR NEEDS.

⌚ SAVE YOUR TIME ⌚

BUY INCLUDED AND WE'LL TAKE CARE OF THE REST!

JOIN THE BEST - START YOUR WELDING ADVENTURE WITH US!

• Automatic visor IDEAL 510G - 1 pc.
• New 8L MIX or CO2 cylinder with 10-year legalization - 1 pc.
• Gas reducer Co2/Ar with 2 pressure gauges - 1 pc.
• Professional gloves - 1 pair
• Spray anti-chipping - 1 pc.
• Angle magnetic - 11 kg - 1 pc.
• Welding wire 5 kg 0,8 mm- 1 pc.
• Welding wire FOR ALUMINIUM 0,8mm - 0,45kg - 1pcs
• Welding wire 308LSi 0,8mm - 1kg
• Welding wire CuSi3 0,8mm - 1kg
• Tip current 0,8 mm - 5 pcs.
• Gas nozzle for handle - 2 pcs.
• Socket current - 2 pcs.
• Insulator - 2 pcs.
• Electrode pack - 1kg (2.5 or 3.2mm to choose from)
• Gas hose - 1m
• Clamping bands - 2 pcs.

Welding helmets with variable shade protection DIN 4/9-13, adjustable delay time, and sensitivity settings.

Designed for MIG/MAG, TIG, TIG PULSE, and MMA welding, with a grinding function.

High-quality LCD filters with optical class 1/1/1/2.

Power source: solar cell + replaceable battery.

The 4-point adjustable headgear ensures comfortable use.

The shell complies with EN175B standard for increased impact resistance.

PHYSICAL PARAMETERS

• Welding filter type: APS-510G
• Weight: 475g
• Filter dimensions: 96x39 mm

TECHNICAL PARAMETERS

• Reaction time: < 1/30000s
• Number of sensors: 2
• Optical class: 1/1/1/2
• UV/IR protection: up to 16 DIN
• Shade adjustment: 4/9-13 DIN
• Adjustable sensitivity: Yes
• Adjustable delay: Stepless 0.1-1.0s
• Standards: CE, EN175B, EN379, EN166
• Low battery indicator: Yes
• Power supply: Solar cell + 1xCR2032 battery

APPLICATIONS

• Plasma cutting: Yes
• MIG/MAG; MMA: Yes
• Grinding: Yes
• TIG, minimum current: Yes, >10A

NOTE! Masks are shipped in the color currently available in stock.

☀ VERSATILITY OF THE DEVICE ☀

Migomat company SHERMAN, is a device with a wide range of applications, designed as an inverter power source enabling welding with hot melt wire in a gas shield MIG/MAG or FCAW self-shielding wire (after changing polarity), welding with a buffer electrode MMA, as well as the TIG Lift method.

✔ MIG/MAG welding

Arc welding in gas shields is one of the most commonly used processes for the manufacture of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the material of the hot melt electrode with the heat of an electric arc glowing between the electrode in the form of a solid wire and the welded detail, in an inert or active gas shield.

✔ Welding MMA

In the MMA method, a wrapped electrode is used, consisting of a metal core covered with a sheath. An electric arc is produced between the end of the electrode and the welded material. Arching is created by touching the end of the electrode to the welded material.

✔ Welding TIG LIFT DC

In the TIG (Tungsten Inert Gas) method, the electric arc is ignitioned in an inert gas (argon) shield between the welded element and the non-melting electrode, made of pure tungsten or tungsten with additives. In TIG DC Lift mode, the arc glow occurs when the electrode comes into contact with the welded element. In TIG DC mode, the current is constant.

❗❗ TIG method can be welded after connecting an additional handle, available at our auctions ❗❗

✔ Self-shielding wire welding FCAW

Thanks to the polarity change function, it is possible to weld without shielding gas, with FCAW self-shielding wire. The wire is designed for general production work, also in field conditions, and for welding structures that are not subject to impact requirements. Welding current DC(-).

Self-shielding powder wire fi 0,8mm/1kg E71T-GS is designed for welding ordinary carbon steels and increased strength not exceeding 510 MPa.

It is used in prefabrication, construction, tank production, agricultural equipment, etc. Used in both production and repair of equipment.

SELF-SHIELDED WIRE IS AVAILABLE SEPARATELY AT OUR AUCTIONS AND IN OTHER SETS

⭐ IGBT INVERTER TECHNOLOGY - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has an impact on significantly extending the reliable operation of welding equipment.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩POWER SUPPLY PARAMETERS

• Power supply: AC 230V 50Hz
• Maximum current consumption: 25A
• Max. Power consumption: 8,5 kVA
• Network security: 20A

⏩MIG/MAG WELDING PARAMETERS

• Welding current: 35 - 200A
• Welding voltage: 15 - 23 V
• Wire feeder type: 2-roll
• Welding inductance: YES, smooth adjustment
• Working cycle: 200A / 60%

⏩WELDING PARAMETERS MMA

• Welding Current: 30 - 180A
• Welding current regulation: smooth
• Working cycle: 180A / 60%

⏩WELDING PARAMETERS TIG

• Welding Current: 30 - 180A
• Working cycle: 180A / 60%

⏩OTHER

• Weight: 14,22KG
• Welding current regulation: smooth
• Execution technology: IGBT
• Enclosure protection class: IP21S
• Dimensions: 450 x 210 x 305 mm

• WELDING MACHINE SHERMAN DUALMIG 210 S4 - 1pc.
• Welding torch MIG EURO MB 15/3m - 1 pcs.
• mass cable - 1pcs.
• electrode cable - 1pc.
• User manual in Polish
• Warranty card

+MIG/MAG + MMA SET:

• Automatic visor IDEAL 510G - 1 pc.
• New 8L MIX or CO2 cylinder with 10-year legalization - 1 pc.
• Gas reducer Co2/Ar with 2 pressure gauges - 1 pc.
• Professional gloves - 1 pair
• Spray anti-chipping - 1 pc.
• Angle magnetic - 11 kg - 1 pc.
• Welding wire 5 kg 0,8 mm- 1 pc.
• Welding wire FOR ALUMINIUM 0,8mm - 0,45kg - 1pcs
• Welding wire 308LSi 0,8mm - 1kg
• Welding wire CuSi3 0,8mm - 1kg
• Tip current 0,8 mm - 5 pcs.
• Gas nozzle for handle - 2 pcs.
• Socket current - 2 pcs.
• Insulator - 2 pcs.
• Electrode pack - 1kg (2.5 or 3.2mm to choose from)
• Gas hose - 1m
• Clamping bands - 2 pcs.

(SET OF 10)

Specifications
