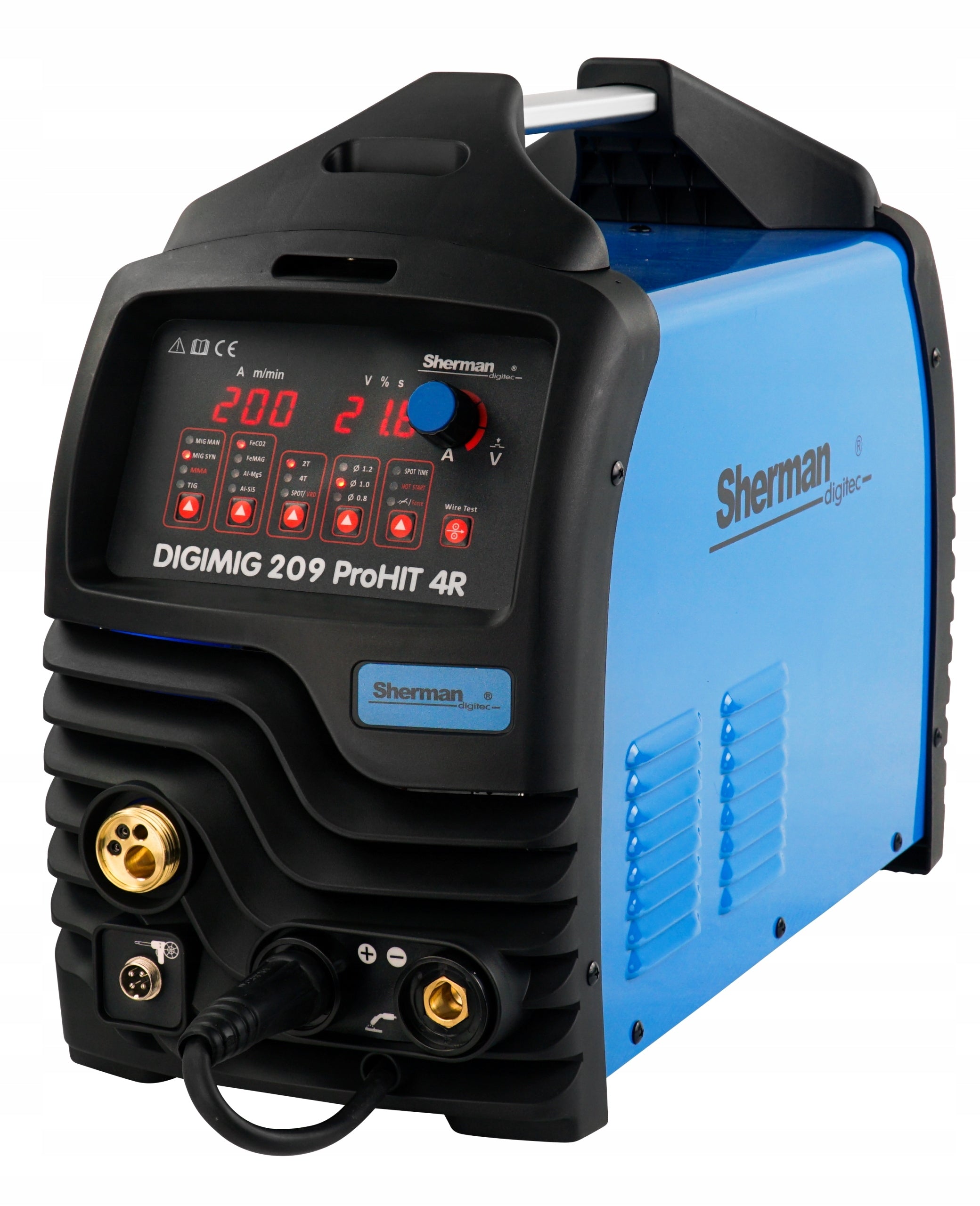

Suvirinimo aparatas Sherman MIG 209 ProHIT Synergy 4 ritinėliai 2T 4T SPOT 230V

Trumpai apie prekę

Prekė: Suvirinimo aparatas Sherman MIG 209 ProHIT Synergy 4 ritinėliai 2T 4T SPOT 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: MIG DIGIMIG 209 PROHIT

⏩SHERMAN DIGIMIG 209 PROHIT - GOOD SYNERGISTIC MIGOMAT FOR 230V WITH FOUR-ROLLER FEEDER

Synergistic welding machine DIGIMIG 200 ProHIT is used for manual welding of steels and non-ferrous metals using MMA (wrapped electrode), TIG Lift and MIG/MAG methods. Inductance adjustment allows for welding of thin sheets and soldering. Thanks to the change of polarity, it is possible to weld using both standard wires in the protective gas shield and self-shielding powder wires. The device allows you to connect a Spool Gun handle with a mini wire feeder mounted in it and a D100 spool of steel or colored wire. During MIG/MAG welding, synergistic programs for steel and Al alloys are available, and manual settings can be used.

The 4-roll feeder provides stable wire feeding. The Fan Stop function reduces noise at low load of the welding machine. The feeder compartment lighting makes it easy to put on the wire and replace the rollers. The roller hanger helps keep your workspace organized. The shielding gas connection in the R21 standard allows you to use a quick coupler to facilitate and accelerate the change of protective gas.

⏩EXPLORE THE BENEFITS OF SHERMAN DIGIMIG 209 PROHIT 4R

✅smooth adjustment of all welding parameters,

✅synergy - the device has synergistic programs,

✅2T/4T operating modes - weld as standard in 2T mode or switch to 4T mode when you have a lot of work and long welds to position,

✅regulation of welding inductance - wider face and smaller melt or narrow face and deep melt? Choose the optimal settings for the work you are currently doing, thanks to the MIG/MAG welding inductance adjustment,

✅ TIG DC Lift welding capability,

✅roller hanger to help keep your workspace tidy,

✅lighting in the wire feeder,

✅ 4-roller feeder,

✅The possibility of using a Spool Gun holder

✅ MIG spot welding.

⏭PROFESSIONAL 4R WIRE FEEDER

Professional wire feeder 4R (4x4) - is a reliable wire feeding regardless of the weight of the spool and the type of welding wire. The proven feeder mechanism has a big impact on the smoothness of wire feeding, and this already translates directly into the welding parameters of the device.

⏭POSSIBILITY OF CONNECTING SPOOL GUN HOLDER

The device allows you to connect a Spool Gun holder with a mini wire feeder mounted in it and a D100 spool of steel or colored wire. The MIG/MAG method can be used in manual and synergistic mode. Synergistic programs are available for steel, Al. alloys and for self-shielding wire welding.

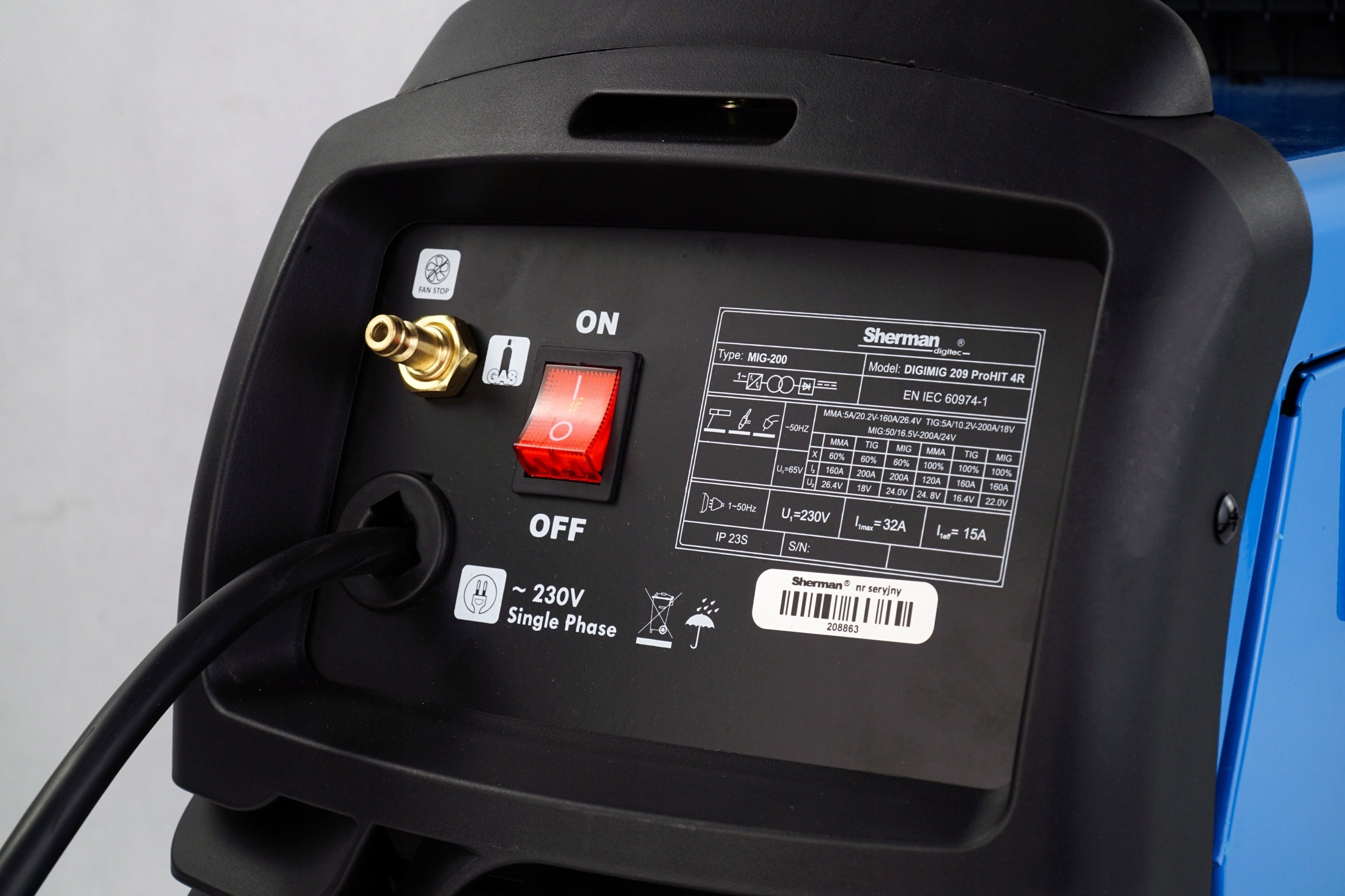

• Power Supply: 230V
• Welding methods: MIG, MAG, MMA, TIG DC, FLUX, Soldering
• Maximum welding current: MIG 200A, MMA 160A, TIG 200A
• Welding Current Range: MIG 50 – 200A, MMA 5 – 160A, TIG 5 – 200A
• Working cycle: MIG 60% 200A, MMA 60% 160A, TIG 60% 200A
• Network Security: 16 A
• Maximum power consumption: 6,2 kVA
• Maximum current consumption: 32A
• Net weight: 12 kg
• Dimensions: 490×220×375 mm
• Degree of protection: IP23S

MIG/MAG welding parameters:

• Welding Current: 50 – 200A
• Welding Voltage: 16,5–24V
• Voltage correction: -20% ~ +20%
• Wire diameter: 0,6 – 1,2 mm
• Wire spool weight: 1kg, 5kg
• Wire spool diameter: D100 / D200 (100 mm / 200 mm)
• Wire feed speed: 0,5 – 18 m/min
• Inductance: -50 – +50
• Spot welding time: 0 – 5 s
• Welding polarity change: YES
• Handle type: TW-15, 200A (CO₂), length: 3 m
• Flow rate: 10 to 18 l/min

TIG welding parameters:

• Welding Current: 5 – 200A
• Max TIG power consumption: 6,2 kVA
• Max TIG Current Consumption: 32A

MMA welding parameters:

• Welding Current: 5 – 160A
• Voltage without load: 65V
• ARC FORCE: 0 – 100%
• HOT START: 20 – 170A
• VRD: On. Off.
• Max MMA Current Consumption: 32A

• Sherman DIGIMIG 209 ProHIT 4R user manual
• Welding torch MIG MB-15/3m
• MMA electrode cable
• Bulk cable
• User manual in Polish

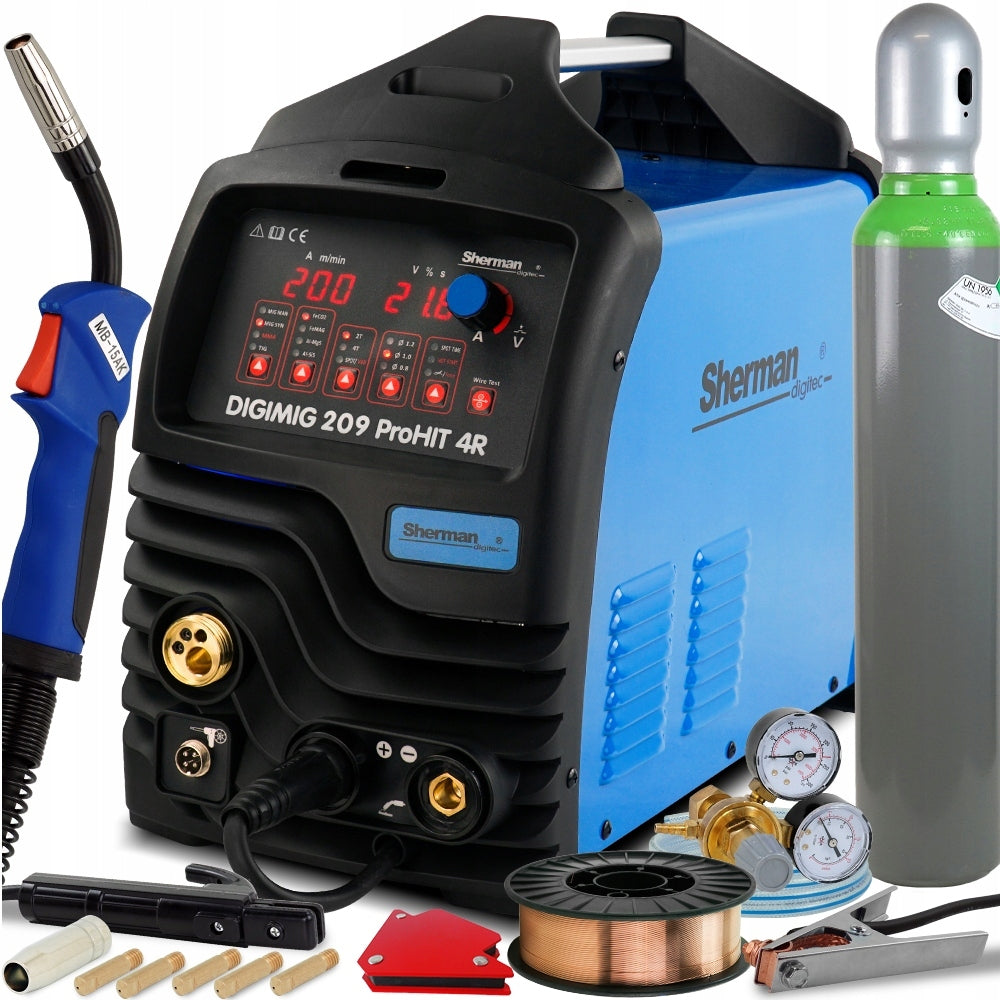

⏩WELDING KIT

• Ar/CO2 8l cylinder - tested, has all the necessary approvals for the Ar/CO2 MIX mixture.
• reducer Ar/CO2 with two clocks,
• welding wire steel SG2 D200 0,8mm x 5kg,
• Gas hose - 2m
• Clamp bands - 2 pcs
• MIDI welding angle - 1pcs

Specifications
