Pusiau automatinis suvirinimo aparatas SHERMAN MIG 200M 4R MMA ALU TIG, 200A, 230V

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas SHERMAN MIG 200M 4R MMA ALU TIG, 200A, 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: SINW-MIG200M
• Ilgis: 500 mm
• Plotis: 260 mm
• Aukštis: 540 mm

➡ COMPACT SEMI-AUTOMATIC WELDING MACHINE WITH INDUCTANCE ⬅

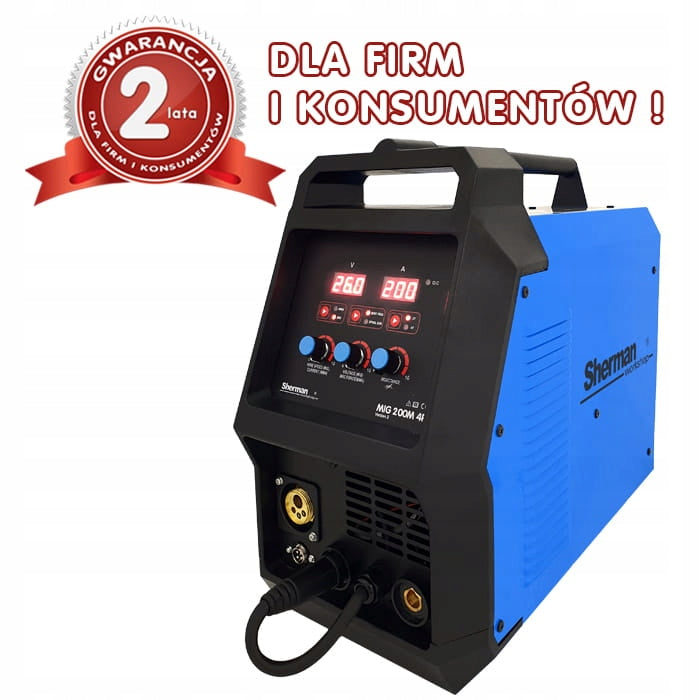

WELDING MACHINE SHERMAN MIG 200M 4R

it is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• MIG MAN - MIG-MAG welding in manual (traditional) mode,
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

The SHERMAN MIG 200M 4R welding machine is used for welding:

✔ low alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ low carbon steel (MMA, MIG/MAG, TIG Lift DC),

✔ alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ acid-resistant steels (MMA, MIG/MAG, TIG Lift DC),

✔ aluminium and its alloys (MIG),

✔ other weldable metals and alloys.

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

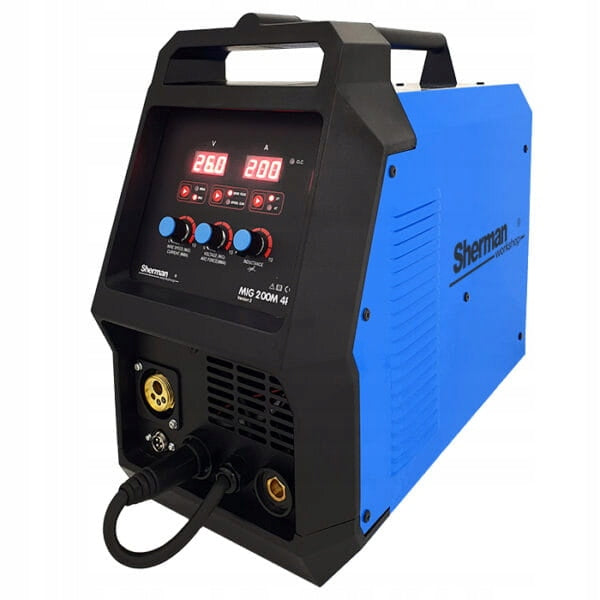

SHERMAN MIG 200M 4R has a readable and easy to use function panel, which has m.in.:

• Welding voltage display
• Welding method selection button
• Button for selecting the type of handle
• Wire Feed Speed (MIG) / Welding Current (MMA) Adjustment Knob
• Voltage Regulation Knob (MIG) / Arc Force
• Inductance control knob
• 2T/4T welding machine operating control mode selection button
• Welding Current / Wire Feed Speed Display
• Overheat protection diode

• ✔ REPAIR WORKSHOPS,
• ✔ AUTOMOTIVE INDUSTRY,
• ✔ LOCKSMITH WORKSHOPS,
• ✔ OF ALL BODYWORK REPAIRS,
• ✔ FARMS,
• ✔ HOMEWORK,

AND WHEREVER RELIABILITY MATTERS!

✔ INDUCTANCE ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

✔ SOLDERING - is a method that is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with.

✔ SPOOL GUN - SpoolGun welding torch with built-in wire feeder is used for MIG/MAG welding. It is mainly used in car workshops and in welding thin sheets.

✔ ARC FORCE - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.

✔ FAN STOP - function that turns off the fan at low load of the welding machine, which reduces noise and improves the comfort of use of the device.

✔ EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

✔ DEVICE MOBILITY - inverter welding machines are incomparably lighter and smaller than outdated transformer welding machines, which makes it much easier to move them between workplaces.

✔ VERSATILITY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work as well as for light, casual workshop work.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a solid wire feeder, which guarantees stability and continuity of operation of the device.

The 4x4 feeder allows precise extension of the welding wire excluding its slippage.

The device also has a lighted feeder compartment and a roller hanger, which significantly facilitate the replacement of the spool with wire and guide rollers and maintaining order.

The device has the ability to quickly extend the wire. Wire extension can be started using the QUICK FEED button, which is located inside the weld near the feeder

The feeder has a quick wire change knob as well as a wire feed roller.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Power supply: AC 230V 50Hz
• Nominal welding current: 200 A (MIG); 185 A (MMA),
• Maximum power consumption: 8,8 kVA (for MIG/MAG, TIG and MMA),
• Maximum power consumption: 38,8A (for MMA),
• Maximum current consumption: 35,8 (for MIG/MAG)
• Voltage without load: 59V
• Network security: 25 A,
• Work cycle: 60%,

⏩ MIG PARAMETERS:

• Maximum welding current: 200A,
• Welding current adjustment range: 30 - 200 A,
• Work cycle: 60%,
• Welding voltage: 14 – 24V,
• Wire feed speed: 1,5 – 19 m/min,
• Cooling gas flow: 10 - 18 l/min,
• Wire spool diameter: 100, 200 mm,
• Roller dimensions: 30x10x12 mm 2RA,

⏩ MMA PARAMETERS:

• Maximum welding current: 200A,
• Welding current adjustment range: 17 - 185 A,
• Work cycle: 60%,

⏩ OTHER:

• Dimensions (D x S x W): 653 x 356 x 643 mm,
• Weight: 23 kg,
• Degree of protection: IP21

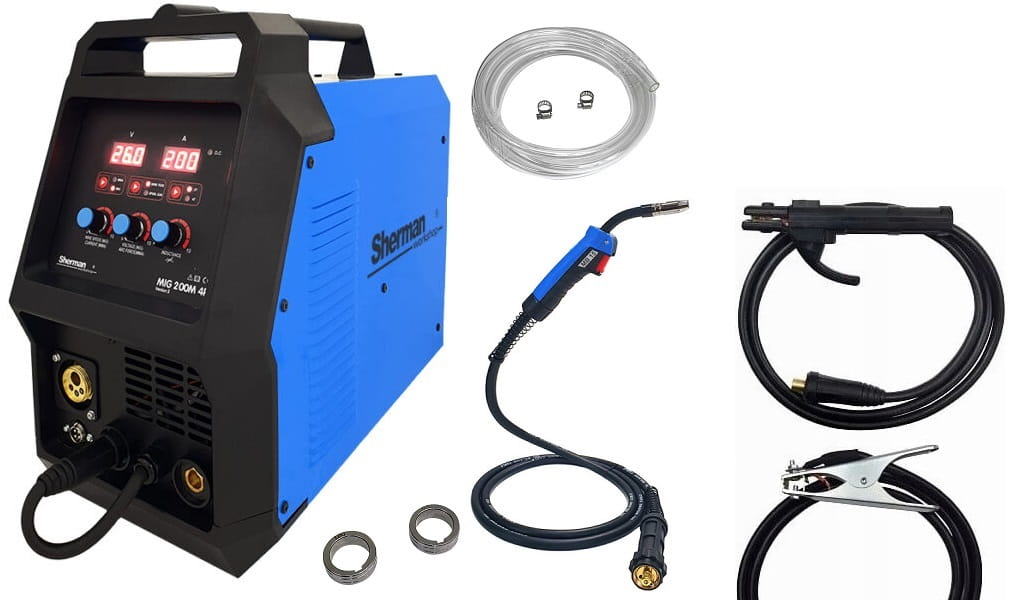

ORIGINAL PRDUCENT SET, WHICH INCLUDES:

• Welder SHERMAN MIG 200M 4R - 1 pc.
• welding cable MIG MB15/3m - 1 pc.
• mass cable - 1 pc.
• electrode cable - 1 pc.
• Guide roller Al 0.8/1.0 -1 pcs.
• Instruction for operating in Polish
• Guarantee card

SET OF 1 MIG INDUCTANCE MB15.
