Trumpai apie prekę
Prekė: Suvirinimo aparatas SHERMAN MIG 200HD MMA TIG ALU SYN IGBT 200A 230V 3IN1. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Sherman
- Modelis: 7812393 ZESTAW#0
- Ilgis: 450 mm
- Plotis: 210 mm
- Aukštis: 330 mm
Manufacturer: SHERMAN║ Welding methods: MIG/MAG, MMA, TIG, FLUX, SOLDERING ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 45%
PROMOTION SET - EASY package for users who have their own cylinder.
- Three working methods : MIG/MAG, MMA TIG DC
- Welding without gas - FLUX
- Welding MIG MAG with SYNERGY!
- Connection to the SPOOL GUN handle
- Option quick return to initial synergic settings
- Memory channels - possibility to save 20 SETTINGS
- Lutowelding blach galvanized
- Ideal car repair welding machine
- Welds well: stainless steel, steel, aluminium, galvanized
- Simple and easy to use
- 2T/4T mode
- Built-in function HOT START
- Built-in ANTI STICK mode
- Made in IGBT technology
- On the cover from the inside shortened guide facilitating work
VERSATILE DEVICE
Sherman MIG 200 HD is a welding machine that is a versatile device. It allows welding using MIG-MAG, MMA, TIG DC LIFT methods. An additional advantage is the possibility of welding with self-shielding wires (FLUX). Widely used from maintenance work to car body repairs. Thanks to its flexibility, it can weld various types of materials: steel, stainless steel, aluminum.
POWDER WIRE WELDING AND SOLDERING CUSI3
The welding machine enables the lutowelding process, thanks to which galvanized sheets can be freely combined, which are often used in car bodies. In addition, the device has the function of change of polarity, thanks to which it is possible welding without gas with self-shielding wires (FCAW), as well as welding with an MMA wrapped electrode.
MIG-MAG WITH SYNERGY

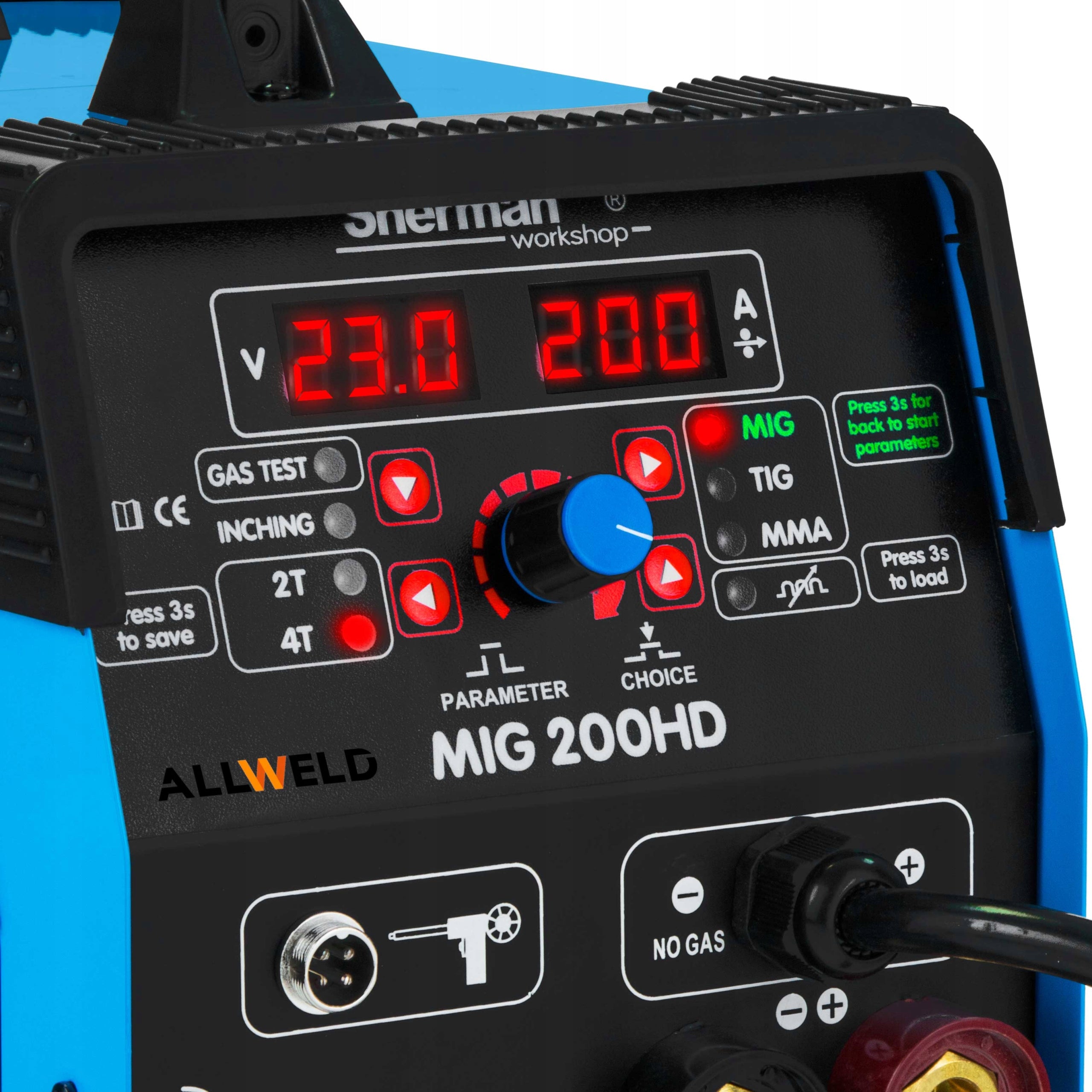

A special feature of the semi-automatic SHERMAN is the possibility of automatic selection of welding parameters (synergy). The welding machine itself selects parameters based on the set value of the welding current (the settings of which can be seen on the right display). It is worth noting that this setting affects the automatic selection of wire feed speed by the device.
OPTION TO MANUALLY SET MIG/MAG
The device also has a manual mode, with the possibility of manual settings. In this mode, the migomat allows you to change the welding current (right display) and the voltage value of the electric arc (left display). This feature can be particularly useful for more experienced welders.
ADDITIONAL FUNCTION OF THE SHERMAN MIGOMATE
IGBT - a solution that provides a minimum of electromagnetic interference with small power losses in basic systems, enabling increased efficiency and reliability of the power source.
HOT START "hot start" - consists in temporarily increasing the welding current above the set value at the moment of arcing. This prevents the phenomenon of “sticking the electrode” in the initial phase of welding, making it easier to start the whole process.
2T/4T - when the start button is pressed, the welding process is stopped after releasing the button - when the button is pressed and released for the first time, the welding process is stopped at the second press. This is a more convenient solution for longer welds.
SPOOL GUN - welding torch with built-in wire feeder. It is used mainly in car workshops and in welding thin sheets, it is perfect for hard-to-reach places and at heights. A spool with welding wire is placed in the handle of the handle.
POWER SUPPLY PARAMETERS
- Power supply: 230V
- Number of phases: 1ph
- Frequency: 50Hz
- Power protection: 25A
TECHNICAL PARAMETERS
- MIG/MAG welding current: 30 ÷ 200A
- Welding current MMA: 20 ÷ 180A
- Welding current TIG: 20 ÷ 180A
- MIG/MAG welding voltage: 15,5 ÷ 24 V
- MIG/MAG duty cycle: 45%
- MMA work cycle: 60%
- TIG duty cycle: 60%
- Feeder: 2R
- Spool diameters with wire: to 200mm
- - Subwoofer Spool size: 5kg
- Wire diameter: 0.6/0.8/0.9/1.0/1.2 mm
ADDITIONAL FUNCTIONS
- Function 2/4 BAR: Yes
- Tig Lift: Yes
- Spool Gun : Yes
- CUSI3 soldering: Yes
- Synergy: Yes
- HOT START: Yes
- ANTI-STICK : Yes
PHYSICAL PARAMETERS
- Housing protection: IP21
- Cooling: fan
- Dimensions: 450X210X330mm
- Weight: 10,5kg
Buying in a set - YOU SAVE MONEY
INCLUDED IN THE SET:
- Reducer with two pressure gauges - precise reducer with adjustment. Our model has a pressure gauge to control the pressure in the cylinder and a second to the amount of gas flowing out.
- Anti-chipping preparation - protects the nozzle and metal against welding chipping.
- Wire welding SG2 5kg - precision winding
- Gloves welding - 1 pair
- Angle magnetic 22kg - 2pcs
- Electrodes PATON - 1kg
- Clamping bands - 2pcs
- Gas hose - for connecting the reducer to the welding machine.
- Set of MB15 handle consumable parts (nozzles, connectors, tips, insulators)

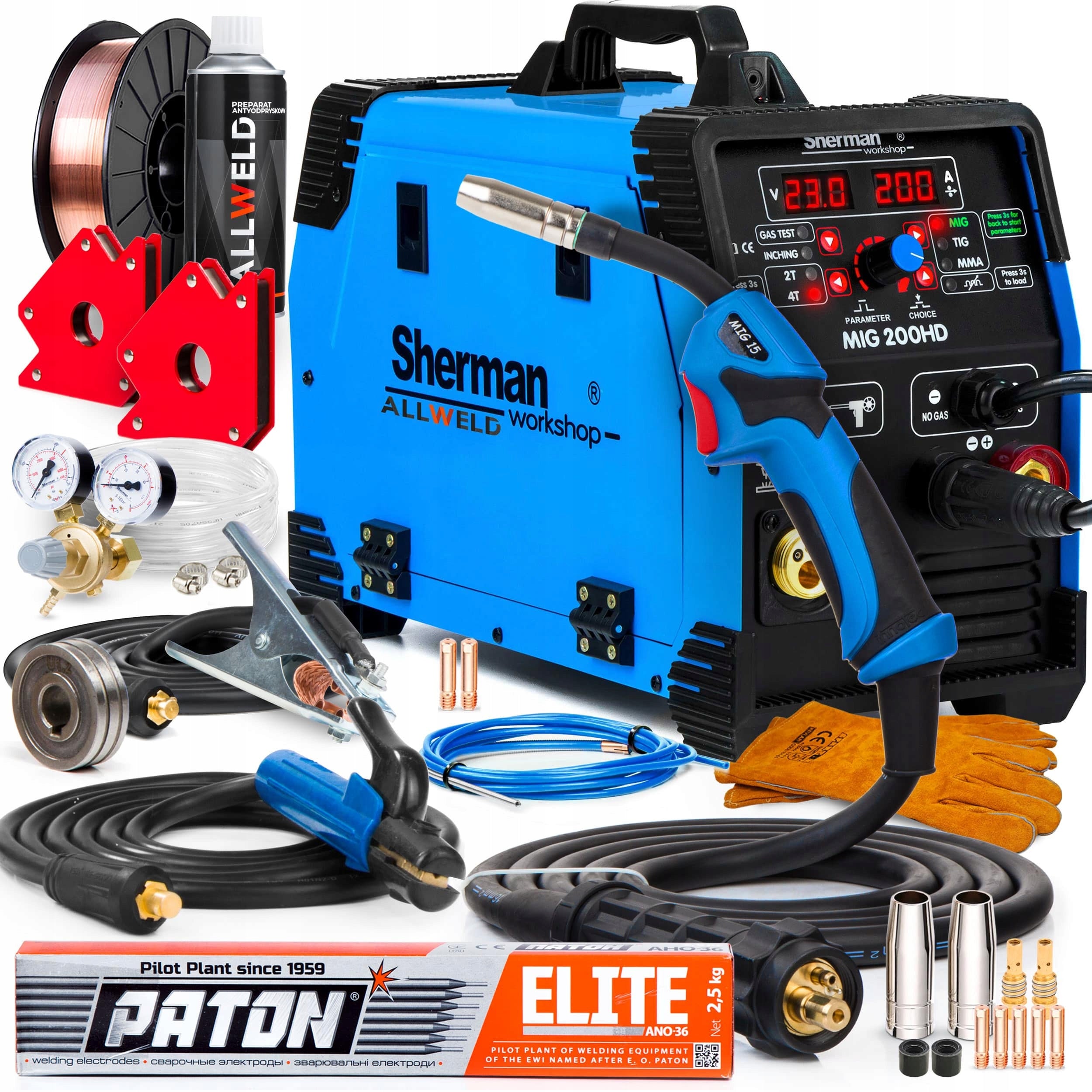

THE SET INCLUDES:
- Welding machine SHERMAN MIG 200 HD
- Welding torch MIG/MAG type MB 15 - 3m
- Electrode holder - 2m
- Bulk holder - 2m
- Cartridge for steel wire - 1pcs
- Roll for feeder - 1pcs
- Current tip - 2pcs

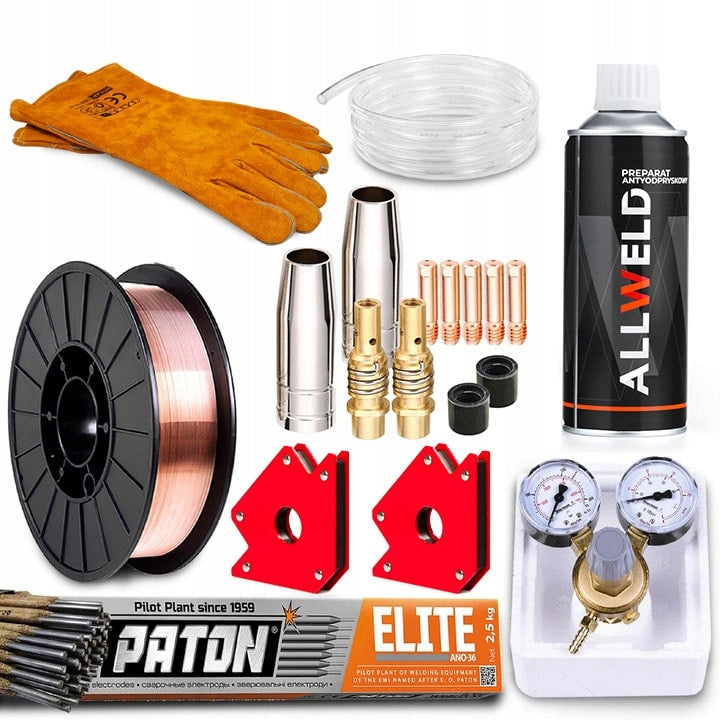

WELDING ACCESSORIES
- Cylinder reducer Ar/CO2 MINI with two pressure gauges
- Welding wire SG2 - 5kg
- Anti-chipping preparation ALLWELD
- Magnetic angle 22kg - 2pcs
- Electrodes PATON - 1kg
- Gloves welding - 1 pair
- Gas connection hose - 1 pc
- Clamp bands - 2pcs
+ HANDLE CONSUMABLE PARTS:
- Gas nozzles - 2 pcs
- Current switches - 2 pcs
- Insulators - 2 pcs
- Current terminals - 5 pcs
If you need other accessories, you can find them at our other auctions!
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Sherman |
| Parametry | Power consumption | 6.6 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 45% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,2 |
| Parametry | Device weight | 10.5 kg |
| Parametry | Welding range | 30–200 A |
| Parametry | Height | 330 mm |
| Parametry | Length | 450 mm |
| Parametry | Width | 210 mm |
| Parametry | Length of ground cable | 300 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 45 kg |
| Parametry | Manufacturer code | 7812393 ZESTAW#0 |
| Parametry | EAN (GTIN) | 5905214997335 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
