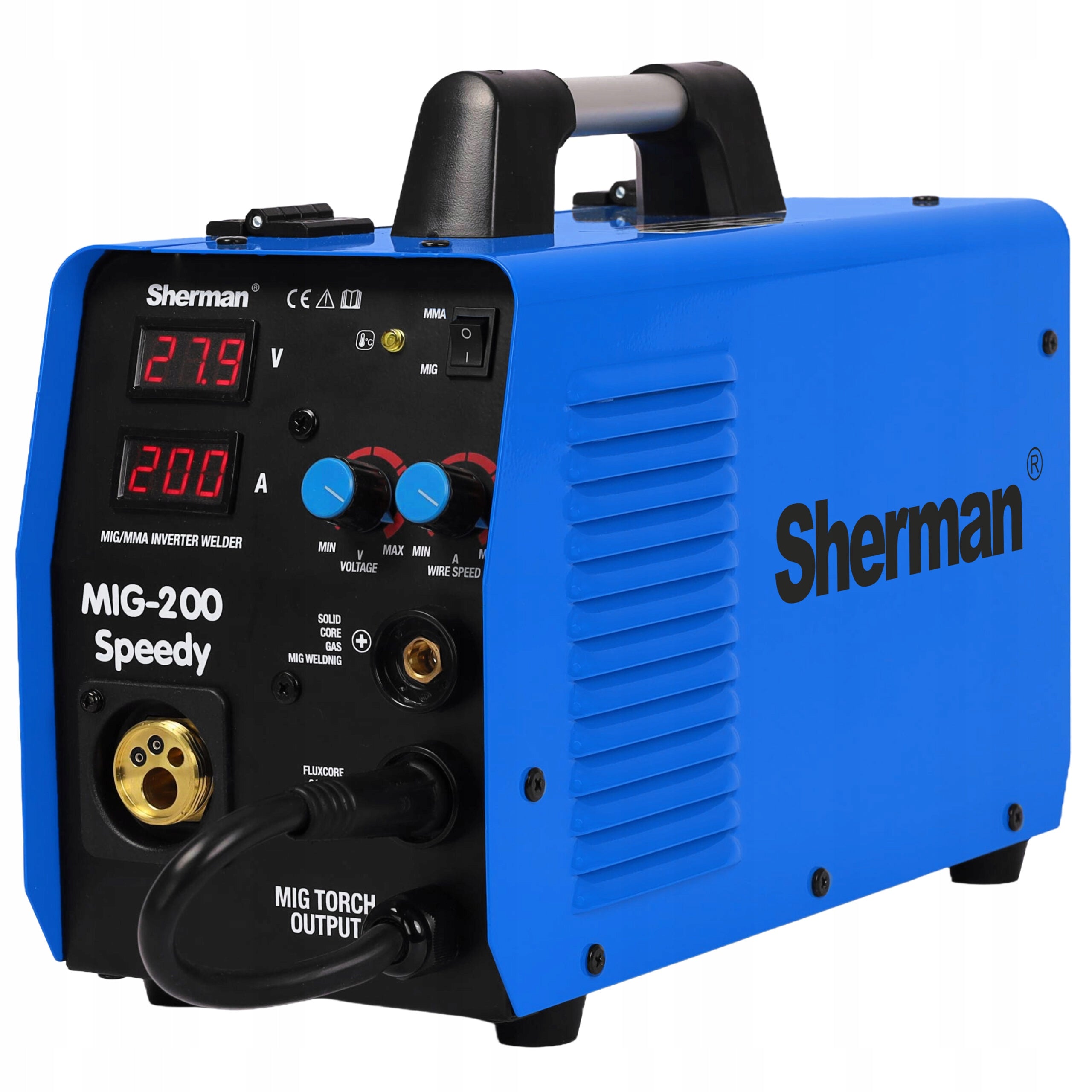

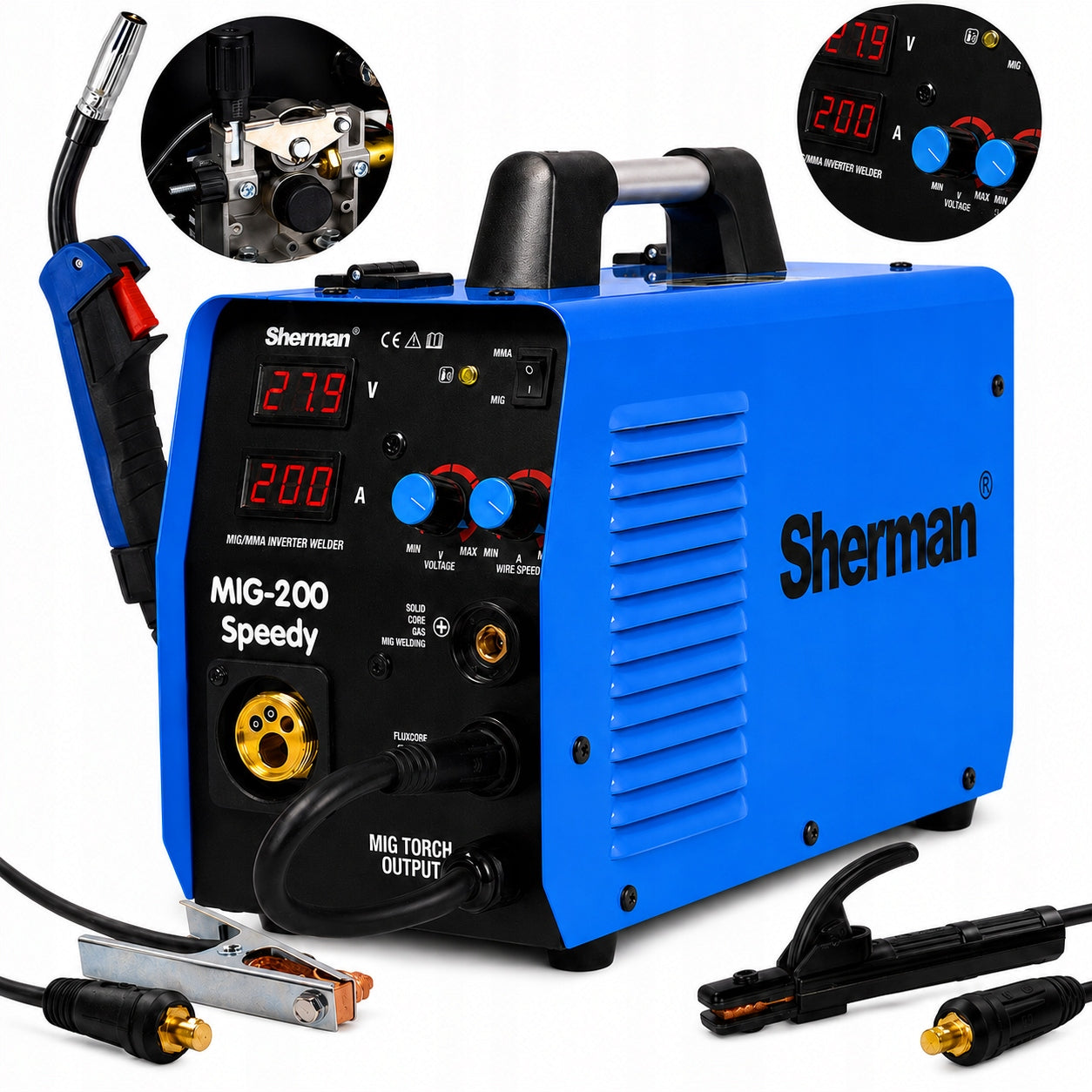

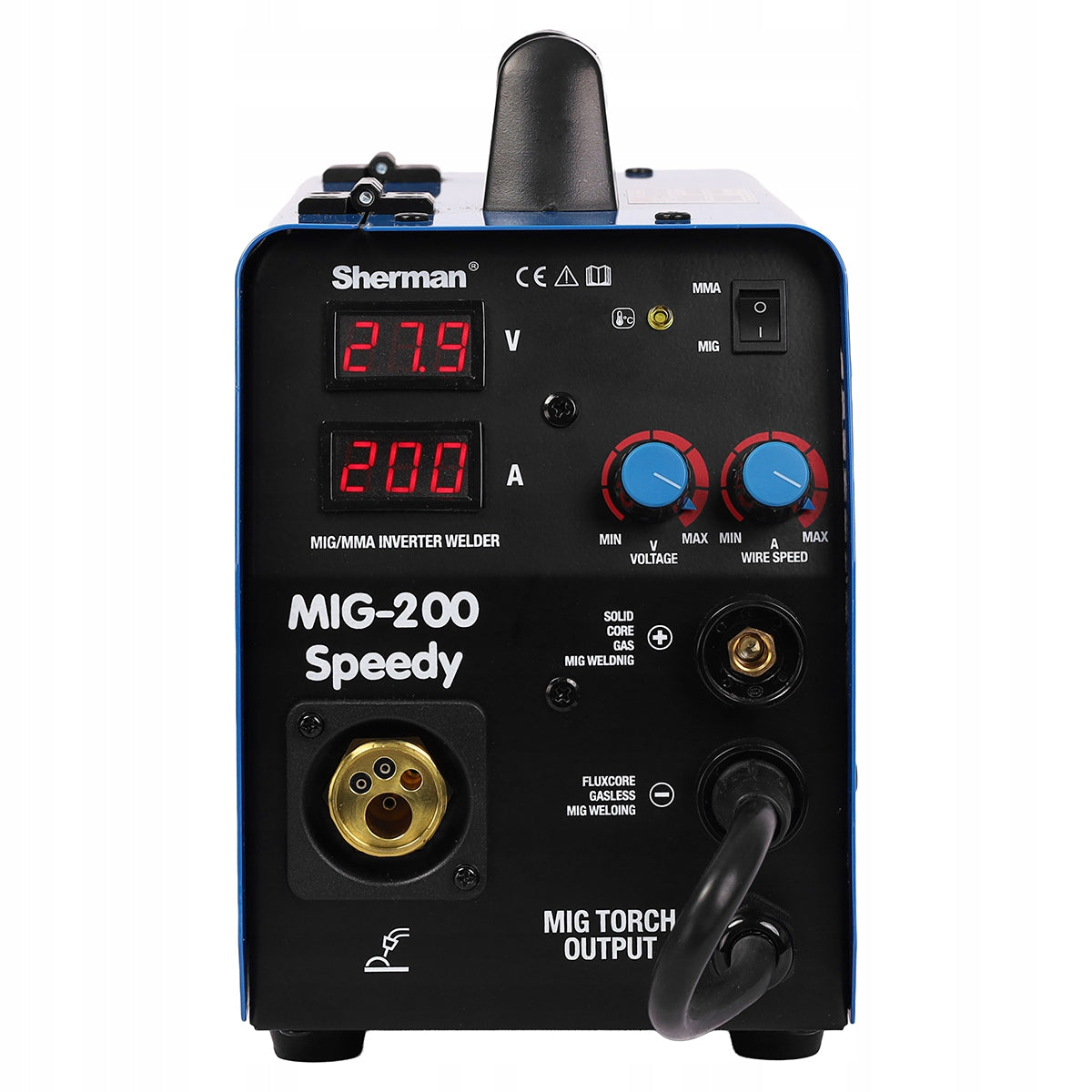

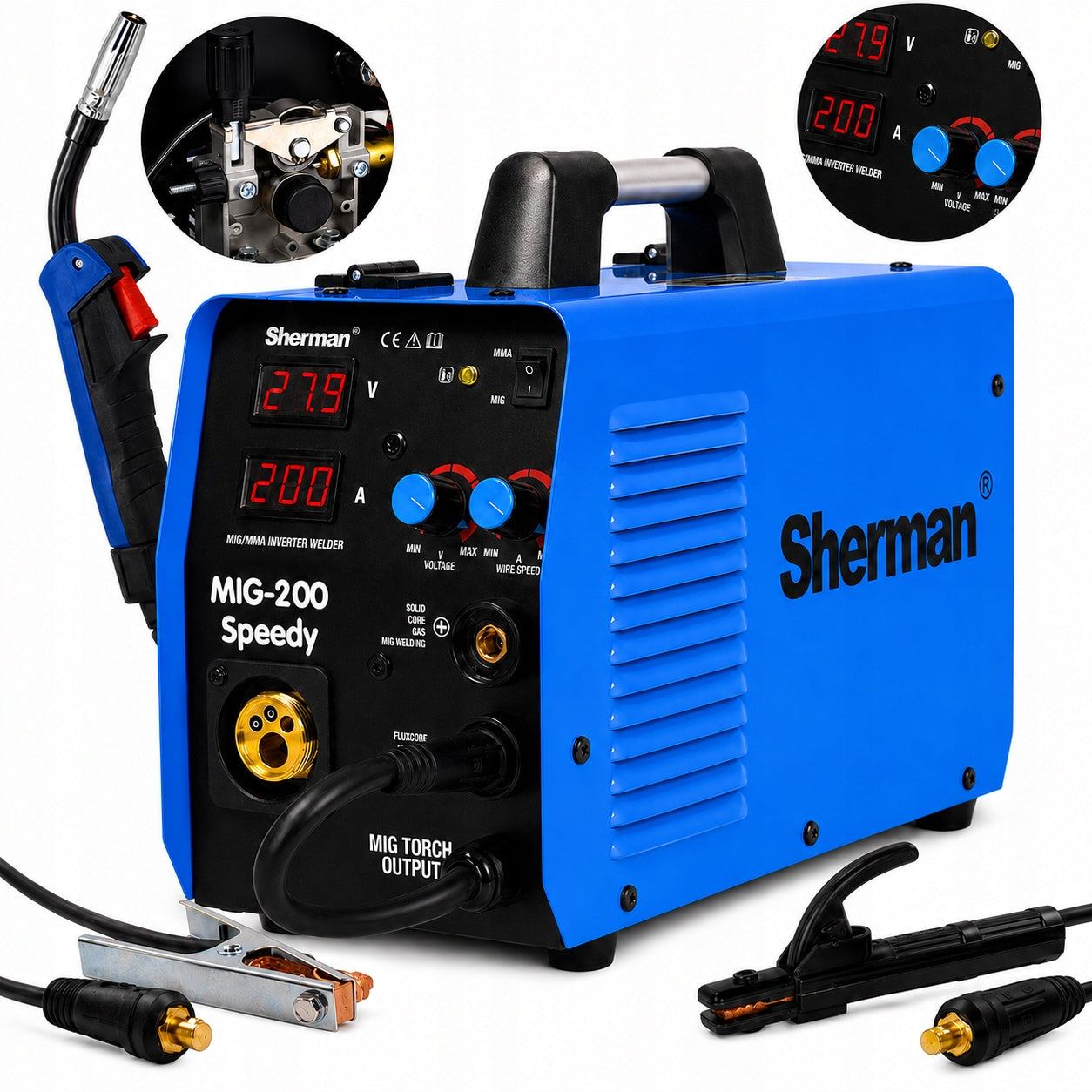

Suvirinimo aparatas Sherman MIG 200 Speedy MAG MMA FLUX 230V

Trumpai apie prekę

Prekė: Suvirinimo aparatas Sherman MIG 200 Speedy MAG MMA FLUX 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: MIG 200 Speedy

⏩ THE MOST IMPORTANT ADVANTAGES

✅ MIG/MAG welding — Sherman MIG-200 Speedy offers a MIG 30 – 200A welding current adjustment range and a welding voltage range of 15,5 – 24V, making it suitable for workshops, garages, service and repair work.

✅ Welding MMA — the device also allows welding with an MMA wrapped electrode in the range of 30 to 200A, which increases its versatility when working with various materials and types of connectors.

✅ FLUX self-shielding wire welding – thanks to the possibility of changing the polarity, the welding machine also allows you to work with self-shielding powder wire, without the need for a gas cylinder.

✅ Welding voltage adjustment – a separate voltage knob allows you to adjust the nature of the arc to the material, thickness of the element and type of wire.

✅ Wire feed speed adjustment – smooth adjustment in the range of 2 to 12 m/min makes it easy to set a stable arc and correct melting.

✅ Readable LED displays – the device has a separate display of voltage and welding current, which makes it easier to control parameters during operation.

✅ MIG handle connector — The standard MIG handle socket makes it easy to connect and operate the welding torch.

✅ Overheating diode — the device signals overheating with a control diode, and when cooled, it automatically returns to operational readiness.

✅ Working cycle 60% at 200A — the welding machine offers a rated welding current of 200A at a duty cycle of 60% for both MIG and MMA.

✅ Idle voltage 60V — the voltage in the unloaded state is 60V, which supports stable arc glow.

✅ Low weight 8,2 kg — lightweight design makes it easy to move the welding machine between workstations.

⏩WHAT WILL YOU FIND IN THE PACKAGE?

✔ Welder Sherman MIG 200 Speedy

✔ MiG MB-15/2m welding torch

✔ MMA electrode holder

✔ Mass cable

✔ Instruction manual in Polish

⏩ADDITIONAL ACCESSORIES:

✔ welding disc,

✔ brush-hammer

⏩EXCELLENT WELDING MACHINE FOR 230V

The semi-automatic welding machine Sherman SPEEDY MIG 200 was built on the basis of inverter technology. This solution provides small dimensions, lower energy consumption, trouble-free operation and good arc characteristics. Stable output parameters guarantee good weld quality in all available methods.

Sherman SPEEDY MIG 200 enables operation in three popular welding processes:

• MIG/MAG – semi-automatic welding in protective gas shielding, ideal for joining low-carbon steels, stainless steels and aluminium alloys.
• FLUX – welding with self-shielding wire without the use of gas, perfect for field work and in places exposed to drafts.
• MMA – welding with a wrapped electrode, allowing for easy and effective repair and assembly work.

The device is powered from a single-phase 230 V network, which allows it to be used in home and workshop conditions without the need for special installations. The semi-automatic machine works with spools of wire with a diameter of D100 (up to 1 kg) and D200 (up to 5 kg), which provides convenience in various applications – from minor repairs to more advanced production work.

⏩APPLICATION

Sherman SPEEDY MIG 200 is a versatile and versatile welding machine that combines compact design, modern technology and high working culture. It is perfect for both professional workshops and hobbyists who value precision and reliability.

⏩CHANGE OF MIG/MAG WELDING POLARITY

Possibility of welding with self-shielding wire without gas.

⏩PROFESSIONAL WIRE FEEDER 2R

Stable and precise feeding of welding wire ensures smooth operation with various types of additional materials. The device also allows to work with longer MIG handles, which increases convenience and flexibility during welding.

Thanks to excellent welding parameters, the user obtains high quality and aesthetics of the weld even with long-term work.

The welder is equipped with a proven, reliable wire feeding mechanism, used for many years in MIG/MAG series devices, which guarantees durability, stability and trouble-free operation.

⏩MIG/MAG AND MMA WELDING – EFFICIENCY, SIMPLICITY AND A RELIABLE WELD

• MIG/MAG is a popular process both in hobby applications and in industry. It consists in welding with a hot melt electrode (in the form of wire wound on a spool) in a gas shield. The advantages of semi-automatic MIG/MAG welding include: ease of mastering the method at the basic level, high welding efficiency, high quality of the resulting weld.

• MMA - this is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded. The MMA method does not require shielding gases. Welding is carried out using an electrode in a special sheath, which under the influence of the heat of the welding arc melts to form a weld. Melting sheath provides protection for the welding lake.

• Producer: Sherman
• Model: MIG 200 SPEEDY
• Technology: IGBT Inverter
• Welding methods: MIG, MAG, MMA, FLUX
• Power supply: 230V
• Maximum welding current: 200A
• MIG/MAG welding current: 30–200A
• MMA welding current: 30–200A
• Working cycle: 60%
• Idle Voltage: 60V
• Protection Required: 25A C
• Wire diameter: 0,6 / 0,8 / 1,0 mm
• Wire feed speed: 2 – 12 m/min
• Maximum weight of wire spool: 5 kg
• Wire feeder: metal 2R
• MIG/MAG polarity change: YES
• Net weight: 8,2 kg
• Overall dimensions: 347,2 x 17,5 x 29,3 mm

Choose a brand whose history dates back to the beginning of the twenty-first century. Sherman is the leading brand of welding equipment in Poland.

A wide range of Sherman devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Sherman brand most often due to its high quality, affordable price and reliability.
