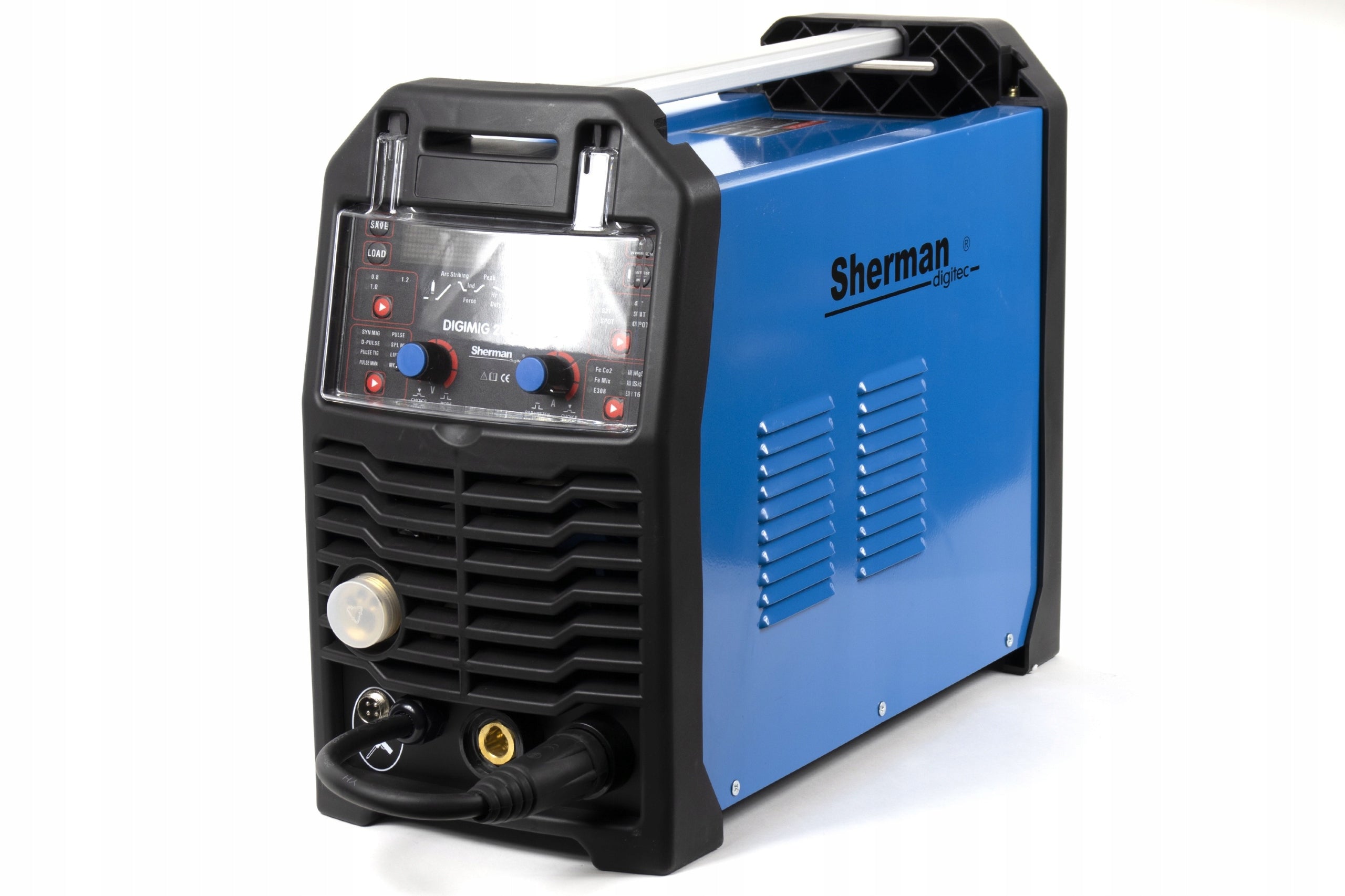

Suvirinimo aparatas Sherman MIG 200 MMA TIG Synergy

Trumpai apie prekę

Prekė: Suvirinimo aparatas Sherman MIG 200 MMA TIG Synergy. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: 7812202
• Ilgis: 495 mm
• Plotis: 210 mm
• Aukštis: 345 mm

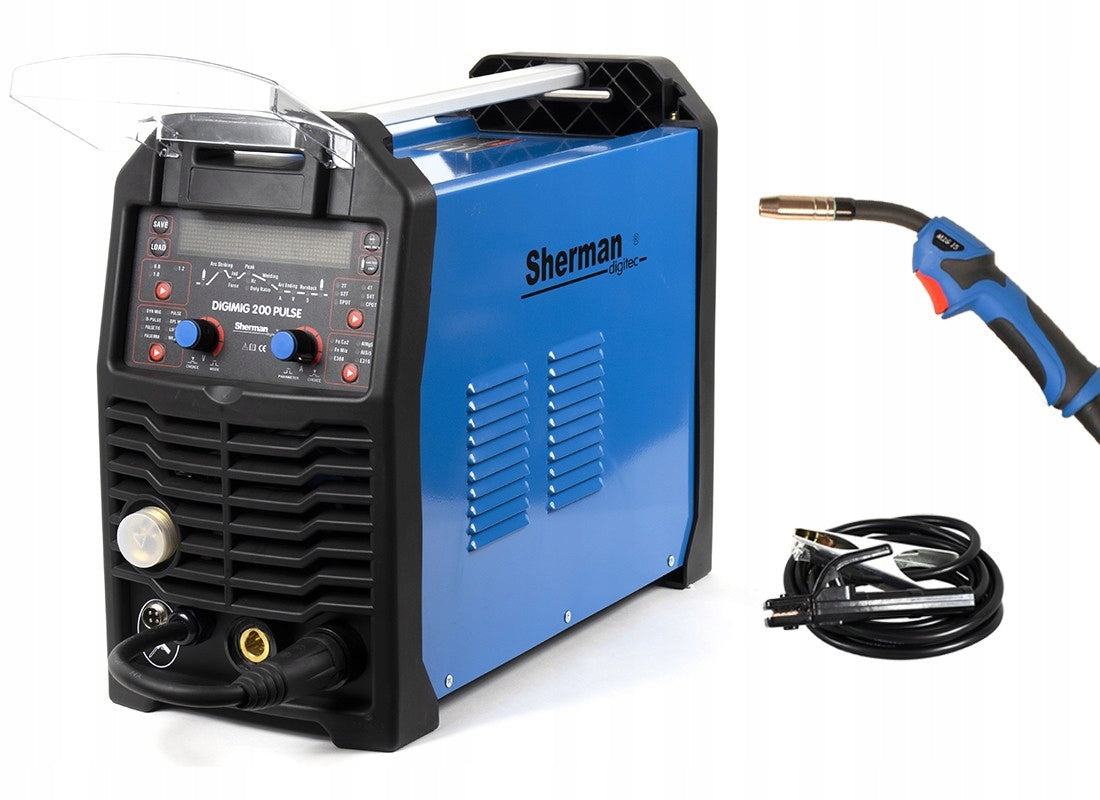

Standard equipment

• MIG TW-15 welding torch with welding adjustment knob
• mass cable
• electrode cable
• steel insert for wire 0,8 / 1,0 mm (mounted in the holder)
• feeder roll fi 0,8 / 1,0 mm V-shaped (mounted)
• feeder roll fi 1,0 / 1,2 mm U-shaped for aluminium
• instruction manual in Polish

When buying a set, you will always get a more favorable price.

Synergistic welding machine Sherman DIGIMIG 200 Pulse is an innovative device for manual welding of steel and non-ferrous metals using MIG/MAG, MMA (wrapped electrode) and Lift TIG methods. It can also be used for lutowelding of thin (up to 3 mm) galvanized sheets.

Digital control allows full adjustment of parameters, arc dynamics, characteristics and manual or synergic mode of operation in the MIG/MAG method. The use of synergistic settings for ordinary steel, stainless steel and aluminum alloys in the welding machine significantly simplifies its operation and allows for use by people with less experience and hobbyists.

The use of pulse or double pulse allows for better weld quality, high aesthetics with very high efficiency.

The device can be welded using the standard MMA or MMA method with pulsation, which allows you to achieve a higher quality weld. In MMA, you can adjust ARC FORCE, HOT START and disable VRD.

Sherman DIGIMIG 200 Pulse enables TIG welding with DC pulsation along with pulse characteristic adjustment.

The welder allows the use of several operating modes including the option of point welding. The device has the memory of the last setting, i.e. after turning it off and re-enabling it, the last set parameters are restored. It is also possible to remember 35 sets of settings with easy access to the program's save/playback mode.

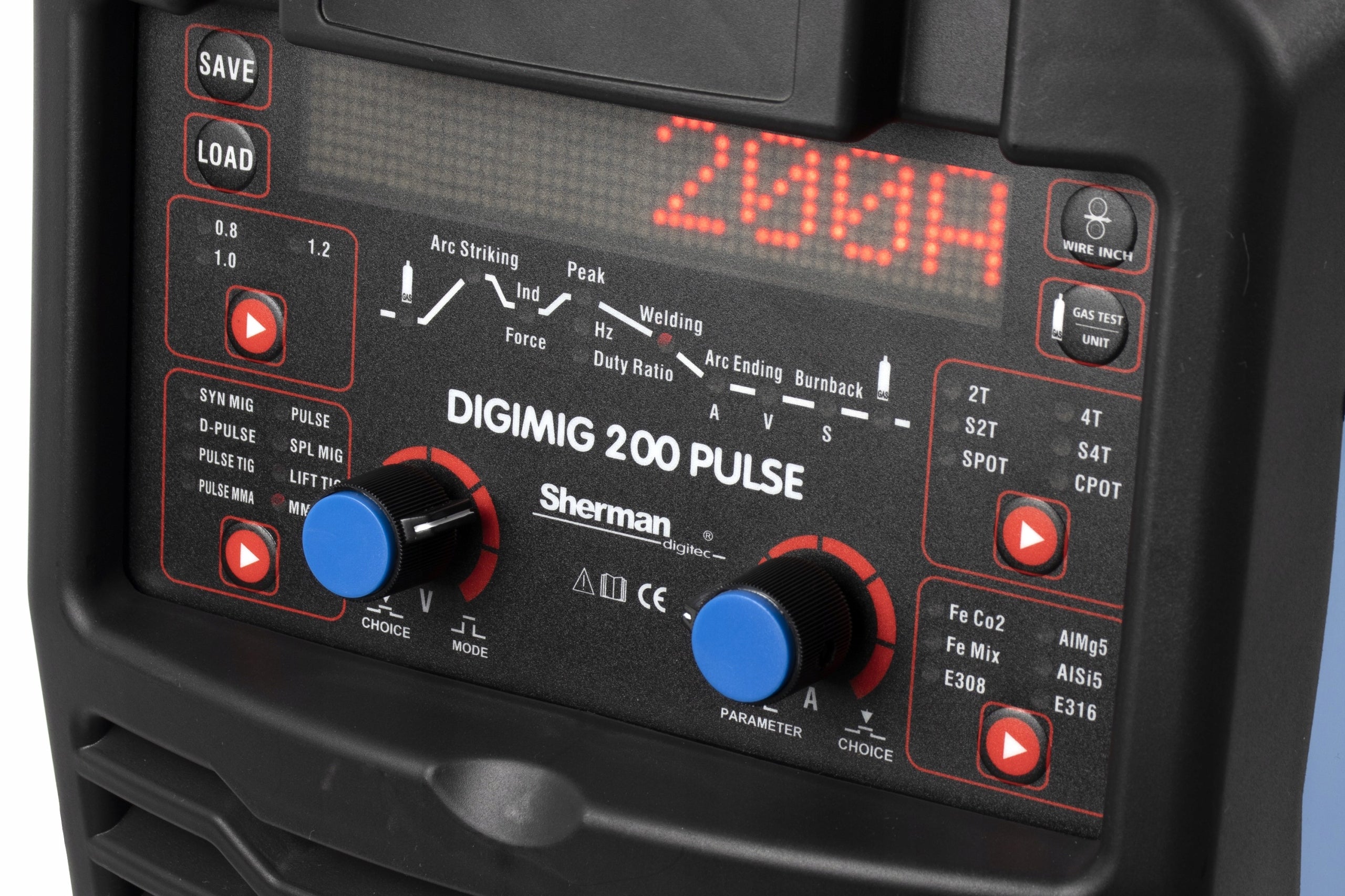

On the inside of the spool compartment cover there is a short guide for the welder facilitating the current operation of the device with a detailed description of access to adjustable operating parameters.

Selected additional functions:

• digital control
• Arc Force
• Hot Start
• 2T/4T
• VRD
• TIG Lift
• Rising electricity
• current drop
• regulation of inductance
• Pulse and Double Pulse
• spot welding
• regulation of pre-outflow and gas outflow time
• 2-roll feeder
• Spool Gun option
• memory settings
• Manual MIG
• Synergistic MIG
• MMA and MMA Pulse
• TIG Lift and TIG Lift Pulse
• welding without gas (TIG)

During MMA welding, it is possible to adjust the Arc Force, Hot Start functions and enable/disable Anti Stick and VRD functions.

The welder has memory of the last setting, i.e. after turning it off and re-enabling it, the last set parameters are restored.

The device is made in IGBT technology allowing for a significant reduction in the weight and dimensions of the welding machine and an increase in efficiency while reducing energy consumption.

The welding machine is used in closed or covered rooms, not exposed to direct atmospheric influences.

The device is equipped with a MIG welding torch, electrode wire and mass cable with a tick clamp.

The welder is equipped with a unique MIG handle with a knob in the handle allowing remote regulation of welding voltage/current during operation in synergistic mode.

The device is made in IGBT technology allowing for a significant reduction in the weight and dimensions of the welding machine and an increase in efficiency while reducing energy consumption.

The welder allows you to connect a Spool Gun (SG) handle.

Functions of MMA method (wrapped electrode welding):

• ARC FORCE which allows you to adjust the dynamics of the welding arc. Reducing the value of the function gives a soft arc and a smaller depth of melting, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc. With the high value of the ARC FORCE function set, you can weld by keeping the arc of minimum length and high melting speed of the electrode.
• HOT START – popularly known as hot start. It works at the moment of arcing, causing a temporary increase in the welding current above the value set by the welder. HOT START is designed to prevent the electrode from sticking to the material and is a great convenience when arcing. In the case of welding small elements, it is recommended to disable this function, as it may cause burning of the welded material.
• VRD (Voltage Reduction Device) reduces the output voltage in the unloaded state to a safe level, eliminating the risk of electric shock.
• ANTI STICK is an anti-short-circuit function. It reduces the welding current to a minimum value when the electrode is glued to the welded material. This makes it easier to detach the electrode from the welded material and protects the electrode holder from damage.
• MMA PULSE - pulsed welding allows for precise weld laying, which improves the quality of weld.

Technical parameters

• Processes: MIG / MMA / TIG
• Welding current range [A]: MIG: 24 – 200 A; MMA: 20 – 200 A; TIG: 10 – 200 A
• Current [A] / duty cycle [%]: MIG: 200 A / 60%; MMA: 150 A / 60%; TIG: 200 A / 60%
• Power supply [V]: 230
• Characteristics: Automatic retry of the number welding current [A]: 200
• Cooling: with gas
• Type of wire feeder: internal 2 roller
• Synergic control: Yes
• Soldering function: Yes
• Power consumption: 7,7 [kVa]
• Security [A]: 25
• Idle voltage [V]: 56 / 9 VRD
• Current adjustment: Smooth
• Function 2T/4T: Yes
• Additional Features: TIG Lift, Spool Gun Option, Hot Start, Arc Force, Anti Stick, Spool Gun Option, Gas Free Welding, Digital Control, Quick Wire Release, Wire Burning
• Degree of protection: IP21
• Wire spool: 5,00 kg / D200
• Inductance adjustment: Yes
• Length: 495 [mm]
• Height: 345 [mm]
• Width: 210 [mm]
• Weight: 17,5 [kg]
