Suvirinimo aparatas SHERMAN DIGIMIG 225 GDS MIG/MAG/MMA/TIG 230V

Trumpai apie prekę

Prekė: Suvirinimo aparatas SHERMAN DIGIMIG 225 GDS MIG/MAG/MMA/TIG 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: SDIGITECMIG225GDS MAPL-15

SOLID AND PROVEN SEMI-AUTOMATIC WELDING MACHINE WITH SYNERGY AND 40 MEMORY CHANNELS ! MODEL WITH SPOOL GUN CONNECTION FUNCTION AND SOFT CONTROL PANEL

Manufacturer: SHERMAN ║ Welding methods: MIG/MAG, MMA, TIG, FLUX, SOLDERING ║ Power supply: 230V ║ Welding current: 220A ║ Efficiency: 30%

• Three working methods: MIG/MAG, MMA, TIG DC
• Welding without gas - FLUX
• Power 220A when powered on 230V !
• Welding MIG MAG with SYNERGY!
• Programs for black steel, stainless steel and aluminium !
• Synergy with correction option - possible voltage correction +5/-5 V
• The ability to work with D200 and small D100 spools without the need for adapters!
• Connection to the SPOOL GUN handle
• Inductance regulation - even better quality of the weld
• 2T/4T mode
• Quick return option - built-in memory of the last setting
• Memory channels - the ability to save 10 SETTINGS for each method - TOTAL 40 !
• Lutowelding blach galvanized
• Ideal car repair welding machine
• Welds well: stainless steel, steel, aluminium, bodywork, galvanized sheets
• Simple and easy to use
• Built-in ARC FORCE function with adjustment option
• HOT START in MMA mode
• VRD mode with option to disable the function
• Built-in overload switch
• Made in IGBT technology

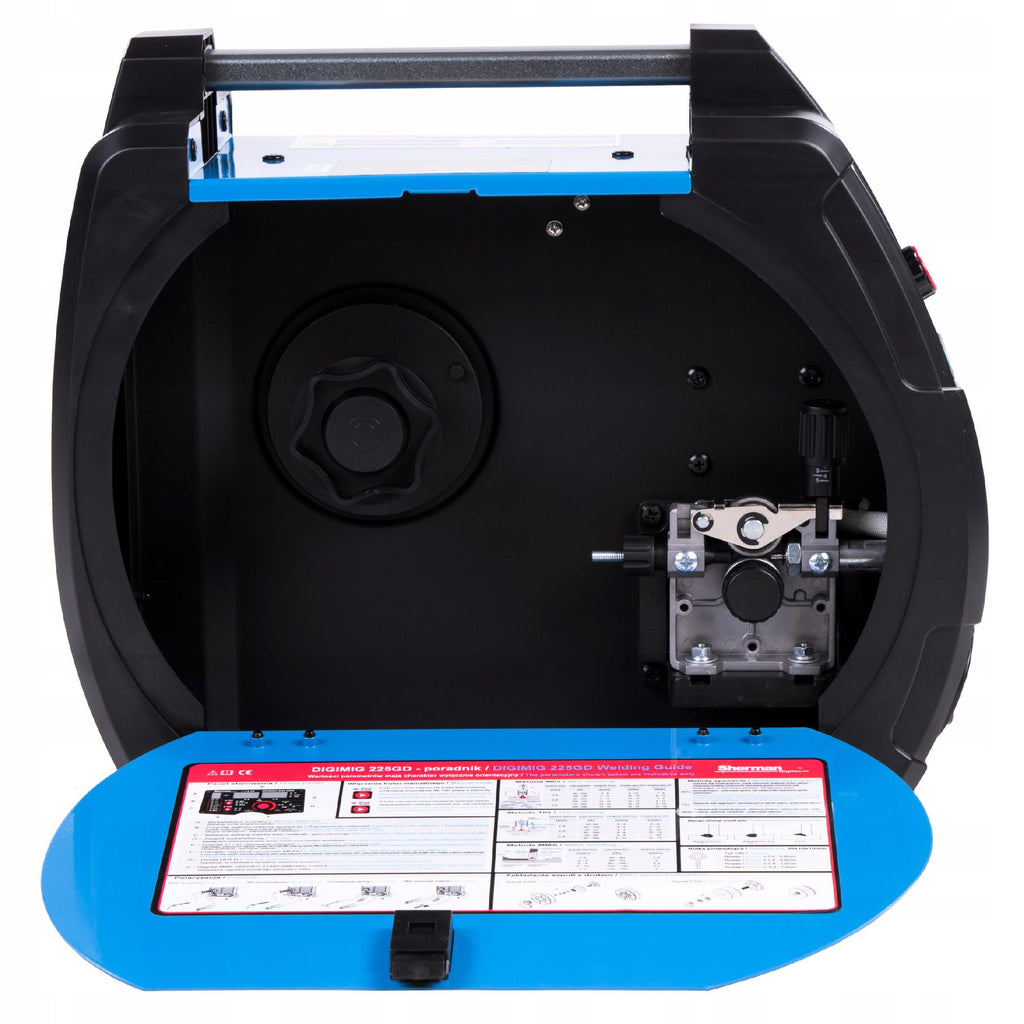

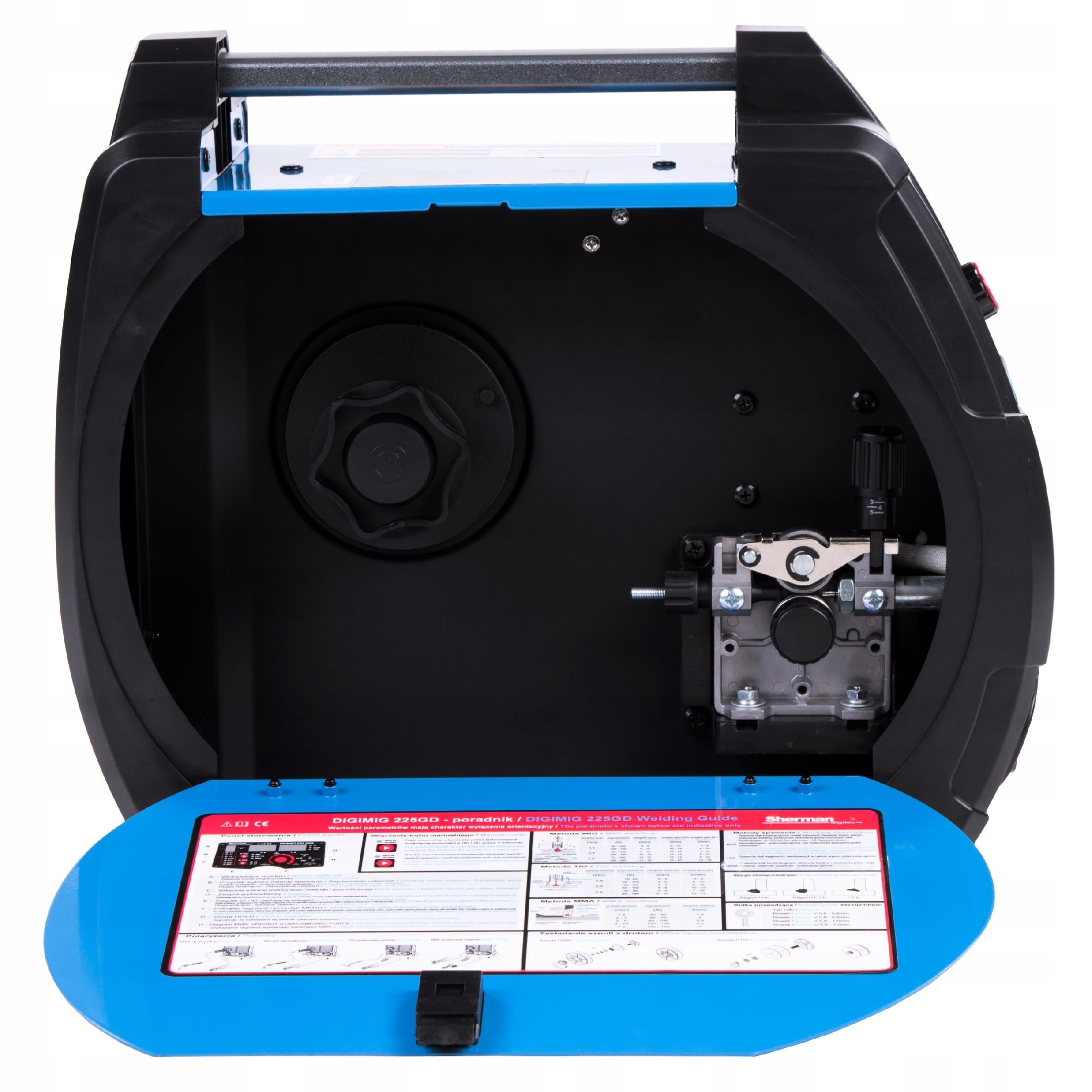

CURIOSITY: On the lid on the inside abbreviated guide facilitating work

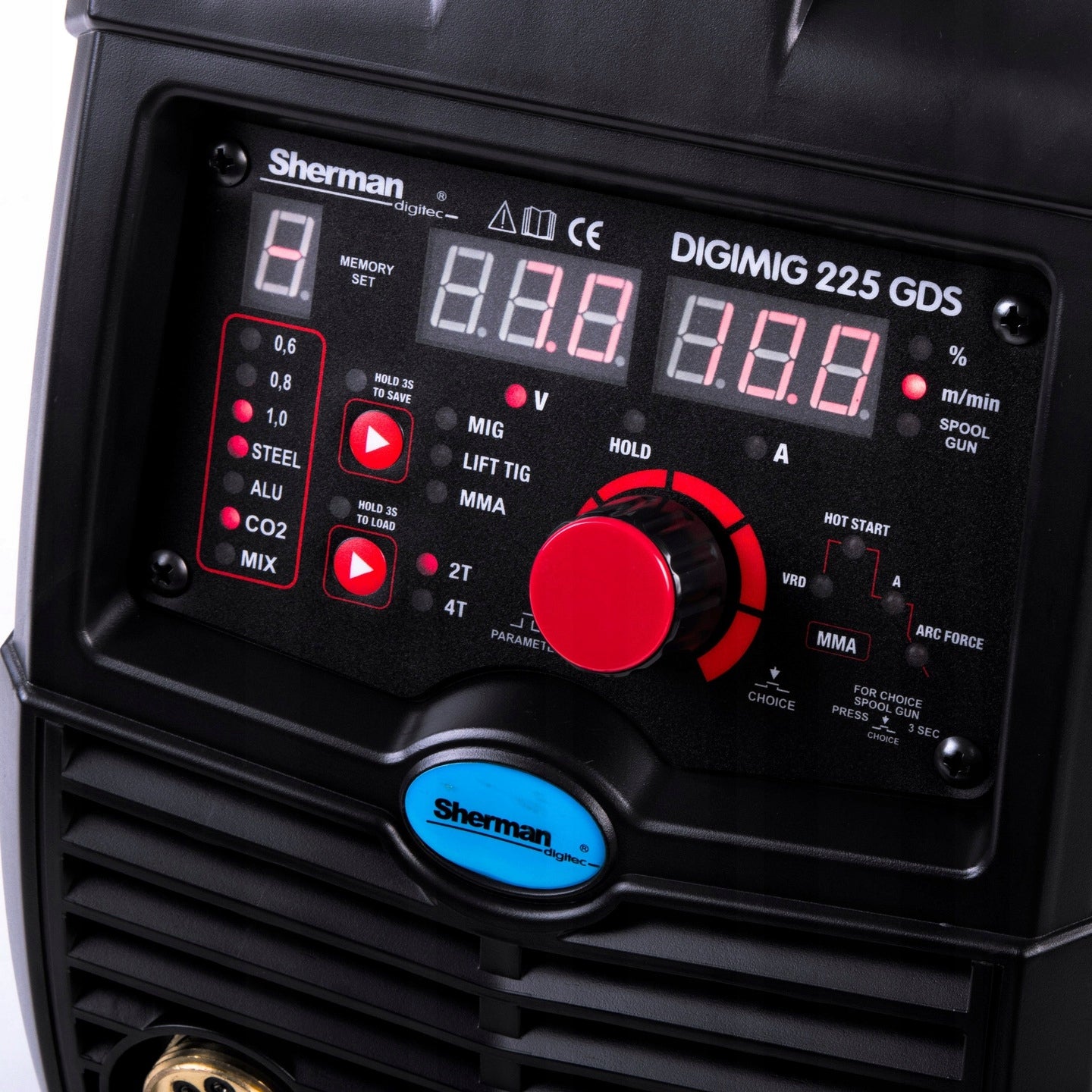

Sherman DIGIMIG 225 GDS has synergy mode and manual setting option. Another feature is the possibility of connecting the SPOOL GUN holder. An additional advantage of the semi-automatic SHERMAN brand is a clear, soft control panel. The equipment finds application in welding works in locksmith workshops, repair workshops, automotive industry, factories. The dedicated welding machine is professionals, amateurs and enthusiasts of welding, requiring meeting the highest standards for welding equipment. Very high efficiency, which translates directly into lower energy consumption, and high switching frequency, ensure rapid adjustment of the current to changes in parameters during welding.

POWER SUPPLY PARAMETERS

• Power supply: 230V
• Number of phases: 1ph
• Frequency: 50Hz

TECHNICAL PARAMETERS

• MIG/MAG welding current: 50 ÷ 220A
• Welding current MMA: 40 ÷ 210A
• Welding current TIG: 15 ÷ 210A
• MIG/MAG welding voltage: 17,5 ÷ 24,7 V
• MIG/MAG duty cycle for 220A: 30%
• MMA duty cycle for 210A: 30%
• TIG duty cycle for 210A: 30%
• Feeder: 2R
• Spool diameters with wire: D100 / D200
• - Subwoofer Spool size: 5kg
• Wire diameter: 0.6/0.8/0.9/1.0 mm

ADDITIONAL FUNCTIONS

• Function 2/4 BAR: Yes
• Tig Lift: Yes
• Spool Gun : Yes
• CUSI3 soldering: Yes
• Synergy: Yes
• ARC FORCE: Yes
• HOT START: Yes

PHYSICAL PARAMETERS

• Housing protection: IP21
• Cooling: fan
• Dimensions: 450x218x370mm
• Weight: 13kg

IGBT - a solution that provides a minimum of electromagnetic interference with small power losses in basic systems, enabling increased efficiency and reliability of the power source.

2T/4T - when the start button is pressed, the welding process is stopped after releasing the button - when the button is pressed and released for the first time, the welding process is stopped at the second press. This is a more convenient solution for longer welds.

REG. INDUCTION - allowing less heat to be introduced into the welding site. The sheet does not deform and the protective layer of zinc is not damaged, useful in lutowelding.

LUTOSPELING - this method is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with. The second part of the name, MIG/MAG, comes from the use of the method of melting wire in an electric arc surrounded by protective gas, as well as from the preparation of the edge of the material in the same way as for traditional welding. However, the soldering method is used not only for bonding galvanized sheets, but also thin sheets.

SETTINGS MEMORY - the device has the ability to remember 10 channels with individual settings.

ARC FORCE “arch dynamics” – shortening the arc length is accompanied by an increase in welding current, which stabilizes the arc, regardless of its length. It is responsible for the depth of melting and reduces chipping.

VRD (Voltage Reduction Device) - function that turns off the power supply within milliseconds after welding, thanks to which the voltage on the wrapped electrode is reduced to a safe level.

Anti-stick (ANTI STICK) – allows the welder to easily separate the electrode from the product, without the risk of visual paralysis. In the case of a short circuit (if it occurs), after a short break, the welding current is reduced automatically. After separating the electrode from the element, the source automatically restores its operation.

HOT START – ensures the highest quality of welding start, first-class ignition – at the moment of arcing, during a short time, the working welding current increases from the set working level to the optimal level. In some cases (when working with a weak network or generator), this level can be set manually if there is a suitable switch (as in the "Professional" series). Lowering the “Hot-Start” to reduce power consumption from a weak grid or increasing it in a strong grid makes it much easier to ignite.

OPTION SPOOL GUN - welding torch with built-in wire feeder. It is used mainly in car workshops and in welding thin sheets, it is perfect for hard-to-reach places and at heights. A spool with welding wire is placed in the handle of the handle. The handle has a standard EURO connection and a control plug.

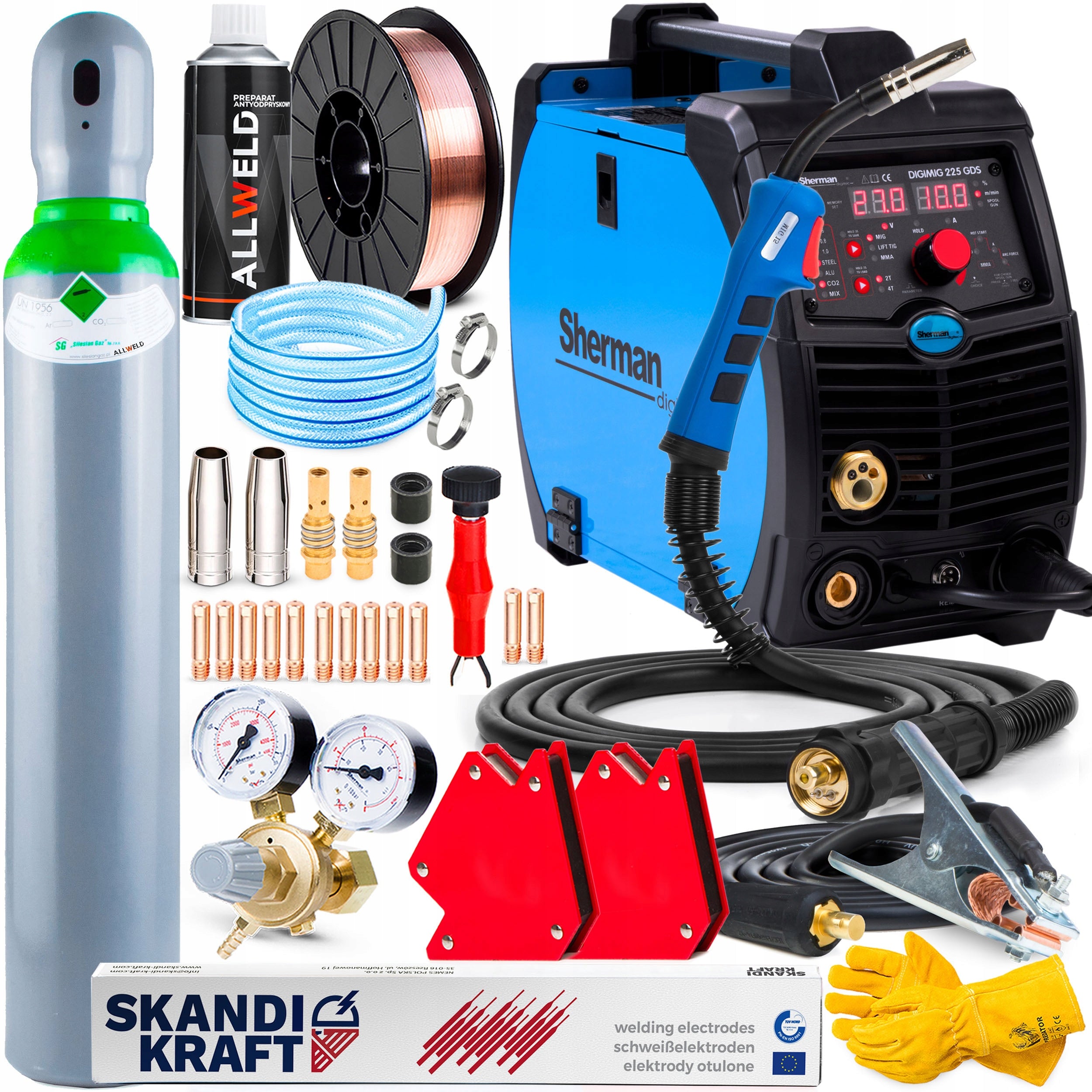

BY BUYING FROM US YOU GET

• Welding machine SHERMAN DIGIMIG 225 GDS
• Welding torch MIG/MAG type MB 15 - 3m
• Bulk holder - 3m
• Aluminium roller 0,8/1,0mm U (installed in the device) - 1pcs

Buying in a set - YOU SAVE MONEY

• Factory new reusable cylinder with Ar (82%) / CO2 (18%) mixture with a capacity of 8l. The cylinders have 10-year-old legalizations and can be filled at any point with technical gases.
• Gas hose - for connecting the reducer to the welding machine.
• Reducer with two pressure gauges - precise reducer with adjustment. Our model has a pressure gauge to control the pressure in the cylinder and a second to the amount of gas flowing out.
• Anti-chipping preparation - protects the nozzle and metal against welding chipping.
• Welding wire SG2 5kg - precision winding
• Clamp ties - 2 pcs.
• Gloves welding - 1 pair
• Scraper for gas nozzles
• Set of MIG/MAG handle consumable parts (nozzles, connectors, tips, insulators)
• Angles magnetic 11kg - 2 pcs.
• Electrodes SKANDI KRAFT 1kg - 1 pack

NECESSARY SET NEEDED TO START WELDING WORK WITH MIGOMAT.

Welding visor, you can choose yourself by looking at our other auctions or rely on our help!

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Sherman
Parametry	Power consumption	5.9 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	30%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	13 kg
Parametry	Welding range	50–220 A
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	300 cm
Parametry	Additional features	infinitely adjustable welding current
Parametry	Product weight with unit packaging	25 kg
Parametry	Manufacturer code	SDIGITECMIG225GDS MAPL-15
Parametry	EAN (GTIN)	5907195561932
Parametry	Packaging status	original
Parametry	Welding methods	MIG/MAG,MMA
