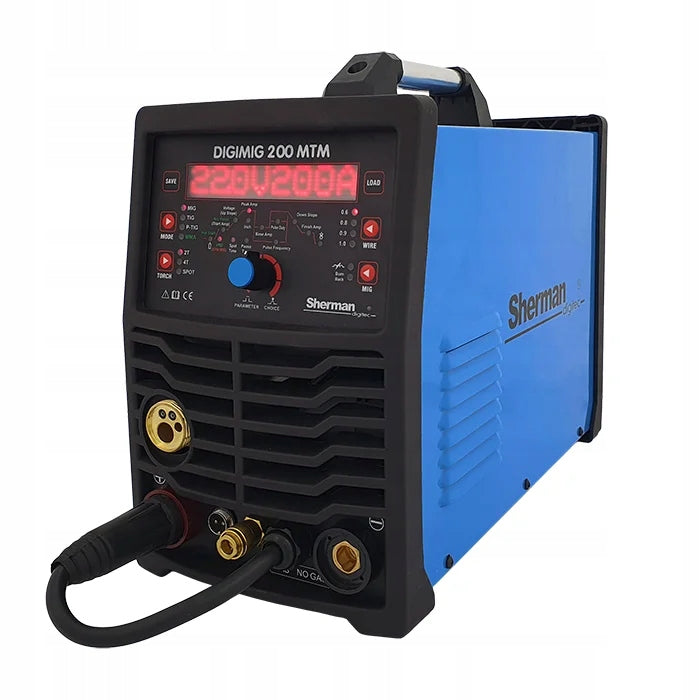

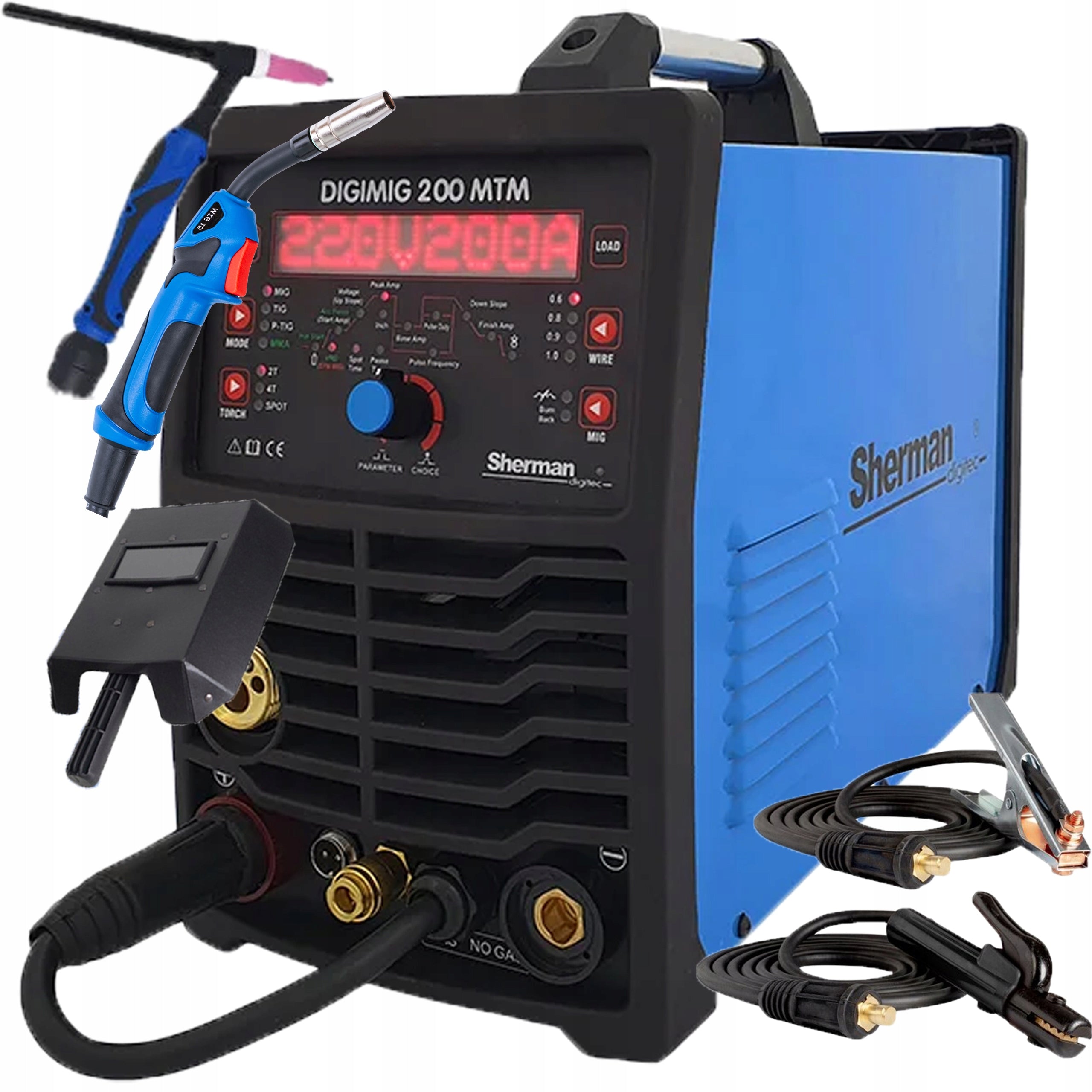

Suvirinimo aparatas Sherman DIGIMIG 200 MTM MIG MMA TIG 200A

Trumpai apie prekę

Prekė: Suvirinimo aparatas Sherman DIGIMIG 200 MTM MIG MMA TIG 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: 7812680_pakiet4
• Ilgis: 420 mm
• Plotis: 200 mm
• Aukštis: 375 mm

Manufacturer: SHERMAN ||| Welding methods: MIG, MAG, TIG DC, TIG DC Pulse, MMA ||| Maximum welding current: 200A ||| Power supply: 230V 1ph

• full free post-purchase support
• You can call us at any time and we will help you set the parameters and operate the device

Sherman DIGIMIG 200 MTM is used for manual welding of steel and non-ferrous metals. It allows welding by up to three methods: MIG/MAG in gas shield, TIG DC and TIG DC with pulse and MMA wrapped electrode. In addition, the user can weld using the FLUX method without the use of shielding gas - self-shielding wire welding.

The device has been designed and manufactured with advanced users in mind. However, due to its functionality and simple interface, it is an ideal choice for DIYers who are looking for a reliable and versatile device.

This is probably the only migomat that has a full TIG method flow chart with key parameters adjustment for high-quality welding using this method. Thanks to this, the user can fully use the potential of the TIG method.

Excellent user interface - all functions of the device are available from the position of a clear function panel. The operator has all the parameters under control. A reliable SOFT function panel was used - a solution used for years.

IGBT power transistors - modern welding machines are equipped with this type of transistors. They provide better source output parameters and greater reliability over older technologies. When designing this device - the advantages of inverter technology were fully used.

Sherman DIGITEC - is a line of technologically advanced devices. Each device in this series has been designed with the right precision. Sherman DIGIMIG 200 MTM has unique usability and excellent welding parameters.

REAL 3in1 MIGOMAT

• separate gas input for TIG and MIG/MAG welding,
• compatible with TIG handles with micro-switch,
• solenoid valve in the device controlled by a button in the TIG holder,
• has a full TIG mileage chart,
• TIG DC welding with pulse

TIG HANDLE INCLUDED!

FULL CHART OF TIG MILEAGE -

WHY IS IT IMPORTANT?

TIG method allows welding with "surgical" precision. I use this method to make aesthetic and high-quality welds, it is also recommended for welding "for tightness". This is a method in which modern sources allow full control of the welding process from arc ignition to its extinction.

To take full advantage of the advantages of the TIG method - you need a source with a full graph of the welding process - such a graph has the DIGIMIG 200 MTM device.

Professional 2R Wire Feeder

Professional 2R feeder - reliable wire feeding, thanks to the use of a professional feeder. Built-in drive transmission system - protects the feeder from contamination. Feeder rollers made in accordance with the prevailing standards, various types of rollers available for sale.

• Power supply: ~1x230V ±10% 50Hz
• Welding methods: MIG/MAG, TIG DC, MMA
• Network Security: 25A
• Maximum current consumption: 33A
• Maximum power consumption: 7,4 kVA
• Dimensions: 420 x 200 x 375 mm
• Degree of protection: IP 23S
• Net weight: 11,5kg

Has built-in parameter memory

MIG/MAG WELDING PARAMETERS:

• Welding current: 30 - 200A
• Working cycle: 45%/200A, 100%/134A
• Wire feeder: 2R, professional
• Spool with wire: D100/D200 to 5kg

• MIG welding voltage: 15,5V - 24,0V
• MIG/MAG synergy: yes with correction,
• Welding voltage correction: -20% to +20%
• MIG/MAG welding inductance: yes adjustable,
• MIG/MAG Wire Range: 0,6/0,8/1,0mm
• MIG/MAG polarity change: yes
• BURN BACK wire burning - yes

• MIG/MAG spot welding: yes adjustable,
• Spot welding time: 0,5s - 5s
• Interruption time during spot welding: 0,5s - 5s

WELDING PARAMETERS TIG:

• Welding current: 10 - 200A
• Operating cycle: 60%/200A, 100%/154A
• Gas outflow: 0s to 3s
• Initial current: yes with regulation,
• Current build-up: 0s to 9,9s
• Current drop: 0s to 9,9s
• Crater Current: 10 - 200A
• Gas flow: 0s to 9,9s

• Pulse base current: yes with adjustable
• Pulse peak current: yes with regulation,
• Pulse Width: 10 - 90 %
• Pulse Frequency: 0,2 - 99 Hz

• TIG spot welding: yes
• Spot welding time: 0,01s - 5s
• Interruption time during spot welding: 0,1s - 5s

• Arch ignition: contactless with HF,

WELDING PARAMETERS MMA:

• Welding current: 20 - 180A
• Operating cycle: 60%/180A, 100%/139A
• Voltage without load: 65V
• Arc Force: YES with regulation
• Hot Start: YES with regulation

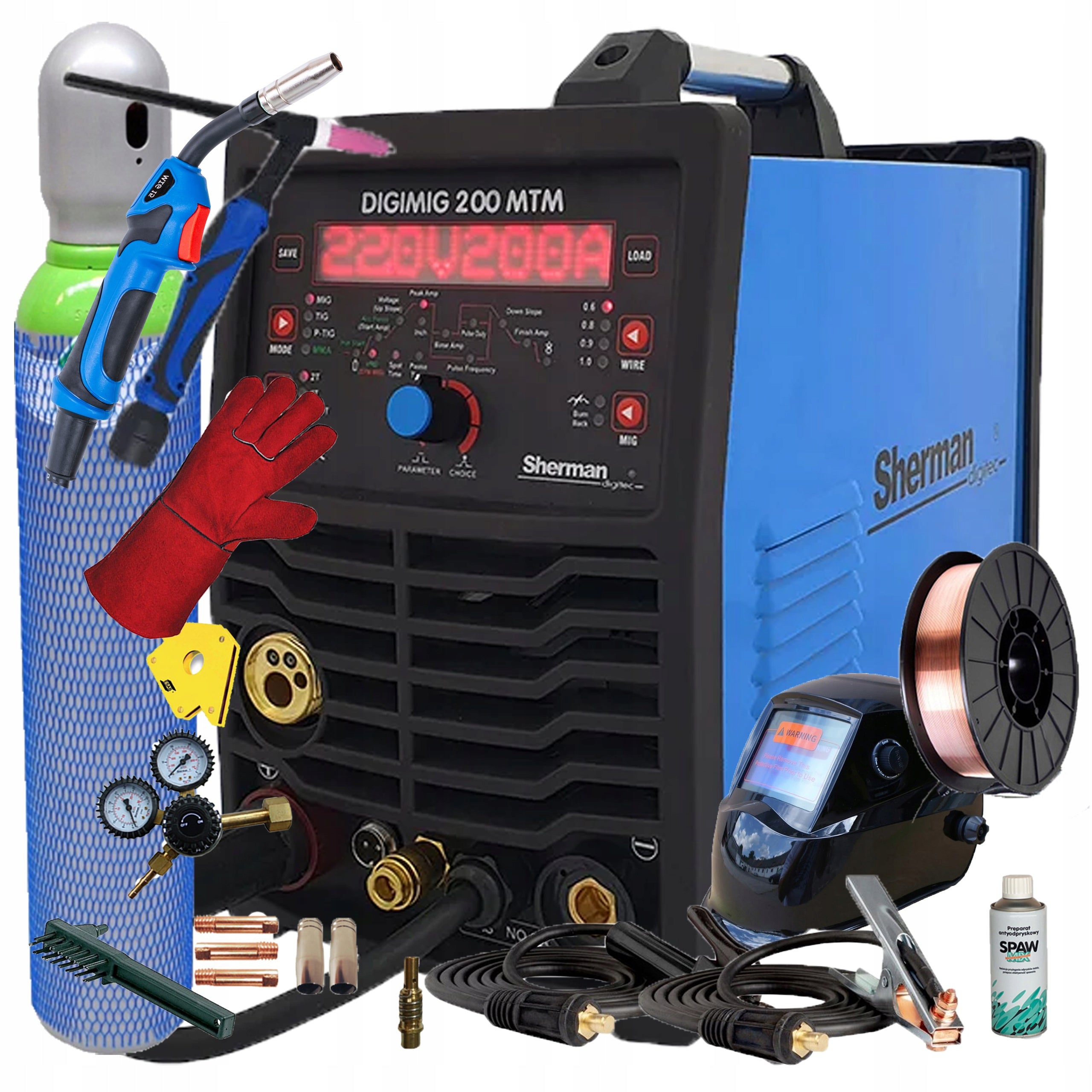

• Sherman MTM 200
• MIG EURO welding torch
• TIG welding torch 4m
• MMA Electrode Holder
• Bulk cable
• User manual PL
• Co2/Argon cylinder 8l
• Co2/Argon reducer
• Welding wire 0,8/5kg
• Anti-chipping preparation
• Welding gloves
• Automatic self-tinting visor 9-13 DIN
• Magnetic angle
• Consumable parts for MIG and TIG handle
