Suvirinimo aparatas Sherman Digimig 200 HIT 3in1 MIG/MMA/TIG, 200A

Trumpai apie prekę

Prekė: Suvirinimo aparatas Sherman Digimig 200 HIT 3in1 MIG/MMA/TIG, 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: HOT564
• Ilgis: 490 mm
• Plotis: 220 mm
• Aukštis: 375 mm

One of the best models available on the market for welding. Thousands of units sold, 0 complaints.

The company SHERMAN specializes in welding, which is why the welding machines of this company are characterized by the highest quality that distinguishes them from the competition.

MANUFACTURER: SHERMAN || WELDING METHODS: MIG/MAG, MMA, TIG DC Lift ||

SELECTED ADVANTAGES: Synergy, Spool Gun Option, 2T/4T, Burn Back || POWER SUPPLY: 230V 1ph

• full free post-purchase support
• You can call us at any time and we will help you set the parameters and operate the device

SYNERGISTIC WELDING MACHINE FOR MIG/MAG, MMA, TIG LIFT AND SOLDER WELDING

The DIGIMIG 200 HIT synergic welding machine is used for manual welding of steel and non-ferrous metals. It enables welding using MMA (covered electrode), TIG Lift and MIG/MAG methods. Thanks to the change of polarity, the device allows MIG/MAG welding using both standard wires in the protective gas shield and self-shielding powder wires.

The device allows you to connect a Spool Gun holder with a mini wire feeder mounted in it and a D100 spool of steel or colored wire. The MIG/MAG method can be used in manual and synergistic mode. Synergistic programs are available for steel, Al. alloys and for self-shielding wire welding.

The device is made in IGBT technology allowing for a significant reduction in weight and dimensions of the welding machine and an increase in efficiency while reducing energy consumption. The welding machine is used in closed or covered rooms, not exposed to direct atmospheric influences.

Physical parameters:

• Power Supply: 230V
• Welding methods: MIG, MAG, FCAW, MMA, TIG DC
• Maximum welding current: 200A
• Working cycle: MIG 45% 200A, MMA 60% 180A, TIG 60% 200A.
• Network Security: 25 A
• Maximum power consumption: 4,8kVA
• Net weight: 10kg
• Dimensions: 440x210x370mm
• Degree of protection: IP21

MIG/MAG welding parameters:

• Welding Current: 200A
• Welding voltage (current): MIG: 15,5 - 24V
• Wire diameter: 0,6-1,0 mm
• Wire spool weight: 1kg, 5kg
• Wire spool diameter: D100/D200 (100mm/200mm)
• Welding polarity change: YES
• Wire feed speed: 2,5 – 15 m/min
• Inductance: (-10) – (+10)
• Spot welding time: 0 – 3 s
• Wire burning 0 – 10
• Max MIG current consumption: 33A

TIG welding parameters:

• Welding Current: 200 A
• Max TIG power consumption: 3,6kVA
• Max TIG current consumption: 25A

MMA welding parameters:

• Smooth regulation of welding current: 180A
• Max MMA Current Consumption: 35A
• Voltage without load: 65V
• ARC FORCE (MMA): 0 – 10
• HOT START (MMA): 0 – 10
• VRD (MMA): On. / Off

Advantages of the device:

• Smooth adjustment of welding parameters,
• Welding MIG, TIG LIFT, MMA, soldering,
• Synergic programmes,
• 2-roll feeder,
• MIG spot welding,
• Burn Back - wire burning function,
• EURO handle socket,
• Option to connect the SPOOL GUN holder.

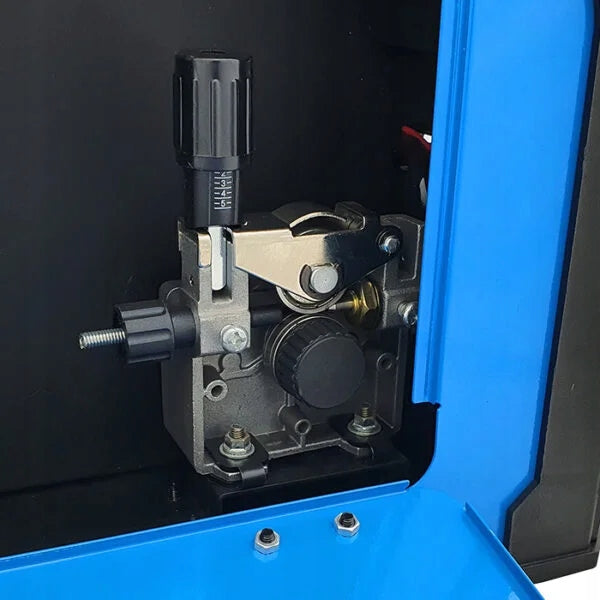

Professional Wire Feeder

Professional 2R feeder - reliable and precise wire feeding, thanks to the use of a professional feeder - ensures smooth wire feeding to the handle and stable welding parameters.

Solid workmanship

The power source is based on IGBT transistors that provide a minimum of electromagnetic interference, allowing you to increase the efficiency and reliability of the device.

The compact and compact design makes the device applicable in workshop and repair work, both in halls and in the field. Carrying the welding machine is made easier by equipping it with a rigid carrying handle.

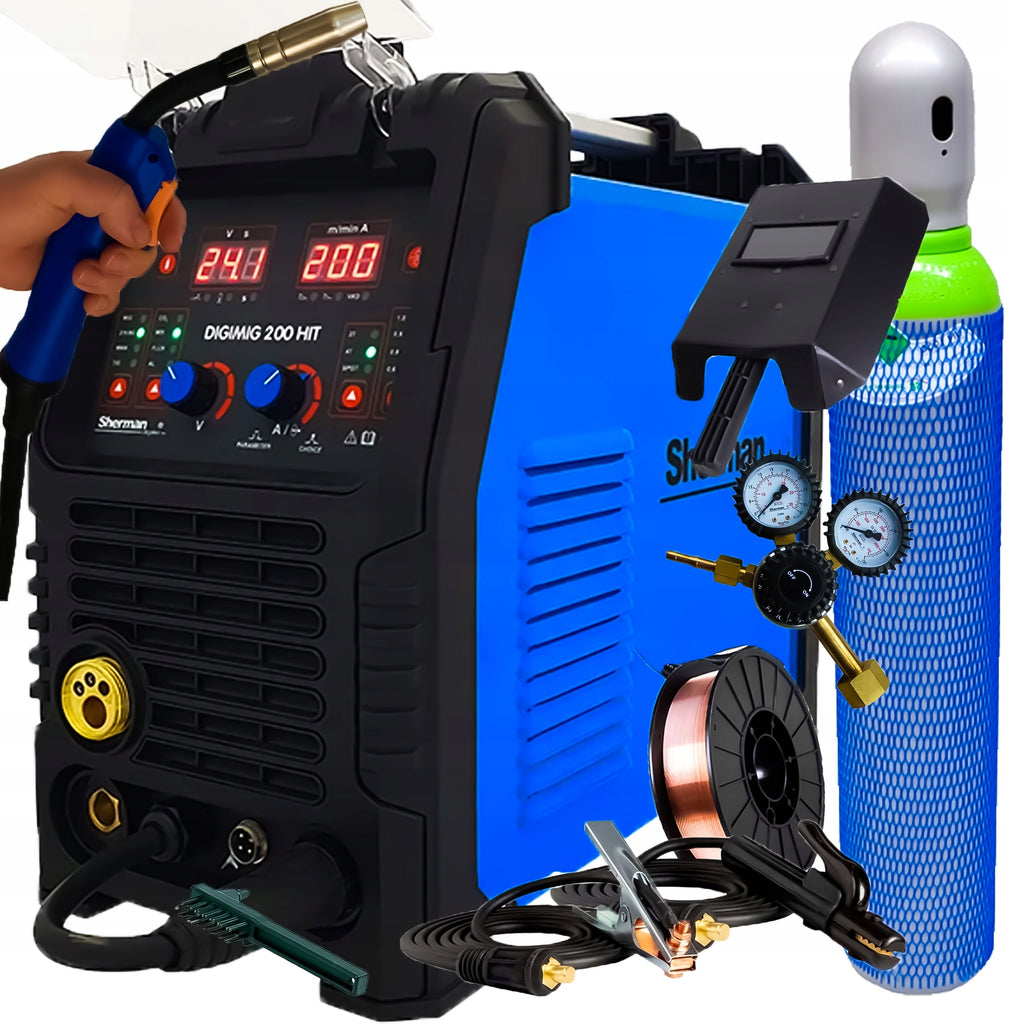

• Sherman MIG 200 SMART welder
• Welding torch MB-15 / 3m
• MMA Electrode Holder
• Bulk cable
• User manual
• factory new Ar/CO2 cylinder with a capacity of 8l - certified, has all the approvals required by gas sales points,
• Ar/CO2 cylinder reducer with two clocks,
• Steel welding wire SG2 0,8mm x 5kg,
• welding mask
• brush and welding hammer

Specifications
