Suvirinimo aparatas SHERMAN 180 FL MMA MIG MAG TIG 230V 6 kg

Trumpai apie prekę

Prekė: Suvirinimo aparatas SHERMAN 180 FL MMA MIG MAG TIG 230V 6 kg. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: 180

+ WELDING KIT WHICH INCLUDES:

• ✔ CYLINDER WITH REDUCER
• ✔ WELDING WIRES
• ✔ WELDING ACCESSORIES

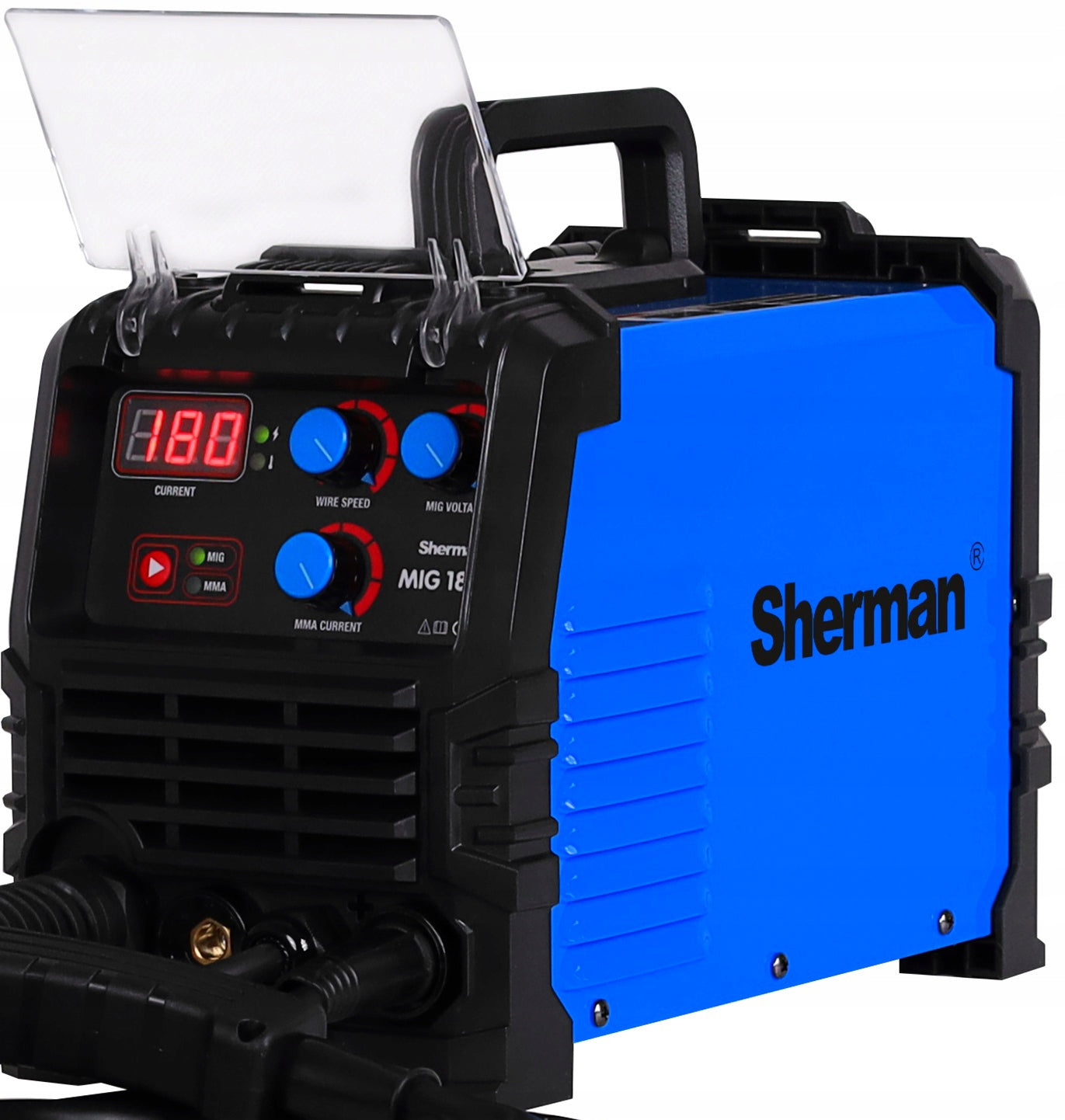

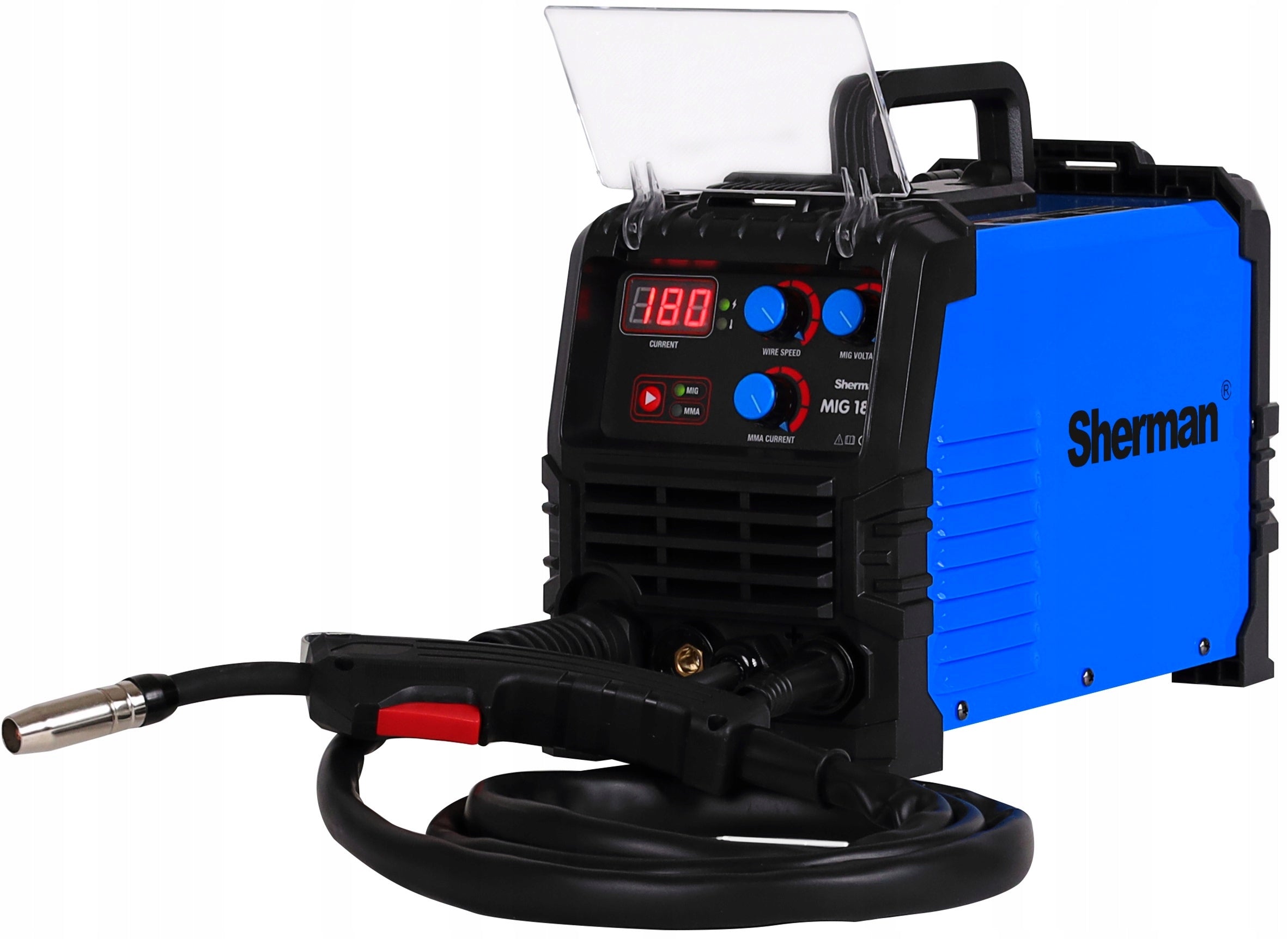

Welder SHERMAN MIG 180FL

is an inverter semi-automatic welding machine designed for arc welding by the following method:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡️ TIG LIFT DC - Tungsten Inert Gas (TIG) welding using a non-consumable (tungsten) electrode in a shielding gas atmosphere (Argon) with a separate TIG torch. In TIG DC Lift mode, the arc is ignited by contacting the electrode with the workpiece (the button on the torch handle does not ignite the arc; the gas is connected directly from the regulator to the torch and is regulated by a valve on the torch handle). In TIG Lift DC mode, the current is direct current (DC).

➡️ MMA -  Standard stick welding using coated electrodes (rutile, basic, acid).

SHERMAN MIG 180FL is used for welding:

✔ low alloy steels

✔ low carbon steel

✔ alloy steel

It is characterized by a wide range of applications, it is dedicated to all kinds of welding work in households, locksmith workshops, repair workshops, etc.

✔ CASUAL WORKSHOP WORK,

✔ FARMS,

✔ AMATEUR WORK,

✔ HOMEWORK.

ADVANTAGES AND FUNCTIONS OF THE WELDING MACHINE:

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has an impact on significantly extending the reliable operation of welding equipment.

✔ EASY TO USE - The welding machine is equipped with an easy-to-use control panel and signaling diodes, so it can be used even by amateurs.

✔ MOBILITY OF THE DEVICE - thanks to the attached transport handle, the welding machine is easy to transport and allows welding in hard-to-reach places.

✔ LIGHT WEIGHT OF THE DEVICE - only 6,5 kg.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a professional wire feeder, which guarantees stability and continuity of operation of the device.

The 2-roll feeder allows precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

The welder supports D100 wire spools.

⏩ TECHNICAL DATA:

• Power supply voltage: AC 230V 50Hz
• Wire feed speed [m/min]: 2 - 13
• Voltage without load [V]: 58

⏩ MIG PARAMETERS:

• Welding voltage: 15,6 - 21,2 V
• Welding current: 40 - 180 A
• Rated welding current / duty cycle: 180 A / 60%
• Maximum power consumption [kVA]: 6,1
• Maximum MIG/MAG current consumption [A]: 21
• Type of feeder: built-in, 2 - roller
• Wire spool: D100

⏩ MMA PARAMETERS:

• Rated welding current / duty cycle: 160 A / 60%
• Maximum power consumption [kVA]: 6,1
• Maximum current consumption [A]: 23
• Welding current: 25 - 160 A

⏩ OTHER:

• Mass: 6,5 kg
• Dimensions: 330 x 155 x 250 mm
• Degree of protection: IP21
• Network security: 16 A

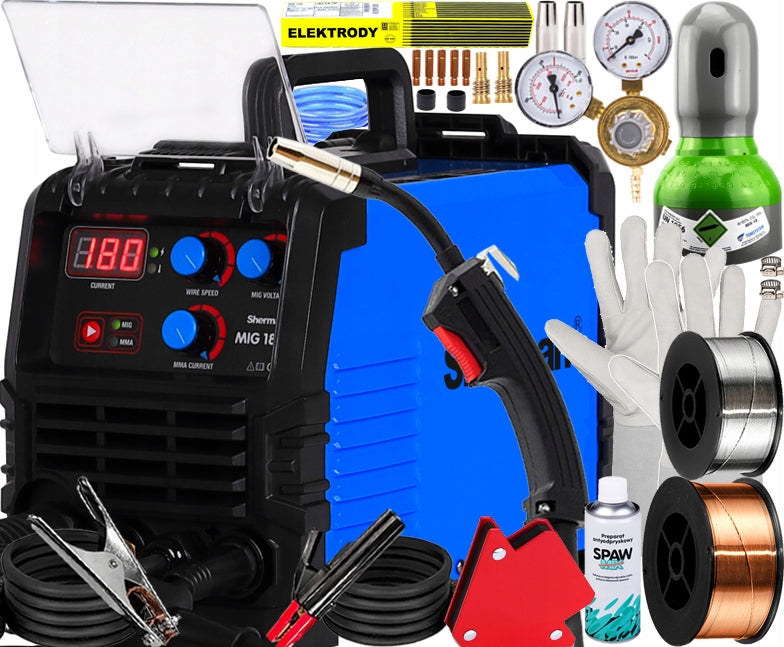

ORIGINAL MANUFACTURER'S KIT CONTAINING:

• Welding machine SHERMAN MIG 180FL - 1 pc.
• Integrated welding cable MIG MB 14 - 1 pc.
• Bulk holder - 1 pc.
• Electrode cable - 1 pc.
• Instruction manual in Polish

• New 8L MIX cylinder with 10-year legalization - 1 pc.
• Gas reducer Co2/Ar with 2 pressure gauges - 1 pc.
• Professional gloves - 1 pair
• Spray anti-chipping - 1 pc.
• Angle magnetic - 11 kg - 1 pc.
• Wire self-shielding FLUX 0,8 mm - 1 kg - 1 pc.
• Wire for black steel 0,8 mm - 1 kg - 1 pc.
• Electrode pack - 1 kg - 1 pc.
• Tip current - 5 pcs.
• Gas nozzle for handle - 2 pcs.
• Socket current - 2 pcs.
• Insulator - 2 pcs.
• Gas hose - 1m
• Headbands - 2 pcs.

PRODUCT GALLERY:
