Suvirinimo aparatas PATON MultiPRO 270A MIG/MAG/MMA/TIG HF, be dujų

Trumpai apie prekę

Prekė: Suvirinimo aparatas PATON MultiPRO 270A MIG/MAG/MMA/TIG HF, be dujų. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Paton
• Modelis: MultiPRO-270-15-4 BEZ GAZU

⭐ Paton brand equipment is the No. 1 for customers who are not professionals, but want to weld like the best welders.

⭐ The Paton plant has its own production of welding machines, which, unlike most welding equipment on the Polish market, does not take place in China, but in its own factory, which is located in Ukraine in Kiev.

⭐ 3 years of DOOR-to-DOOR service period, also for companies.

⭐ You don’t have to be a professional to weld like a professional!

⭐⭐⭐ By buying at this auction in the price of the welding machine you will receive the following welding accessories and materials:

✅ Welding gloves

✅ Welding wire self-shielding 0,8mm 4,5kg spool

✅ PATON 2,5mm 1kg

✅ Electrodes PATON 3mm 1kg

✅ MIG/MAG holder ABICOR BINZEL MB EVO PRO 24 4m

✅ Electrode holder 3m ABICOR BINZEL

✅ Mass holder 3m ABICOR BINZEL

✅ Wire feeder rollers 4x (0,8 – 1,0),4x (1,2 – 1,6) V + 4x (0,8 – 1,0) U

✅ Wire spool cover

✅ Quick coupler for gas

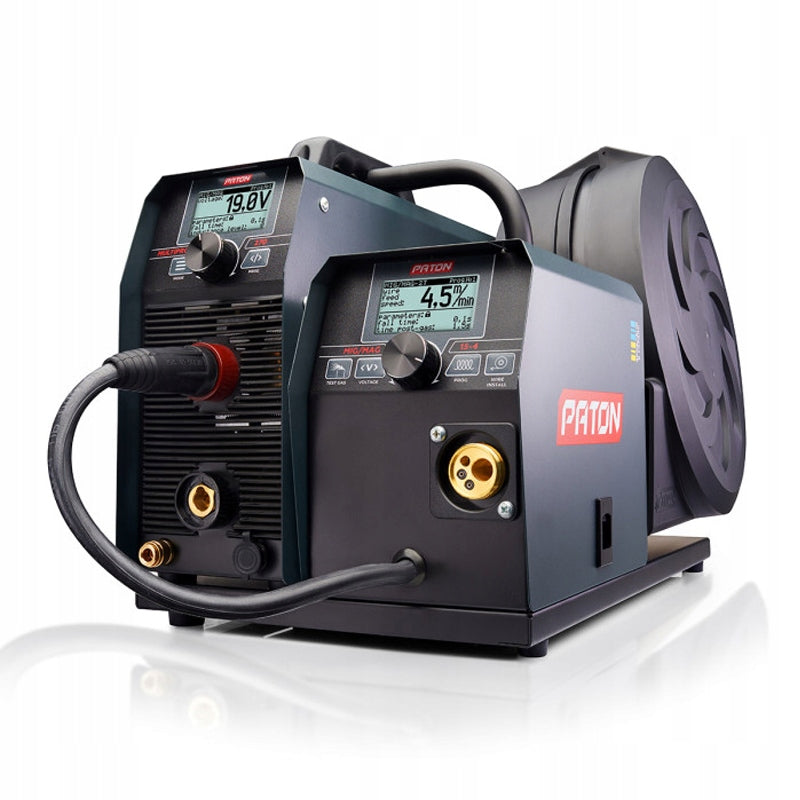

⭐ Migomat Paton MultiPRO-270 is a welding machine made on the basis of the latest inverter technology, which ensures the highest quality of welding in every method: MMA, MIG-MAG and TIG with contactless glow.

✔ MANUFACTURER: PATON

✔ WELDING METHODS: MIG/ MAG (gas shielded wire and gas-free wire) / MMA (wrapped electrode) / TIG (HF) DC

✔ TECHNOLOGY: INVERTER IGBT

✔ POWER SUPPLY: 400 V

✔ WELDING CURRENT OF THE DEVICE: 270 A

✔ WIRE SPOOL SIZE: 5kg/15kg/18kg

✔ CONTACTLESS ARC GLOW (HF)

Are you still using your welding machine and worried about its durability? With PATON you do not have to worry about anything - whether you buy a device for yourself or for the needs of the company, PATON gives you 3 years of free DOOR-to-DOOR service period.

What does this mean?

After buying a welding machine, you can be sure for 36 months that no matter what happens to the device - we will pick up the welding machine from you and repair it within 3 years from the date of purchase.

The Paton MultiPRO-270 device was made on the basis of the latest inverter technology, from components made in Europe. The device uses general protections such as protection against excessive voltage, excessive current, overheating of the device, etc.

MultiPro series devices have a contactless arc ignition module (oscillator), with a built-in gas supply valve

The welding machine can be successfully used for welding carbon steel, stainless, alloy, iron, black steel and aluminium using the following methods:

• MIG/MAG in protective gas shielding
• MIG/MAG without gas shield (self-shielded wire)
• MMA wrapped electrode
• TIG DC (HF)

★ Highest reliability confirmed by the longest service period DOOR-to-DOOR

Paton welding machines are characterized by exceptional durability and reliability, which is reflected in the longest service period on the market with DOOR-to-DOOR support

★ Easy settings of the welding machine

The devices have been designed with the user’s convenience in mind – simple and intuitive menus and ergonomic interface allow you to quickly configure the appropriate operating parameters.

★ Digital Settings Method

The use of digital technology enables precise and repeatable setting of welding parameters, which translates into better weld quality and time savings.

★ Ability to remember 16 memory programs

The welder allows you to save up to 16 different sets of settings, allowing you to instantly switch between different modes of operation – the perfect solution for frequently changing tasks.

★ Use from amateur to professional

With a wide range of features and a robust design, the Paton welding machines are suitable for both home use and demanding industrial environments – a versatile tool for any level of skill.

★ Possibility of separating the wire feeder from the source in MMA and TIG welding methods

This solution provides greater flexibility and mobility while working, especially in hard-to-reach places – the user can work with greater freedom of movement.

★ Gas-free welding with self-shielding wire

Paton welding machines allow welding in gas-free mode using self-shielding wire, which is an ideal solution in outdoor conditions or where access to protective gas is difficult.

★ Equipment of the highest quality – handles included are German manufacturer ABICOR BINZEL

Each welding machine is accompanied by professional handles from the renowned brand ABICOR BINZEL, which guarantees longevity, comfort of work and the highest quality of welds.

✅ Wide possibilities of adjusting welding parameters (more than 30 parameters for 3 welding modes)

Migomat allows you to precisely adjust the settings to a specific type of work – regardless of whether you are welding using MIG/MAG, MMA or TIG. You have more than 30 parameters at your disposal, such as voltage, current, wire feed speed, current drop time, or dynamic functions, which allows you to maximally adjust the process to the material and conditions.

✅ Availability of adjustable PULSE function for MIG/MAG, MMA and TIG welding modes

The PULSE function allows you to obtain high-quality welds when welding thin materials and hard-to-weld metals such as aluminum or stainless steel. Importantly, the pulse can be individually adjusted in all three modes, which is not standard in most devices of this class.

✅ In TIG mode, arc glow is carried out both by TIG-LIFT contact method and contactlessly, using the built-in oscillator

The device offers two methods of TIG arc glowing: classic contact glow (TIG-LIFT), which minimizes electrode damage, and contactless HF (High Frequency) glow – comfortable and safe, especially for precise work and thin materials.

✅ Possibility to separate the source from the wire feeding mechanism when we do not need MIG/MAG mode

In situations where you are welding using MMA or TIG method and do not need wire feeding function, you can easily disconnect the feeder from the power source. This increases the mobility of the device, reduces its weight and makes it easier to transport and position the equipment in hard-to-reach places.

✅ Large LCD display with graphic information for easy parameter setting

The intuitive LCD display shows the parameters graphically, making setting up the device simple and quick – even for less experienced users. The clear menu allows you to instantly switch between modes and functions.

✅ Efficient wire feeder mechanism, 4-roller with drive for all rollers

The feeder is equipped with four motor-driven rollers – this is a guarantee of even, stable wire feeding, even with long wires. Ideal for welding aluminum, stainless steel or work requiring high precision.

✅ Convenient connection of any MIG/MAG burner thanks to the KZ-2 EURO socket

The standard EURO connector (KZ-2) allows for quick and easy connection of various types of MIG/MAG handles available on the market. This increases the versatility of the migomate and allows you to use the equipment you already have without the need for modification.

⭐ Convenience for all – mobility and safety at the highest level

Regardless of whether you weld using the MMA or TIG method – with the Paton migomat you have full freedom of action. Thanks to the possibility of separating the power source from the wire feeder, you can work exactly where you need it – even in hard-to-reach places. It is an ideal solution for mobile professionals who do not want to be limited by heavy equipment.

Additionally, the welding machine is designed to work in demanding environments. Its housing meets one of the highest levels of protection – IP33, which means:

• Protection against access to hazardous parts with tools – guarantees safe operation even in difficult workshop conditions.
• Protection against foreign solids with a diameter of 2,5 mm and more – dust, metal filings or small elements will not get inside the device.
• Water spray resistance on all sides – the welding machine can withstand splashes at an angle of up to 60° from the vertical, making it ideal for working outdoors and in humid environments.

In short – Paton is equipment that not only adapts to your needs, but also provides you with safety and comfort in all conditions.

⭐ Professional wire feeder – precision you can rely on

The Paton welding machines use an advanced wire feeder with its own control system, which ensures independent and very precise operation. Thanks to this, the user can count on stable, smooth wire feeding – regardless of the length of the cable or operating conditions.

At the heart of this system is a powerful, fully metal feeding mechanism, which is distinguished not only by its durability, but also by its exceptional resistance to dirt and mechanical damage – an additional seal protects it from dust, filings and other contaminants that can affect the quality of welding.

The feeder is equipped with an integrated connector type EURO, which is currently the world standard among professional welding equipment. This makes it easy to connect different types of handles and accessories, increasing compatibility and ease of use.

Many novice welders do not realize how crucial the quality and uniformity of wire feeding in the MIG/MAG method plays. Even the best welding machine will not work properly without an efficient and precise feeder. In the Paton models, you can be sure that the wire will be fed exactly at the speed and force you set – without jamming, tugging or delays.

This is a solution that will be appreciated by both professionals and ambitious amateurs – because a good weld starts with a reliable feeder.

⭐ Features that will make you do everything

Paton MIGOMATES have the possibility of soldering, thanks to the function of changing the inductance in three degrees. Inductance control allows you to optimize the characteristics of the arc depending on the thickness of the welded element.

PULSE FUNCTION

– PULS in TIG method – gives the welder full control of the heat introduced into the material – a great function for welding stainless steel and acid-resistant steel,

– PULS in MMA method – thanks to this it is easier to transfer the material from the electrode to the welding lake, better quality of the welded joint,

- PULS in MIG/MAG method - easier detachment of metal droplets from the end of the electrode wire, the ability to adjust pulsating current parameters. MIG welding with pulsation is useful for welding stainless steels, acid-resistant steels and aluminum alloys. In addition, pulse welding provides better parameters when soldering CuSi3

❓ FAQ - Frequently Asked Questions

❓ What welding methods does this welding machine support?

The PATON MultiPRO-270 welder is a professional, multifunctional inverter device for workshop, construction and service applications.

It supports all the most popular welding methods:

• MIG/MAG – welding with gas shielded wire (steel, stainless steel, aluminium),
• MIG/MAG without gas (FCAW) – self-shielding wire welding, ideal for field work,
• MMA – welding with a wrapped electrode,
• TIG HF – TIG welding with non-contact arc ignition (HF module).

Thanks to the use of the HF module, TIG in MultiPRO-270 ensures a clean arc start, no electrode contamination and professional weld quality.

It is a universal welding machine that replaces several devices in one.

❓ What is the maximum welding current and what materials can be welded?

The MultiPRO-270 offers welding currents up to 270 A and smooth adjustment between 12 and 270 A.

Allows welding:

• structural steel up to approx. 12 mm,
• stainless steel up to approx. 9 mm,
• aluminium up to approx. 7 mm (after using the appropriate wire and gas).

The welder has a duty cycle of 70% at 270 A, which ensures the possibility of long-term operation without overheating. It is an ideal choice for workshop work, repairs, steel and bodywork structures. At lower currents (e.g. 180 – 200 A) welding machine can work practically continuously.

❓ What wires can be used in this migraine?

The welder supports wires:

• steel, stainless and aluminium,
• with a diameter of 0,6 to 1,2 mm,
• for 5 kg (⌀ 200 mm) and 15 kg (⌀ 300 mm) spools

If necessary, self-shielding wire (FCAW) can be used without the use of gas – just change the polarity in the device. The precise 4-roll wire feeder ensures even and stable feeding of even soft aluminum wires.

❓ Does the welding machine have a pulse function?

Yes — PATON MultiPRO-270 has a pulse welding function.

Pulse mode works in all methods:

• MIG/MAG,
• MMA,
• TIG.

The pulse function allows for cleaner, more precise and aesthetic welds, especially when welding thin materials, aluminum and stainless steel. In addition, it reduces the amount of chipping and reduces the heating of the material, which protects the elements from deformation.

❓ What is the service and warranty?

PATON welding machines are manufactured in Europe and not in China, which guarantees high quality, durability and reliability. The StandardMIG model is covered by 3-year service care, implemented in Poland – in an authorized service in Rzeszów. This is a guarantee of fast and professional technical support.

❓ What power will the unit power the migomat? How long can the extension cord be used?

The MultiPRO-270 welder can be powered from a generator set, provided that:

• the unit has voltage stabilization (AVR),
• its continuous power is a minimum of 8,5-9 kW,
• The recommended power is 9-10 kW with AVR if you plan to weld at full power (270 A).

The 7-7,5 kW unit with AVR is sufficient for typical workshop work with currents up to 200 A.

The welder can work with longer extension cords:

• up to 65 meters with a cross-section of 2,5 mm²,
• up to 150 meters with a cross-section of 6 mm².

Detailed technical data:

• Power supply voltage: 400V
• Nominal mains current required: 12,1 - 14,1A
• Nominal welding current: 270A
• Maximum welding current: 350A
• Work Cycle: 70% at 270A 100% at 225A
• Power supply voltage change intervals: ±15%
• Welding current adjustment intervals: 12 – 270A
• Diameter of wrapped electrode: 1,6 – 6,0 mm
• Number of pressure rollers: 4 with drive on all rollers
• Diameter of solid wire: 0,6 – 1,2
• Hot-Start function in MMA method: Adjustable
• Arc-Force function in MMA method: Adjustable
• Anti-Stick function in MMA method: Automatic
• Contactless electric arc (HF): Yes
• Maximum spool weight: 15kg
• Pulse current welding modes: MMA, TIG, MIG/MAG
• Idle current voltage: 12 / 75 V
• Arc current voltage: 110 V
• Nominal power consumption: 8,0 ... 9,4kVA
• Maximum power consumption: 11,4 kVA
• Energy efficiencý: 90%
• Cooling: Automatic
• Working temperature range: –25 ... +45 ºС
• Dimensions (length, width, height): 540x360x400
• Weight without spool and accessories: 16,5kg
• Degree of protection: IP33

⭐ Self-shielding wire 0,8mm 4,5kg spool

High-quality self-shielding welding wire (FCAW) with a diameter of 0,8 mm is the ideal solution for people who want to weld without the use of shielding gas. Thanks to self-shielding technology, the wire creates its own protective atmosphere during welding, which makes it perfect for outdoor conditions and field work.

The most important advantages:

• Welding without protective gas – ideal for outdoor work and harsh weather conditions
• Simple configuration – just change the polarity in the welding machine (negative polarization on the handle) to start working
• Universal diameter 0,8 mm – provides good control of the welding lake and ease of use
• Large spool of 4,5 kg – an efficient solution for larger projects
• Good weld quality – solid joints and stable arc
• Mobility – no need for gas cylinders makes the whole set much easier to transport and use in the field

An excellent choice for DIYers, farmers, mechanics and professionals working in the field.

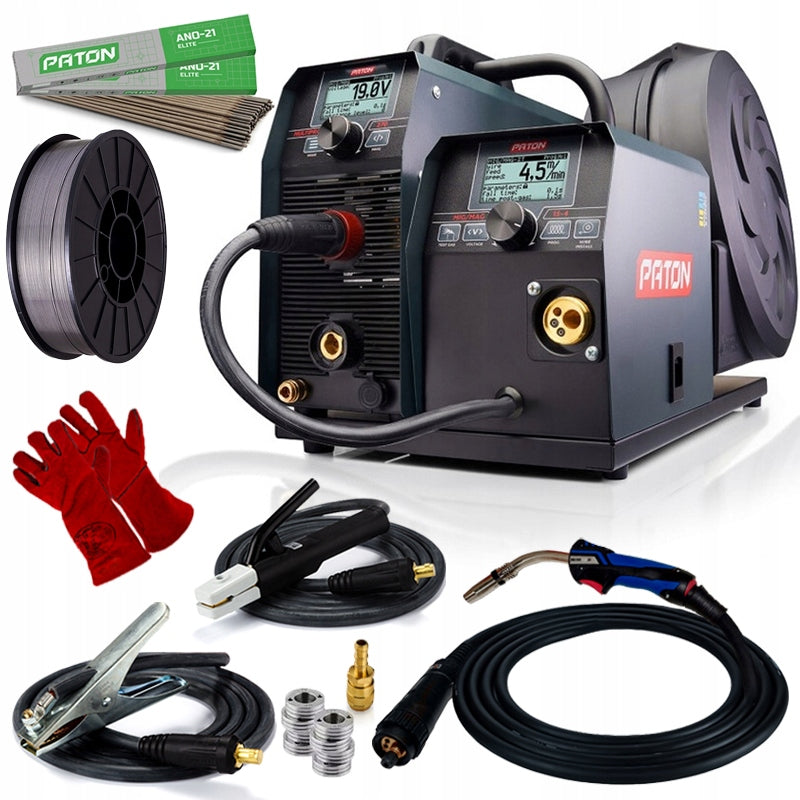

⭐ The purchased set includes:

• Welding machine Paton MultiPRO 270
• Feeder PATON 15-4
• Welding gloves
• self-shielded wire 0,8mm 4,5KG
• Electrodes PATON 2,5mm 1kg
• Electrodes PATON 3mm 1kg
• Electrode holder ABICOR BINZEL DE2200 3m
• Mass holder ABICOR BINZEL MK300 3m
• MIG/MAG holder ABICOR BINZEL MB EVO PRO 24 4m
• Wire feeder rollers 4x (0,8 – 1,0),4x (1,2 – 1,6) V + 4x (0,8 – 1,0) U
• Wire spool cover
• Quick coupler for gas
• Cardboard packaging
• User manual

________________________________________________________________________________________________________

➡ The PATON brand also offers welding wire, various types of electrodes and many other models of reliable MMA, MIG/MAG and TIG welding machines.

➡ See our other auctions!

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Paton
Parametry	Power consumption	12.1 kVA
Parametry	Supply voltage (V)	400
Parametry	Duty cycle time	70%
Parametry	Maximum electrode diameter	6 mm
Parametry	Wire diameter (mm)	0,8-1,2
Parametry	Welding range	12–270 A
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	300 cm
Parametry	Manufacturer code	MultiPRO-270-15-4 BEZ GAZU
Parametry	EAN (GTIN)	5903957271514
Parametry	Model	MultiPRO-270-15-4 BEZ GAZU
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
