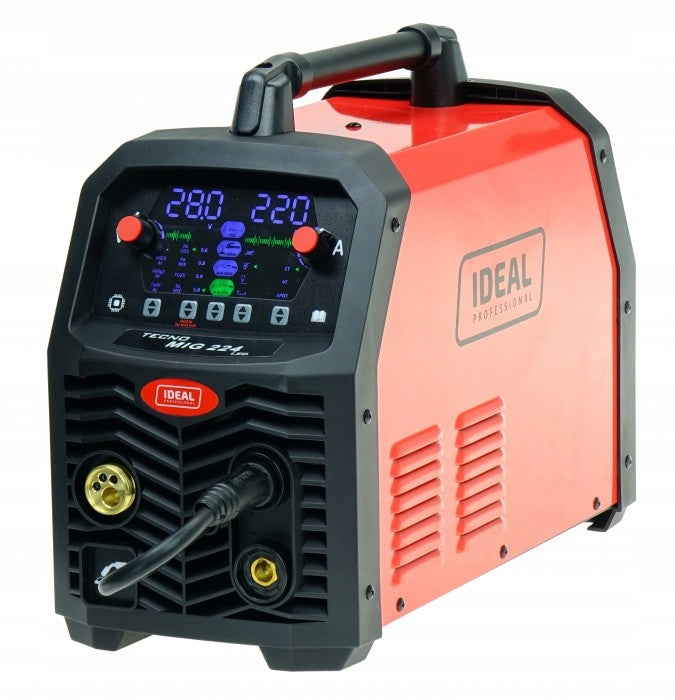

Suvirinimo aparatas MIGOMAT TECNOMIG 224 LED 4x4 220A 60% MMA SYNERGY IDEAL su reduktoriumi

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT TECNOMIG 224 LED 4x4 220A 60% MMA SYNERGY IDEAL su reduktoriumi. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TECNO MIG 224 SYNERGIC LED 4x4
• Ilgis: 510 mm
• Plotis: 230 mm
• Aukštis: 370 mm

Inverter semi-automatic welding machine

TECHNICAL PARAMETERS

Power 5,7 kW

Idle voltage 62 V

Maximum current 220 A

Current at work 100% 170 A (MIG/TIG) / 140 A (MMA)

Current at 60% 220 A (MIG/TIG) / 180 A (MMA)

Diameter of aluminium wire 1,0 mm

Wire diameter for soldering 1,0 mm

Diameter of self-shielding wire 0,8-1,0 mm

Steel wire diameter 0,6 - 1,0 mm

Stainless steel wire diameter 0,6 - 0,8 mm

Welding electrode diameter 1,6 - 4,0 mm

Degrees of welding current regulation Gradually

Welding Current Adjustment Range 30 - 220 A (MIG) / 15 - 220 A (TIG) / 20 - 180 A (MMA)

PHYSICAL PARAMETERS

Wire spool size 0,45 - 5 kg

Degree of protection IP 21

Weight of the device / set 15/17 kg

Overall dimensions L x W x H 510x230x370 mm

POWER SUPPLY PARAMETERS

C25A power supply network protection

Rated supply voltage 230 V; 50Hz (1ph)

TECNOMIG 224 SYNERGIC LED 4x4 is an inverter synergistic semi-automatic welding machine designed for arc welding using the MIG/MAG, TIG LIFT, MMA and FLUX methods. The device has been designed for a wide range of applications: from maintenance work to car body repairs.

TECNOMIG 224 SYNERGIC LED 4x4 is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas, active gas or mixture shield, and with reverse polarity without gas.

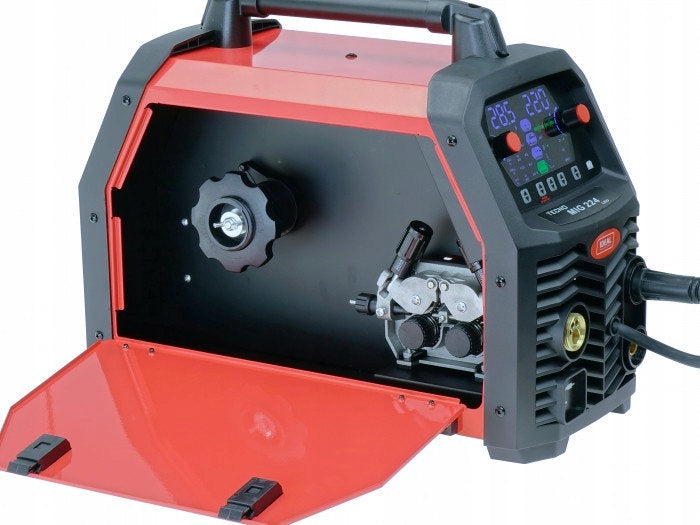

By using a 4-roll feeder, the device ensures stable wire feeding so important when welding aluminum and copes very well with 5-meter welding handles.

With the MIG/MAG method, we can choose the button function in the handle between working in 2T mode (without button lock), 4T (button lock for long welds) or spot welding (SPOT)

CHARACTERISTICS

• Single-phase power supply 230 V - allows you to work with the device practically anywhere with access to the electrical network
• The device is equipped with synergic programs facilitating the welding process.
• Intuitive controls - migomat has been designed in such a way that its operation does not cause problems even for people starting their adventure with welding
• Maximum spool with 5 kg wire - allows for a long working time without the need for frequent replacement of the spool with wire
• Device equipped with EURO socket for connecting a welding torch
• Welding bracket MB 15 with a length of 3 m - allows you to work freely without having to change the location of the migomate (possibility of changing to other lengths - eurodisconnector)
• Smooth regulation of welding current - provides the possibility of accurate selection of welding parameters depending on the type and thickness of the material
• For MIG-MAG welding and MMA can be adjusted: welding current, wire feed speed
• Professional wire feeder: internal, 4-roller
• Polarity change for FLUX welding without shielding gas
• The device has a fan cooling system which significantly increases its efficiency
• governance is equipped with overload protection, which increases its reliability
• Price of the device with accessories: MIG 15/3m welding torch with EURO plug, mass cable, electrode cable

The large and easy-to-read LED display allows you to control and adjust MIG/MAG welding parameters on an ongoing basis, such as:

• Inductance
• Wire access
• Wire burning
• Spot weld time (in SPOT mode)

The device also has MMA parameter adjustments such as:

• ARC FORCE regulation
• HOT START regulation
• ANTISTICK function (ON/OFF)
• The VRD (voltage reduction device) function reduces the idle voltage on the electrode to a safe value; it enables operation in an environment with increased humidity. (ON/OFF)

Semi-automatic welding machine

MIG welding torch 15/3 m with EURO plug

Mass cable 2 m

Electrode cable 2 m

Passive Welding Shield

Brush-hammer

Operating instructions

Warranty card

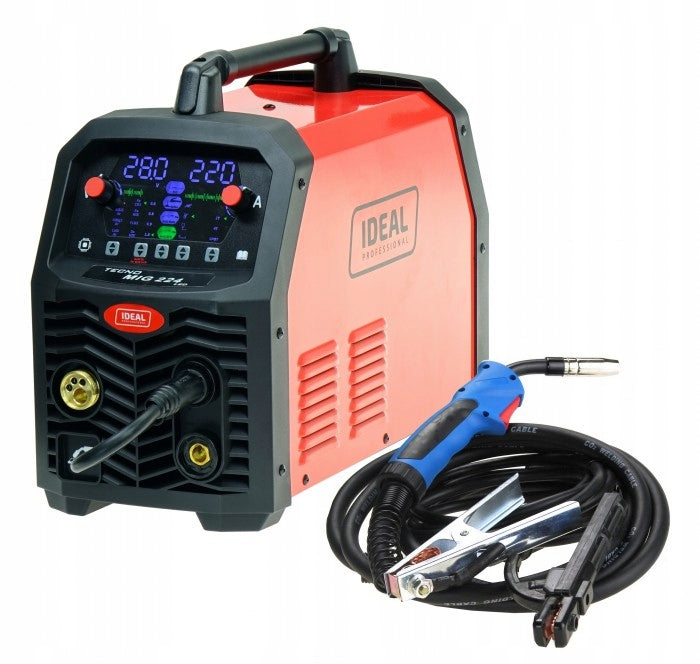

SET INCLUDES:

• Welding machine Ideal TECNO MIG 224 SYNERGIC LED
• Welding torch MIG/MAG type MB 15 - 3 m
• Electrode holder - 2,5 m
• Bulk holder - 2,5 m
• User manual in Polish
• Reducer with two pressure gauges

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	5.7 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	15 kg
Parametry	Welding range	30–220 A
Parametry	Height	370 mm
Parametry	Length	510 mm
Parametry	Width	230 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	200 cm
Parametry	Product weight with unit packaging	15 kg
Parametry	Manufacturer code	TMIG224LED
Parametry	EAN (GTIN)	5903991109958
Parametry	Model	TECNO MIG 224 SYNERGIC LED 4x4
Parametry	Welding methods	MIG/MAG,MMA
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
