Suvirinimo aparatas MIGOMAT MIG MAG MMA TIG SYNERGY PULS LCD

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT MIG MAG MMA TIG SYNERGY PULS LCD. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: WELDMAN SMART MIG 235 LCD
• Ilgis: 540 mm
• Plotis: 320 mm
• Aukštis: 450 mm

Manufacturer: WELDMAN || Welding methods: MIG/MAG, MMA, FLUX, TIG LIFT || Maximum welding current: 200A || Power supply: 230V

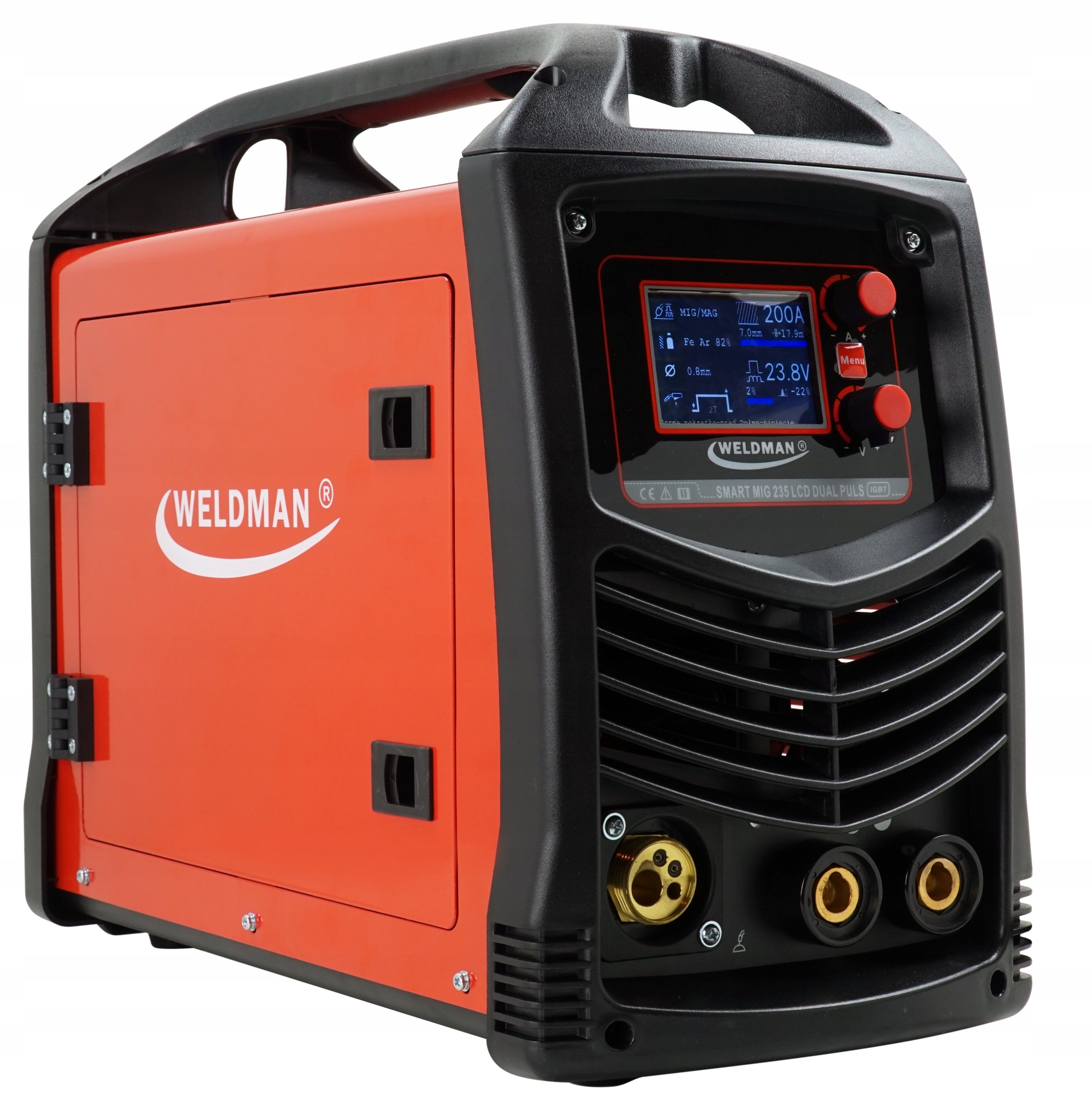

WELDMAN SMART MIG 235 LCD

✅can be operated in two modes: manual setting mode, welding mode with synergistic programs,

✅synergic programs for different material groups: steel, aluminium, stainless steel,

✅ Dual and Single Pulse MIG welding,

✅smooth regulation of welding voltage and wire feed,

✅regulation of MIG/MAG welding inductance in a wide range,

✅work in two modes: 2T or 4T.

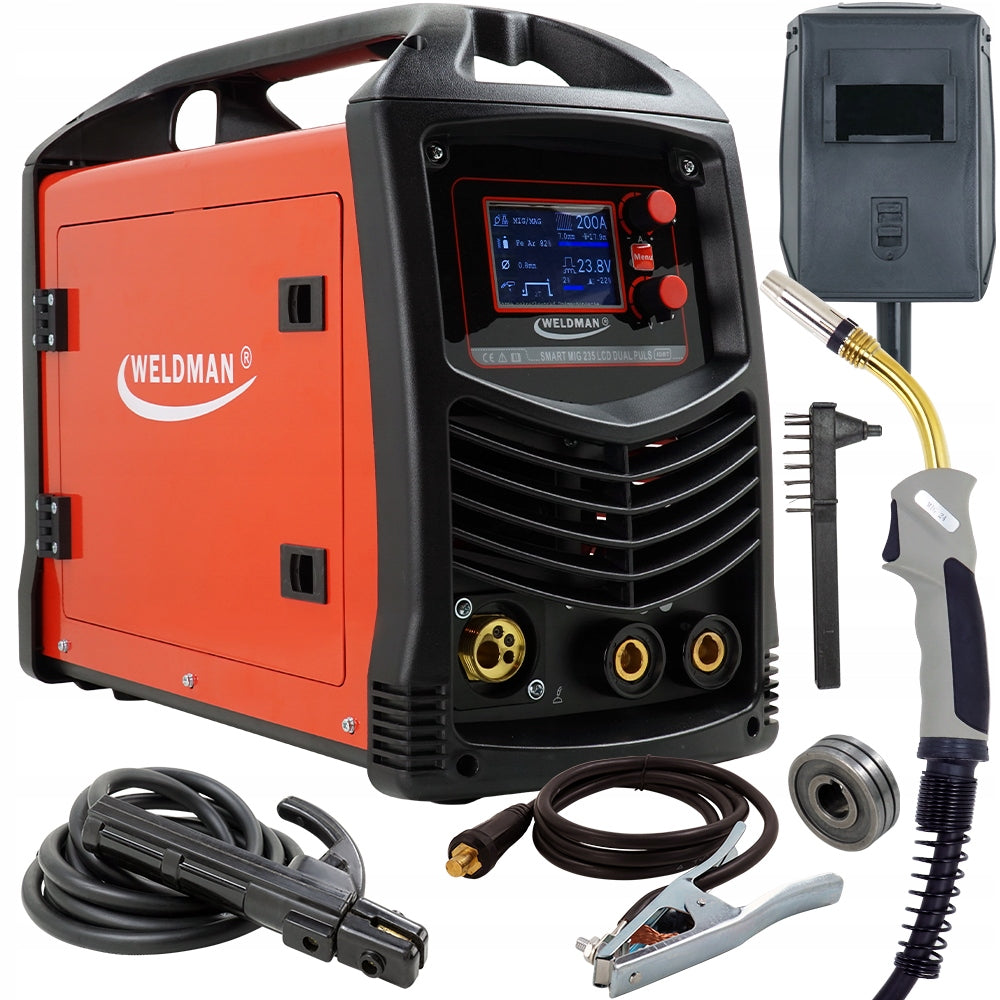

• Welding machine Weldman SMART MIG 235 DP - 1pcs
• MIG EURO MB 24 3m welding torch (pre-fitted for welding aluminium - armed with Teflon cartridge),
• MMA electrode holder
• Mass cable
• User manual in Polish

* set includes feeder rollers for steel and aluminum wire

+ ADDITIONAL ACCESSORIES INCLUDED IN THE PRICE OF THE DEVICE:

• welding disc
• brush-hammer.

SMART MIG 235 LCD SYNERGIA is made in IGBT inverter technology, thanks to which it is characterized by excellent welding parameters and small dimensions. It is powered from a single-phase network 230V and allows welding with a maximum current of up to 200 amps.

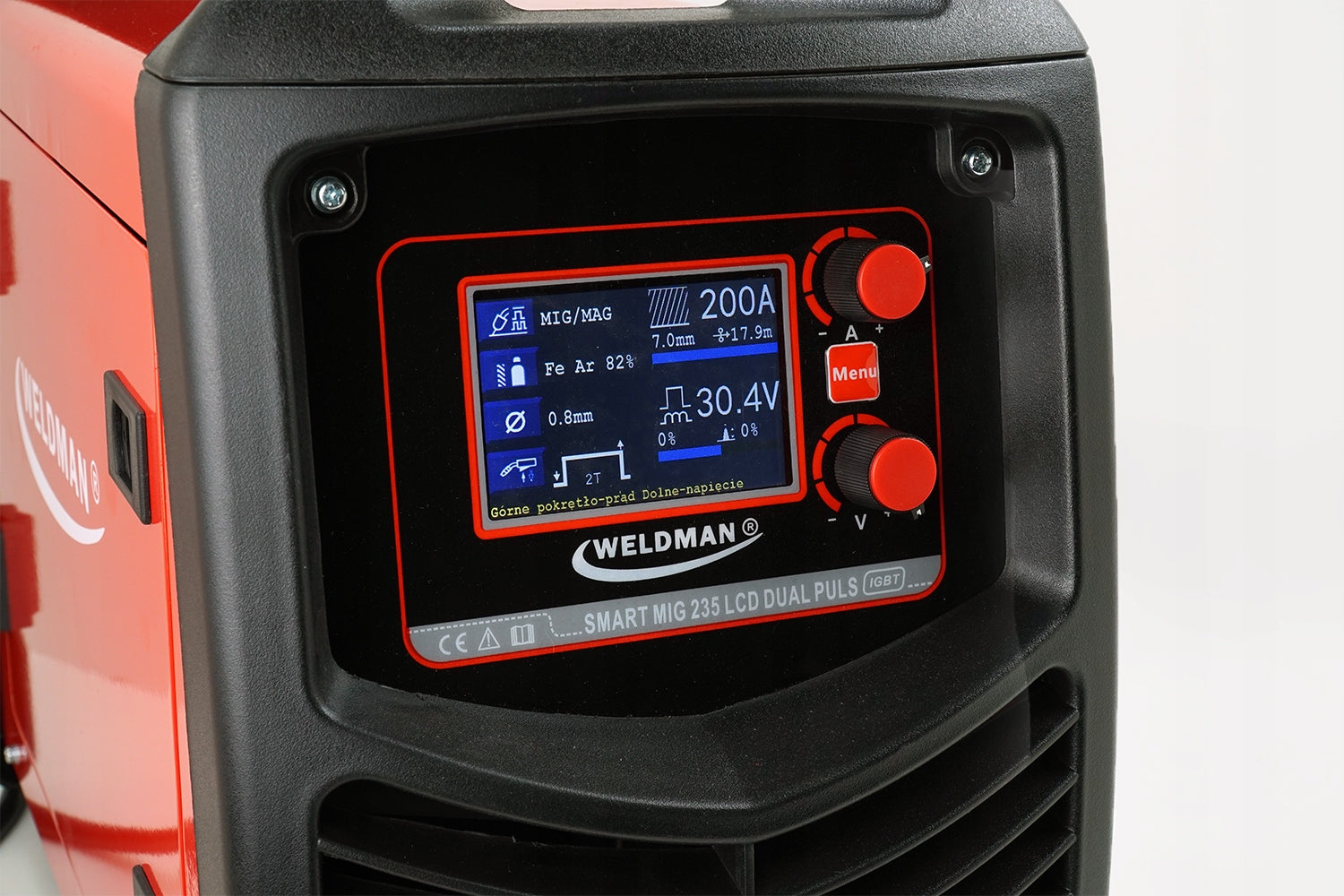

SMART MIG 235 LCD is equipped with a clear color LCD display. Thanks to the intuitive user interface, the operator has full control over the set parameters.

Even a novice user can take advantage of the professional opportunities that this migomat gives. Just choose the right program and you can act.

SMART MIG 235 is a versatile machine. It allows welding by up to three methods: MIG/MAG, MMA and TIG DC Lift. However, it should be remembered that it is primarily a technologically advanced migomat for welding various material groups.

Ideal for professional car workshop. It has features designed to repair the bodies of new and historic vehicles. Good machine for gainful work, but also for welding lovers.

PROFESSIONAL WIRE FEEDER

Professional 2R feeder - reliable and smooth wire feeding, thanks to the use of a proven feeder design.

CHANGE IN WELDING POLARITY

This device has the ability to change the polarity of MIG/MAG welding. Thanks to this, it can be welded using self-shielding wire - without the need for shielding gas.

• Supply Voltage: Single Phase 230V
• Technology: IGBT Inverter
• Degree of protection: IP 21
• Network Security: 20A
• Dimensions: 540x260x450mm
• Weight: 14kg

MIG/MAG welding parameters:

• Welding Current: 40 - 200A
• MIG/MAG duty cycle: 60% 200A / 100% 160A
• MIG/MAG welding voltage: smooth adjustment 16-24V
• Wire feed speed: smooth adjustment
• Spool with wire: max 5kg (D200)
• Wire diameter: 0,8/0,9/1,0/1,2 mm
• Welding polarity change: YES
• MIG holder EURO socket: YES

Advanced MIG/MAG features:

• Synergistic programs: YES
• Welding inductance adjustment: yes, smooth
• Operating Mode: 2T/4T
• Dual Pulse MIG Welding: YES
• Dual pulse parameter adjustment: YES, advanced
• MIG welding with pulse: YES,
• Pulse parameters adjustment: YES, advanced

MMA welding parameters:

• Welding Current: 20 - 180A
• Electrode diameter: 1,6 / 2,0 / 3,2 / 4,0
• MMA duty cycle: 60% 180A / 100% 150A
• MMA Welding Current Adjustment: Smooth

TIG welding parameters:

• Welding Current: 10 - 180A
• Output Current: DC Constant
• TIG duty cycle: 60% 180A / 100% 150A
• TIG welding current regulation: smooth
• Arch ignition: contact - TIG Lift*

* requires retrofitting with TIG handle with valve, which is available at our auctions.

PHOTO GALLERY:

Weldman is a Polish brand of welding equipment and equipment for the automotive industry. The brand’s offer includes MMA welding machines, MIG/MAG welding machines, TIG welding machines, plasma cutters and many other devices and accessories for the so-called. workshop technique.

Weldman brand products are characterized by high quality and attractive price. Satisfied users praise the products of this brand for reliability and interesting features, which are often available only in Weldman devices.
