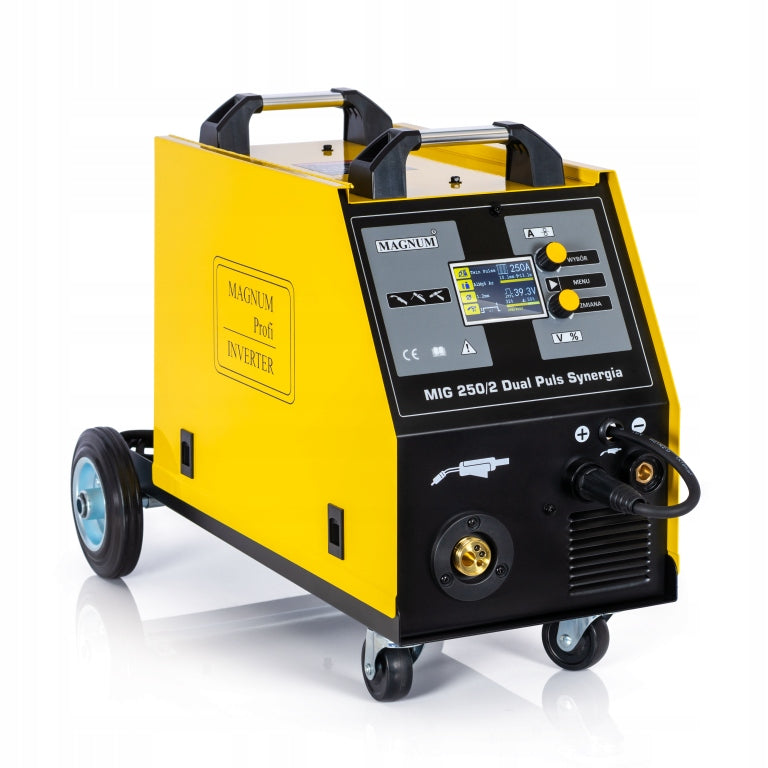

Suvirinimo aparatas MIGOMAT MIG 250/2 Dual Pulse Synergy 230/400V, 200/250A Magnum

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT MIG 250/2 Dual Pulse Synergy 230/400V, 200/250A Magnum. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MAGNUM MIG 250/2 RSH1
• Ilgis: 760 mm
• Plotis: 290 mm
• Aukštis: 530 mm

Inverter semi-automatic welding machine

Low alloy steel / Low carbon steel / Alloy steel / Acid resistant steel / Aluminium and its alloys

• full free post-purchase support
• You can call us at any time and we will help you set the parameters and operate the device

TECHNICAL PARAMETERS

• Power supply: AC 230 / 400 [V], 50/60 [Hz]
• Security required: 25 [A]/ 230 [V] C; 16 [A]/ 400 [V]
• MIG/MAG welding current 230V: 40- 200 [A]
• MIG/MAG 400V welding current: 40 - 250 [A]
• MIG/MAG welding voltage: 15 -26,5 [V]
• MMA/TIG welding current: 20/10 - 180 [A]
• Idle voltage: 64 [V]
• Wire diameter: 0,8/1,0/1,2 [mm]
• Reel size: D200/300, 5-15 [kg]
• Efficiency: 60 [%]
• Housing protection class: IP21S
• Weight: 25 [kg]

The Magnum MIG 250/2 Dual Pulse Synergy welding machine is a technologically advanced device designed for manual electric MIG/MAG, MMA and TIG Lift welding. With this device, we can weld low-carbon, low-alloy, high-alloy, stainless and acid-resistant steels, aluminum and its alloys, solder, etc.

Magnum MIG 250/2 Dual Pulse Synergy is designed for all kinds of welding work in locksmith workshops, repair workshops, automotive industry, factories, etc.

The device is dedicated to professionals who require the highest standards for welding equipment.

The power source is built on high-performance IGBT transistors, providing minimal electromagnetic interference and low power losses to increase the efficiency and reliability of the power source.

Very high efficiency, which translates directly into lower energy consumption, and high switching frequency, ensure rapid adjustment of the current to changes in parameters during welding.

The design and software combined with digital control allows you to achieve excellent welding parameters when welding any weldable materials.

CONNECTION TO WORK AND SERVICE

1. Platform for gas cylinder

2. LCD display

3. Multifunction button/knob for selecting welding method and other functions. After pressing and holding, we turn on the test wire extension

4. Input/output to device MENU

5. Multifunction button/knob for correcting voltage values, parameter changes: e.g. welding method, wire diameter. After pressing and holding, we turn on the test gas outflow

6. Selection of migomate polarity: GAS - (+) / FLUX - (-)

7. DX current socket

8. MIG handle socket type EURO

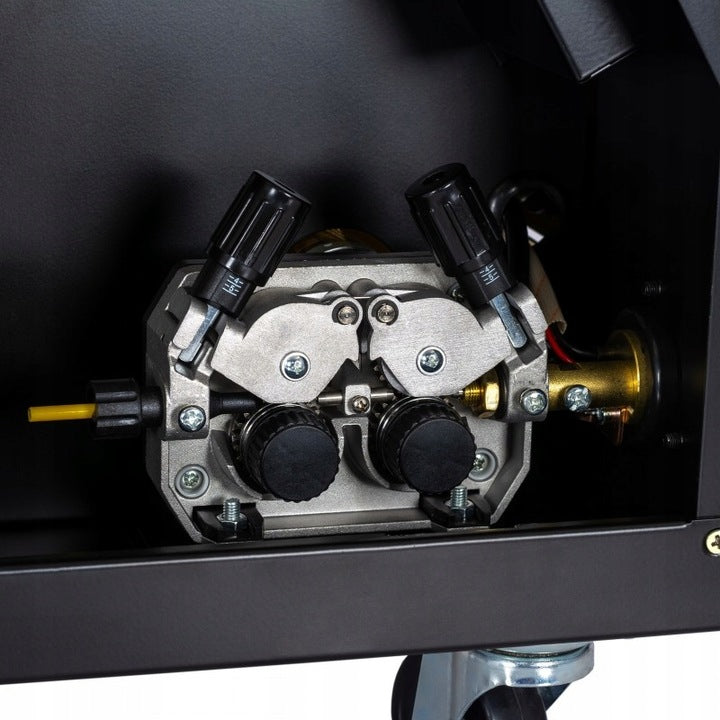

Professional 4 roller wire feeder

Professional 4 roller feeder ensures smooth wire feeding. It easily copes with long handles and large wire spools.

The welder supports D200 / D300 wire spools.

PRODUCT CHARACTERISTICS

• Possibility of power supply from 230V and 400V
• Welding MIG/MAG, MMA, TIG Lift, TIG Lift Pulse, point, point cyclic
• Single and double Puls
• Built-in synergistic programs Fe, AlMg5, AlSi5, CuSi3,CuAl8, E308, E316
• Regulation of gas outflow time before and after welding
• Regulation of the initial and final current values
• Regulation of the duration of the initial and final current
• Regulation of welding time at the point
• Regulation of break time (distance between points)
• Regulation of pulsation frequency
• Pulse Balance Adjustment
• Welding current amplitude height adjustment
• Correction of base and peak current voltage values
• Correction of wire burning height after welding
• Correction of wire access speed
• 35 channels to save your own settings
• Features 2T/4T/S2T/S4T
• Adjustable functions HOT START, ARC FORCE
• VRD function
• Selection of electrode type for MMA method
• Solid metal feeder 4x4

CHARACTERISTICS OF INDIVIDUAL FUNCTIONS OF THE DEVICE

• PULS - pulsed current welding affects the arc focus and weld shape. It also allows you to weld thin elements without deforming them. With the pulse function, the device produces two currents and jumps between them in micro cycles. Thanks to this, we obtain a very aesthetic weld

• DUAL PULSE Dual pulsed MIG welding is particularly applicable for welding aluminium and its alloys. Thanks to the use of a double pulse, with the appropriate setting of parameters, we obtain the possibility of obtaining a weld much more visually and qualitatively beautiful compared to the conventional MIG method. Correctly made by MIG method with double pulsation, the weld is aesthetically and qualitatively similar to the one obtained during TIG AC welding. However, the difference is that when welding MIG with double pulsation, we get much greater efficiency, and the welding process itself is much simpler than TIG welding.
• SYNERGY - is a function that facilitates the welding process. By specifying individual parameters (e.g. type of shielding gas, type of welded material, wire diameter or thickness of the material) the device will independently select the appropriate parameters with the possibility of their correction by the user.
• SPOT WELDING - a function that allows welding with equal points. This method is used in particular when combining thin body elements.
• LUTOSPWANIE is a variation of the MIG/MAG welding process, in which in the welding process the melting point of welding wires is much lower compared to the melting point of the native material. Thanks to the possibility of adjusting INDUCTANCE , we have control over the amount of binder supplied and the number of chippings. This method is recommended in particular when combining elements protected by a layer of zinc.
• FLUX - is a method of welding without the use of gas cylinders. Powder welding wire already contains flux, which during welding creates a protective atmosphere around the weld.

  Two-bar 2t - pressing the button initiates gas outflow and welding current,releasing the button turns off the welding current and gas outflow

  Four-point 4t -Pressing and releasing the handle button initiates gas outflow and welding current,Pressing and releasing the button again turns off the welding current and gas outflow

  S-2T -special double bar with HOT Start and end current (crater filling)

  S-4T -special four-bar with HOT Start and end current (crater filling),

• HOT START: hot start - facilitates the ignition of the electrode by providing more welding current with each arc.
• ARC FORCE: short-circuit current adjustment - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake
• VRD (Voltage Reduction Device) - reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments

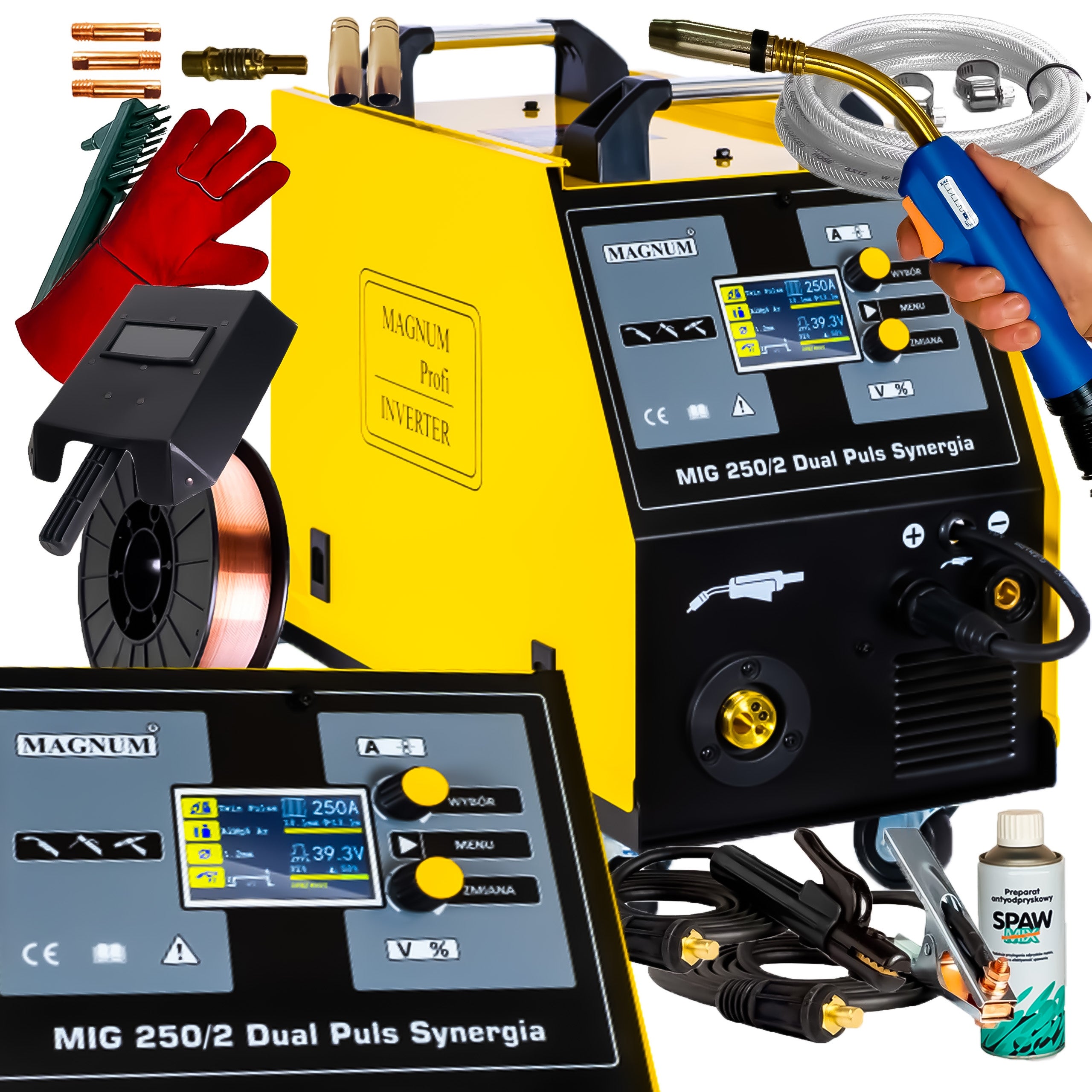

DELIVERY INCLUDES

• Semi-automatic welding machine
• Welding torch MB 24/3m
• mass handle
• electrode holder
• Wire 0,8/5kg
• Anti-chipping preparation
• Gloves
• Consumable parts for MIG holder
• Welding mask
• Gas line
• Brush
