Suvirinimo aparatas MIGOMAT MIG 200 Synergia LED 3in1 komplektas

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT MIG 200 Synergia LED 3in1 komplektas. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: Spawarka MIGOMAT TECNOMIG 202 HRS1 zes1

Manufacturer: Ideal ||| Welding methods: MIG/MAG, MMA, TIG DC Lift, FLUX ||| Maximum welding current: 200A ||| Power supply: 230V 1ph

Ideal TECNOMIG 202 LED - an improved version of the iconic model

TECNOMIG 202 LED is a new, improved version of the iconic IDEAL model, which for the last few years has been included in the group of the most valued model.

The manufacturer has updated the model with a new control panel, which is equipped with an LED parameter display. The device has an improved microcontroller that ensures the stability of the output parameters.

Find out why this might be a good choice for you:

• ✅new improved version of the iconic model,
• ✅built-in modern microcontroller,
• ✅excellent LED display,
• ✅for welding various material groups.

WELDING KIT MAG WITH CYLINDER 8l

This promotional set includes, among others:

• MAG welding starter kit with Ar/CO2 8l cylinder,
• additional welding accessories,
• always better price included - check it out!

TECNOMIG 202 LED is currently one of the most interesting proposals in its class. The device enables welding using MIG/MAG, FLUX (self-shielded wire), MMA (wrapped electrode) and TIG DC Lift methods. The device is made in inverter technology using IGBT power transistors. Built-in microcontroller provides good and stable welding parameters. The welder is powered from a single-phase 230V network.

DISCOVER THE IMPORTANT ADVANTAGES OF THIS WELDING MACHINE:

• ✅REGULATION OF WELDING INDUCTANCE - reduction of welding chips, control of face width and depth of melting. Thanks to the regulation of welding inductance, it is possible to lutoweld wire CuSi3 - used in bodywork repairs to connect galvanized car body sheets.
• ✅SYNERGIC MIG/MAG WELDING - a program that automatically selects the wire feed to the set welding current. Attention! The ability to choose the diameter of the welding wire and the type of gas - greater precision in the operation of Synergy.
• ✅ Operating modes 2T/4T - or two-bar and four-bar - choose the most convenient mode of operation in the MIG/MAG method depending on what weld you have to position,
• ✅ function VRD - Voltage Reduce Device - for MMA wrapped electrode welding - reduced voltage without load, good for welding in hazardous conditions.

Possibility of welding such materials as: alloy and non-alloy steels, aluminum alloys (MIG only), soldering of galvanized sheets.

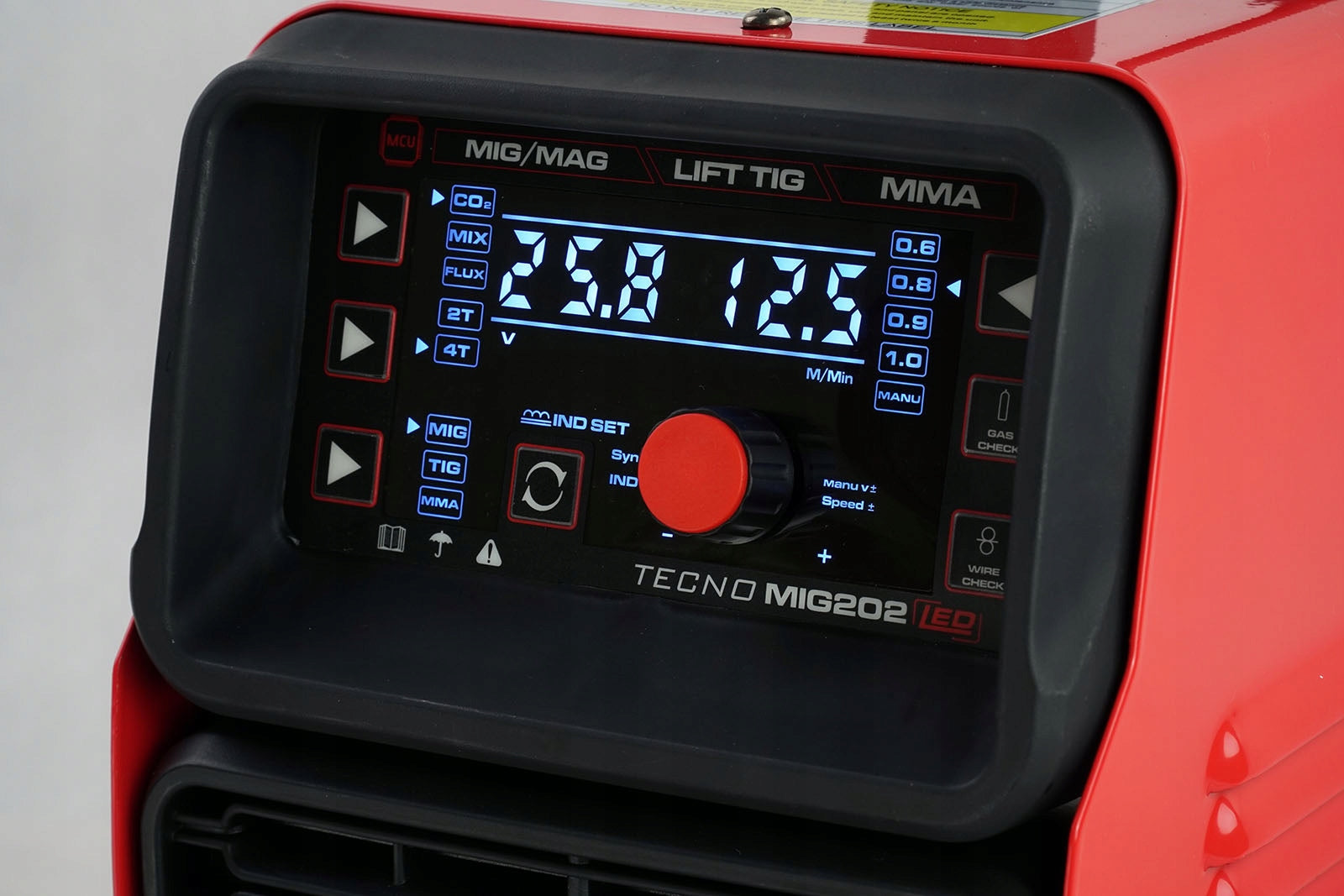

EASY-TO-USE, EASY-TO-READ CONTROL PANEL WITH LED DISPLAY:

IDEAL TECNOMIG 202 LED works in two MIG/MAG modes - in synergistic settings mode, where you can choose one of several welding programs. After selecting the program, the device automatically selects the wire feed to the set welding voltage. The user also has the ability to adjust the parameters to their own needs.

The ability to choose the manual setting mode, where parameters such as welding voltage and wire feed are set manually according to. individual needs of the user. Freedom of choice means great comfort during welding, regardless of the welding position, shielding gas and other factors, you will always choose the optimal welding parameters.

PROFESSIONAL WIRE FEEDER 2R

Uneven wire feeding threatens worse weld quality and more welding chipping. TECNOMIG 202 LED is equipped with a professional wire feeder with a two-roll mechanism that ensures its smooth and reliable feeding to the MIG welding torch.

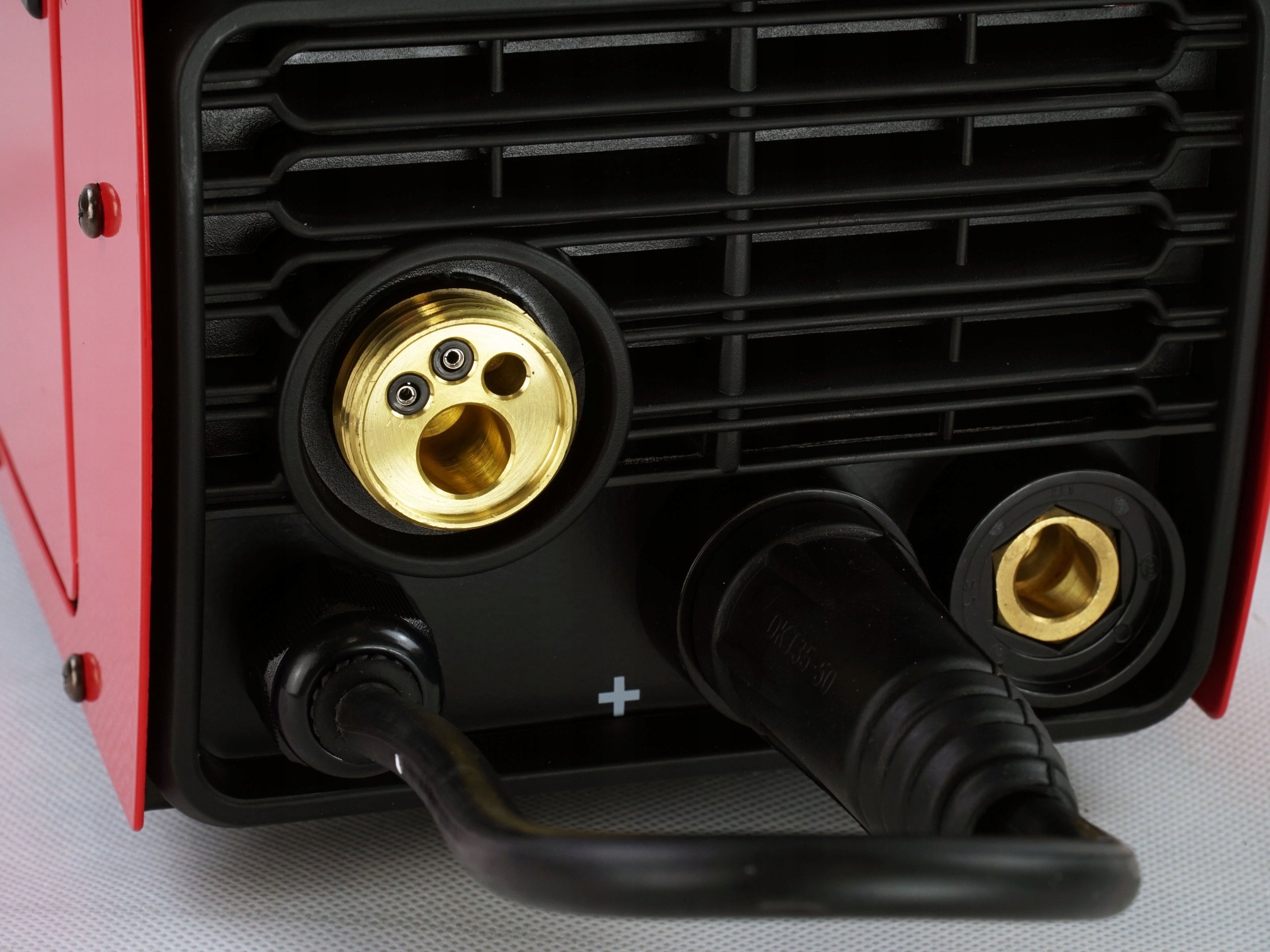

HIGH QUALITY EURO SOCKET

✅ The EURO socket used allows you to work with any MIG/MAG welding torch that complies with this international standard.

✅Quick change of welding polarity - welding in solid wire in gas shield or special self-shielding wire? A quick change of MIG/MAG polarity is the ability to quickly retool the device to current needs.

• Power Supply: 230V 1ph
• Welding methods: MIG, MAG, MMA, TIG Lift, FLUX
• Maximum welding current: 200A (MIG/MAG)
• Current taken from the mains: 34A
• Maximum power consumption: 6,2 kW / ~7,6 kVA
• Network Security: 25A C
• LED Display
• Degree of protection: IP21S
• Dimensions: 455x170x300 mm
• Net weight: 10kg

MIG/MAG welding parameters:

• Welding Current: 50 - 200A
• Working cycle 60%: 200A
• Working cycle 100%: 155A
• Welding Voltage: Smooth Adjustment
• Wire diameter: from 0,6mm to 1,0mm
• Reel Size: D200
• Spool weight: up to 5kg
• MIG/MAG Inductance Regulation: YES
• Operating Mode: 2T/4T
• MIG/MAG manual setting mode: YES
• Wire Test: YES
• Gas test: YES

MIG/MAG synergy settings:

• Programs: CO2, MIX, FLUX
• Wire diameter selection: 0,6 / 0,8 / 0,9 / 1,0 mm
• Correction of synergy parameters: YES

MMA welding parameters:

• Welding Current: 10-160A
• Working cycle 60%: 160A
• Working cycle 100%: 124A
• Idle Voltage: 74 V
• VRD Function: YES

TIG welding parameters (optional):

• Welding Current: 10-200A
• Working cycle 60%: 200A
• Working cycle 100%: 155A
• Output Current: DC Constant
• Arch ignition: rubbing - TIG Lift
• Requires TIG handle with valve

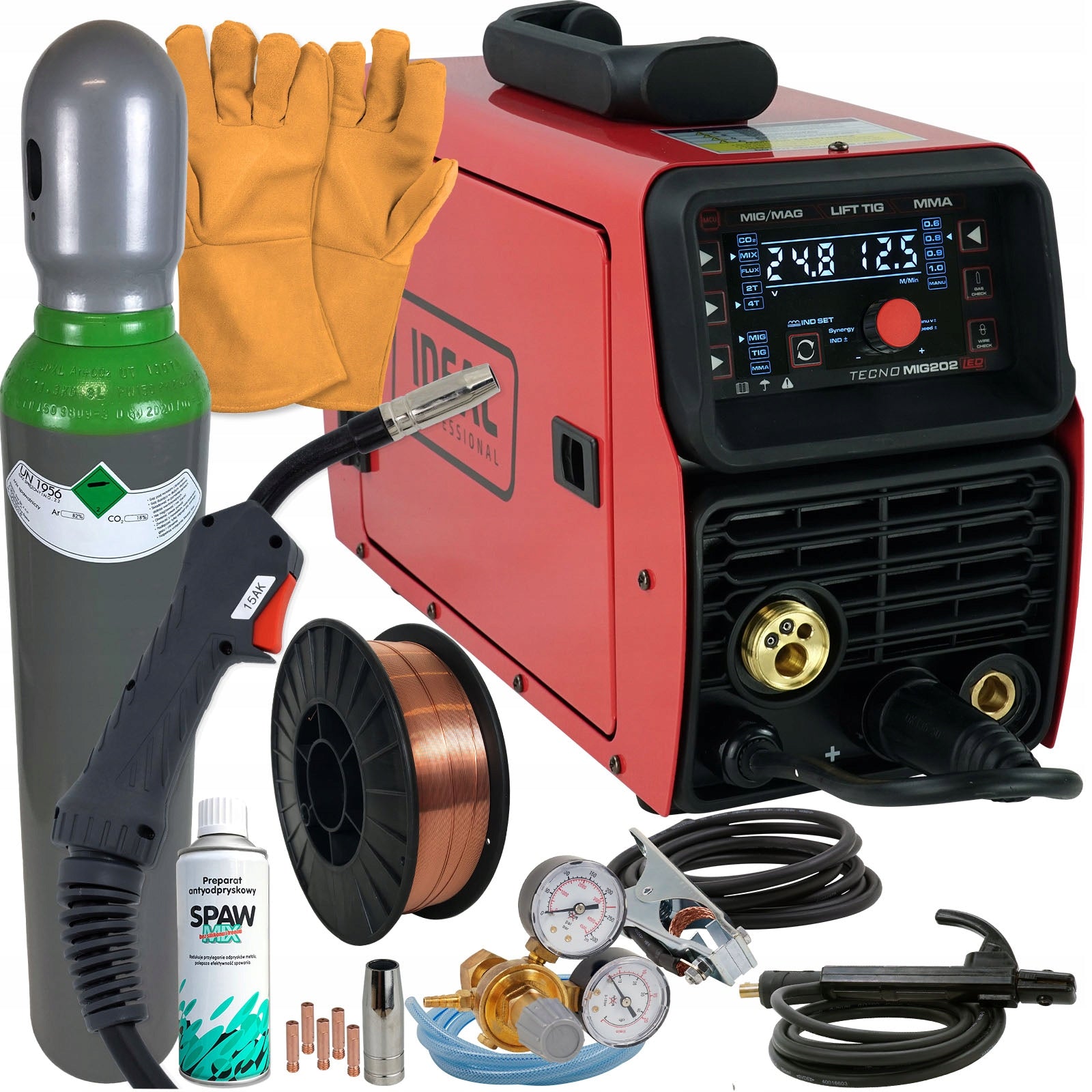

• Welding machine IDEAL TECNOMIG 202 LED Synergy
• MIG MB15/3m welding torch
• MMA Electrode Cable
• Bulk cable
• User manual PL

+ MAG WELDING KIT WITH CYLINDER Ar/CO2

• Bottle Ar/CO2 8l- has the approvals and approvals required by the filling points of the cylinder,
• steel welding wire SG2 - 0,8mm x 5kg,
• reducer Ar/CO2 with two clocks,
• gas line.

+ WELDING ACCESSORIES

• welding gloves,
• anti-chipping preparation for industry - spray 400ml,
• spare parts of the MB15 burner.

Specifications
