Suvirinimo aparatas MIGOMAT MIG 200 MMA Synergy Aluminium

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT MIG 200 MMA Synergy Aluminium. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: IDEAL TECNO MIG 205 NEW SYNERGIA LCD Z2

MIG/MAG, FLUX, Soldering, TIG Lift, MMA | Power supply: 230V | SYNERGY | LCD DISPLAY | Manufacturer: Ideal

IDEAL TECNOMIG 205 LCD Synergy - better welding with synergistic flash

Great migomat with synergy! It has built-in programs for welding ordinary steels, stainless and acid-resistant steels, aluminum alloys, soldering (CuSi, CuAl) and Flux (welding "without gas").

A clear LCD display with excellent contrast will allow you to easily adjust this small flash with great possibilities.

ENHANCED MIG WITH LCD SYNERGY - MAXIMUM WELDING CURRENT MIG/MAG 200A!

IDEAL TECNOMIG 205 SYNERGY LCD - POWERFUL MIG 3in1 WITH LCD DISPLAY

Ideal TECNOMIG 205 LCD Synergy is a technologically advanced welding device for MIG/MAG, MMA, TIG DC Lift, self-shielding wire and CuSi3 soldering. The device is powered from a single-phase 230V network and allows maximum current welding in the MIG/MAG method up to 200A.

TECNOMIG 205 Synergy LCD has been designed for a wide range of applications: from maintenance work to car body repairs. It is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas, active gas or Ar/CO2 mixture and with reverse polarity without gas.

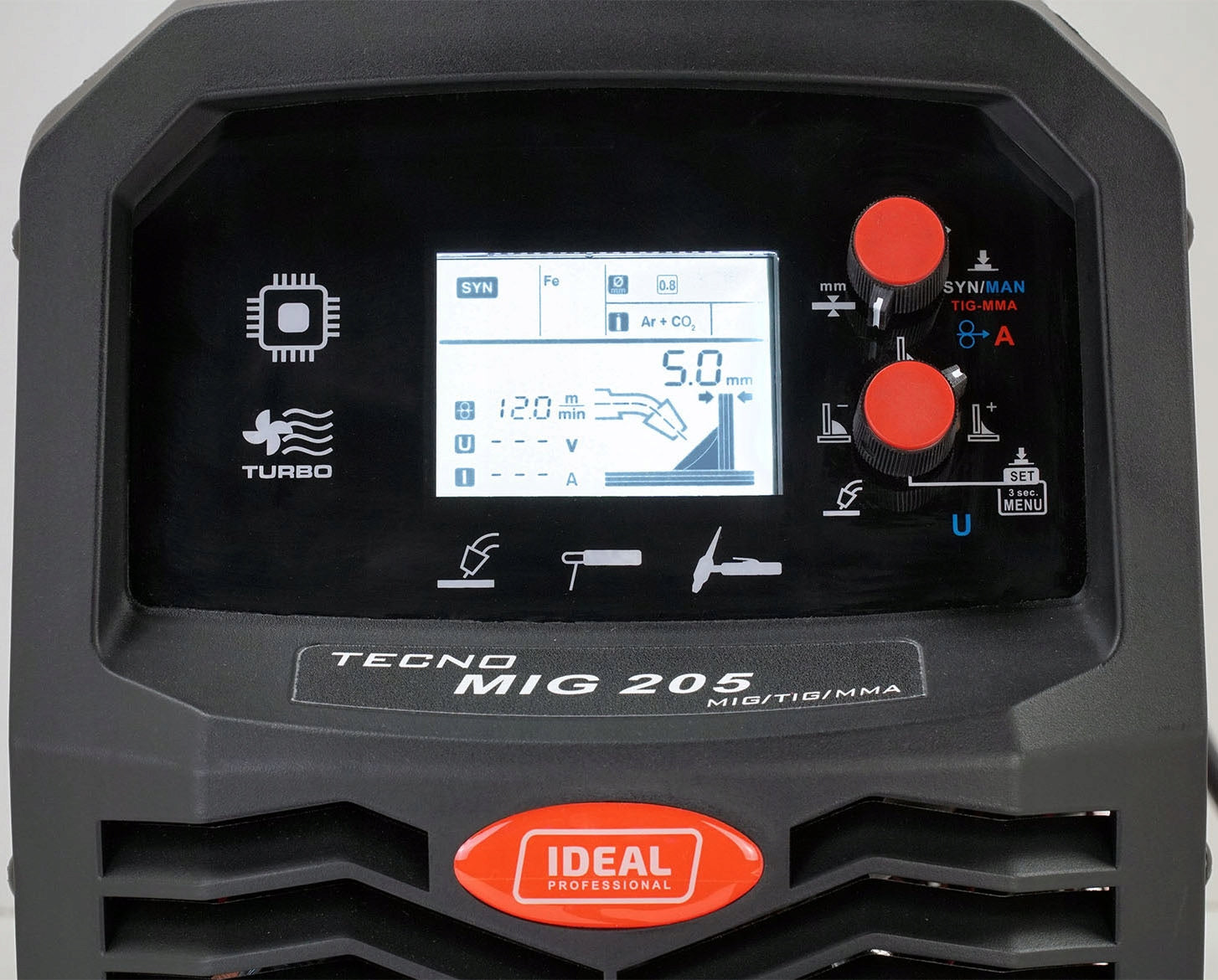

LCD DISPLAY WITH EXCELLENT CONTRAST

Nothing makes it easier to manage synergistic functions flashes like a good contrast LCD display. On one screen you will see all the currently selected and set parameters.

The user can choose whether to use synergistic programs or weld in manual settings mode. When using Synergy, it is enough to choose the type and thickness of the welded material. Of course, it is possible to make adjustments to the selected program.

ADDITIONAL FEATURES THAT MAKE A DIFFERENCE:

• ATC - optimization of arc characteristics when welding thin elements,
• regulation of welding inductance - control of face width and depth of melting,
• regulation of the feeder access speed,
• Burn Back - regulation of wire burning time,
• regulation of gas outflow after welding,
• MIG/MAG spot welding.

NOTE: The display also shows the influence of parameter values on the shape of the weld face.

PROFESSIONAL WIRE FEEDER 2R

This Migomat is equipped with a professional welding wire feeder 2R. It ensures stable feeding, which translates directly into good welding parameters. The drive transmission mechanism is resistant to various types of dirt that occur in workshop conditions.

ADVANTAGES OF THE DEVICE:

• maximum MIG/MAG welding current up to 200A,
• MIG/MAG welding in manual setting mode or using synergistic lines,
• synergistic MIG/MAG programs for different material groups: steel, non-stained steel, aluminum, soldering, self-shielding wire welding,
• additional MIG/MAG welding functions that improve welding quality,
• EURO socket,
• possibility of MMA and TIG DC Lift welding,
• easy installation of spool with D100 (up to 1kg) and D200 (up to 5kg) wire.

MIG 205 LCD SYNERGY ENABLES WELDING BY THE FOLLOWING METHODS:

• MIG/MAG - welding with a hot melt electrode (in the form of wire wound on a spool) in a gas shield. It is a popular welding process that is characterized by high efficiency and good quality of the welded joint. Semi-automatic MIG/MAG welding is one of the most popular methods both in workshop conditions as well as in high-performance production. This method is also relatively easy to learn by novice users.
• FCAW (FLUX) - a popular variant of the MAG method - semi-automatic welding with a hot melt electrode (welding wire on a spool). The main difference is that it is welded with a special self-shielding wire, which does not require the use of shielding gas. Simplifying, we can say that this method combines two processes: MAG welding and MMA electrode welding.
• MMA - the oldest variety of arc welding - the so-called. welding with a wrapped electrode. This is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded.
• TIG DC with facilitated contact arc LIFT. TIG welding is the process of joining details with a non-melting electrode in an inert gas shield. The role of the non-melting electrode is played by a rod made of pure tungsten or tungsten refined with oxides. In the process of welding with a non-melting electrode, it is most often required to add an additional binder, but there are cases when it is not necessary. It can be said that the TIG welding process resembles gas welding with the difference that the heat source is an electric arc. By welding TIG we have the opportunity to obtain a weld of high quality, excellent strength parameters and excellent aesthetics. This process is almost surgical precision.

IMPORTANT: MIG 205 LCD is a 3w1 migomat. The factory welding machine is equipped with a set of wires for MIG/MAG and MMA welding. To be able to use the TIG welding function, it is necessary to purchase an additional TIG Lift handle with valve.

• Power Supply: 230V
• Welding methods: MIG, MAG, MMA, TIG DC Lift, FLUX
• Working cycle: 60%
• Current taken from the mains: 20,3A
• LCD display
• Degree of protection: IP23S
• Dimensions: 540x240x385 mm
• Net weight: 16kg

MIG/MAG welding parameters:

• Welding Current: 35 - 200A
• Current at 60% duty cycle: 200A
• Current at 100% duty cycle: 160A
• Welding Voltage: Smooth Adjustment
• Wire feed speed: smooth adjustment
• Synergistic programmes: YES
• MIG/MAG spot welding: YES
• Function of ATC

• Diameter of aluminum wire: 0,8 - 1,0 mm
• Wire diameter for soldering: 0,8 - 1,0 mm
• Self-shielding wire diameter: 0,8-0,9 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Stainless steel wire diameter: 0,8 - 1,0 mm

MMA welding parameters:

• Welding Current: 20-150A
• Idle Voltage: 64V

TIG welding parameters (optional):

• Welding Current: 20-150A
• Output Current: DC Constant
• Arch ignition: rubbing - TIG Lift

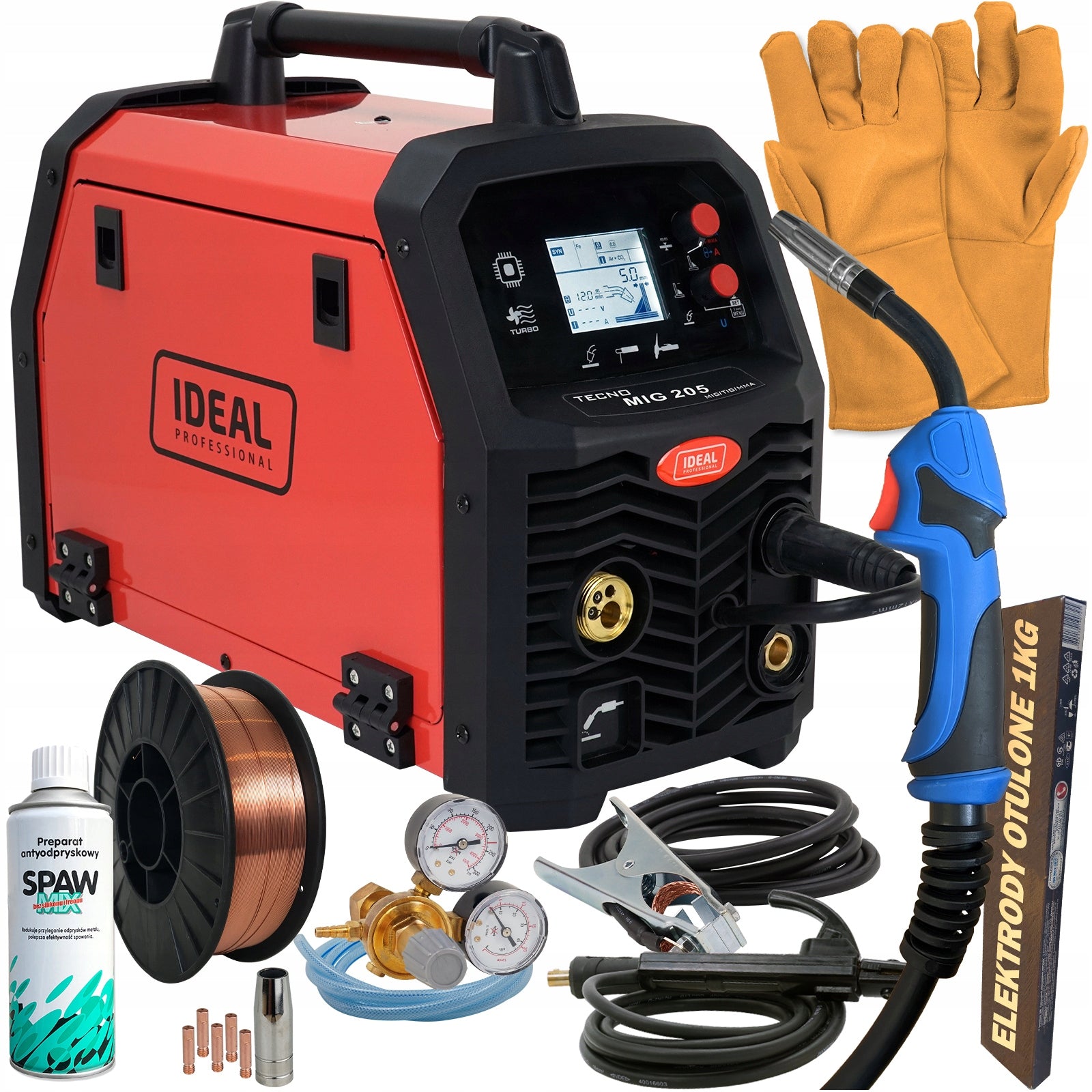

• Welding machine Ideal TECNOMIG 205 LCD Synergy - 1pcs
• MIG EURO MB 15 3m welding torch
• MMA Electrode Holder
• Bulk cable
• User manual

+ SET OF ACCESSORIES FOR WELDING MAG*

• steel welding wire SG2 - 0,8mm x 5kg,
• reducer Ar/CO2 with two clocks,
• spare parts of the MB15 burner,
• gas line.

*just connect to the shielding gas cylinder

+ WELDING ACCESSORIES:

• recognized anti-chipping preparation SPAWMIX spray 400ml,
• welding gloves,
• MMA welding electrode starter kit.
