Trumpai apie prekę
Prekė: Suvirinimo aparatas MIGOMAT MIG 170 W MMA IGBT MAGNUM. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: MIG-MMA 170 W
Professional semi-automatic welding machine
The offered set includes:
– direct welding torch permanently mounted in the machine
– mass cable with clamp
– cable with electrode holder
– power cord
– transport wheels
– welding mask
– welding brush
- hose for gas 1m
- 2 worm bands

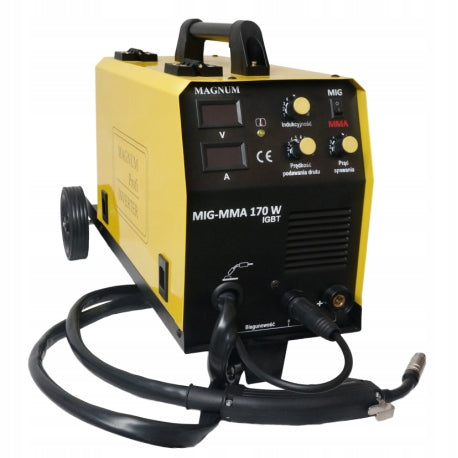

Inverter semi-automatic welding machine MIG 170 W MMA IGBT MAGNUM
The MAGNUM MIG-MMA 170 W IGBT series is a professional semi-automatic welding machine designed for manual, electric welding of low carbon steel, low alloy steel (MAG), alloy steel (MIG) and aluminum and its alloys.
The device can also be welded using MMA method using hot melt coated electrodes. It is designed for all kinds of welding work, in locksmith workshops, repair workshops, industrial, factories, etc.
The power source was built on IGBT transistors providing a minimum of electromagnetic interference, enabling increased efficiency and reliability of the power source, lower energy consumption, and rapid adjustment of the current to changes in parameters during welding.
SUMMARY OF PRODUCT CHARACTERISTICS
- Single-phase power supply
- Lightweight and very compact, can be easily transported both inside and outside buildings
- Drive chassis - the device is equipped with a drive chassis, thanks to which it is very easy to move the welding machine. It also has a cylinder shelf
- Safely overload - built-in protection against overheating of the device, prolonging its service life.
- Polarity change for FLUX welding without shielding gas
- Maximum spool with wire: 5 kg
- Smooth adjustment of welding current
- With MIG-MAG welding, the possibility of adjusting: welding current, wire feed speed
- Wire feeder: internal, 2-roll, with 0,6-0,8mm roll for steel wire
- Fan-cooled
TECHNICAL PARAMETERS
- Power supply 230 V / 50 Hz
- Welding current mig 30 - 160 A
- MMA welding current - 30-160A
- Max diameter of MMA electrode - 3,25mm
- Efficiency 60 %
- Welding voltage 16,5 - 23 V
- Applied spool weights 1-5 kg
- Wire diameter 0.6 / 0.8 mm
- Housing protection IP21S
- Power protection 16 A
- Cooling Fan
- Idle voltage 56 V
- Weight 12 kg
- Dimensions: 520x230x300 mm
- Dimensions (with chassis): 660x320x400mm
DELIVERY CONTAINS
Semi-automatic welding machine
Welding torch permanently mounted in the machine
Bulk cable
Electrode cable
Welding shield
Welding hammer with wire brush
Reinforced hose 1m + 2 worm bands
Operating instructions
Warranty card
Purchase document
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Power consumption | 5.8 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 3.2 mm |
| Parametry | Wire diameter (mm) | 0,6-0,8 |
| Parametry | Device weight | 12 kg |
| Parametry | Welding range | 30–160 A |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 200 cm |
| Parametry | Product weight with unit packaging | 15 kg |
| Parametry | Manufacturer code | MIG-MMA 170 W |
| Parametry | EAN (GTIN) | 5901209100056 |
| Parametry | Welding methods | MIG/MAG,MMA |
| Parametry | Additional features | transport wheels,welding mask included,infinitely adjustable welding current,LCD display |
