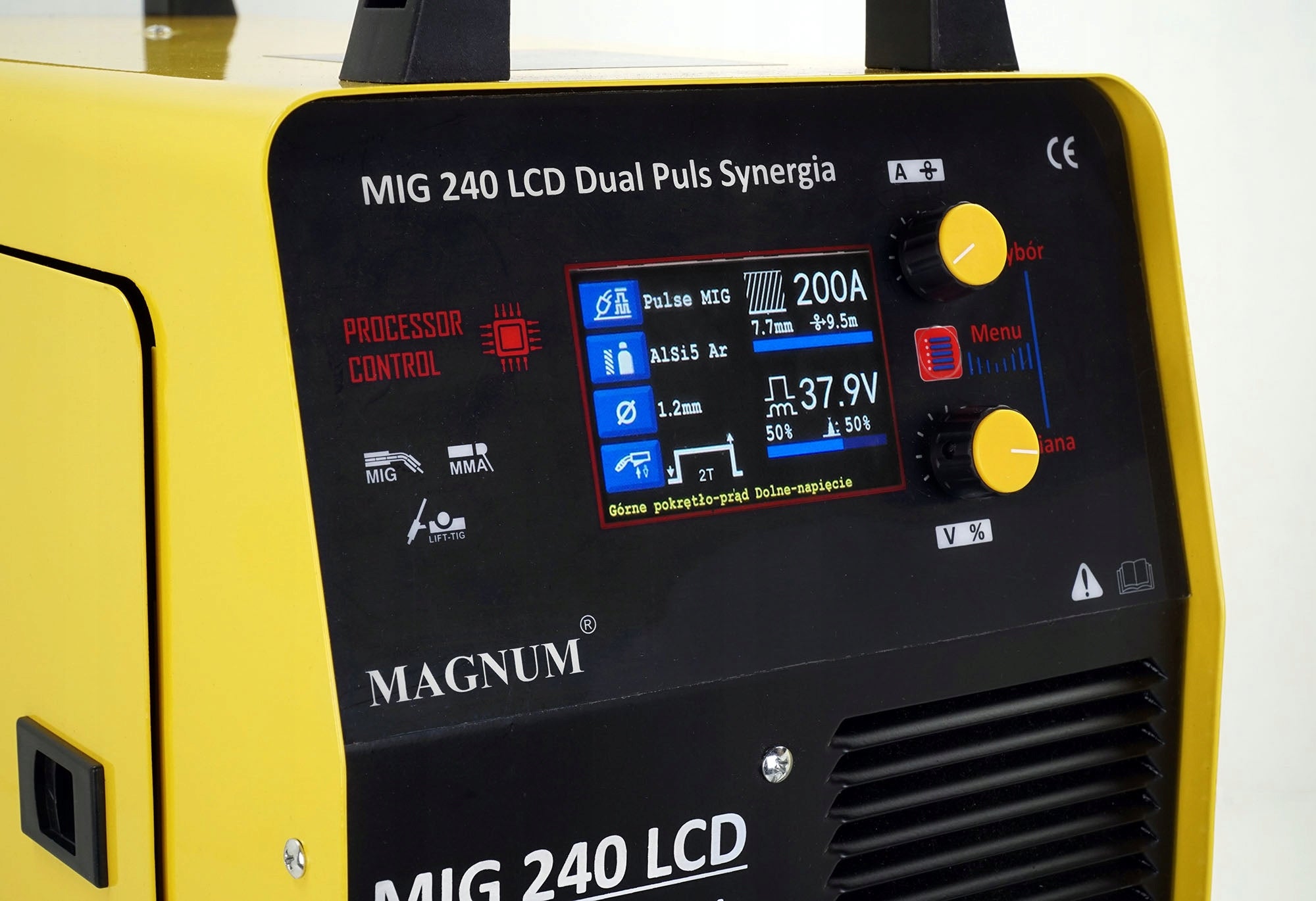

Suvirinimo aparatas MIGOMAT MAGNUM MIG 240 Dual Pulse LCD Syn

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT MAGNUM MIG 240 Dual Pulse LCD Syn. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 240 LCD

Welding methods: MIG/MAG, MMA, TIG DC, FLUX | Important functions: Pulse, Dual Pulse, Synergy | Welding current: to 200A

DUAL PULSE MIGOMAT - A GOOD CHOICE FOR WELDING ALUMINUM AND MORE

Magnum MIG 240 LCD Dual Pulse Synergy is the latest, improved version of MIG for welding black steel and other demanding alloys such as aluminum and stainless steel. The device is made in modern inverter technology and allows welding using the following methods: MIG/MAG, MMA, TIG DC Lift and self-shielding wire without gas.

Magnum MIG 240 LCD Dual Pulse Synergy is packed with advanced features that enable high-quality welding not only of black steel, but also of aluminum and stainless steel.

MIG welding with pulse

In MIG welding with so-called. With a pulsating arc, the end of the electrode wire melts accelerated, forming and peeling off metal droplets. The resulting welding arc and metal flow characteristics from the end of the wire to the welding lake, ensure better quality of the welded joint and less chipping. Pulsed MIG welding also reduces thermal deformations caused during welding. This process is recommended for use e.g. during welding of stainless and acid-resistant steels.

Dual pulse MIG welding - a great program for welding aluminum

Dual pulsation MIG welding is particularly useful for welding aluminium and its alloys. Thanks to the use of a double pulse, with the appropriate setting of parameters, it is possible to obtain a weld that goes far beyond the capabilities of the conventional MIG method.

A well-made MIG weld with double pulsation is aesthetically and qualitatively similar to the welded joint obtained by TIG AC method. However, the difference is that during double pulsation MIG welding much higher efficiency is achieved, and the semi-automatic welding technology itself is much simpler for the operator than TIG welding.

Magnum MIG 240Dual Pulse Synergy - has advanced regulation of double pulse parameters

DURABLE COMPACT CONSTRUCTION WITH GAS CYLINDER CHASSIS

MIG 240 LCD Dual Pulse is a compact design with solid wheels and front swivel axle. The chassis for the gas cylinder allows you to compose a mobile welding kit. But this is not the only pleasant surprise and asset - the rest later in the description.

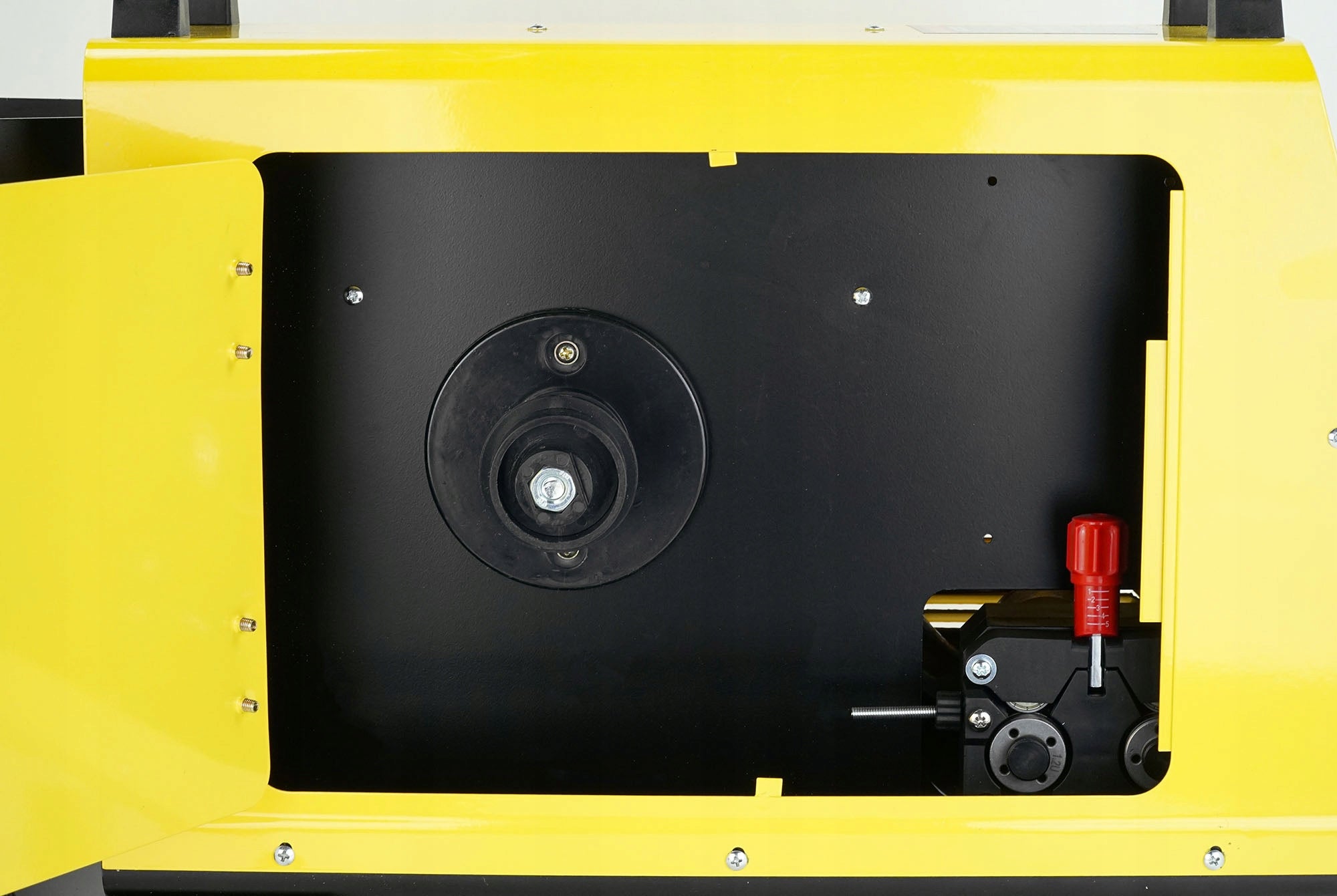

PROFESSIONAL 4x4 WIRE FEEDER

Professional wire feeder 4R (4x4) - is a reliable wire feeding regardless of the weight of the spool and the type of welding wire. The proven feeder mechanism has a big impact on the smoothness of wire feeding, and this already translates directly into the welding parameters of the device.

Importantly - thanks to the use of a wire feeder with a four-roll mechanism, you can use MIG handles up to 5 meters long. And additional meters of handle length, when using compact devices with a built-in feeder, are often of great importance when welding various types of structures, etc.

• Power supply: 230V
• Welding methods: MIG, MAG, MMA, TIG DC Lift, FLUX
• MIG/MAG synergy function: YES
• Maximum welding current: 200A
• Working cycle: 60% 200A
• Security Required: 25A
• Housing Protection Class: IP21S

Basic MIG/MAG welding parameters

• Welding Current: 30 - 200A
• Welding Voltage: Smooth Adjustment
• Wire diameter: 0,8 / 1,0 /1,2mm - depending on the type of wire.
• Wire spool weight: max. 5kg (D100/D200)
• Regulation of MIG/MAG welding inductance
• Welding polarity change: YES

Advanced MIG/MAG welding functions

• MIG welding with pulse: YES
• Adjustable MIG pulse parameters: YES
• Dual Pulse MIG Welding: YES
• MIG DUAL PULS parameter adjustment: YES
• Operating modes: 2T/4T/S4T/Point - adjustment of parameters suitable for a given operating mode.
• Synergistic MIG/MAG programs: YES - suitable for specific material groups
• Gas before, gas after: YES
• Wire Burning Time Adjustment (Burn Back): YES
• Selection of thickness of welded material: YES

TIG welding parameters

• Output Current: DC - Constant
• Welding Current Adjustment: Smooth
• Arch Initiation: TIG Lift (Contact)
• TIG welding with pulse: YES

MMA welding parameters

• Welding Current: Smooth Adjustment
• Additional MMA Features: YES

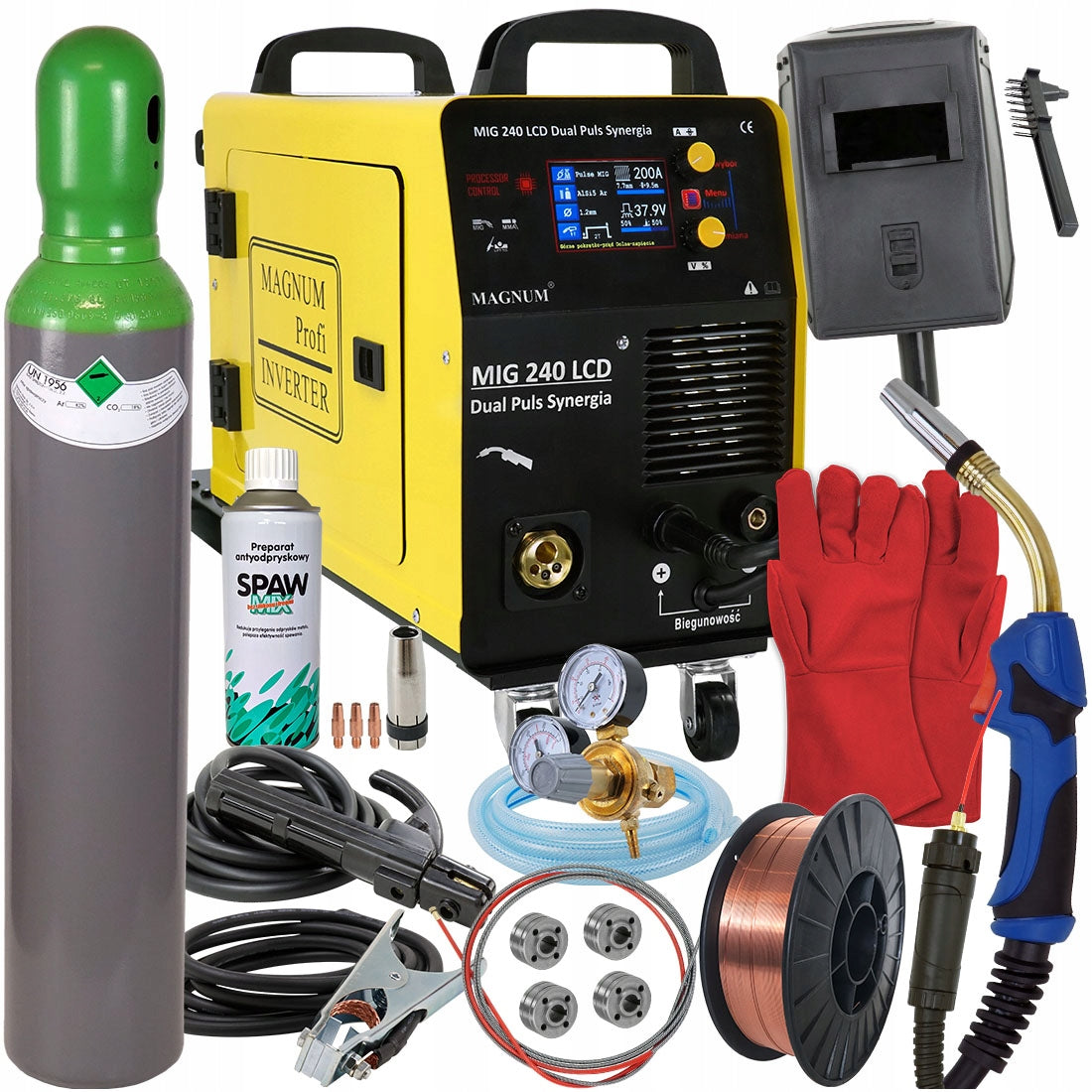

WELDING SET COMPOSED BY A PERSON WITH MANY YEARS OF EXPERIENCE IN THE INDUSTRY - A GOOD CHOICE

• Device Magnum MIG 240 Dual Pulse Synergy
• Welding torch MIG EURO MB 24 3m*
• MMA electrode holder
• Mass cable
• User manual PL

+ ADDITIONAL ACCESSORIES FOR FREE

• set of feeder rollers for welding steel and aluminum,
• spiral guide cartridge for steel wire (red),
• Teflon guide cartridge (red, armed handle),
• welding disc,
• brush-hammer.

+ MAG WELDING KIT WITH 8L CYLINDER

• factory new cylinder Ar/CO2 8l (so-called. mixture) - has all the necessary certificates - reusable, it can be filled or replaced at gas sales points,
• welding wire steel SG2 5kg 0,8mm (D200),
• reducer Ar/CO2 with two clocks,
• gas line.

+ SET OF ACCESSORIES FOR WELDING MAG

• anti-chipping preparation SPAWMIX 400ml,
• welding gloves,
• starter set of burner parts.

Specifications
