Suvirinimo aparatas MIGOMAT MAGNUM 200a 220 ALU CU 3 230V

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT MAGNUM 200a 220 ALU CU 3 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: 220 ALU SYNERGIA LCD

Manufacturer: MAGNUM ║ Welding methods: MIG/MAG, MMA, TIG DC, FLUX ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

• MIG/MAG-Welding in synergistic and manual mode
• TIG DC-Welding black steel praz stainless steel
• FLUX- Wire welding without the use of gas method useful during air welding.
• MMA-Traditional electrode welding

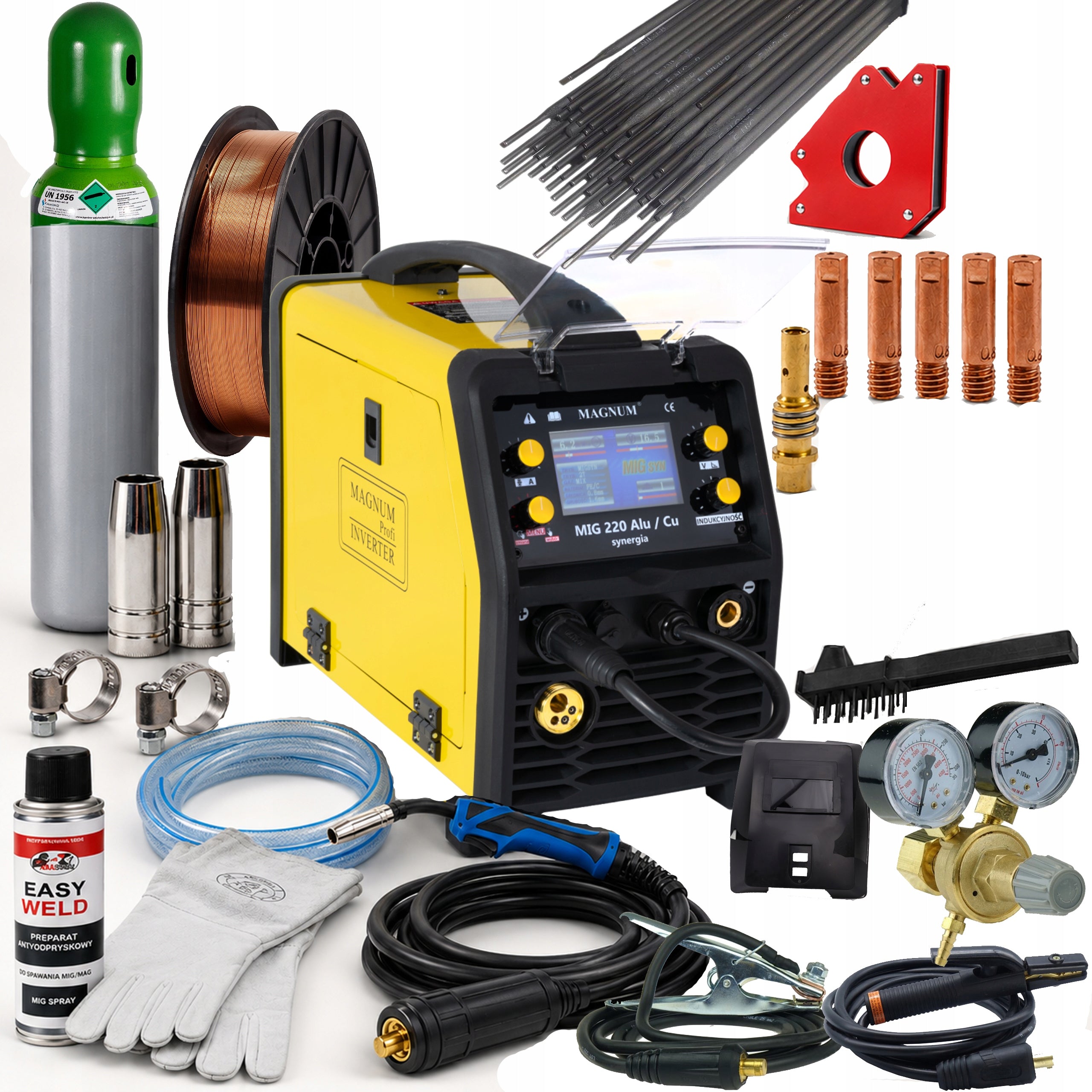

Migomat Magnum 200A set.

• Welding machine Migomat MAGNUM MIG 220 ALU SYNERGY
• Holder for migomate
• Electrode holder
• Bulk Holder
• Roller for migomate for welding steel 0,8/1,0 -1 pcs
• Aluminium welding roller 1,0/1,2 -1 pcs
• Teflon cartridge 3m for aluminium

• 8L blend bottle, brand new, with 10 years legalization and protective cap
• Welding wire 0,8 mm – spool 5 kg
• Wrapped electrodes – pack of 1 kg
• 2-clock reducer with pressure gauges for gas pressure and flow
• Connection cable for cylinder and reducer
• Flame retardant gloves for MIG welding
• Welding angle ESAB
• OPN anti-chipping preparation
• 2 nozzles MB 15 for MIG holder
• 5 current terminals MB 15
• 1 gas connector for MIG holder
• 2 cable ties

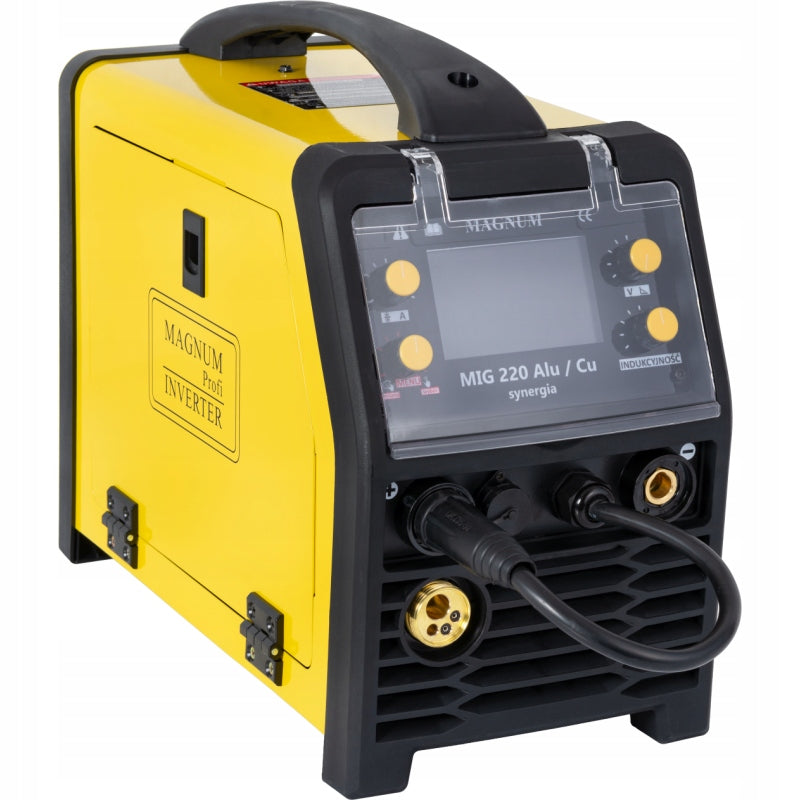

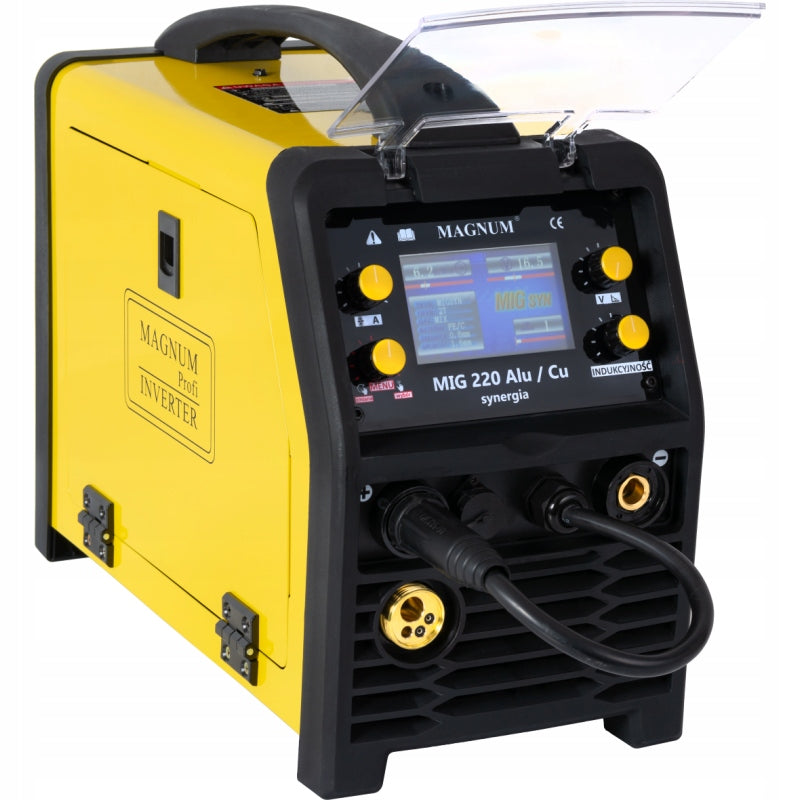

The MIG 220 ALU SYNERGIA welder by MAGNUM is a lightweight, portable semi-automatic welding machine made using inverter technology, powered by a single-phase 230V mains with a maximum welding current of 200A. The device is equipped with a large numeric and graphic LCD screen with an intuitive, easy-to-use control panel. The synergy function used in the device allows for quick setting of welding parameters.

The device has smooth adjustment of welding parameters and is equipped with a thermal overload protection system that prevents excessive overheating. The welding machine is equipped with a 2-roll wire feeder with a "Euro connector" socket, which allows the connection of various types of welding torches of different lengths.

✅ Fe – ordinary steels 0.6 / 0.8 / 1.0 CO2 / Ar+CO2 - program for welding black steel with CO2 or Ar/CO2 shielding.

✅SS - Stainless and acid-resistant steel

✅ AlMg – aluminum and aluminum alloys 0.8/1.0 Ar - program for welding aluminum in Ar shielding.

✅FCAW - welding with self-shielding wire without gas

✅CuSi – brazing 0.8/1.0 Ar - program for copper welding and brazing in Ar shielding.

✅CuAl - Brazing of aluminized sheets

• ⚙ Power supply: 230V
• ⚙ Number of phases: 1ph
• ⚙ Frequency: 50Hz
• ⚙ Power protection: 20A
• ⚙ MIG/MAG welding current: 40 ÷ 200A
• ⚙ TIG welding current: 10 ÷ 200A
• ⚙ MMA welding current: 10 ÷ 170A
• ⚙ Idle voltage: 60 V
• ⚙ Efficiency: 60% (for temp. 40°C)
• ⚙ Feeder: 2-roller
• ⚙ Wire spool diameters: 200D
• ⚙ Max. Spool size: 5kg
• ⚙ Wire diameter: 0,6/0.8//1.0/1.2 mm
• ⚙ Housing protection: IP21S
• ⚙ Cooling: fan
• ⚙ Dimensions: 430x210x315mm
• ⚙ Weight: 10,4kg

• ⭐ welding in synergic and manual mode
• ⭐ soldering
• ⭐ Program adapted to welding aluminium
• ⭐ regulation of inductance
• ⭐ function 2T,4T
• ⭐ welding without gas
• ⭐ welding TIG LIFT
• ⭐ SPOOL GUN output
• ⭐ MMA synergic welding
• ⭐ choice of type of electrodes, function ARC FORCE
• ⭐ graphic selection of thickness of welded material
• ⭐ solid metal feeder
• ⭐ EURO socket

Specifications
