Suvirinimo aparatas MIGOMAT IDEAL TECNOMIG 205 su sinergija ir kauke

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT IDEAL TECNOMIG 205 su sinergija ir kauke. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: Spawarka migomat MIG MAG MIG 200A HRZP_4
• Ilgis: 51 mm
• Plotis: 23 mm
• Aukštis: 37 mm

With this set - you'll be welding right away!

RELIABLE AND PROVEN MODEL ! MULTIPLE WELDING FUNCTIONS !

Manufacturer: IDEAL ║ Welding methods: MIG/MAG, MMA, TIG LIFT - so-called 3IN1 ║ Power supply: 230V ║ Welding current: 30-200A ║ Efficiency: 60% ║ Weight: 15kg

HERE YOU WILL FIND A VIDEO WITH THE PRESENTATION OF THE WELDING MACHINE: https://youtu.be/ovmJimaInws

(LINK TO THE VIDEO SHOULD BE PASTED INTO THE SEARCH ENGINE WINDOW)

✅SET READY TO GO!

✅Readable and easy to use control panel.

✅ Wire spool support: D100 (o,45kg and 1kg) and D200 (2kg and 5kg) -this is a huge advantage if you want to weld various materials with expensive wires (you can then buy only a small roll of wire and mount it in the device)

✅ EURO 3M welding torch

✅ WELDING CURRENT 30-200 A (useful for welding thin sheets)

✅ REGULATION OF INDUCTANCE

✅Possibility of welding without gas

✅ Low weight and mobility of the device

✅ Starting current from 30A!

✅Synergy - Automatic selection of parameters for the welded material

✅ Manual parameter adjustment

✅ IGBT inverter technology

✅ Built-in programs for: STEEL, ALUMINUM, INOX and SOLDERING CuSi

✅ It will work in workshop and industry

✅ Welder easy to use

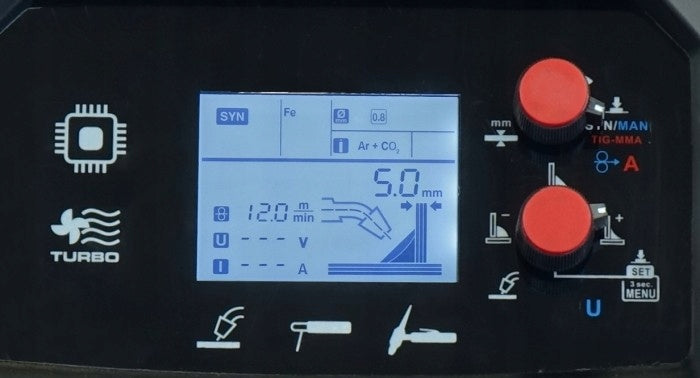

✅ Convenient control panel with LCD display

✅ Funckja Burnback

✅ Overload protection

✅ Handle for easy transport

✅ Light and convenient to carry

✅ ATC function - optimization of thin sheet welding

✅ Fan cooling

✅ The display shows the impact of changing welding parameters on the shape of the weld face (graphically)

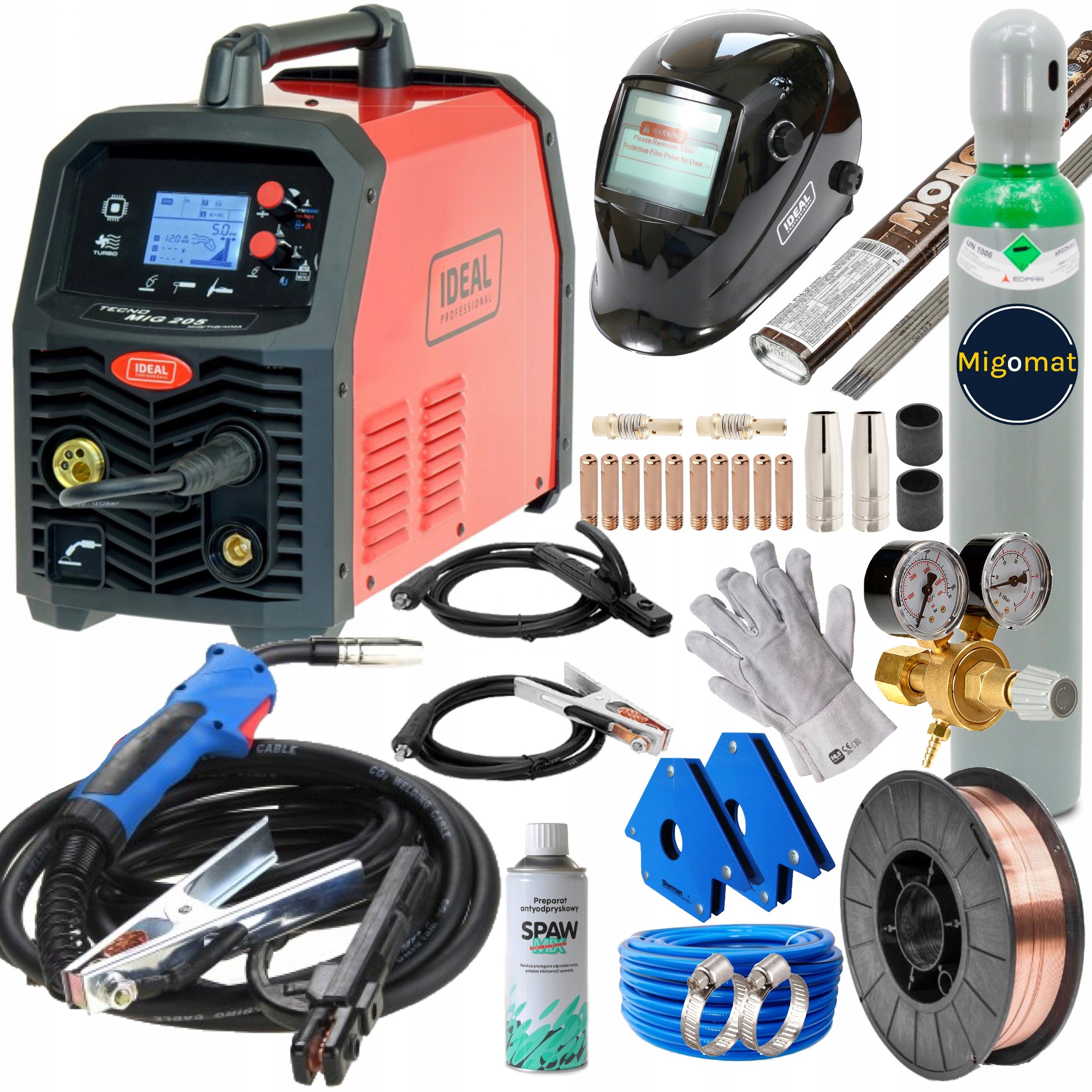

• Welding machine IDEAL TECNOMIG 205 v2 LCD SYNERGY
• Welding torch MIG/MAG type MB 15 - 3m
• Electrode holder - 2m
• Bulk holder - 2m
• User manual in Polish
• power cord with 230V plug

+

• Welding visor Ideal 510G with true colour filter
• new FULL 8l cylinder filled with AR/CO2 mixture Painted according to Polish Standard. Bottles filled. Very light and efficient. Cylinders and valves meet EN 1964-1. Legalization + hassle-free replacement at every gas exchange point.
• welding wire Sg2 0,8/5 KG
• Anti-chipping SPRAY
• welding gloves
• consumables of the welding torch:

• gas nozzles - 2 pcs
• current switches - 2 pcs
• current ends - 10 pcs
• gas distributor - 2 pcs

• reducer for gas cylinders with 2 pressure gauges
• 2 welding angles - very strong
• 1kg rutile electrodes
• hose and 2 clamps

GAS CYLINDER

Gas mixture (MIX): Argon (82 %) Carbon dioxide (18 %) - is currently the most popular shielding gas in the mig/mag welding process. Operating pressure 150 bar. Capacity 8l - 1,5m3 gas.

The cylinder is brand new, full, has legalization.

The cylinder comes with a sturdy metal cap, protecting the gas valve during transport and storage.

The cylinder and valve are made in accordance with EN 1964: 1999, and have the Π mark of compliance with ADR/RID requirements – approved for marketing throughout the European Union. Powder coating of cylinders in accordance with PN-EN standards.

The cylinder is lightweight, compact, easy to transport.

The bottle can be filled at any point of filling gas cylinders.

Capacity [l]: 8

Max working pressure [bar]: 150

Amount of gas: 1,5m3

Dimensions (W x H) [mm] 136 x 820

Weight [kg]:14,5

GAS REDUCER

Single-stage reducer for argon, mixture and carbon dioxide. It allows you to reduce the pressure of gases taken from the cylinder to the required outlet pressure (working pressure) and ensures that this pressure is maintained as constant as possible regardless of changes in the inlet pressure.

• Nominal inlet pressure [bar]: 185
• Exhaust pressure range [bar]: 0.5 - 10
• Rated throughput [m3/h]: 20 m3/h
• Thread at the inlet: W 21.8x1/14
• Thread of nut at outlet: G 1/4
• Exhaust connector (ø) [mm]: 6,3

Self-tinting visor APS-510G black Ideal with TRUE COLOR filter (with actual color reproduction)

Designed for welding using the MIG/MAG, TIG and TIG PULSE and MMA method, equipped with a grinding function.

Thanks to the advanced technology of actual color reproduction of the filter, during welding colors will be true, only slightly dyed with a green glow.

• High quality filters LCD in optical class 1/1/1/2.
• Power source: photovoltaic cell + replaceable battery.
• 4-spoke adjustable headrest ensures comfort of use.
• The shell conforms to EN175B for greater impact resistance.

Optical class of filter 1/1/1/2

PHYSICAL PARAMETERS

Type of welding filter: APS-510G

Weight:475g

Filter dimension: 96x39 mm

TECHNICAL PARAMETERS

Response time: < 1/30000s

Number of sensors:2

Optical class: 1/1/1/2

UV/IR protection: up to 16 DIN

Dimming adjustment: 4/9-13 DIN

Adjustable sensitivity: √

Adjustable Latency: Gradually 0.1-1.0s

Standard:CE, EN175B, EN379, EN166

Battery Depletion Indicator: √

Power supply: Photovoltaic cell + battery 1xCR2032

APPLICATION:

Plasma cutting√

MIG/MAG; MMA√

Grinding√

TIG, minimum current value √, >10A

WELDING WIRE

Wire designated SG-2. Wire thickness 0,8mm Copper welding wire of high quality - SG2 - is a universal electrode wire designed for welding low carbon steels, and structural by MIG MAG method. It is one of the most popular wire grades used for CO2 shielded welding and Ar/CO2 mixture. The wire has approvals and approvals.

Wire can be welded: low carbon steels, structural steels, sheet metals, ship steels, permanently designed for boilers, etc.

WELDING ANGLES

Set of 2 welding angles, magnetic holders. Lifting capacity: 12,5 kg

SUPER STRONG welding torches for workshop and industrial work.

It makes it easier to hold the structural elements at the right angle. Thanks to this, you do not need the help of bystanders when welding moving parts.

Welding angles can be used for angles:

• 90 degrees
• 45 degrees
• 135 degrees

The proposed magnetic angles have a maximum lifting capacity of 12,5 kg

CHARACTERISTICS:

Magnetic angles are used to hold the welded material during joints in one plane or at an angle of 135, 90 and 45 degrees. They provide a solid fixation of the welded material, thanks to a magnet with unique features and power. They work well during welding work with pipes, flat bars, profiles and sheet metal. They are built with strong, high durability magnets, shielded by a solid steel housing - resistant to high temperatures and welding chips.

Inverter semi-automatic welding recommended for flashing and workshop applications.

The Ideal TECNOMIG 205 welder with LCD display allows full control of welding parameters. The clear display with high contrast allows you to work in bright rooms. Two operating modes : MANUAL - in this mode, the user manually sets welding parameters such as welding current, wire feed and inductance. SYNERGY - the microprocessor selects the settings of the welding machine based on: the type and thickness of the welded material and the type of gas and wire diameter. The operator adjusts the parameters to his own needs from -9 to +9. The biggest advantage of this type of welding machine is fast and automatic selection parameters welding thanks to built-in programs. After giving the basic parameters, it is enough to adjust the welding machine with one knob. Thanks to this solution, you can weld any material very precisely, without unnecessary waste of time on the selection of appropriate parameters.

TECHNICAL SPECIFICATION OF THE WELDING MACHINE

POWER SUPPLY PARAMETERS

• TECHNICAL PARAMETERSAVAILABLE FUNCTIONSDATA OF THE FEEDER

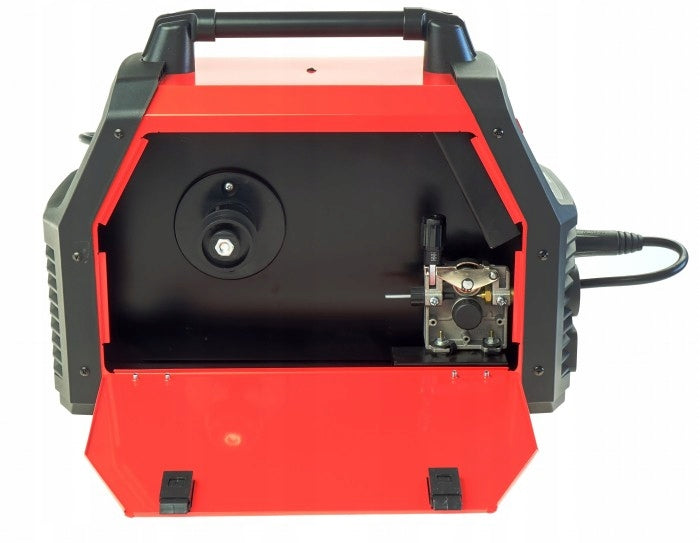

• Feeder: 2R
• Applied spool weights: 1-5kg
• Spool size: D100/D200
• Wire diameter: 0.6/0.8/1.0mm
• MMA function: YES
• TIG LIFT function: YES - rubbing
• SYNERGY function: YES
• HOT START function: YES
• ARC FORCE function: YES
• Gas-free welding function: YES
• MMA welding current: 20-150A
• TIG welding current: 20-150A
• MIG/MAG welding current: 30-200A
• Efficiency: 60%
• Idle voltage: 64V
• Aluminum wire diameter: 0,8 - 1,0 mm
• Diameter of solder wire: 0,8 - 1,0 mm
• Diameter of self-shielding wire: 0,8 - 1,2 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Stainless steel wire diameter: 0,8 - 1,0 mm
• Diameter of welding electrode: 1,6 - 3,2 mm
• Power supply: 230V - 1PH
• Frequency: 50Hz
• Power protection: 25C
• Current taken from the network: 20,3A

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	7.7 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	3.2 mm
Parametry	Wire diameter (mm)	0,8-1,0
Parametry	Device weight	16 kg
Parametry	Welding range	35–200 A
Parametry	Height	37 mm
Parametry	Length	51 mm
Parametry	Width	23 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	24 kg
Parametry	Manufacturer code	Spawarka migomat MIG MAG MIG 200A HRZP_4
Parametry	EAN (GTIN)	5904624015479
Parametry	Packaging status	original
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle,LCD display
