Suvirinimo aparatas MIGOMAT IDEAL MIG 200A MMA TIG komplektas

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT IDEAL MIG 200A MMA TIG komplektas. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: MIGOMAT IDEAL TECNOMIG 205 XRS10

Synergistic MIG with aluminum welding function and ATC function for thin sheet welding.

Welding methods: MIG/MAG, MMA, TIG DC LIFT | Important functions: Synergy, 2T/4T, ATC function | Welding current: up to 200A

IDEAL TECNOMIG 205 LCD SYNERGY - PROVEN MIG WITH SYNERGISTIC PROGRAMS FOR WELDING ALUMINUM AND SOLDERING CuSi3

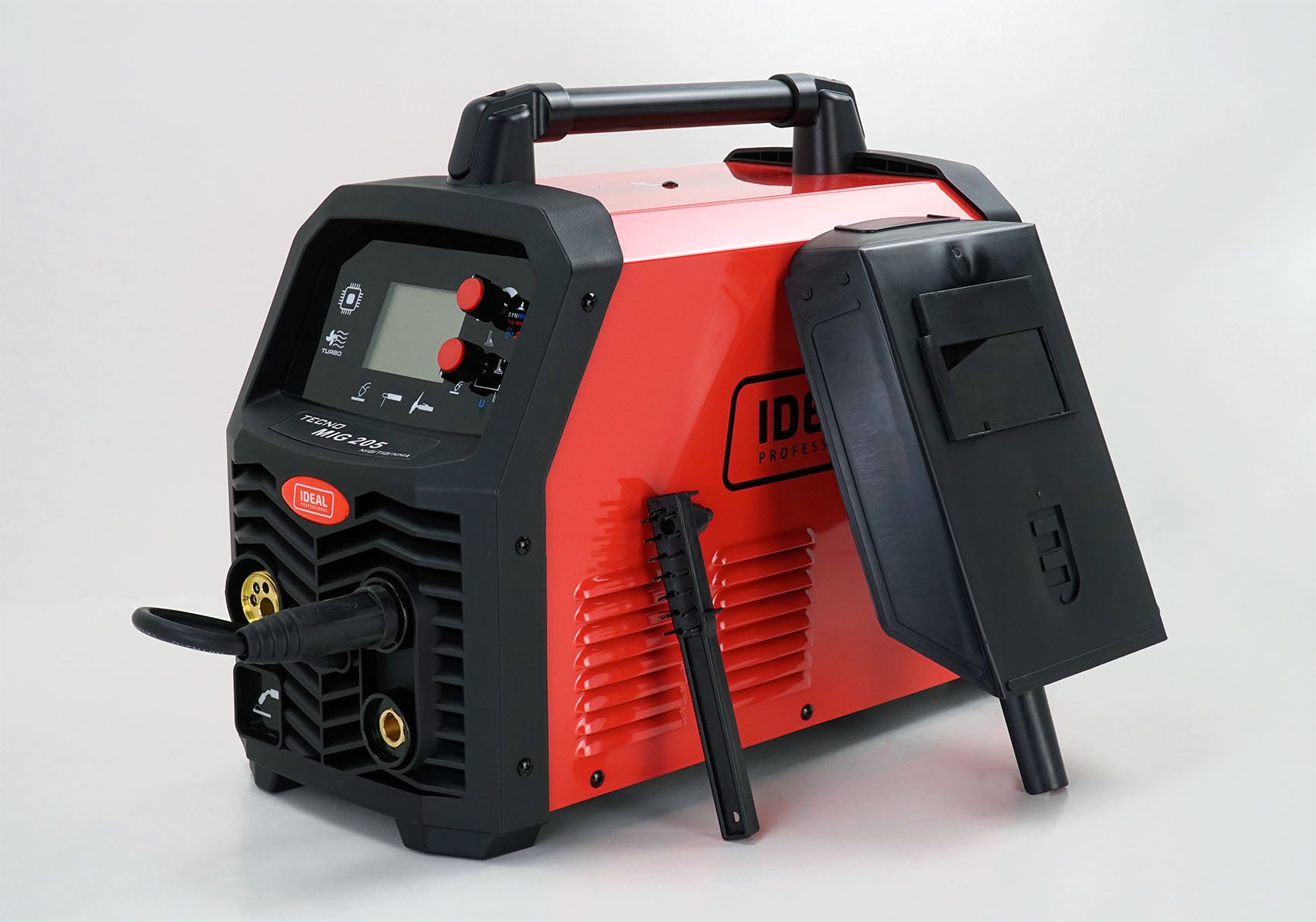

Migomat TECNOMIG 205 Synergy LCD by IDEAL is a technologically advanced welding device for MIG/MAG, MMA, TIG DC Lift, FCAW and solder welding methods.

It is designed for all kinds of welding work in repair workshops, locksmiths, in production and in the automotive industry. It has a special program for welding aluminum and for soldering galvanized sheets.

GREAT PRICE, SOLID WORKMANSHIP, GREAT FEATURES

The device is powered from a single-phase 230V network and allows maximum current welding in the MIG/MAG method up to 200A.

TECNOMIG 205 Synergy LCD has been designed for a wide range of applications: from maintenance work to car body repairs.

It is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas shield, active or mixture and with reverse polarity without gas.

LEARN ABOUT THE IMPORTANT ADVANTAGES OF THIS WELDING MACHINE:

• Power supply 230V
• Easy-to-read LCD display
• MIG/MAG welding: manual parameter settings or synergistic programs
• Additional MIG/MAG functions: feeder access speed, inductance adjustment, wire burning height after welding, gas outflow time after welding
• MiG/MAG spot welding
• Welding MIG/MAG - 2T/4T
• ATC function - support for MIG/MAG welding of materials less than 1,5mm thick

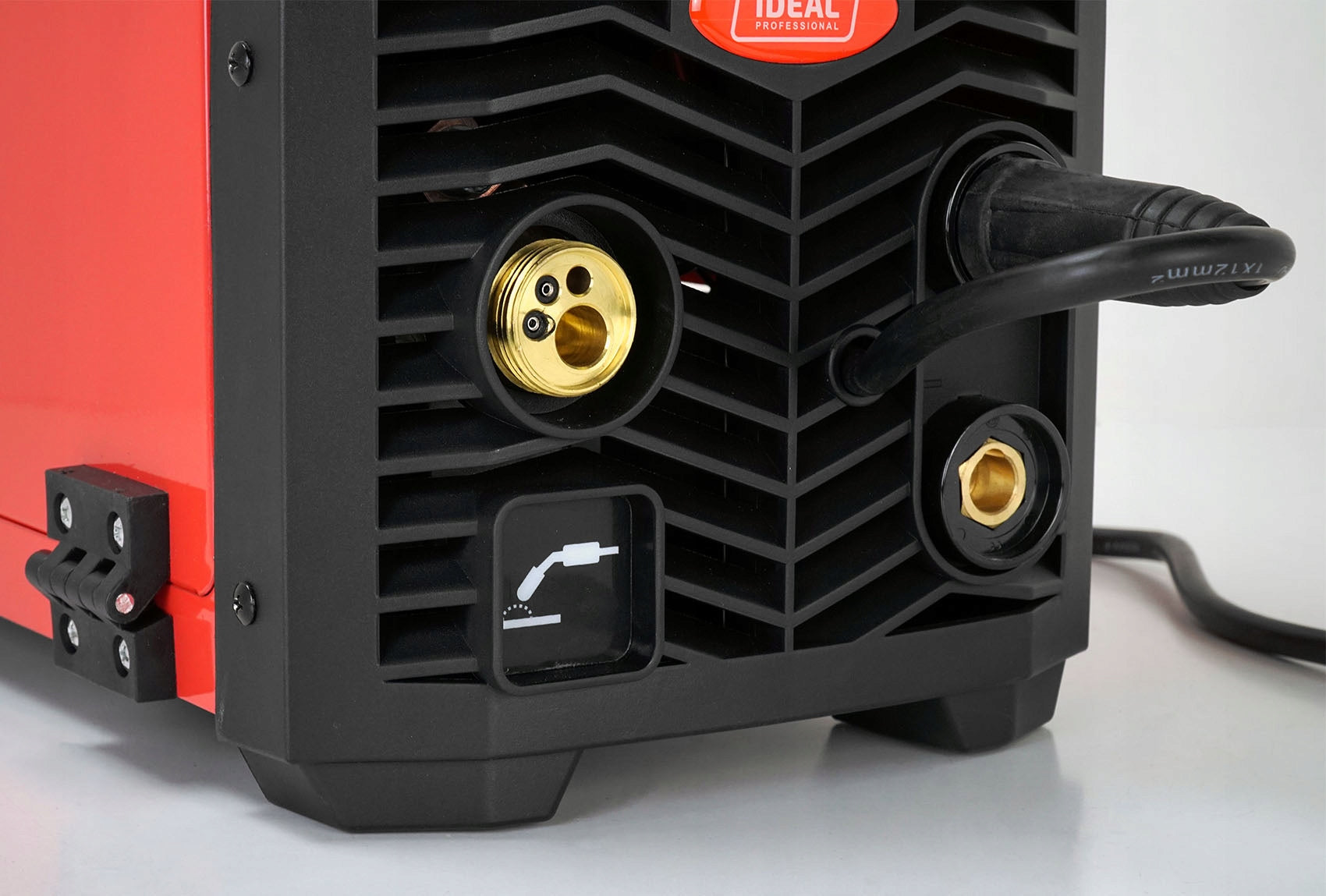

• EURO socket
• TIG DC Lift welding (optional)
• MMA wrapped electrode welding

PROFESSIONAL WIRE FEEDER 2R

Uneven wire feeding threatens worse weld quality and more welding chipping. MIG 205 Synergy LCD is equipped with a professional wire feeder with a two-roll mechanism that ensures its smooth and reliable feeding to the MIG welding torch.

• Power Supply: 230V
• Welding methods: MIG, MAG, MMA, TIG DC Lift, FLUX
• Working cycle: 60%
• Current taken from the mains: 20,3A
• LCD display
• Degree of protection: IP23S
• Dimensions: 540x240x385 mm
• Net weight: 16kg

MIG/MAG welding parameters:

• Welding current: 35 - 200A
• Current at 60% duty cycle: 200A
• Current at work cycle 100%: 160A
• Welding Voltage: Smooth Adjustment
• Wire feed speed: smooth adjustment
• Synergistic programmes: YES
• MIG/MAG spot welding: YES
• Function of ATC

• Diameter of aluminum wire: 0,8 - 1,0 mm
• Wire diameter for soldering: 0,8 - 1,0 mm
• Self-shielding wire diameter: 0,8-0,9 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Stainless steel wire diameter: 0,8 - 1,0 mm

MMA welding parameters:

• Welding Current: 20-150A
• Idle Voltage: 64V
• Electrode diameter 1,6-3,2mm

TIG welding parameters (optional):

• Welding Current: 20-150A
• Output Current: DC Constant
• Arch ignition: contact - TIG Lift

SYNERGIC MIG/MAG PROGRAMS:

• Fe - constantly ordinary
• SS - stainless steel
• Al - welding aluminium
• CuSi, CuAl -lutowelding
• FLUX - welding with self-shielding wire

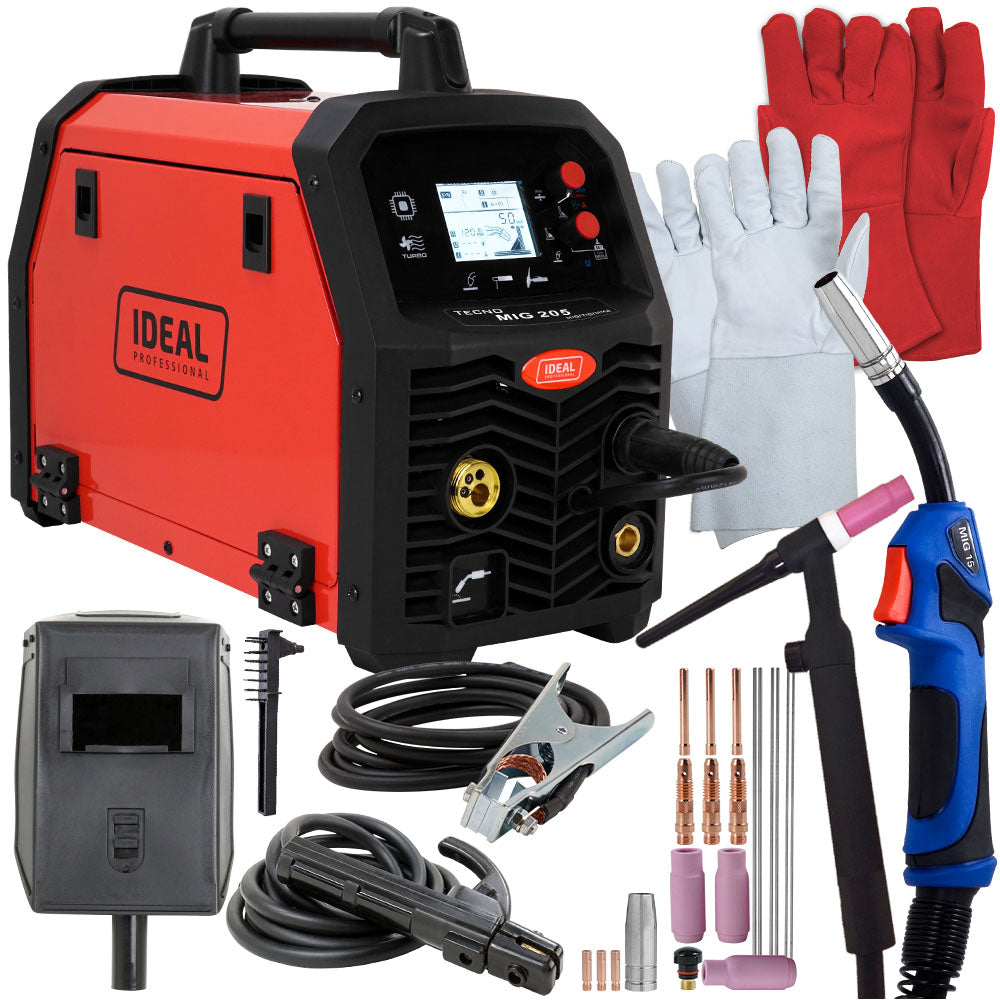

• Welding machine IDEAL TECNOMIG 205 LCD Synergy
• MIG welding torch type MB 15 3m
• MMA Electrode Cable
• Bulk cable
• User manual in Polish

+ ADDITIONAL ACCESSORIES

• welding disc,
• brush-hammer.

+ MAG WELDING KIT

• MAG welding gloves,
• starter set of burner parts.

+ TIG WELDING KIT

• TIG welding torch with valve,
• TIG welding gloves,
• enlarged starter set of the burner part – includes, among others, tungsten electrodes, clamping bushings, connectors and ceramic nozzles.

Specifications
