Suvirinimo aparatas MIGOMAT IDEAL MIG 200 MMA TIG SYNERGY ALU SYN Pulse MAG

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT IDEAL MIG 200 MMA TIG SYNERGY ALU SYN Pulse MAG. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: Spawarka Ideal TECNO MIG 200 PULSE LCD XRS2
• Ilgis: 510 mm
• Plotis: 230 mm
• Aukštis: 370 mm

Welding methods: MIG/MAG, MMA, TIG Lift, FLUX | Important functions: Pulse, Dual pulse, Synergy, 2T/4T, Arc Force, Spot welding | Welding current: to 200A

PROFESSIONAL MIGOMAT FOR WELDING ALUMINUM, BLACK STEEL, STAINLESS STEEL AND MORE

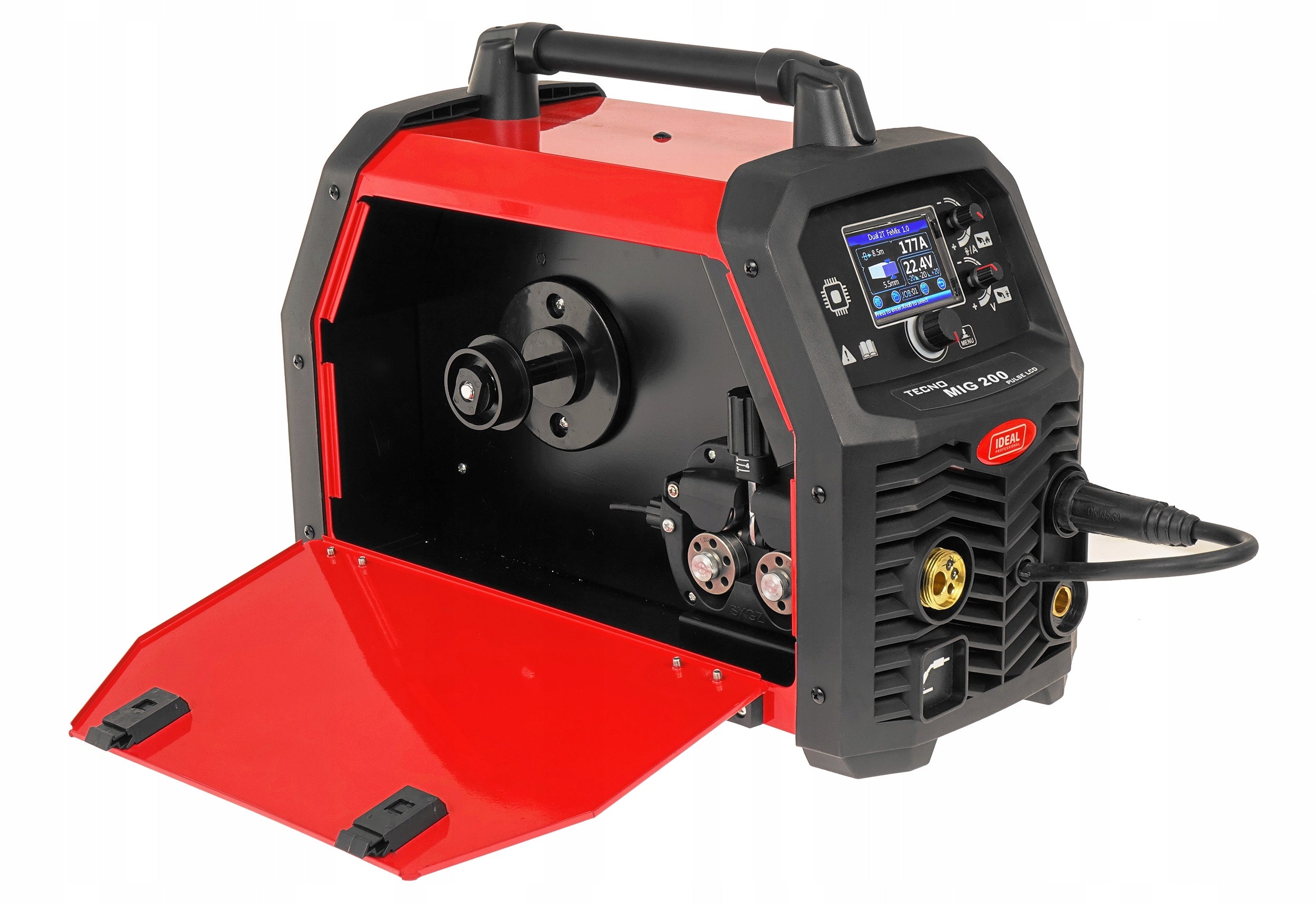

TECNOMIG 200P PULSE is an inverter synergic semi-automatic welding machine designed for arc welding using MIG/MAG, MMA, TIG Lift, and soldering galvanized sheets. The device is designed for use in professional use.

The device has three synergistic MIG/MAG welding modes: MIG, MIG PULS, MIG DOUBLE PULS.

TECNOMIG 200P PULSE is used for welding aluminum and its alloys, stainless steel, carbon and low alloy steels and soldering galvanized sheets. Welding is carried out in an inert gas, active gas or mixture, depending on the program selected on the control panel.

Set parameters manually or choose one of the 52 synergistic MIG/MAG programs for welding: AlMg, AlSi, Al99,5, CuSi3, CuAl9, 308LSi, 316LSi and FE.

DISCOVER THE ADVANTAGES OF THE TECNO MIG 200 PULSE WELDING MACHINE

• smooth adjustment of all welding parameters,
• synergy - the device has synergistic programs,
• pulse and double pulse mode,
• 2T/4T operating modes - weld as standard in 2T mode or switch to 4T mode when you have a lot of work and long welds to position,
• accurate adjustment of the length of the welding arc,
• regulation of welding inductance - wider face and smaller melt or narrow face and deep melt? Choose the optimal settings for the work you are currently doing, thanks to the MIG/MAG welding inductance adjustment,
• regulation of wire burning and access,
• regulation of voltage at pulsation (peak),
• regulation of gas outflow time before and after welding,

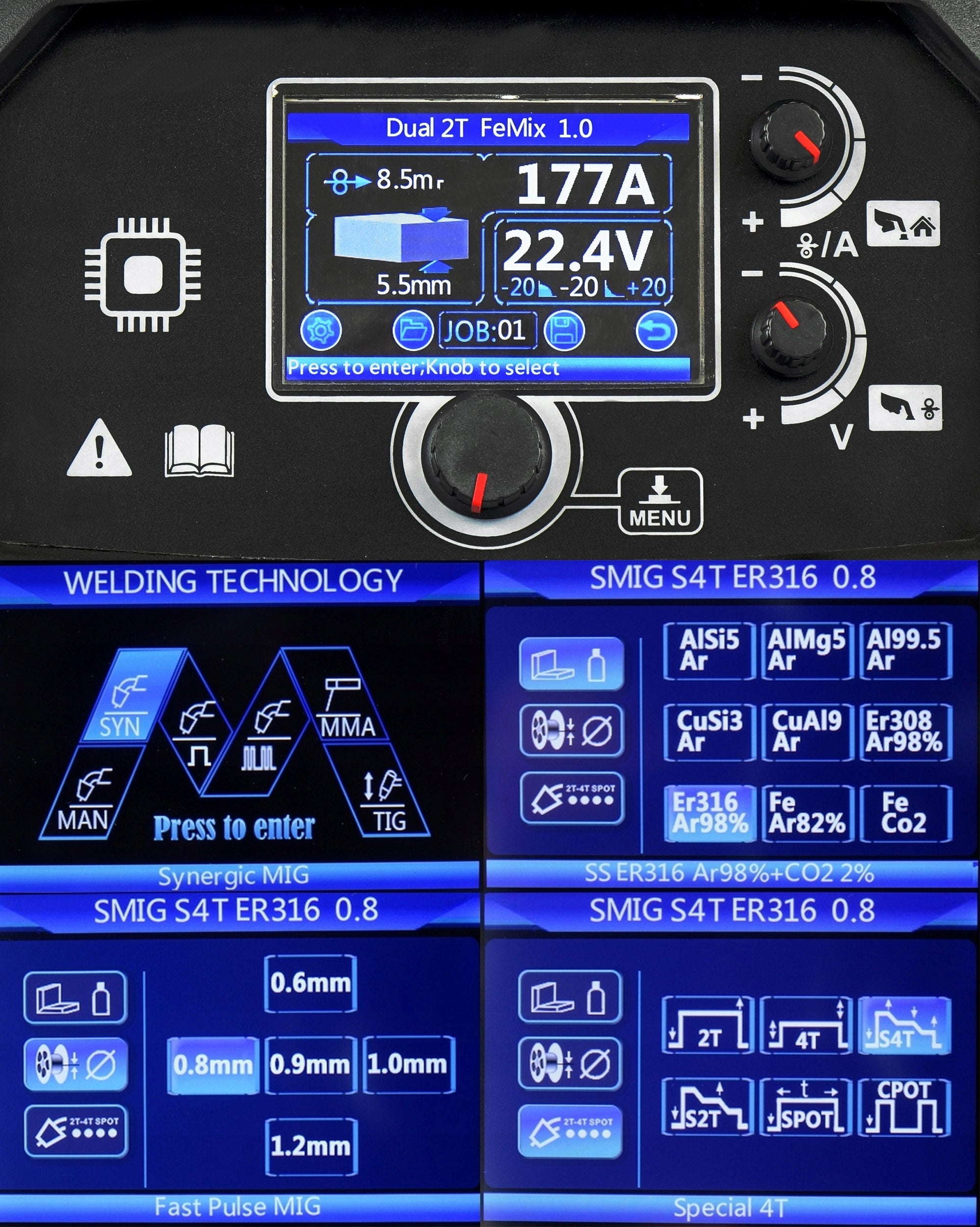

• readable LCD display, showing all parameters,
• possibility of TIG DC Lift welding,
• regulation of frequency, cycle and pulse current in TIG Lift,
• MIG spot welding.

PROFESSIONAL 4x4 FEEDER

Professional 4R feeder - reliable wire feeding regardless of spool weight, handle length and welding wire type. Proven mechanism.

Additional features to improve MMA welding

• MMA PULSE: pulsation adjustment allows for higher weld quality and less chipping and welding dust by controlling the temperature and density of the welding current.
• ARC FORCE: short-circuit current adjustment (manual) - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake
• HOT START: hot start adjustment (manual) - facilitates the ignition of the electrode by providing more welding current with each arc.
• ANTI STICK: anti-short-circuit - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents the accidental formation of a welding arc
• VRD (Voltage Reduction Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments.

Power supply parameters:

• Supply Voltage: Single Phase 230V
• Technology: IGBT Inverter
• Current taken from the mains: 25A
• Power: 6,5kW
• Degree of protection: IP 23S
• Dimensions: 510x230x370 mm
• Weight: 12,5kg

MIG/MAG welding parameters:

• MIG/MAG welding current: 28 - 200A
• MIG/MAG duty cycle: 60% 200A, 100% 160A
• MIG/MAG welding voltage: smooth adjustment
• Wire feed speed: smooth adjustment
• Spool with wire: max 5kg (D200)

• Diameter of aluminum wire: 0,8 - 1,2 mm
• Wire diameter for soldering: 0,8 mm
• Diameter of self-shielding wire: 0,8 - 1,0 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Stainless steel wire diameter: 06 - 1,0 mm

• MIG/MAG welding polarity change: YES
• Welding Inductance Adjustment: YES
• Synergistic MIG/MAG programs: YES - 52 programs
• Operating mode in manual settings MANUAL: YES
• MIG/MAG pulse mode: YES

TIG welding parameters:

• TIG welding current: 5 - 200A
• Output Current: DC Constant
• Arch ignition: contact - Lift
• TIG duty cycle: 60% 180A
• TIG welding current regulation: smooth

MMA welding parameters:

• MMA welding current: 5 - 180A
• Electrode diameter: 1,6 - 4,0 mm
• MMA Welding Current Adjustment: Smooth
• MMA Pulse Mode: YES
• Arc Force Function: YES
• Hot Start Function: YES
• Anti-Stick Function: YES
• VRD Function: YES

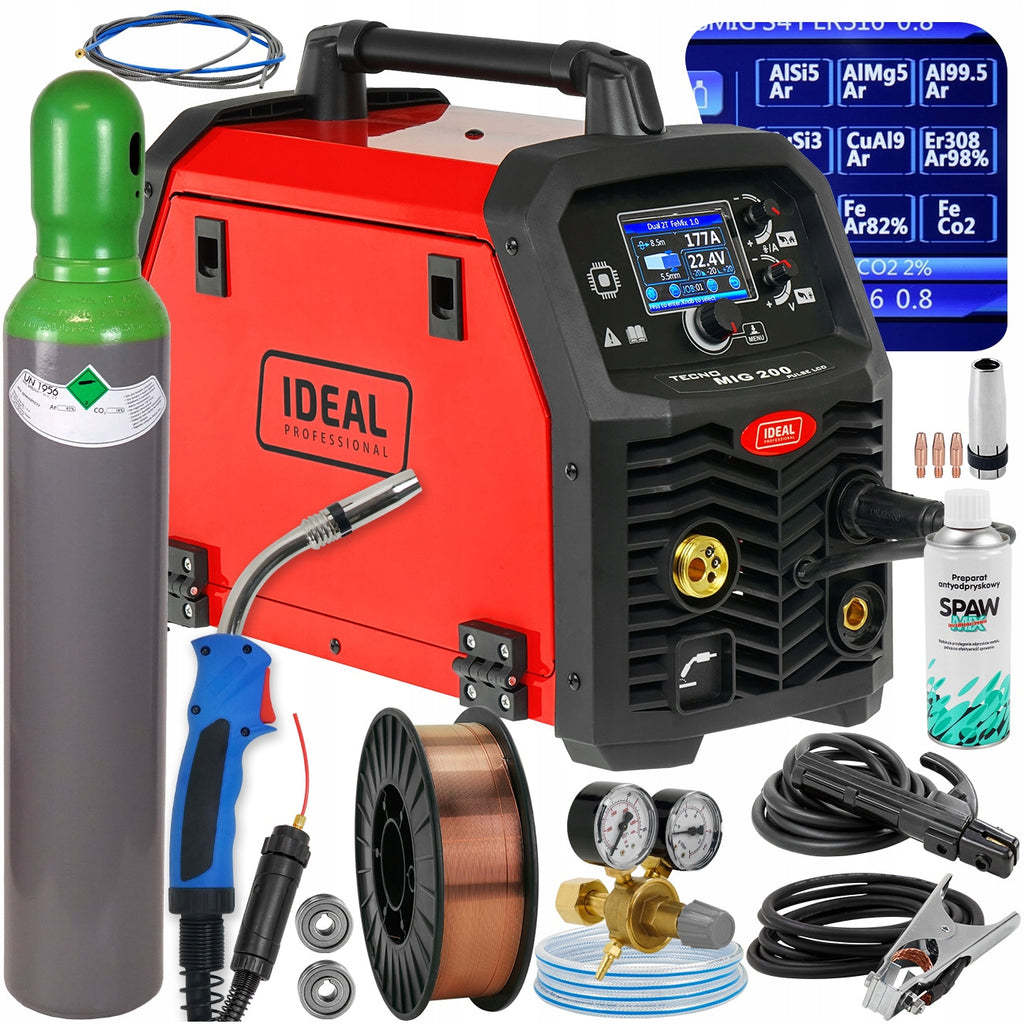

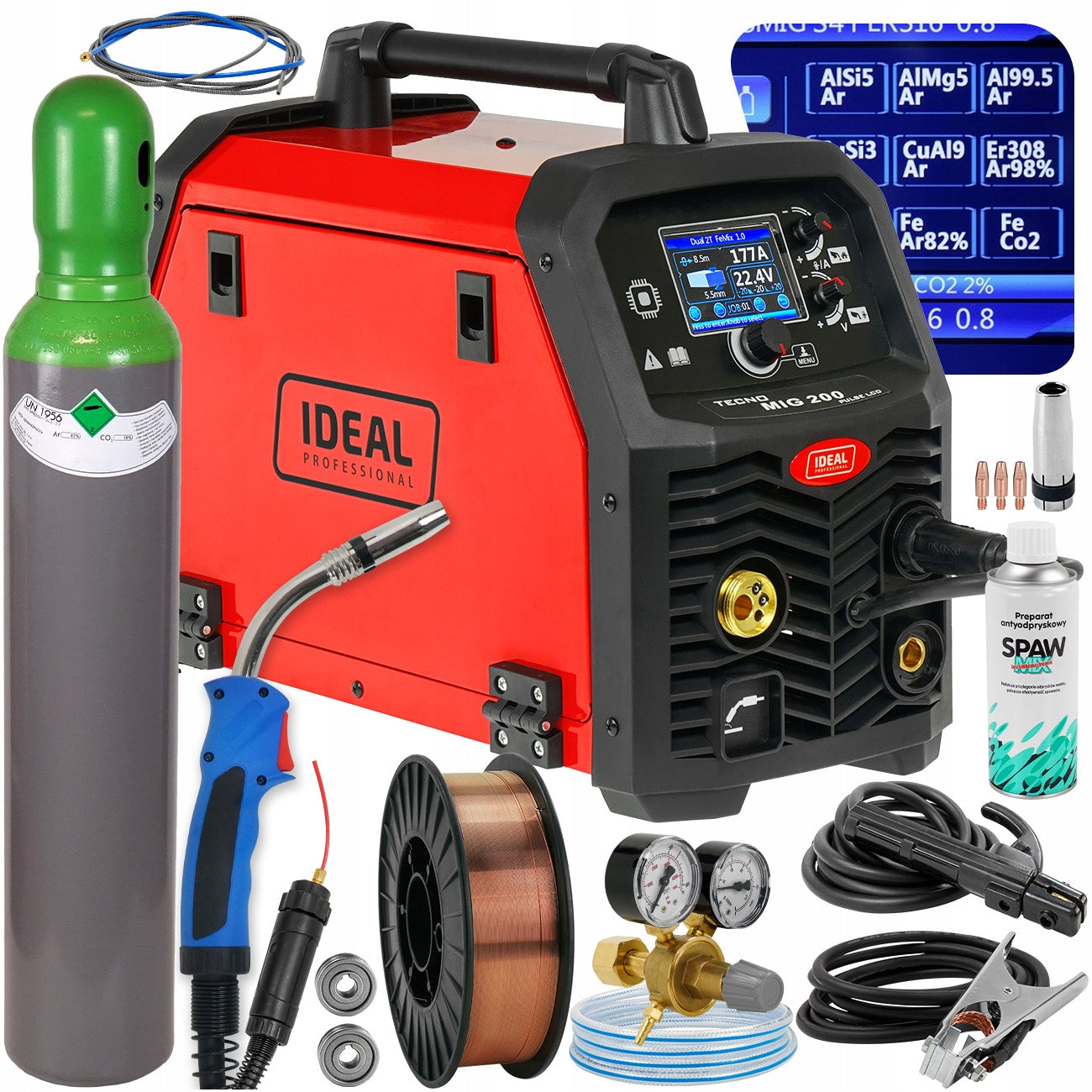

SET COMPOSED BY A PROFESSIONAL WELDER WITH MANY YEARS OF EXPERIENCE

• IDEAL TECNO MIG 200 PULSE LCD
• MIG EURO MB 24 / 3m welding torch
• MMA Electrode Cable
• Bulk cable
• User manual PL

+ ADDITIONAL ACCESSORIES

• Teflon insert for aluminum wire (mounted in the holder).
• Roll for aluminium feeder - 1,0 / 1,2
• Roll for feeder - 0,8 / 1,0

+ MAG WELDING KIT WITH 8L CYLINDER

• factory new cylinder Ar/CO2 8l (so-called. mixture) - has all the necessary certificates - reusable, it can be filled or replaced at gas sales points,
• welding wire steel SG2 5kg 0,8mm (D200),
• spiral insert for steel wire,
• reducer Ar/CO2 with two clocks,
• Spaw Mix anti-chipping spray 400ml,
• starter set of burner parts,
• gas line.
